Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · General

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

155 part groups · 16 illustrations

Illustrations

MBE630E 1982-11 → 1984-08

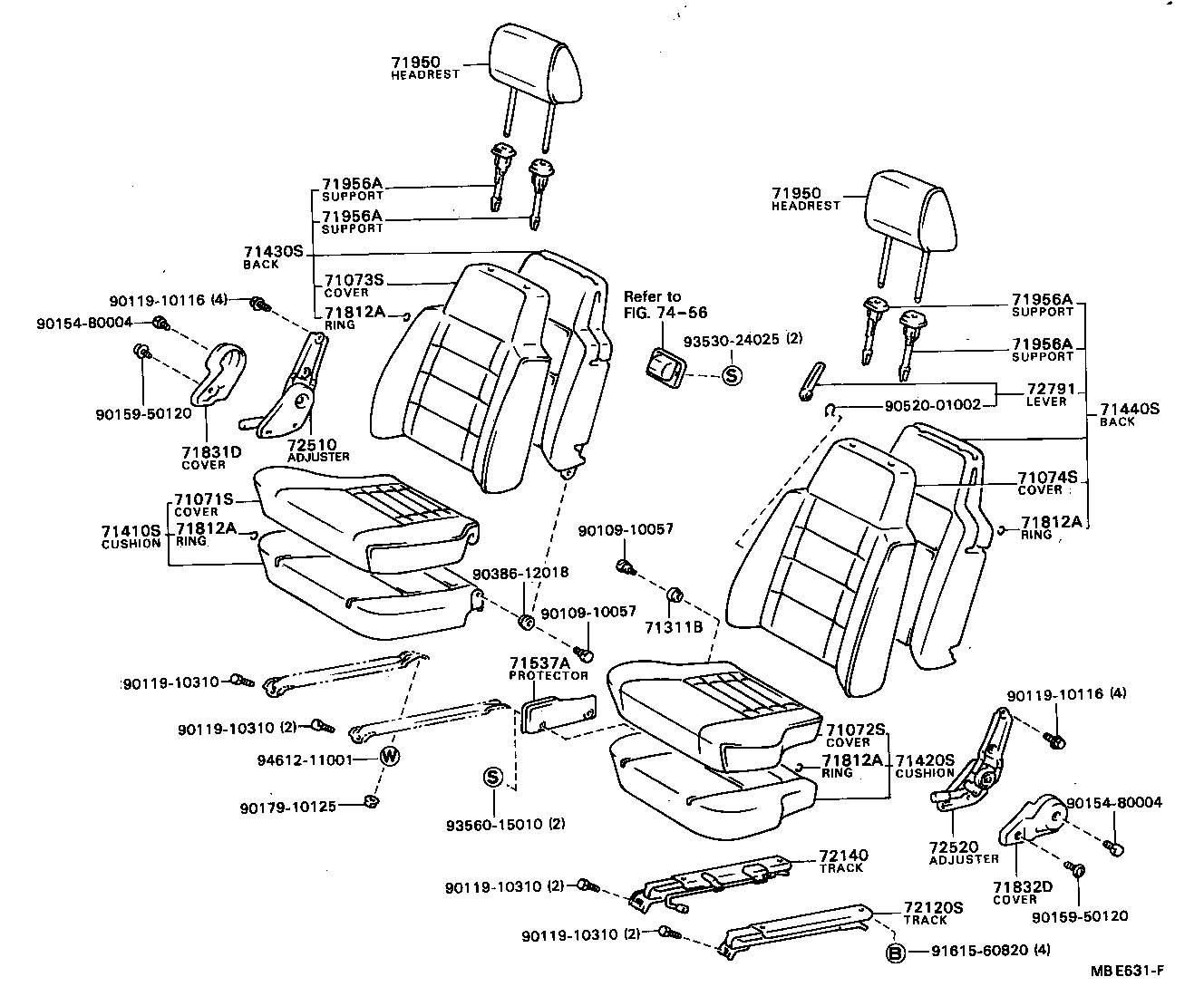

MBE631F 1982-11 → 1984-08

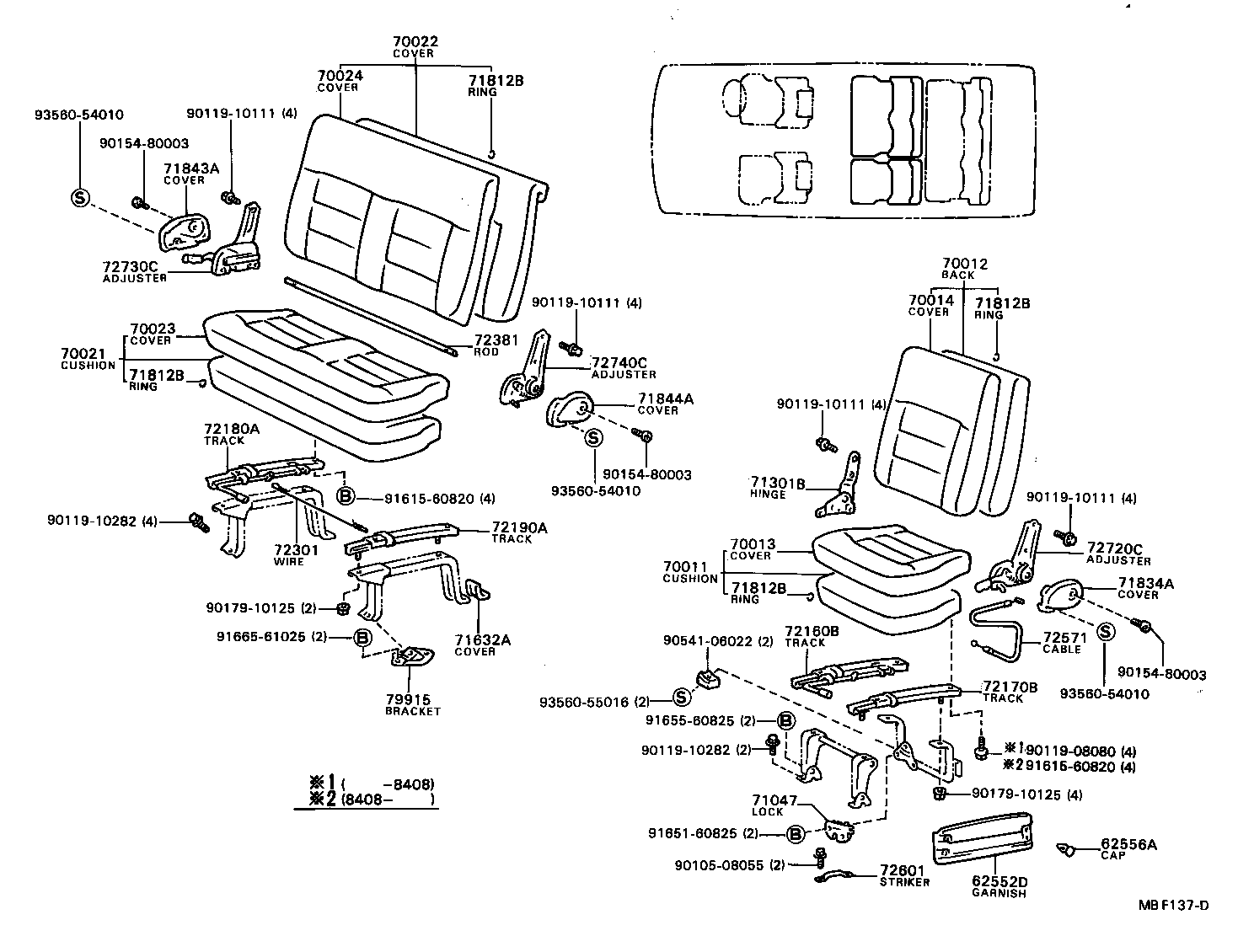

MBF137D 1982-11 → 1984-08

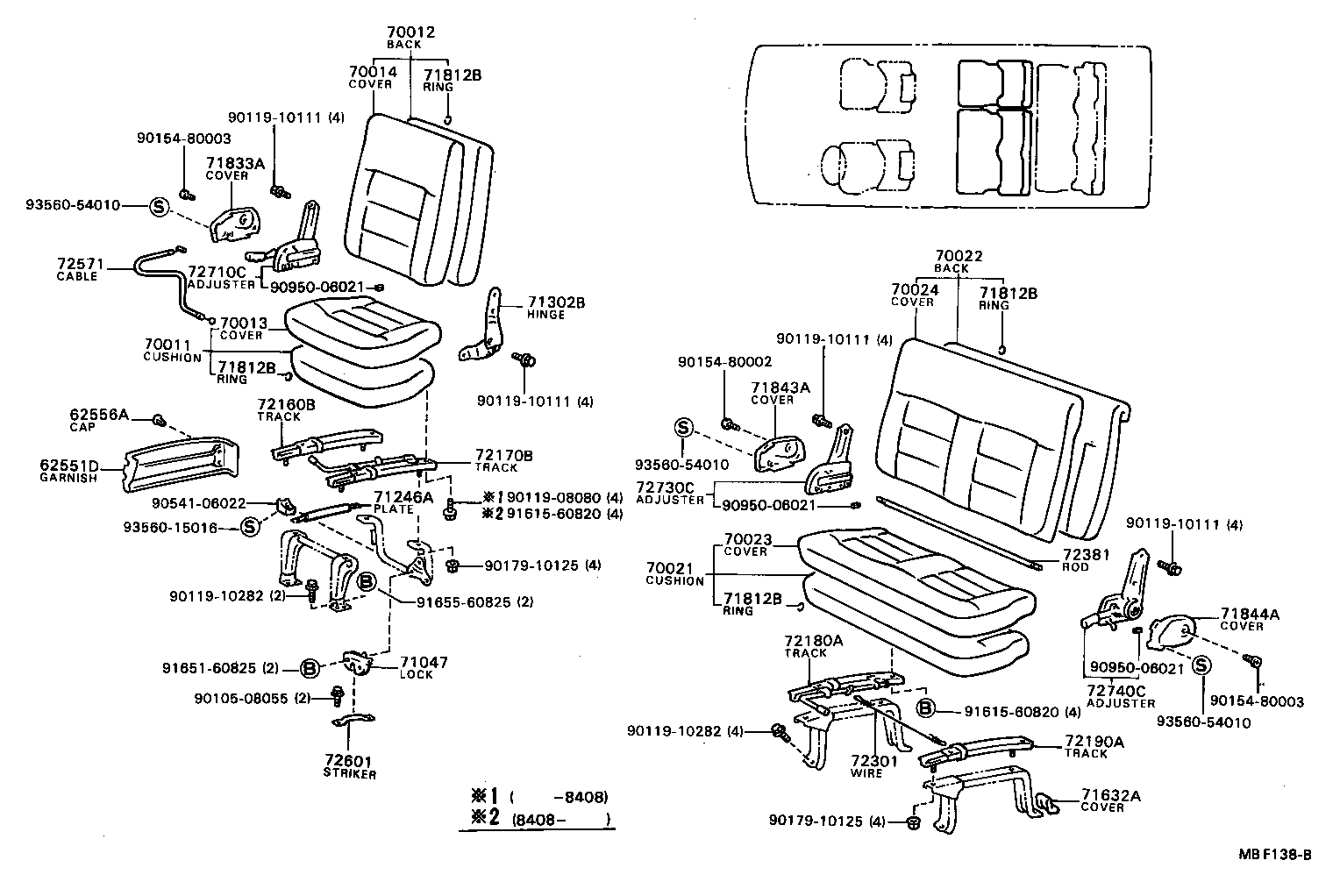

MBF138B 1982-11 → 1984-08

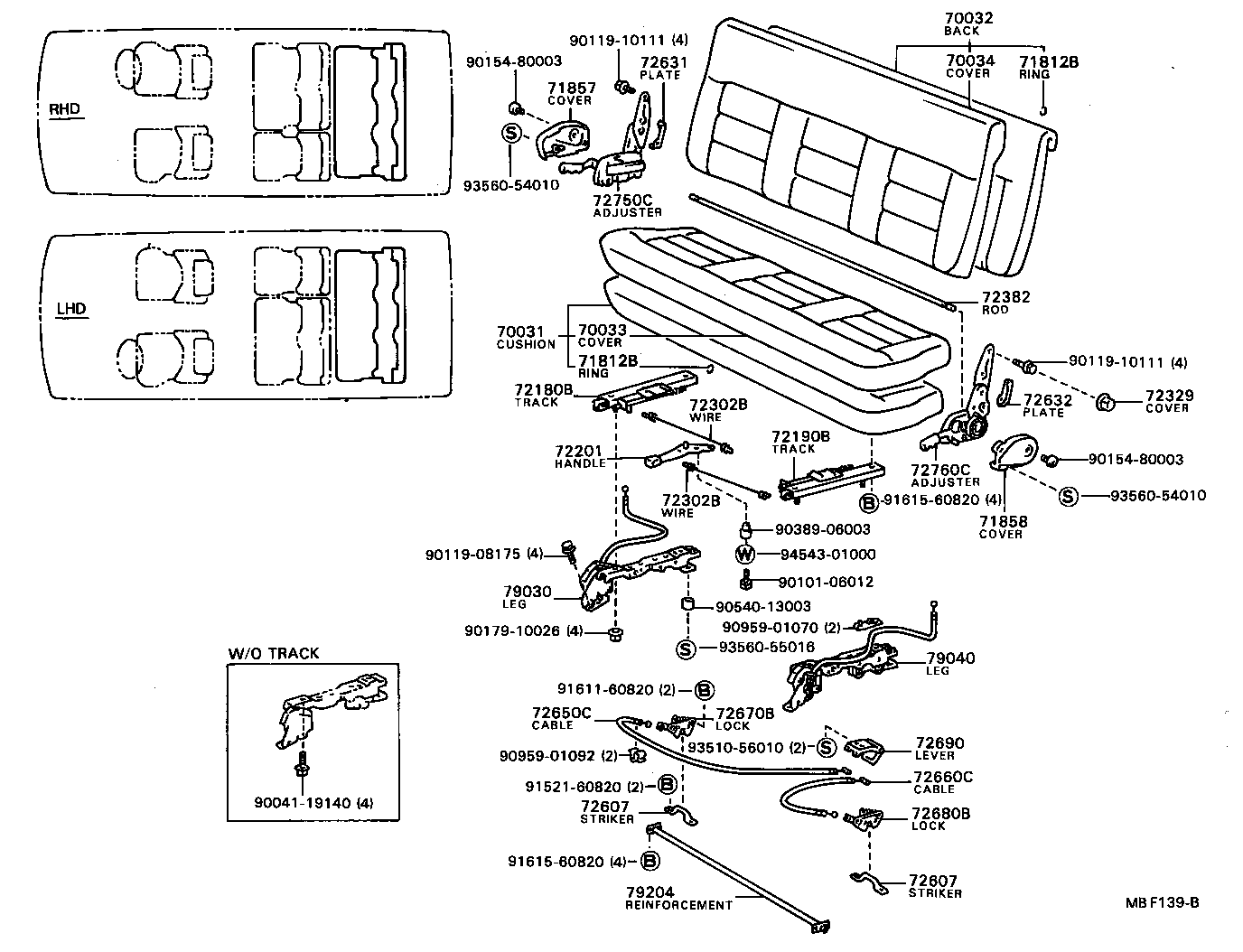

MBF139B 1982-11 → 1984-08

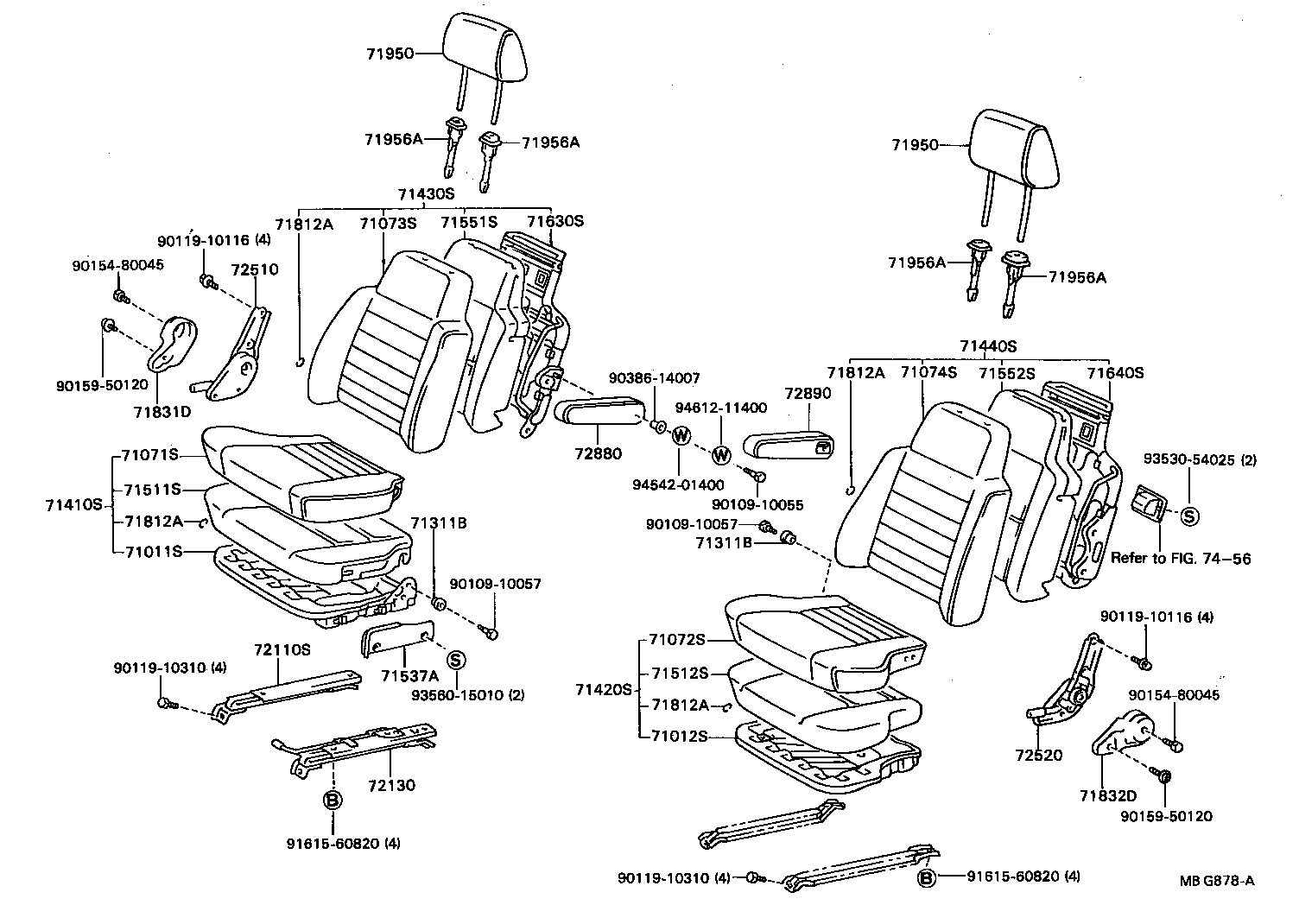

MBG878A 1984-08 → 1985-08

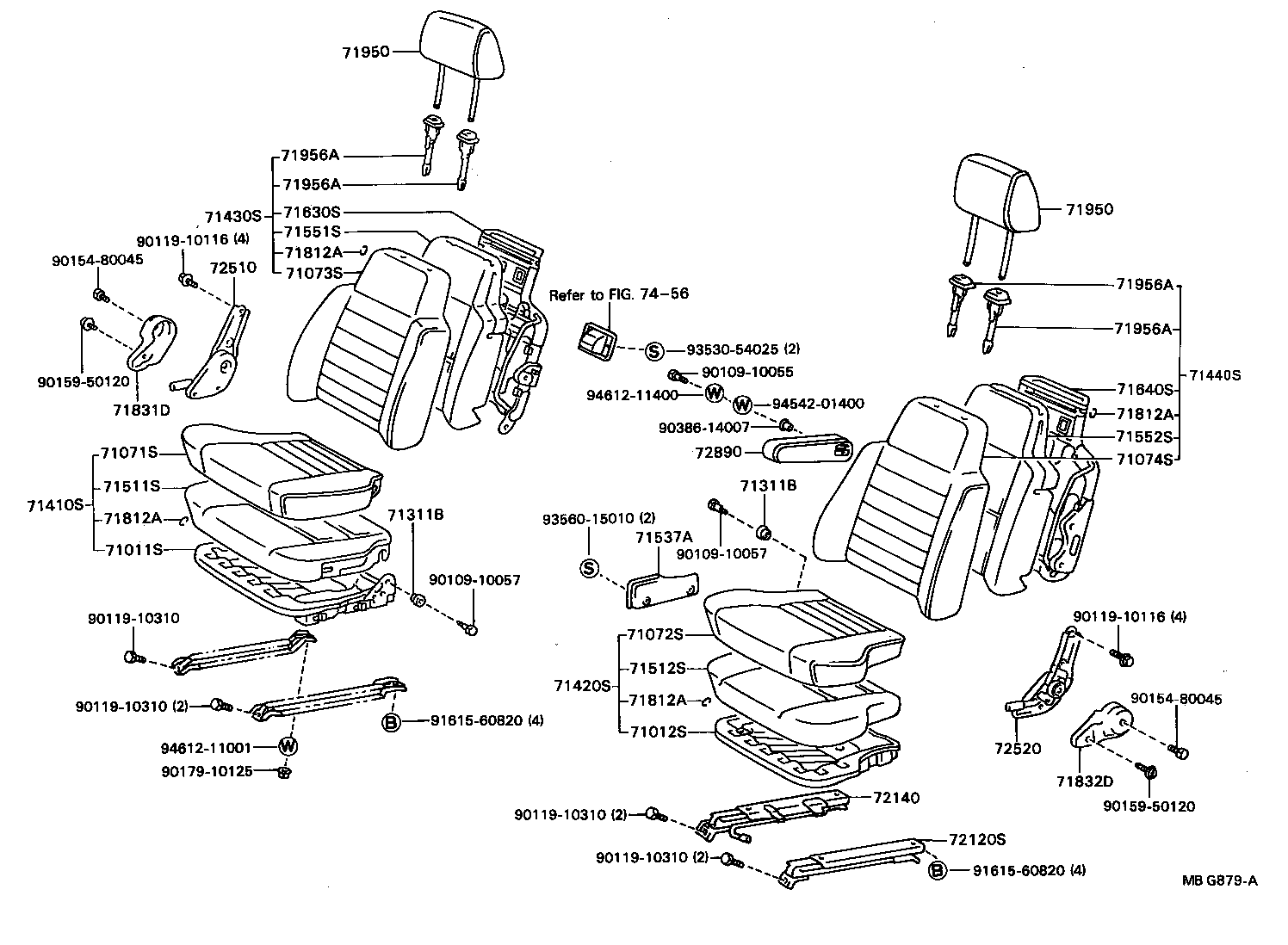

MBG879A 1984-08 → 1985-08

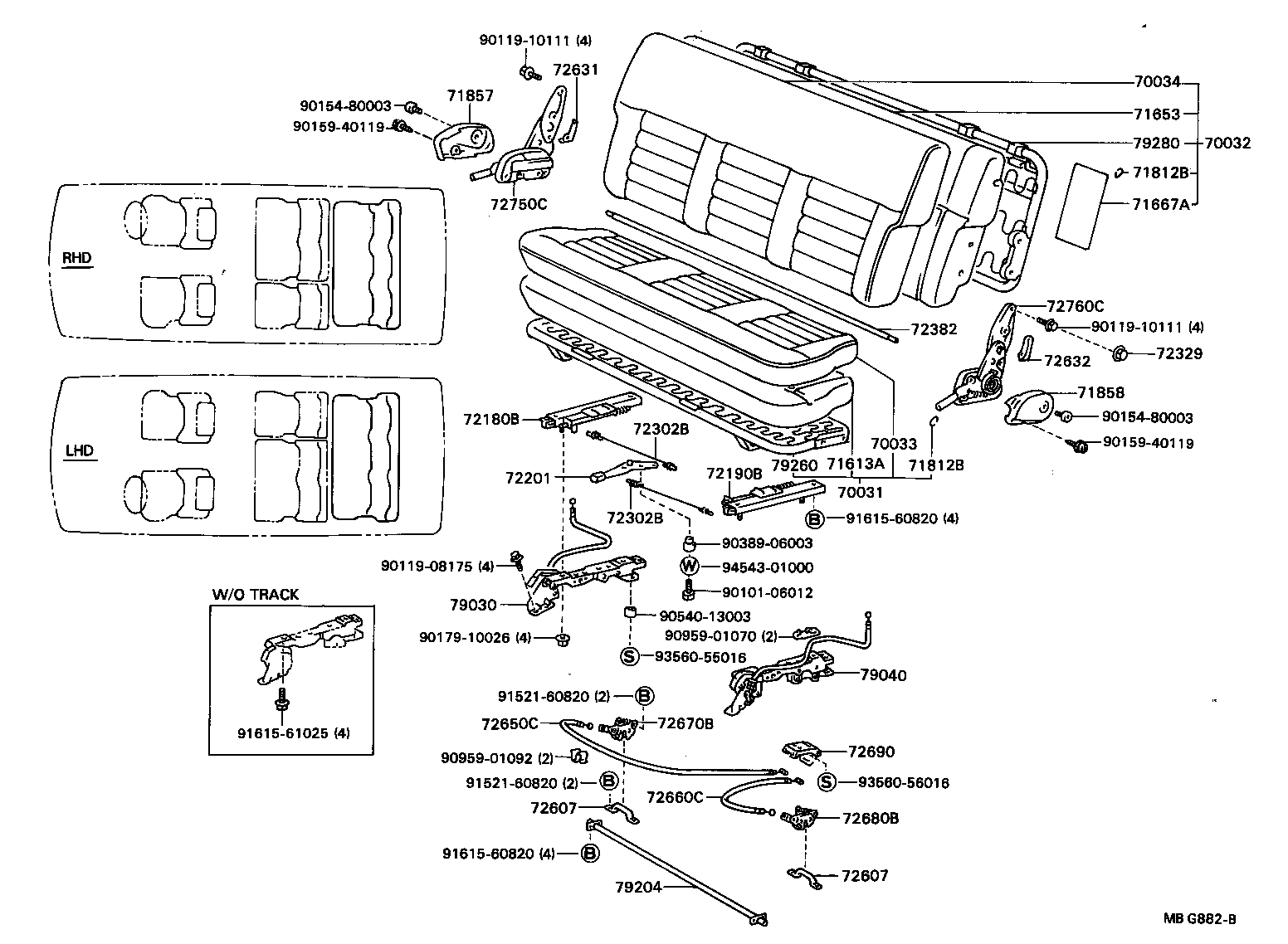

MBG882B 1984-08 → 1985-08

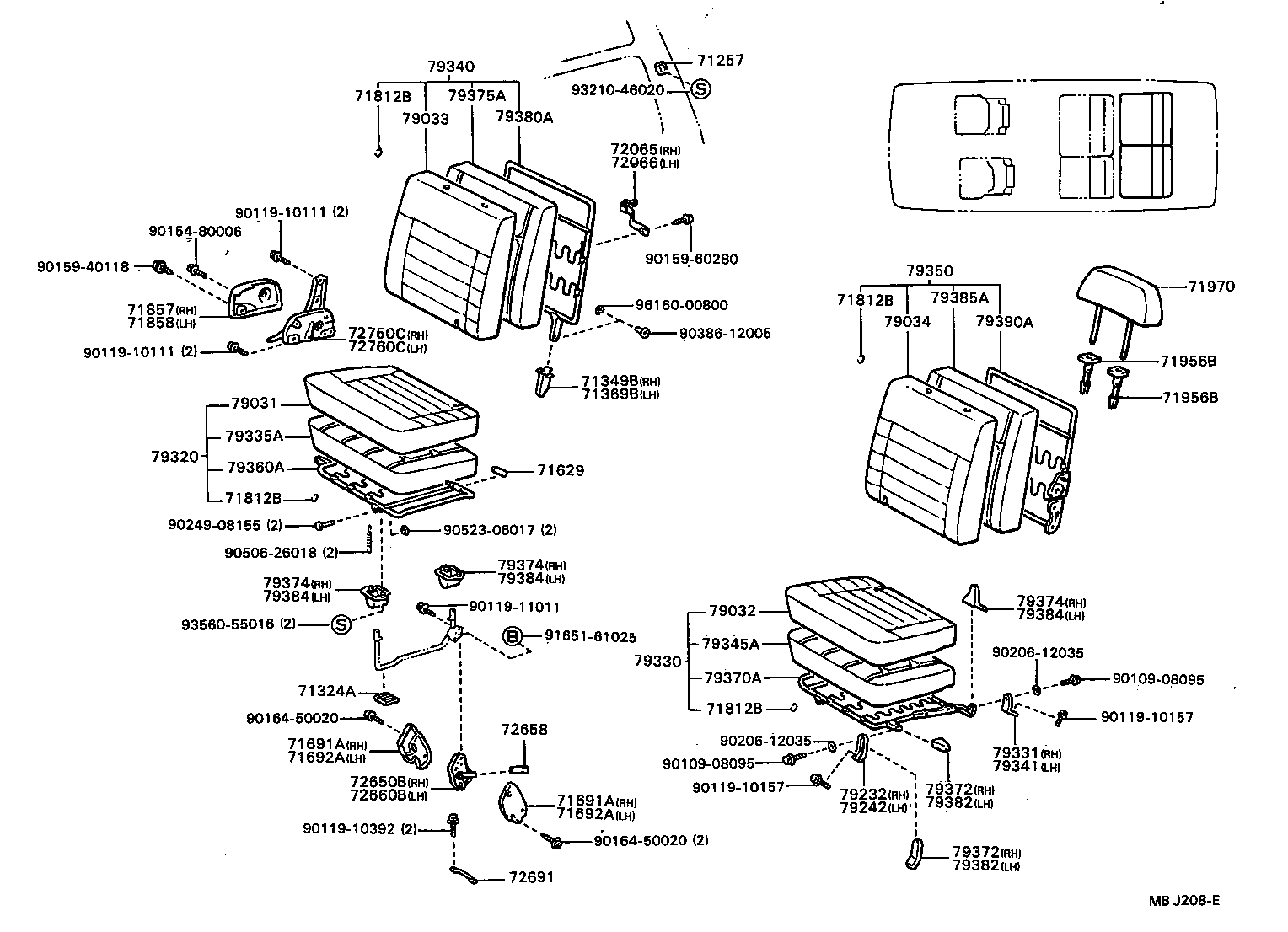

MBJ208E 1985-08 → —

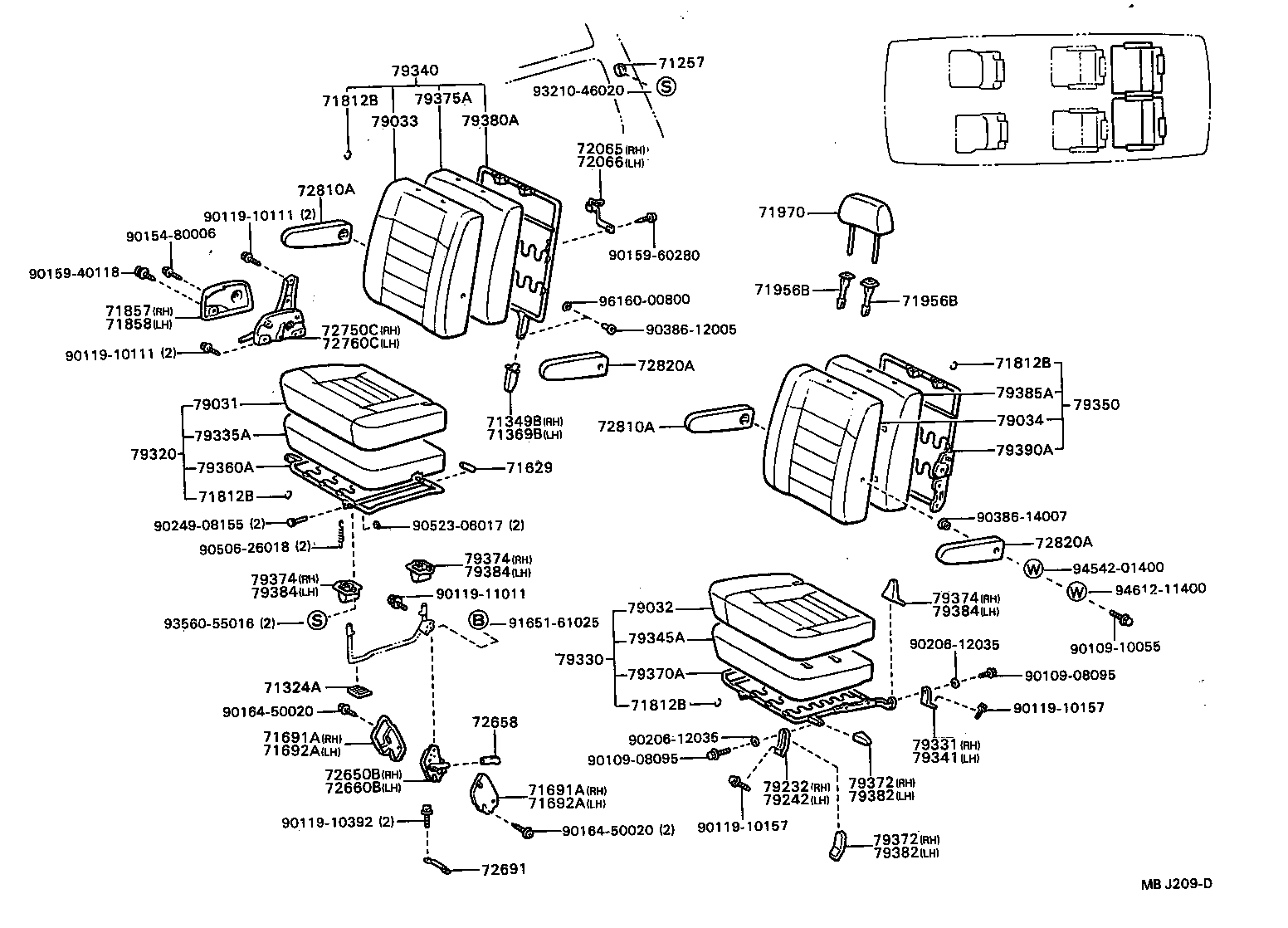

MBJ209D 1985-08 → —

Part groups

PNC	Description
62551D	Garnish, Rear Seat Side, RH
62552D	Garnish, Rear Seat Side, LH
62553A	Garnish, Rear Seat Side, NO.2 RH
62554A	Garnish, Rear Seat Side, NO.2 LH
62555A	Knob, Rear Seat Side Garnish
62556A	Cap, Rear Seat Side Garnish
70011	Cushion Assy, NO.1 Seat
70012	Back Assy, NO.1 Seat
70013	Cover Assy, NO.1 Seat Cushion
70014	Cover Assy, NO.1 Seatback
70021	Cushion Assy, NO.2 Seat
70022	Back Assy, NO.2 Seat
70023	Cover Assy, NO.2 Seat Cushion
70024	Cover Assy, NO.2 Seatback
70031	Cushion Assy, NO.3 Seat
70032	Back Assy, NO.3 Seat
70033	Cover Assy, NO.3 Seat Cushion
70034	Cover Assy, NO.3 Seatback
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71047	Lock Sub-assy, Rear Seat Leg
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71246A	Plate, Rear Seat Cushion Set
71257	Plate, Rear Seatback Anchor
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71302B	Hinge Sub-assy, Rear NO.1 Seat, LH
71303B	Hinge Sub-assy, Rear NO.2 Seat, RH
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71324A	Cushion, Rear Seat
71349B	Cover, Rear Seatback Stay, RH
71369B	Cover, Rear Seatback Stay, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611B	Pad, Rear NO.1 Seat Cushion
71613A	Pad, Rear NO.2 Seat Cushion
71629	Cover, Rear Seat Cushion Hinge
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71632A	Cover, Rear Seat, Outer
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651	Pad, Rear NO.1 Seatback
71653	Pad, Rear NO.2 Seatback
71667A	Pad, Rear Seatback, Center A
71667B	Pad, Rear Seatback, Center B
71683	Pad, Rear Seatback Corner, C
71684A	Pad, Rear Seatback Corner, D
71691A	Cover, Rear NO.3 Seat Lock, RH
71692A	Cover, Rear NO.3 Seat Lock, LH
71812A	Ring, Hog, Small (FOR FRONT SEAT)
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833B	Clip (FOR REAR SEAT RECLINING COVER)
71834A	Cover, Rear Seat Reclining, NO.1 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71857	Cover, Reclining Hinge, RH
71858	Cover, Reclining Hinge, LH
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130	Track Assy, RH Seat, Inner
72140	Track Assy, LH Seat, Inner
72160B	Track Assy, Rear NO.1 Seat, RH
72170B	Track Assy, Rear NO.1 Seat, LH
72180A	Track Assy, Rear NO.2 Seat, RH
72180B	Track Assy, Rear NO.3 Seat, RH
72190A	Track Assy, Rear NO.2 Seat, LH
72190B	Track Assy, Rear NO.3 Seat, LH
72201	Handle Sub-assy, Seat Track
72301	Wire Sub-assy, Seat Track Equalizing
72302B	Wire Sub-assy, Rear Seat Track Equalizing
72329	Cover, Seat Adjuster Bolt
72381	Rod, Reclining Adjuster Equalizing, NO.1
72382	Rod, Reclining Adjuster Equalizing, NO.2
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72553A	Protector, Reclining Cover, RH
72554A	Protector, Reclining Cover, LH
72571	Cable, Locking Lever NO.1
72601	Striker Sub-assy, Rear Seat Lock
72607	Striker Sub-assy, Rear Seat Cushion Lock
72631	Plate, Rear Seatback Lock, RH
72632	Plate, Rear Seatback Lock, LH
72650B	Lock Assy, Rear NO.3 Seat, RH
72650C	Cable Assy, Rear NO.2 Seat Lock, RH
72658	Knob, Rear Seat Handle
72660B	Lock Assy, Rear NO.3 Seat, LH
72660C	Cable Assy, Rear NO.2 Seat Lock, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72690	Lever Assy, Seat Cushion Lock Release
72691	Striker, Rear NO.3 Seat Lock
72710C	Adjuster Assy, NO.1 Seat Reclining, RH
72720C	Adjuster Assy, NO.1 Seat Reclining, LH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72750C	Adjuster Assy, NO.3 Seat Reclining, RH
72760C	Adjuster Assy, NO.3 Seat Reclining, LH
72791	Lever, Lumbar Support
72810A	Armrest Assy, Seat, RH
72820A	Armrest Assy, Seat, LH
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72960	Table Assy, Rear Seat Turn
72969	Knob, Rear Seat Turn Lock
72995	Cover, Rear Seat Cushion, RH
72998	Cover, Rear Seat Cushion, LH
79030	Leg Assy, NO.3 Seat, RH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79040	Leg Assy, NO.3 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79180	Spring Assy, NO.1 Seatback
79204	Reinforcement Sub-assy, NO.2 Seat Leg
79232	Leg, Rear NO.2 Seat, RH
79242	Leg, Rear NO.2 Seat, LH
79260	Spring Assy, NO.2 Seat Cushion
79280	Spring Assy, NO.2 Seatback
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79331	Leg, NO.3 Seat, Outer RH
79335A	Pad, NO.3 Seat Cushion, RH
79340	Back Assy, NO.3 Seat, RH
79341	Leg, NO.3 Seat, Outer LH
79345A	Pad, NO.3 Seat Cushion, LH
79350	Back Assy, NO.3 Seat, LH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79370A	Spring Assy, NO.3 Seat Cushion, LH
79372	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79380A	Spring Assy, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79390A	Spring Assy, NO.3 Seatback, LH
79915	Bracket, Seat Leg

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
