Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · General

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

67 part groups · 12 illustrations

Illustrations

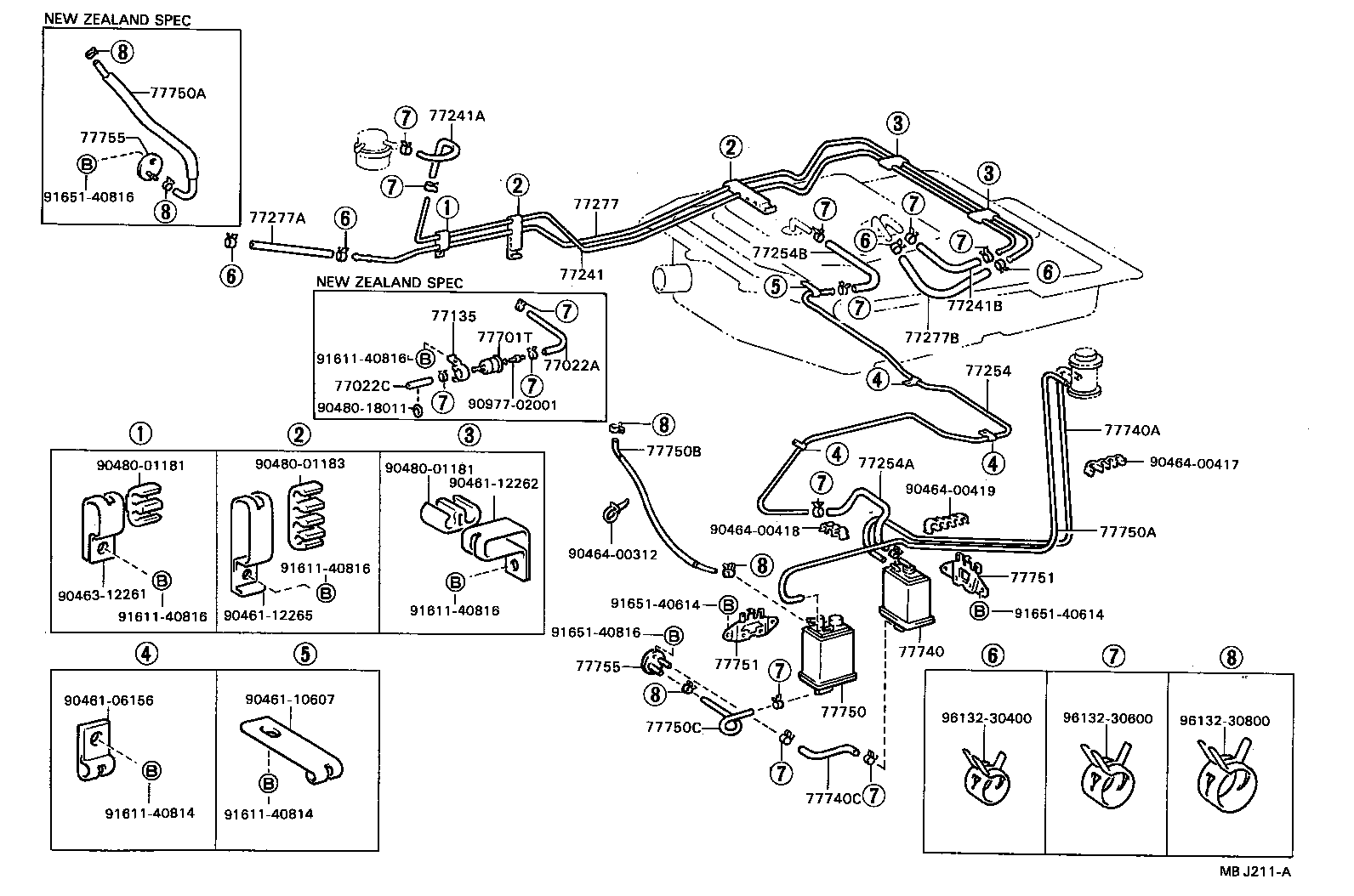

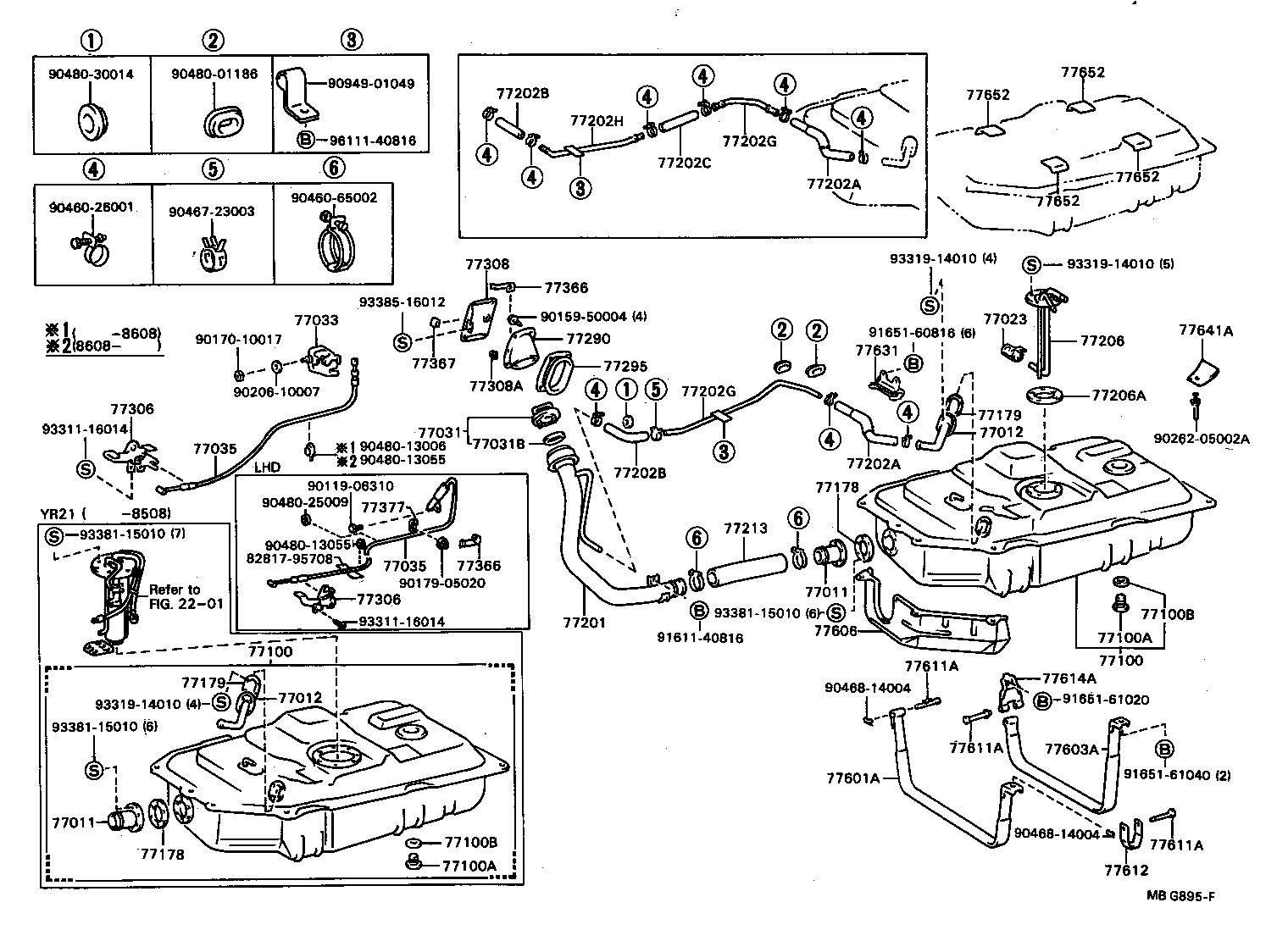

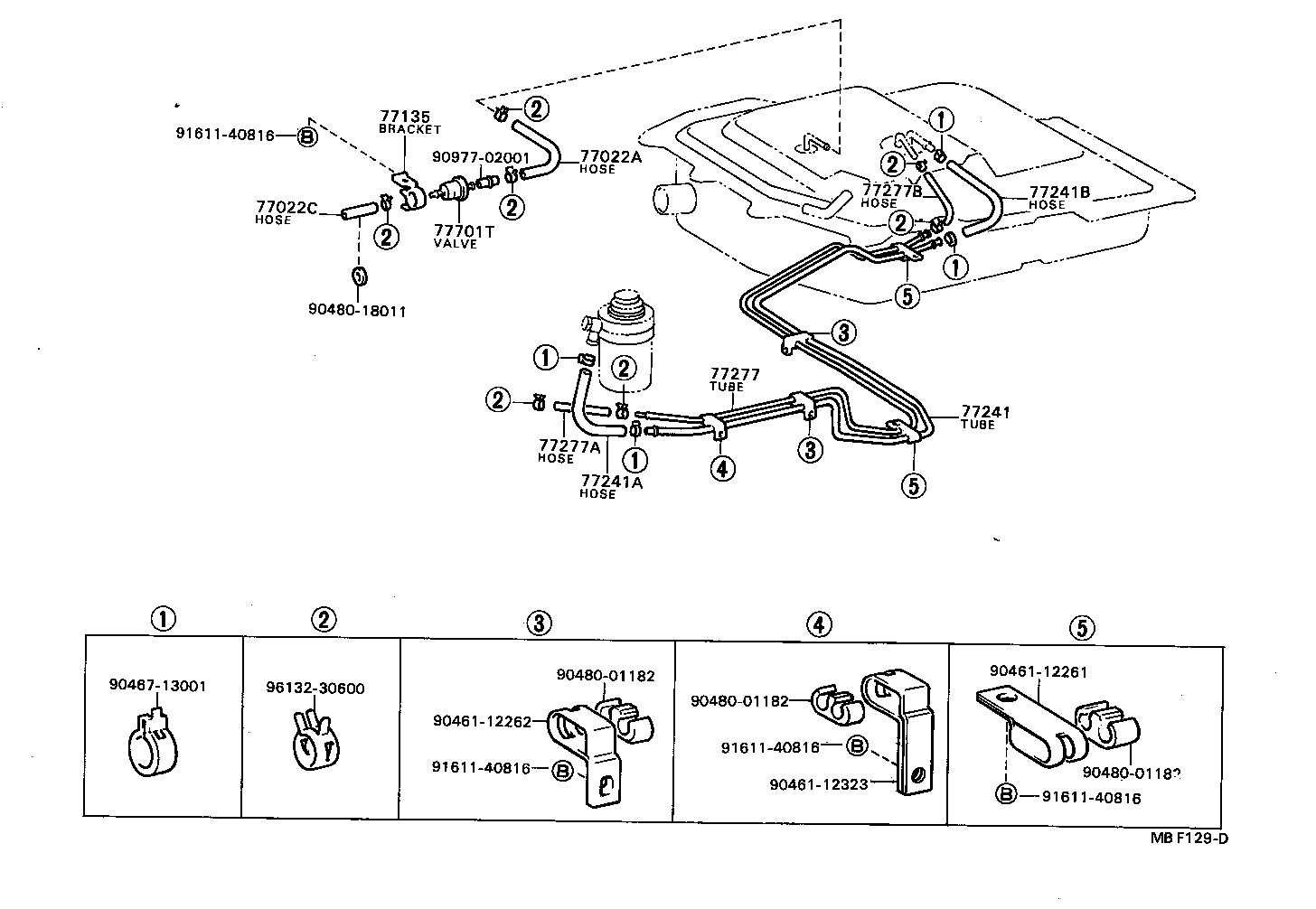

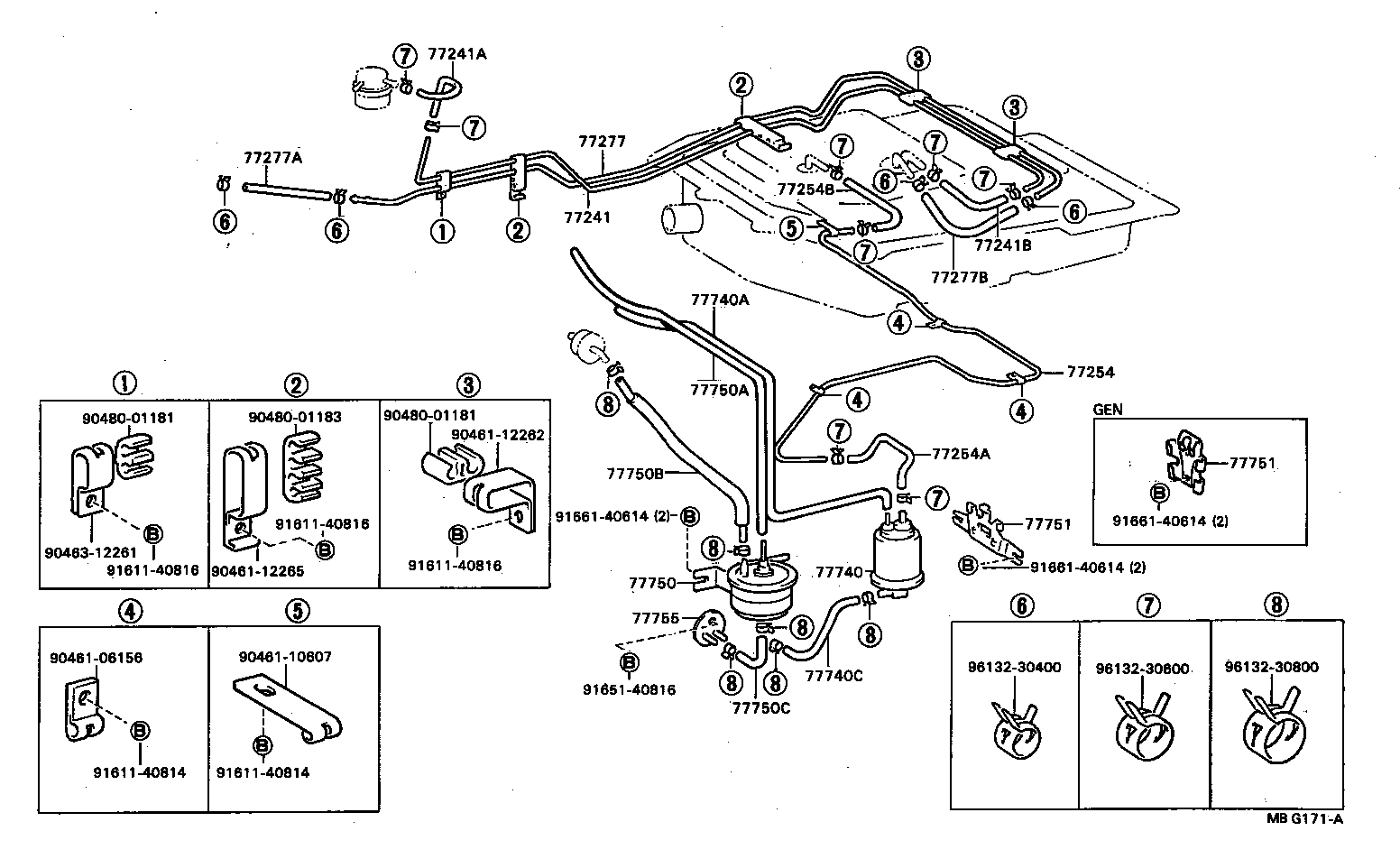

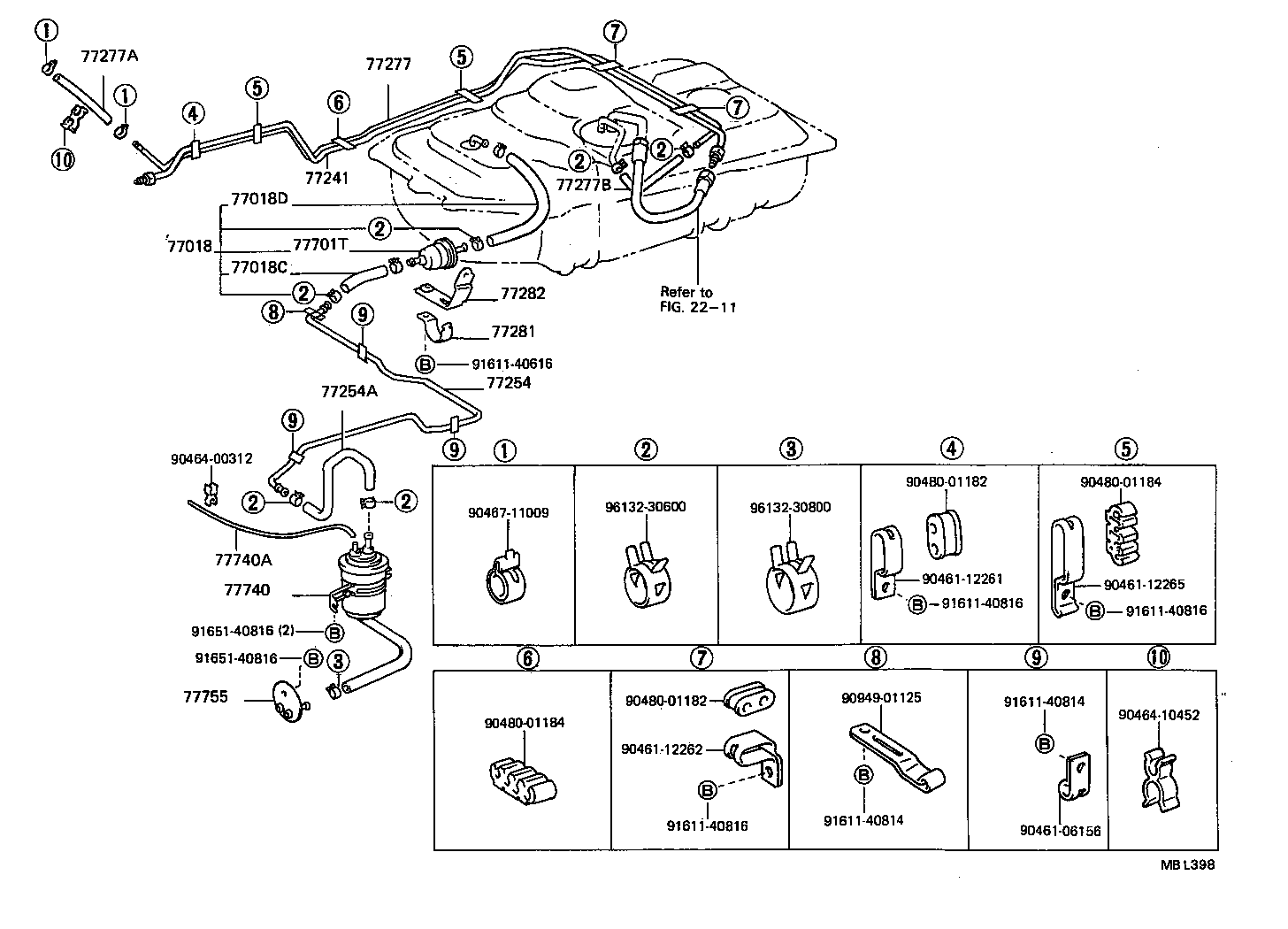

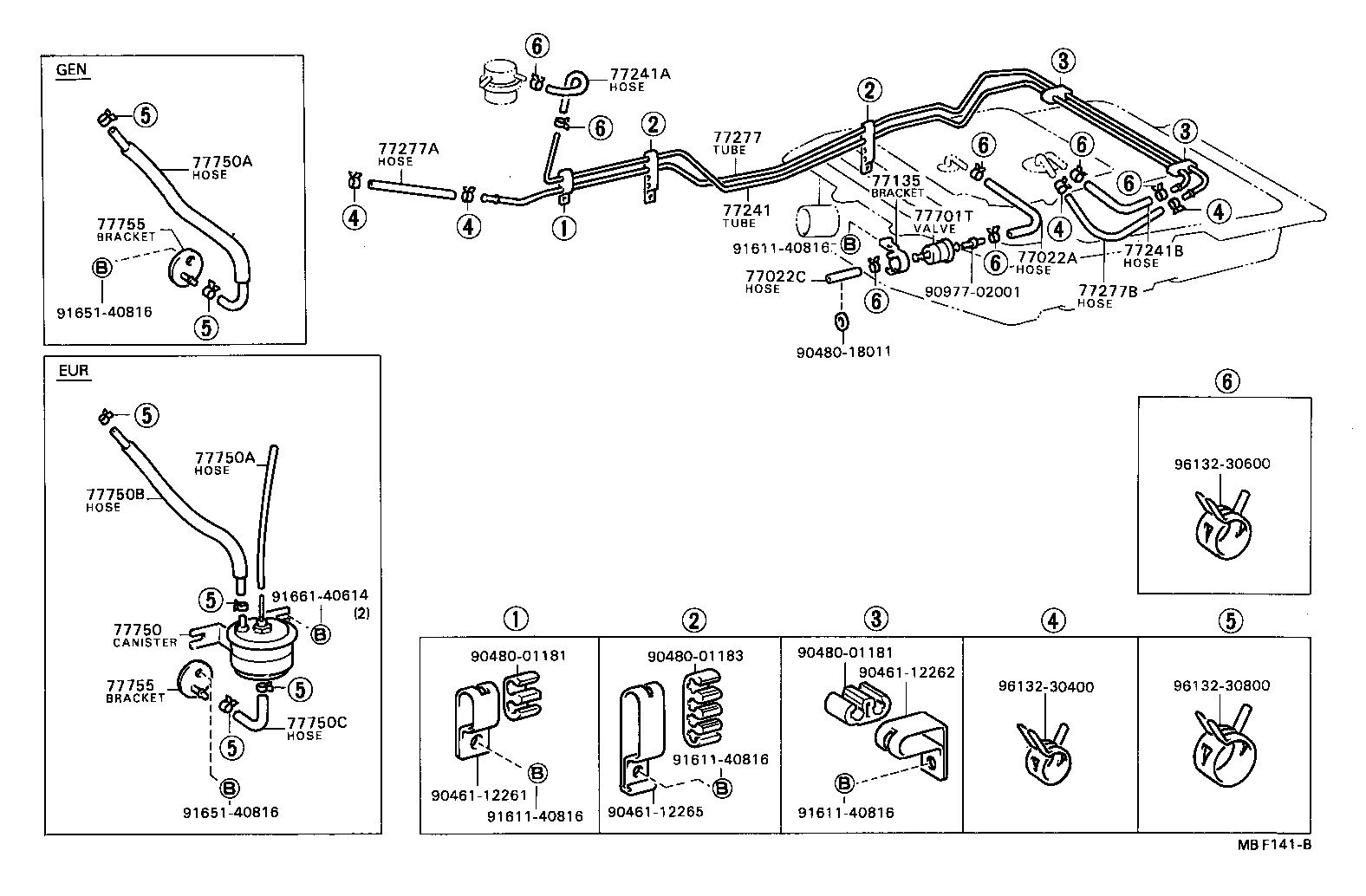

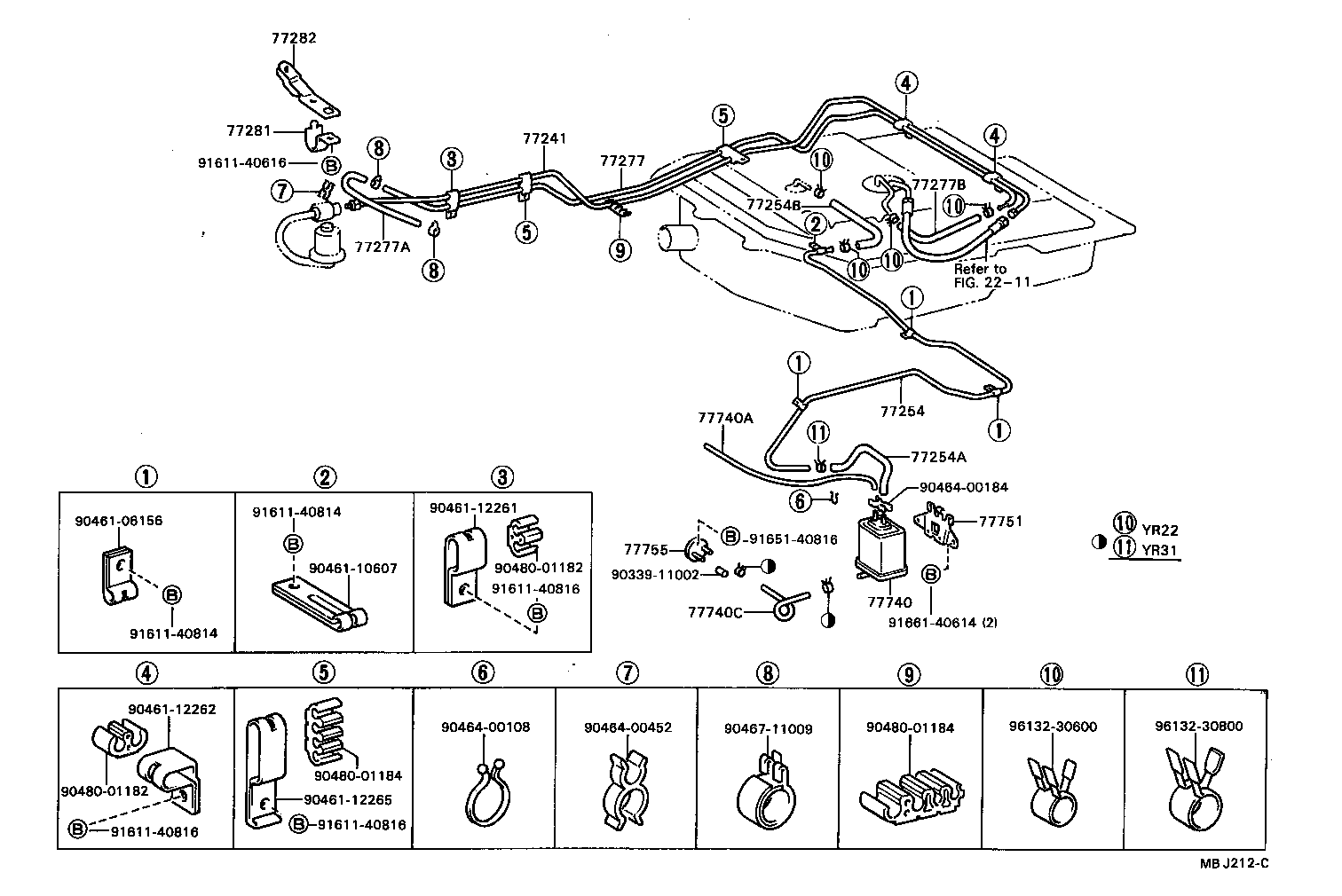

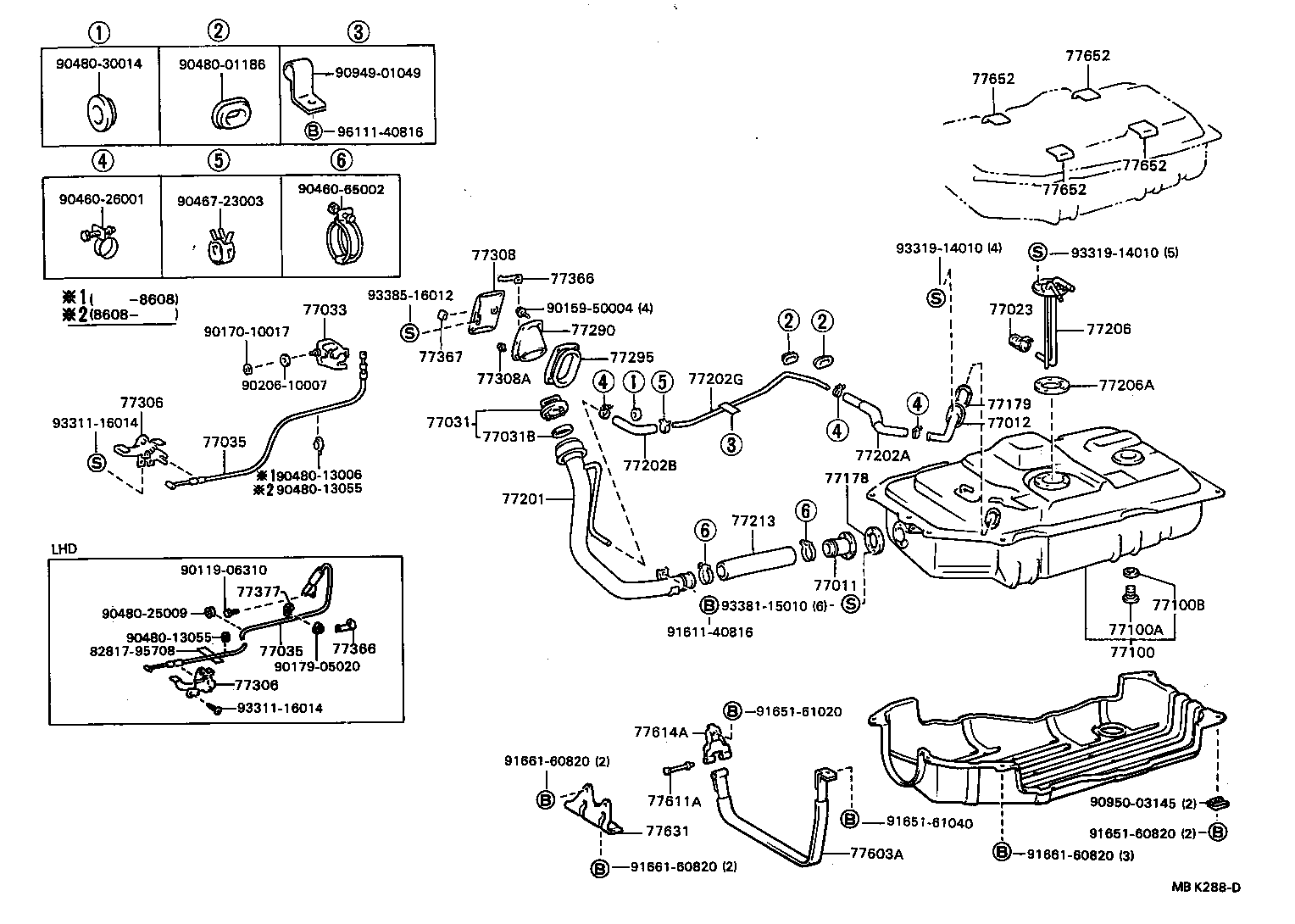

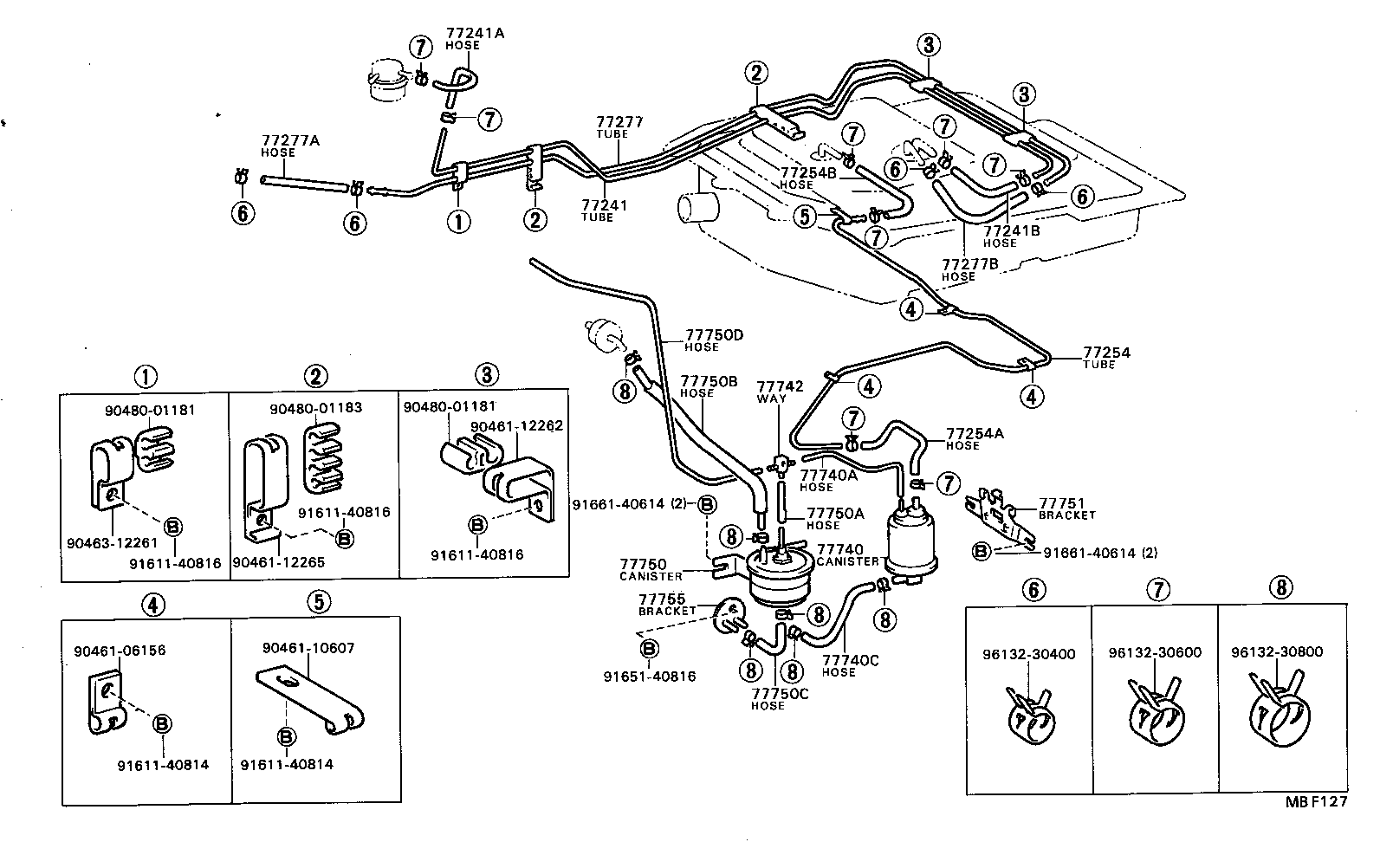

Figure MBF140A MBF140A 1982-11 → 1983-12 Figure MBG895F MBG895F 1983-12 → — Figure MBK288D MBK288D 1986-01 → — Figure MBF141B MBF141B 1982-11 → 1984-08 Figure MBF141B MBF141B 1984-08 → — Figure MBF127 MBF127 1982-11 → 1984-01 Figure MBG171A MBG171A 1984-01 → 1984-08 Figure MBG171A MBG171A 1984-08 → 1985-08 Figure MBJ211A MBJ211A 1985-08 → — Figure MBJ212C MBJ212C 1985-08 → — Figure MBL398 MBL398 1986-08 → — Figure MBF129D MBF129D 1983-05 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77018 Valve Sub-assy, Fuel Vapour Separate
77018C Hose, Fuel NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
77018D Hose, Fuel NO.2 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179 Retainer, Fuel Tank Mounting, Front
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77202B Hose, Fuel, NO.2 (FOR BREATHER TUBE)
77202C Hose, Fuel, NO.3 (FOR BREATHER TUBE)
77202G Tube, Fuel, NO.2 (FOR BREATHER TUBE)
77202H Tube, Fuel, NO.3 (FOR BREATHER TUBE)
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77281 Bracket, Fuel Main Tube, NO.1
77282 Bracket, Fuel Main Tube, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77295 Shield, Fuel Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77366 Spring, Fuel Filler Opening Lid Hinge
77367 Stopper, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77606 Protector Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77614A Band, Fuel Tank, NO.2 RH
77631 Bracket, Fuel Tank, NO.1
77641A Protector, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77742 Way, 3(FOR CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77750D Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77755 Bracket, Charcoal Canister Outlet Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
