Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

22 part groups · 2 illustrations

Illustrations

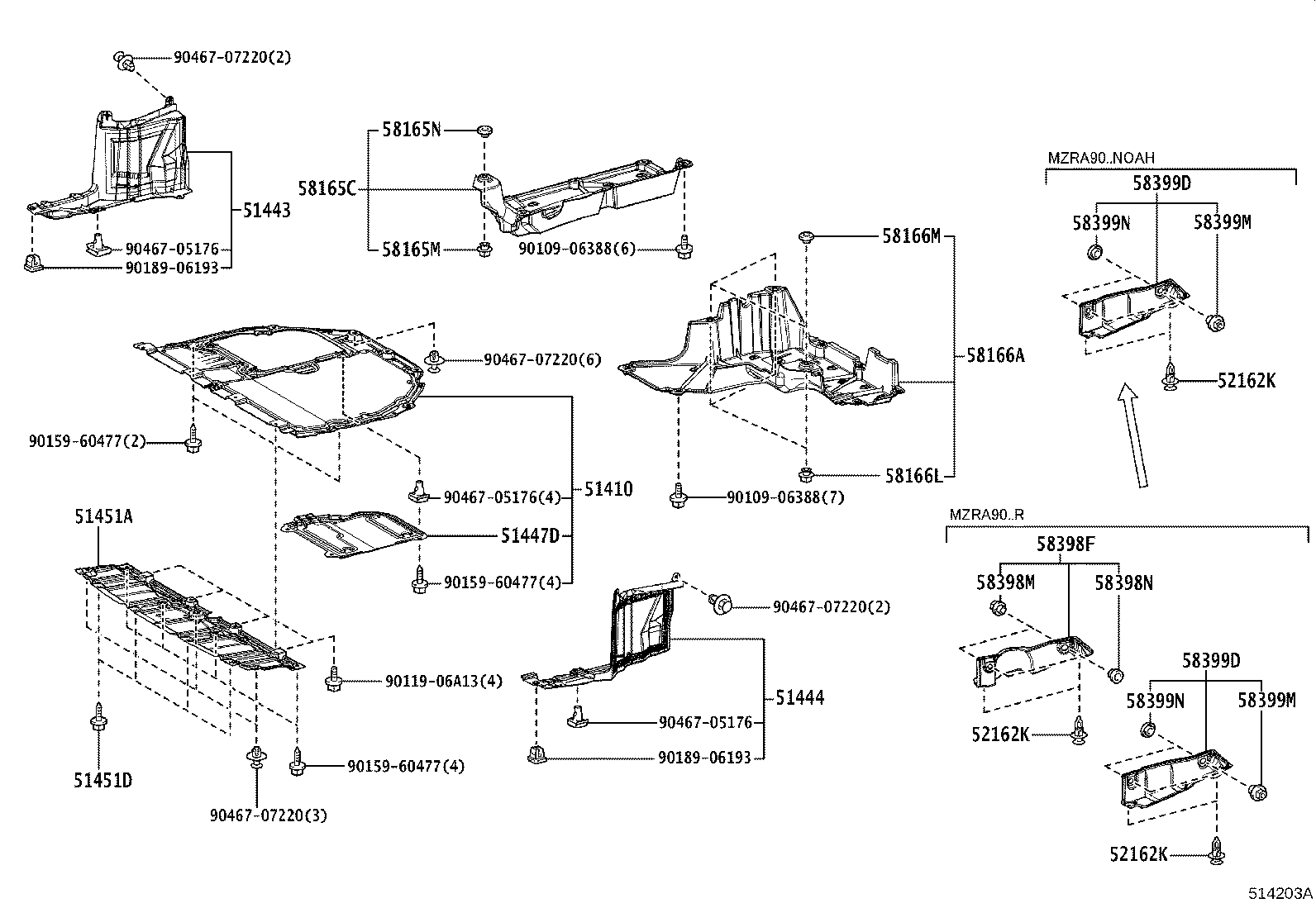

Figure 514202 514202 2022-01 → — Figure 514203A 514203A 2022-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51410 Cover Assy, Engine Under, NO.1
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451A Cover, Engine Under, Center
51451D Screw, NO.1
52162K Piece, Rear Bumper
53165C Support, Radiator, Center RH
53166D Support, Radiator, Center LH
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
58166L Clip, Front Floor Cover, NO.1
58166M Clip, Front Floor Cover, NO.2
58398F Cover, Floor Under, NO.1
58398M Clip, Floor Under Cover, NO.1
58398N Clip, Floor Under Cover, NO.2
58399D Cover, Floor Under, NO.2
58399M Clip, Floor Under Cover, NO.1
58399N Clip, Floor Under Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
