Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01

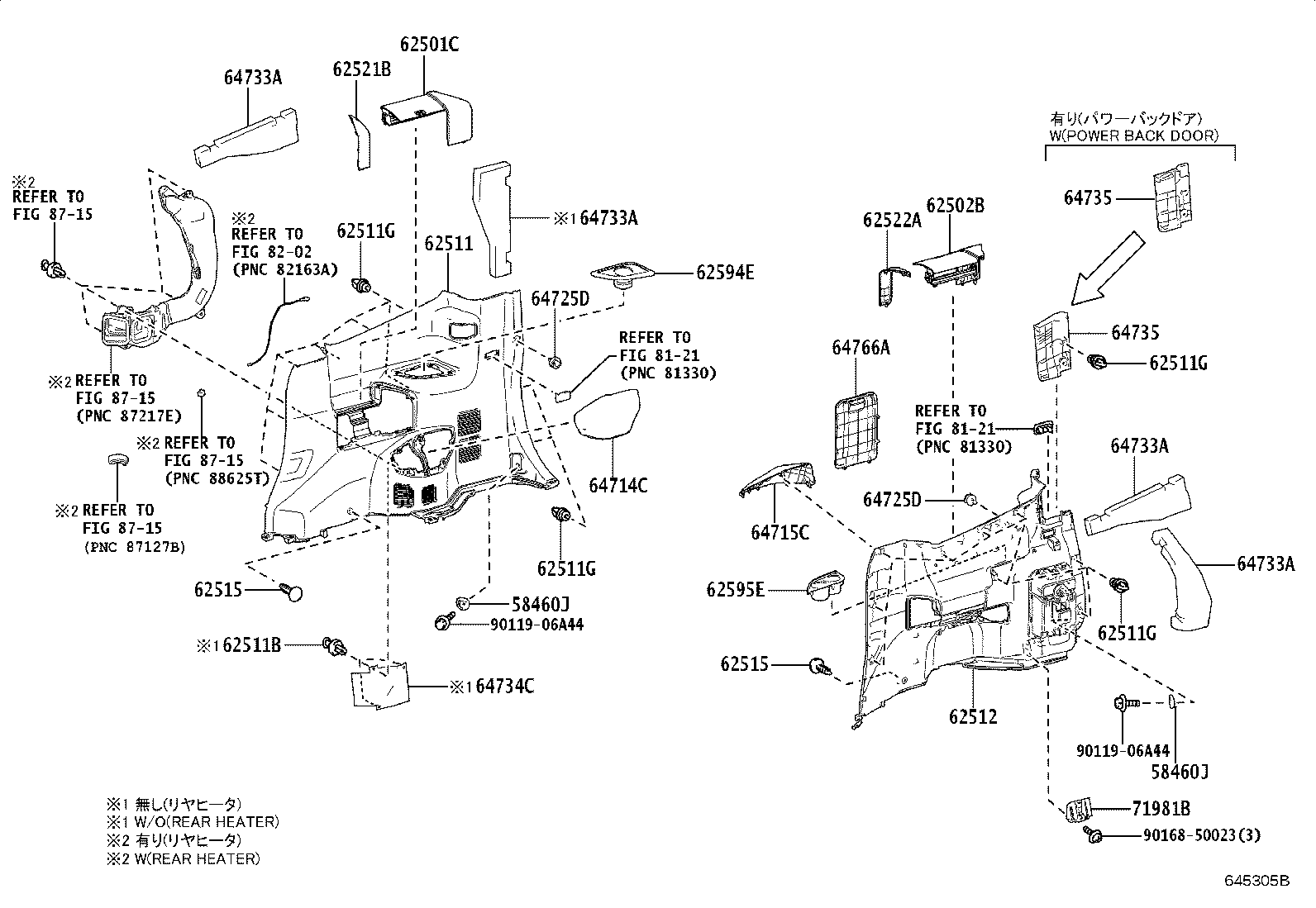

Inside Trim Board
64 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58460J | Striker Assy, Luggage Hold Belt |
| 58549D | Cover, Rear Floor Mat Seat Belt Anchor, RH |
| 58549E | Cover, Rear Floor Mat Seat Belt Anchor, LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180B | Bolt, W/Washer |
| 62180C | Clip, Curtain Shield Airbag |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62217J | Clip, Center Piller Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 62501C | Cover Sub-assy, Quarter Trim, RH |
| 62502B | Cover Sub-assy, Quarter Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62515 | Clip, Quarter Inside Trim |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62566C | Clamp, Cowl Side Trim |
| 62570E | Clip, Rear Window Side Garnish |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64733A | Pad, Deck Trim Side, NO.1 |
| 64734C | Pad, Deck Trim Side, NO.2 |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64766A | Cover, Deck Side Trim Tool |
| 67771H | Retainer, Door Trim |
| 67871H | Weatherstrip, Slide Door, NO.1 RH |
| 67872C | Weatherstrip, Slide Door, NO.1 LH |
| 67887L | Weatherstrip, Slide Door, NO.2 RH |
| 67888M | Weatherstrip, Slide Door, NO.2 LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67917D | Clip, Rear Door Scuff Plate |
| 67918D | Plate, Rear Door Scuff, LH |
| 71981B | Cover, NO.2 Seat Headrest |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
