Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01
Front Door Panel & Glass

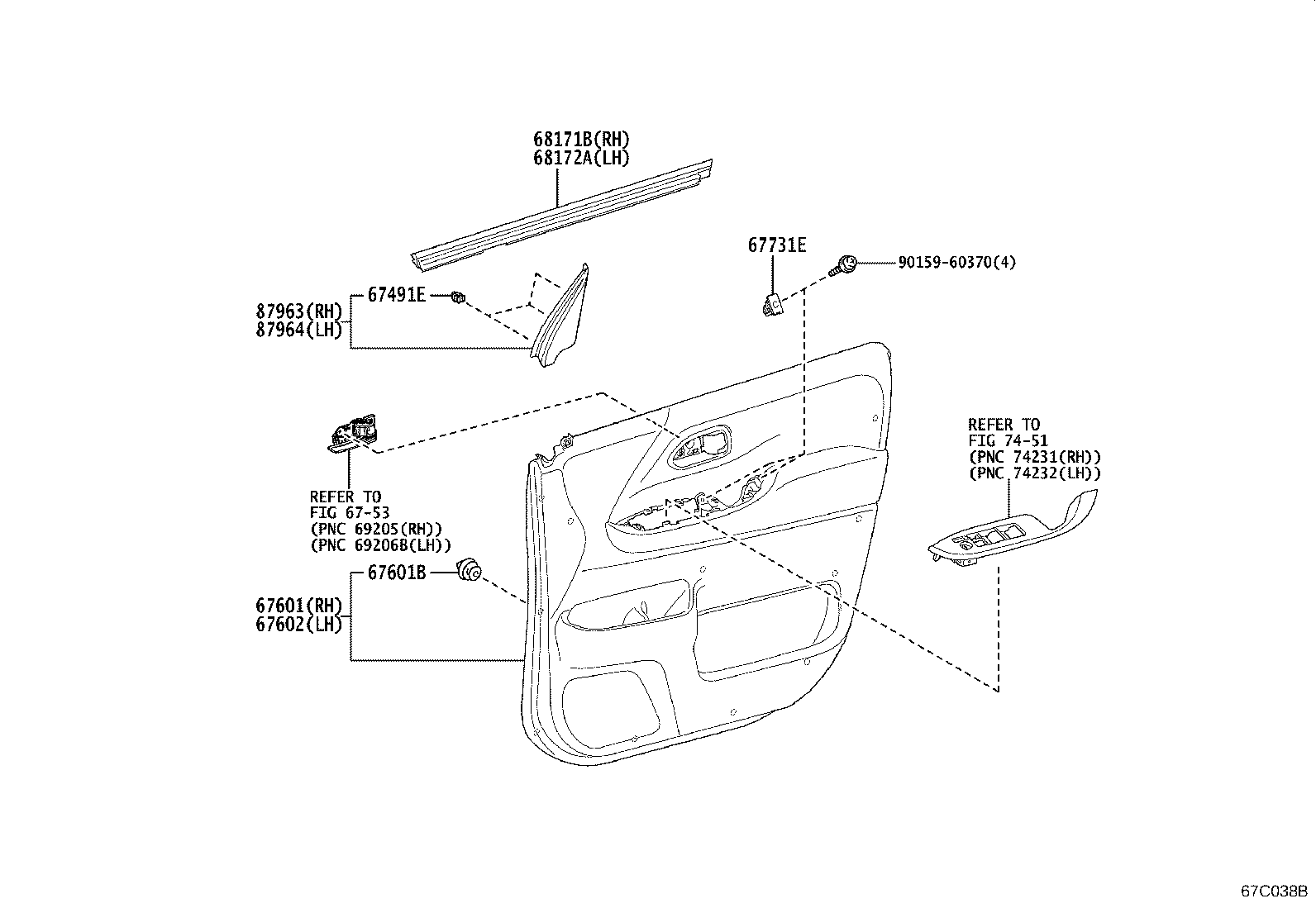

47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491E | Retainer, Door Trim |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67731E | Spacer, Side Trim, NO.1 |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67833D | Cover, Front Door Service Hole, NO.2 RH |
| 67834 | Cover, Front Door Service Hole, NO.2 LH |
| 67837B | Seal, Front Door Dust Proof |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67864H | Weatherstrip, Front Door, NO.2 LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869J | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141E | Run, Front Door Glass, RH |
| 68151E | Run, Front Door Glass, LH |
| 68161B | Weatherstrip, Front Door Glass, Outer RH |
| 68162B | Weatherstrip, Front Door Glass, Outer LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75955B | Tape, Black Out Front Door, Outer Upper RH |
| 75956B | Tape, Black Out Front Door, Outer Upper LH |
| 75957C | Tape, Black Out Front Door, Outer Rear RH |
| 75958B | Tape, Black Out Front Door, Outer Rear LH |
| 87963 | Cover, Outer Mirror Install Hole, RH |
| 87964 | Cover, Outer Mirror Install Hole, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
