Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01

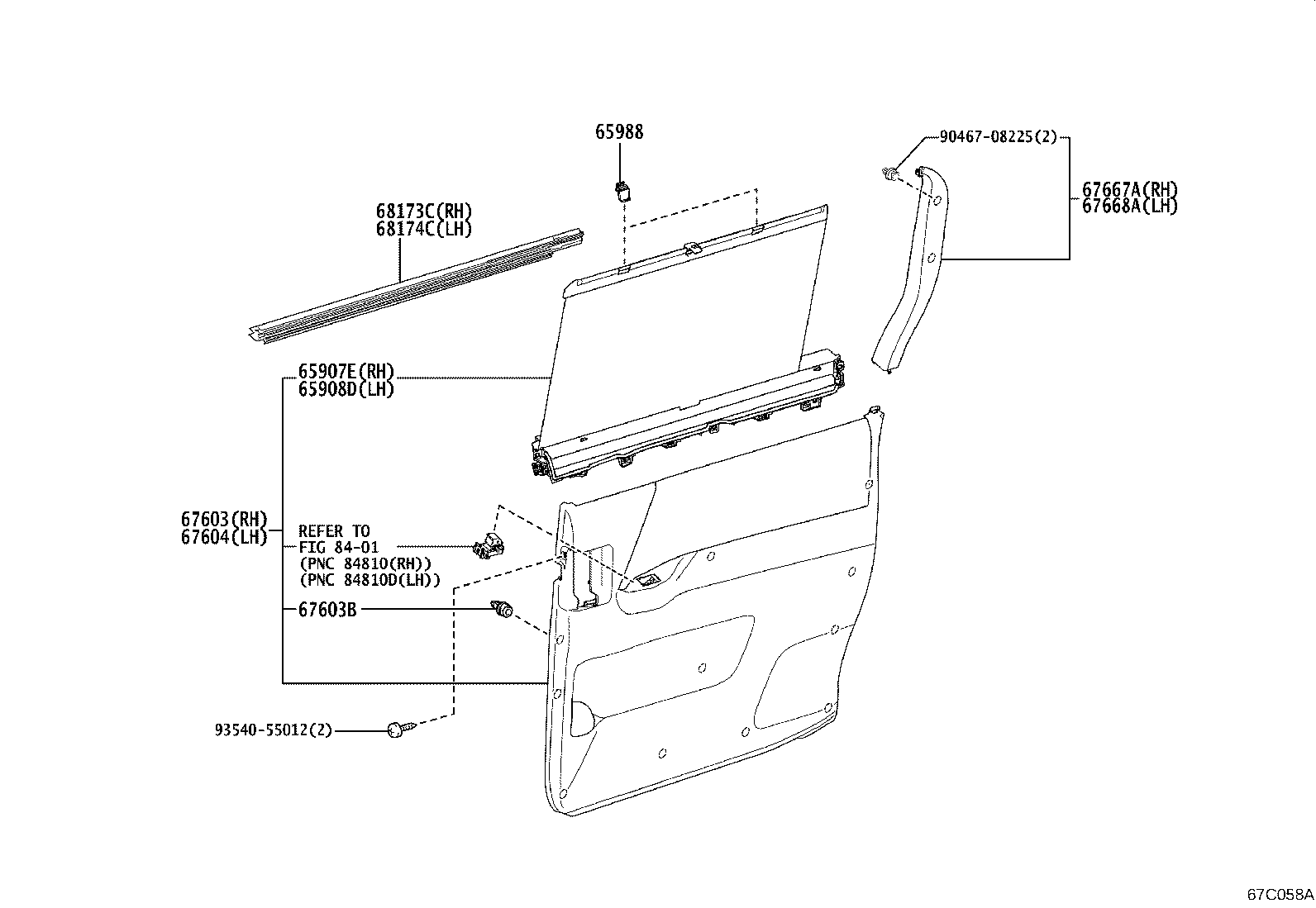

Rear Door Panel & Glass
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62345D | Weatherstrip, Slide Door, NO.3 RH |
| 62346C | Weatherstrip, Slide Door, NO.3 LH |
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65988 | Hook, Sunshade |
| 67003C | Cushion, Rear Door Panel |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67521 | Cover Sub-assy, Slide Door Panel, RH |
| 67522 | Cover Sub-assy, Slide Door Panel, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67841G | Cover, Slide Door Service Hole, RH |
| 67843B | Cover, Rear Door Service Hole, NO.2 RH |
| 67851E | Cover, Slide Door Service Hole, RH |
| 67852E | Cover, Slide Door Service Hole, LH |
| 67859B | Cover, Rear Door Lower Hole |
| 67867Q | Retainer, Slide Door Weatherstrip, NO.2 |
| 67867R | Retainer, Slide Door Weatherstrip, NO.3 |
| 67869L | Clip, Rear Door Weatherstrip |
| 67869M | Clip, Door Weatherstrip |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67897H | Cushion, Rear Door |
| 68103A | Glass Sub-assy, Slide Door, RH |
| 68104A | Glass Sub-assy, Slide Door, LH |
| 68142E | Run, Slide Door Glass, RH |
| 68152E | Run, Slide Door Glass, LH |
| 68163H | Weatherstrip, Rear Door Glass, Outer RH |
| 68164A | Weatherstrip, Rear Door Glass, Outer LH |
| 68173C | Weatherstrip, Slide Door Glass, Inner RH |
| 68174C | Weatherstrip, Slide Door Glass, Inner LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 69736F | Guide, Slide Door Locking Link |
| 75931A | Tape, Black Out, Outer Upper RH |
| 75932A | Tape, Black Out, Outer Upper LH |
| 75933B | Tape, Black Out, Outer Front RH |
| 75934B | Tape, Black Out, Outer Front LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
