Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01

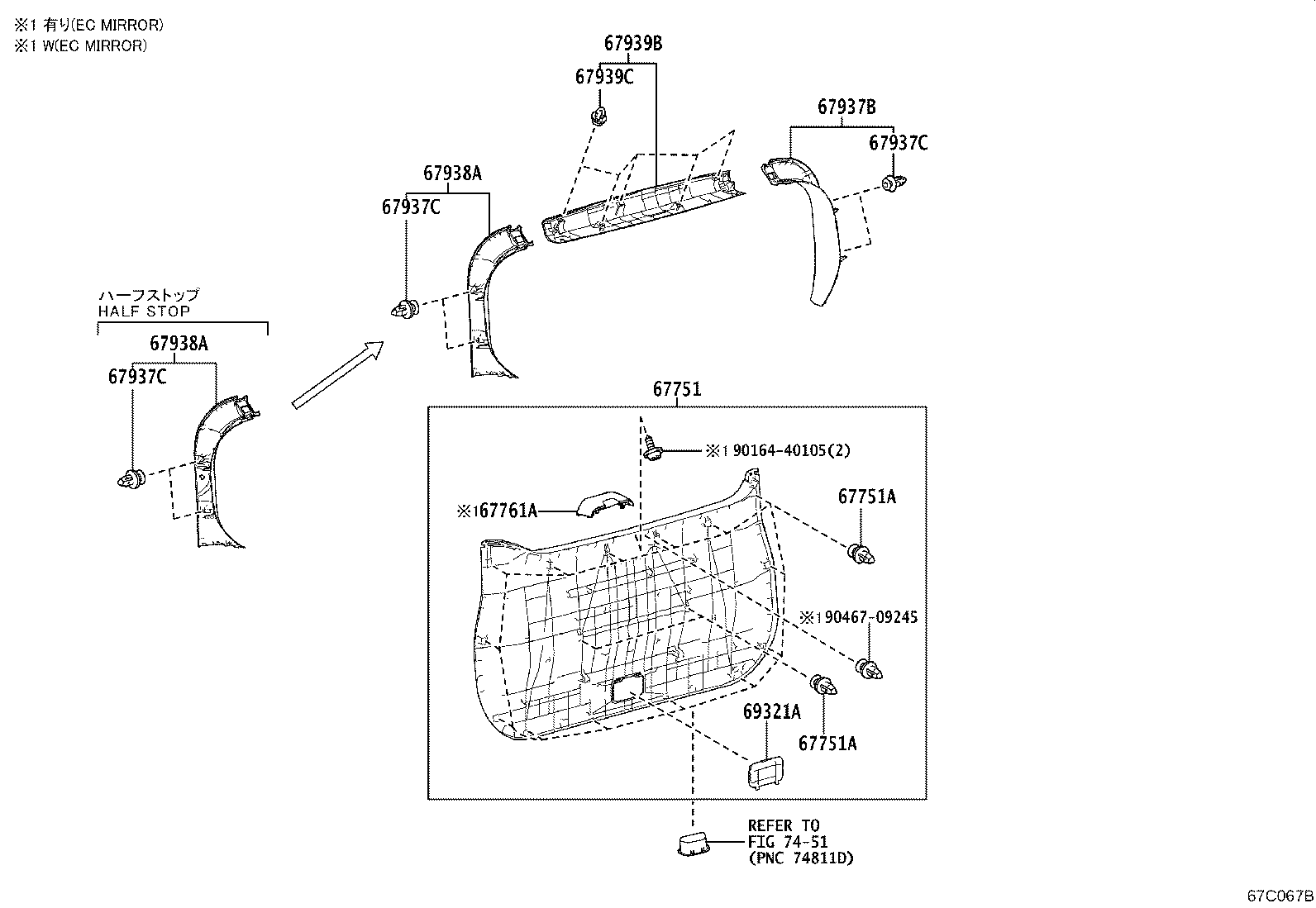

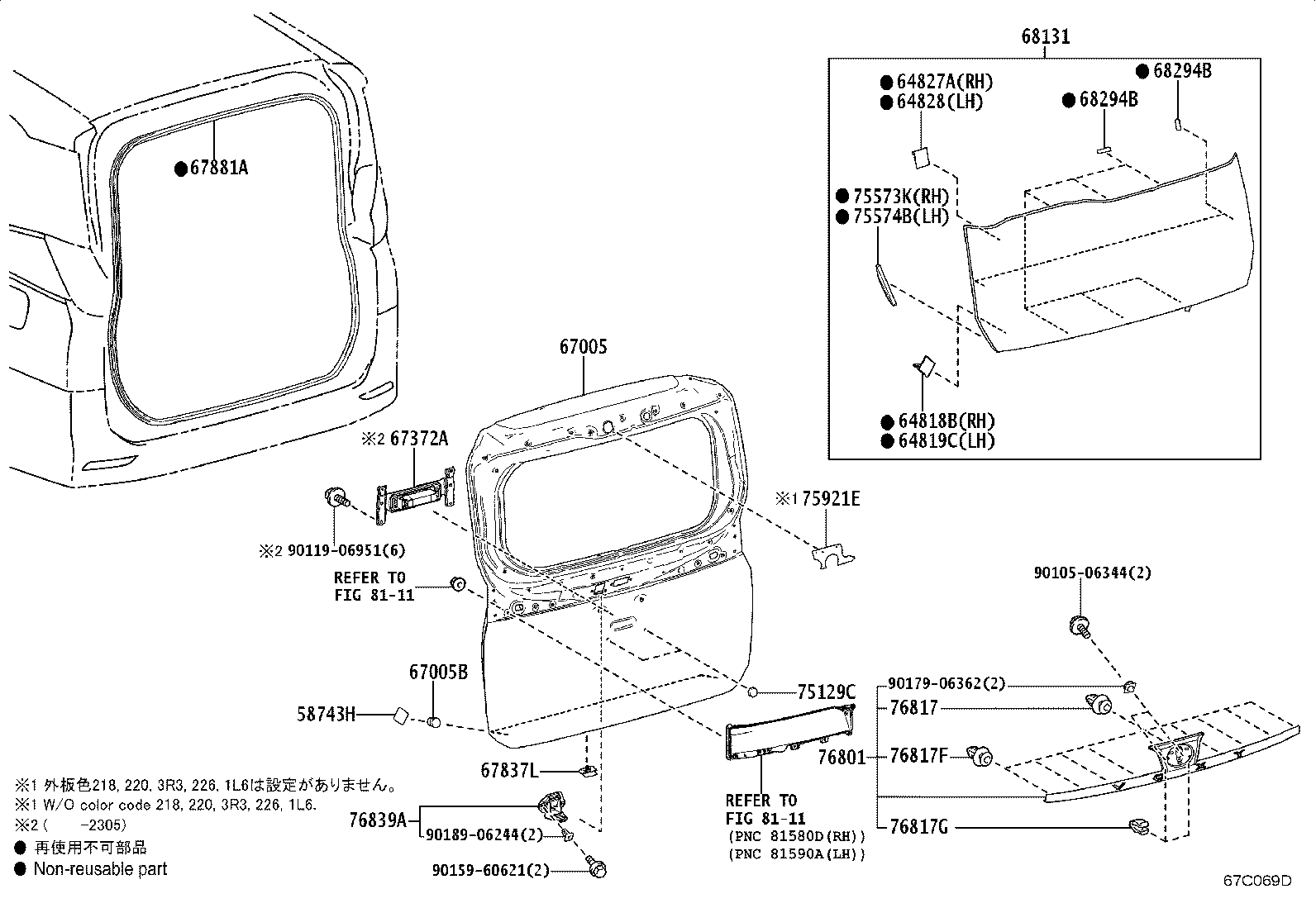

Back Door Panel & Glass
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58743H | Protector, Back Door Panel |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67372A | Weight, Back Door |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67761A | Cover, Back Door Trim |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 69321A | Cover, Back Door Lock |
| 75129C | Cushion, Rear Licence Plate |
| 75573K | Moulding, Back Window, Outside RH |
| 75574B | Moulding, Back Window, Outside LH |
| 75921E | Tape, Black Out, NO.1 RH |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76817F | Clip, Back Door Outside Garnish, NO.2 |
| 76817G | Clip, Back Door Outside Garnish, NO.3 |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
