Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

38 part groups · 4 illustrations

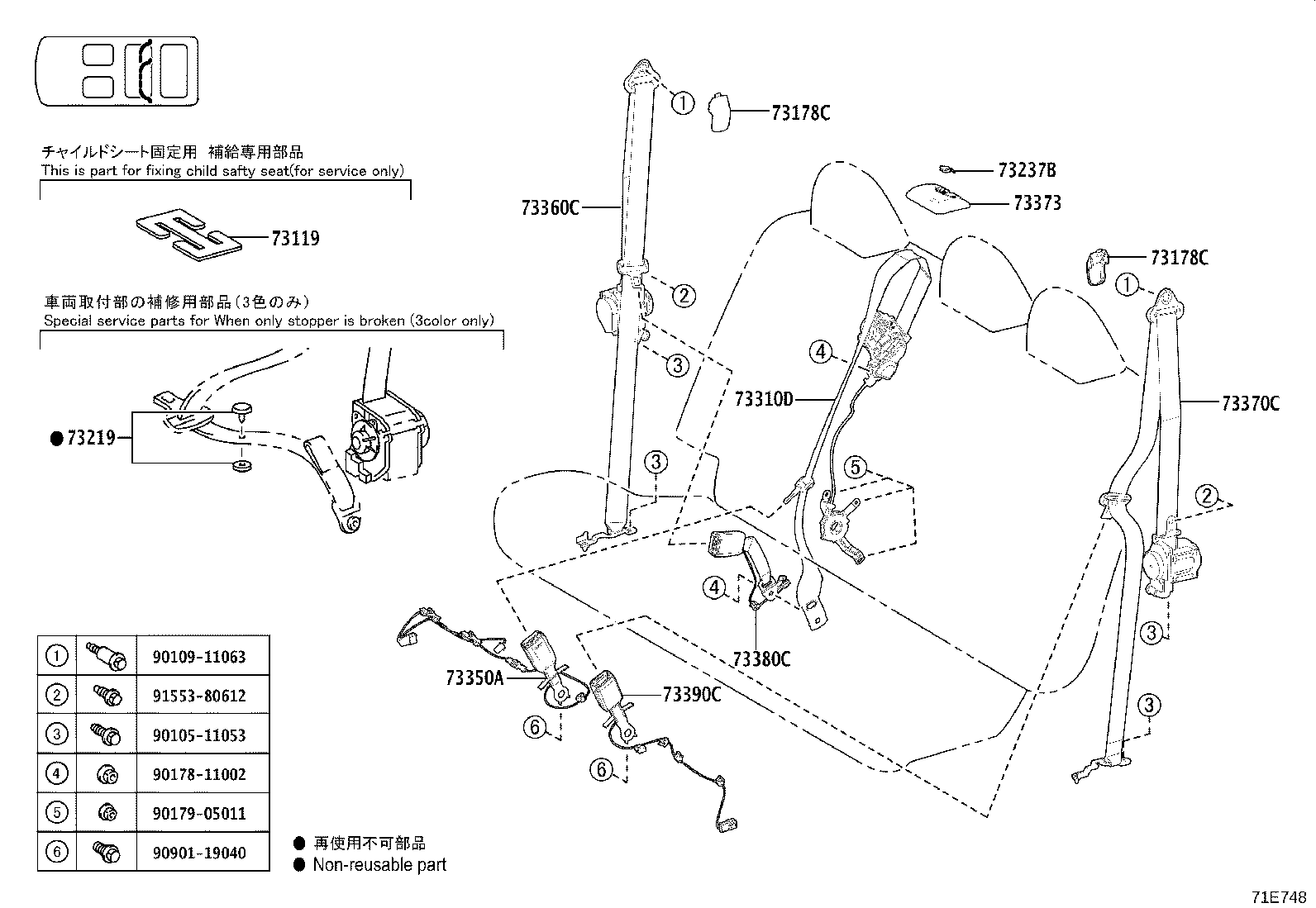

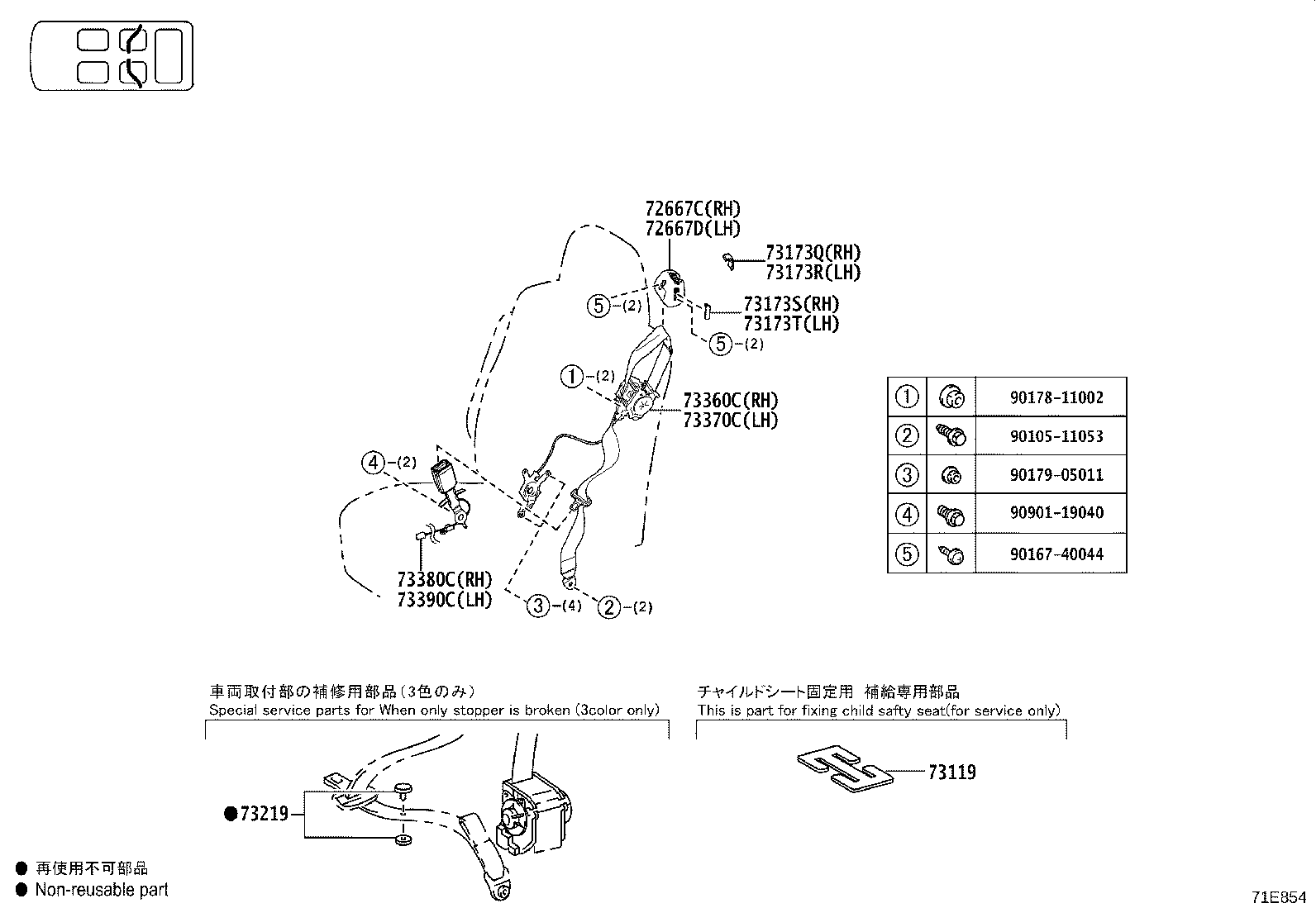

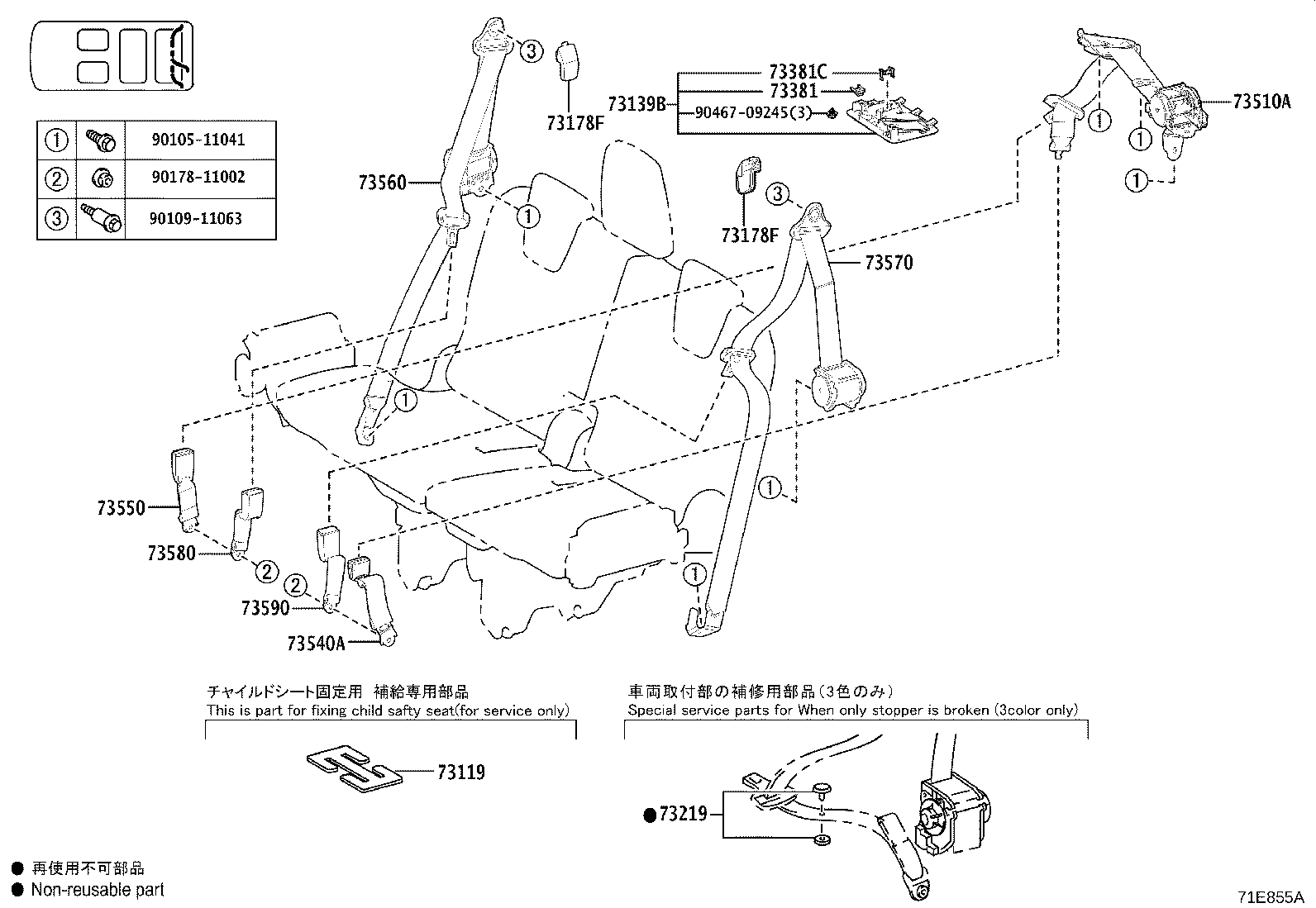

Illustrations

Part groups

PNC	Description
72667C	Bezel, Rear Seatback Lock, Upper RH
72667D	Bezel, Rear Seatback Lock, Upper LH
73023	Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024	Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119	Plate, Seat Belt Webbing Clip
73139B	Cover, Seat Belt Anchor
73173Q	Cover, Rear Seat Shoulder Belt Hole, RH NO.1
73173R	Cover, Rear Seat Shoulder Belt Hole, LH NO.1
73173S	Cover, Rear Seat Shoulder Belt Hole, RH NO.2
73173T	Cover, Rear Seat Shoulder Belt Hole, LH NO.2
73178A	Cap, Seat Belt Anchor Cover
73178C	Cap, Seat Belt Anchor Cover
73178F	Cap, Seat Belt Anchor Cover, NO.3
73200A	Adjuster Assy, Front Shoulder Belt Anchor
73210	Belt Assy, Front Seat Outer, RH
73214	Plate, Front Seat Belt Anchor
73219	Stopper, Tongue Plate
73220	Belt Assy, Front Seat Outer, LH
73230	Belt Assy, Front Seat Inner, RH
73233	Cover, Lap Belt Outer Anchor
73237B	Cover, Shoulder Belt Anchor
73240	Belt Assy, Front Seat Inner, LH
73310D	Belt Assy, Rear Seat 3 Point Type, Center
73350A	Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C	Belt Assy, Rear NO.1 Seat, Outer RH
73370C	Belt Assy, Rear NO.1 Seat, Outer LH
73373	Cover, Rear Seat Shoulder Belt
73380C	Belt Assy, Rear NO.1 Seat, Inner RH
73381	Holder, Rear Seat Belt
73381C	Holder, Seat Belt
73390C	Belt Assy, Rear NO.1 Seat, Inner LH
73510A	Belt Assy, Rear NO.2 Seat, 3 Point Type
73540A	Belt Assy, Rear NO.2 Seat Lap Type, LH
73550	Belt Assy, Rear NO.2 Seat Lap Type, Center
73560	Belt Assy, Rear NO.2 Seat, Outer RH
73570	Belt Assy, Rear NO.2 Seat, Outer LH
73580	Belt Assy, Rear NO.2 Seat, Inner RH
73590	Belt Assy, Rear NO.2 Seat, Inner LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
