Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

12 part groups · 2 illustrations

Illustrations

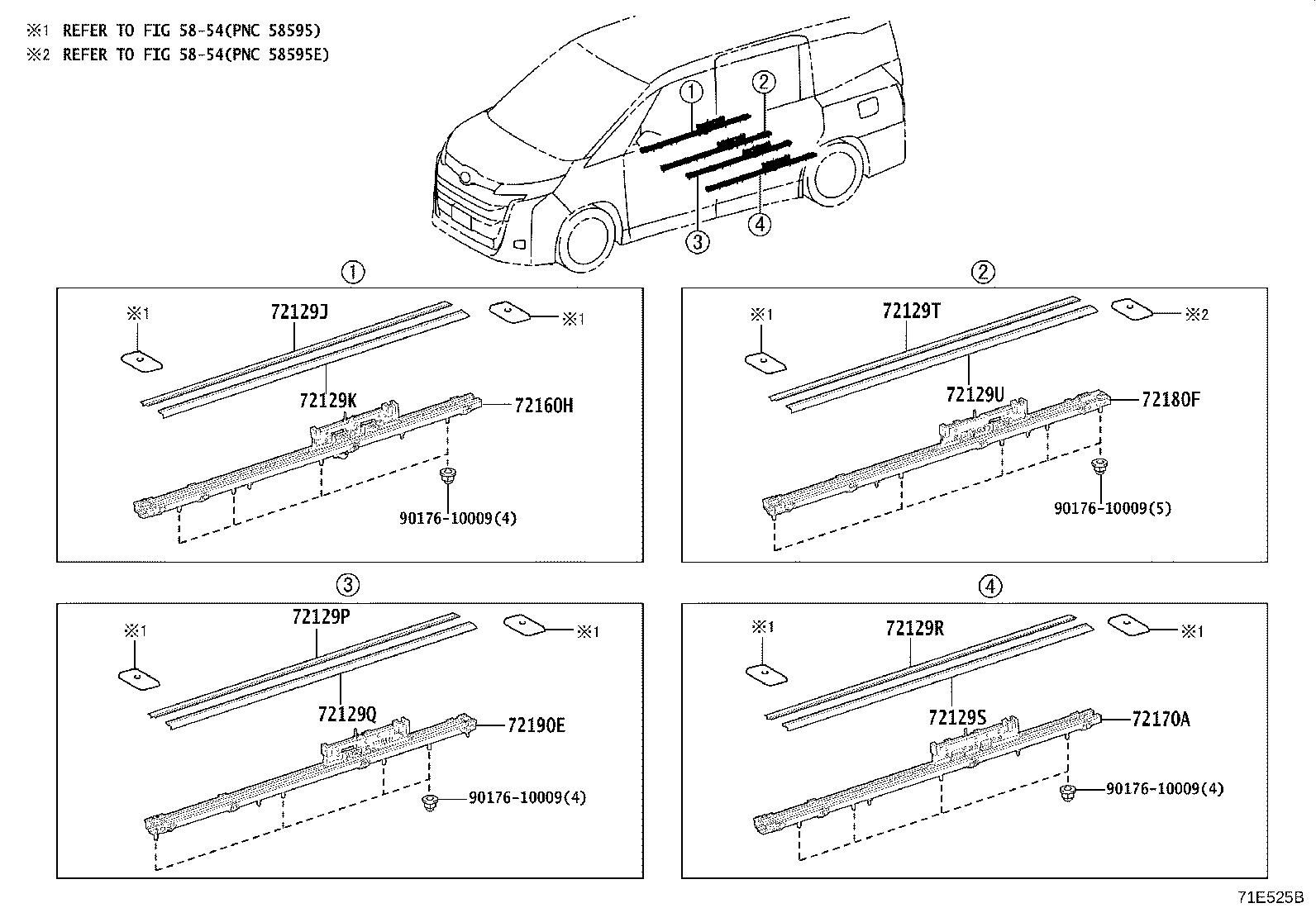

Figure 71F380 71F380 2022-01 → — Figure 71E525B 71E525B 2022-01 → —

Part groups

PNCDescription
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72190E Track Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
