Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 2 illustrations

Illustrations

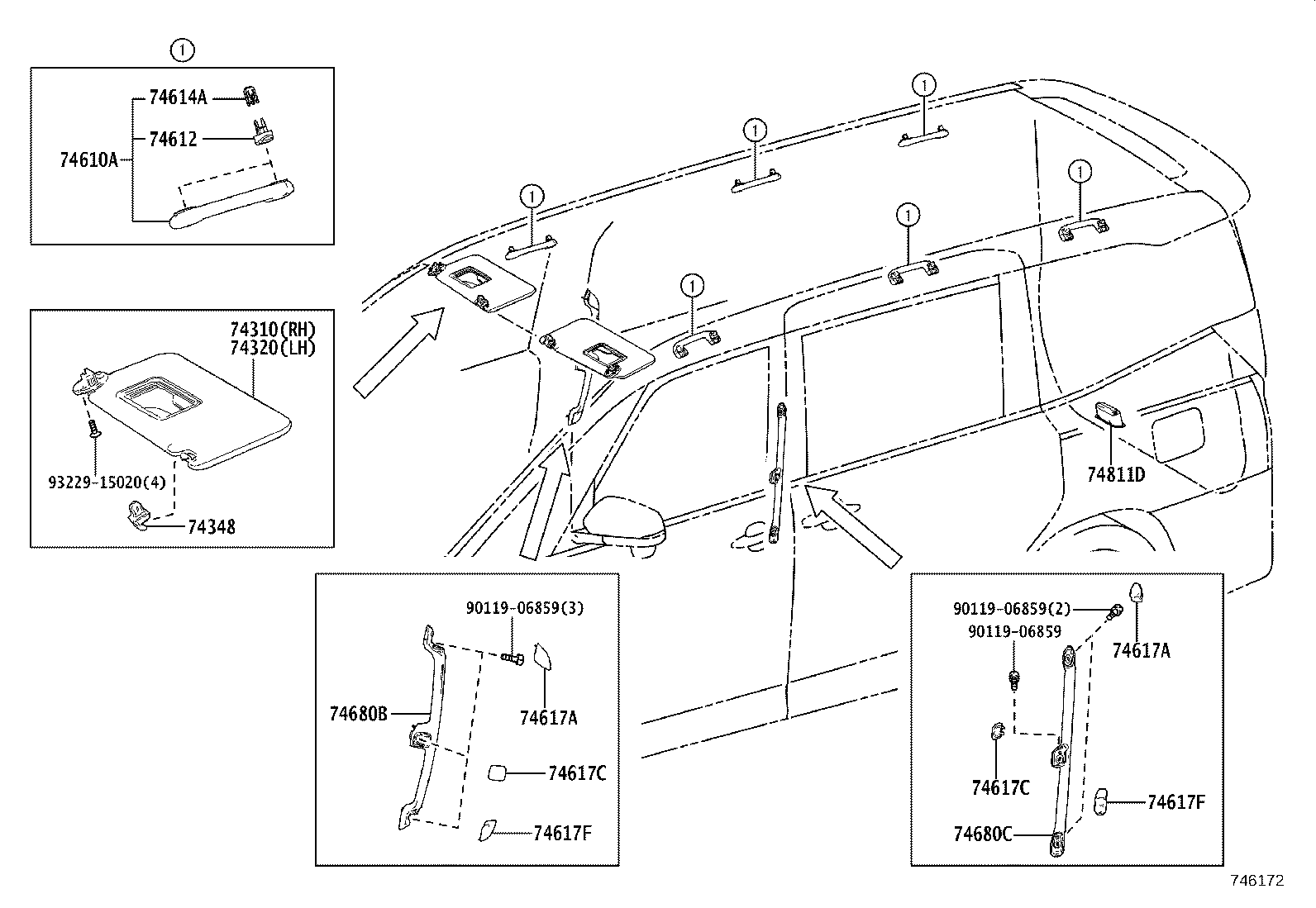

Figure 746170 746170 2022-01 → — Figure 746172 746172 2022-01 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74614A Plate, Assist Grip Lock
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617F Plug, Assist Grip
74680B Grip Assy, Pillar Assist, RH
74680C Grip Assy, Pillar Assist, LH
74811D Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
