Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

15 part groups · 3 illustrations

Illustrations

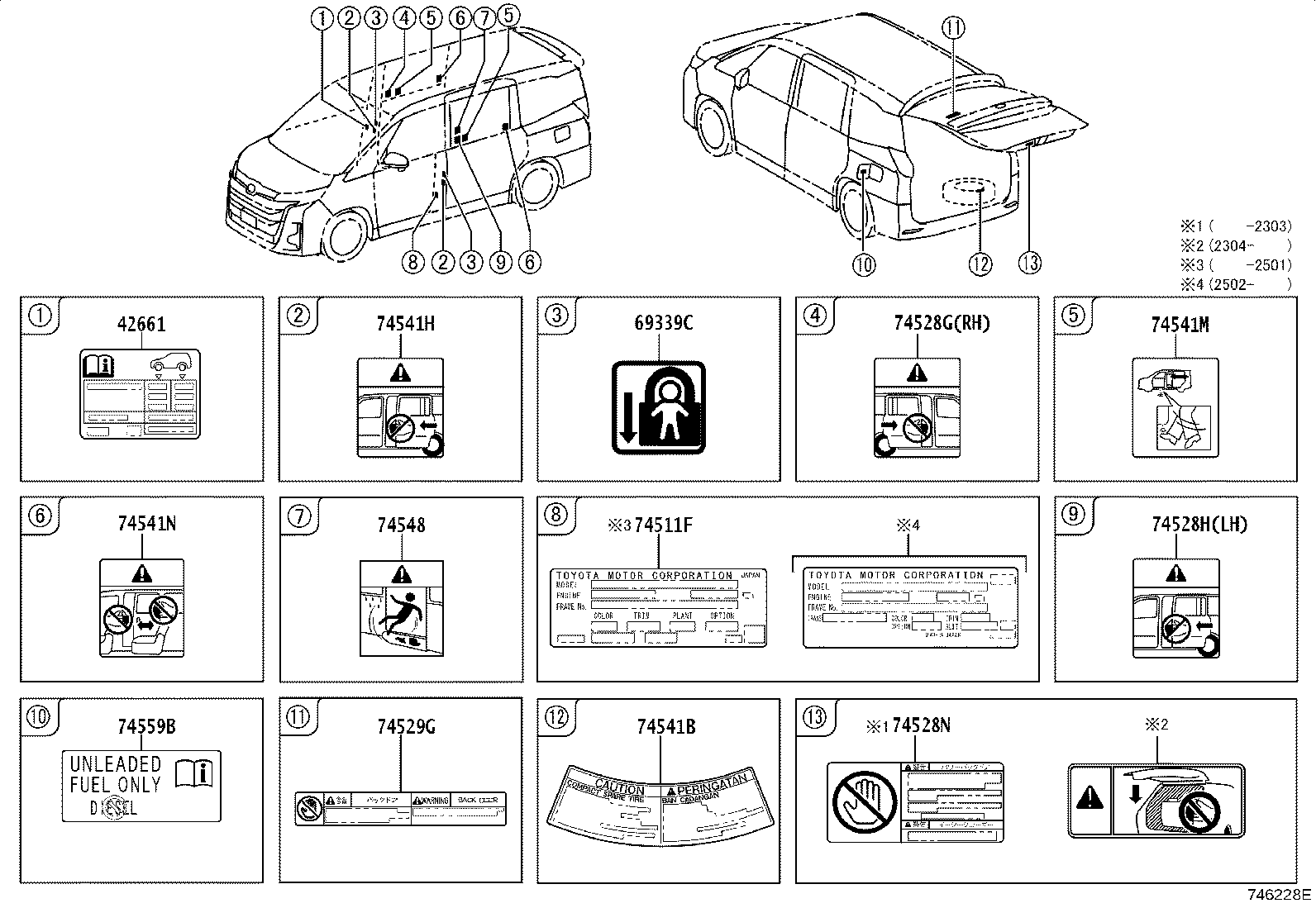

Figure 746227A 746227A 2022-01 → — Figure 746228E 746228E 2022-01 → — Figure 746229 746229 2022-01 → —

Part groups

PNCDescription
16793E Label, Cooling Fan Caution
42661 Label, Tire Pressure Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528G Label, Power Slide Door Caution
74528H Label, Power Slide Door Caution
74528N Label, Back Door Caution, NO.2
74529G Label, Back Door Caution
74541B Plate, Compact Spare Tire Caution
74541H Plate, Body Caution
74541M Label, Slide Door Information
74541N Label, Body Caution
74543R Label, Rear Seat Caution
74559B Label, Fuel Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
