Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01
Fuel Tank & Tube
58 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23283B | Holder, Fuel Pressure Regulator |
| 77001A | Tank Sub-assy, Fuel |
| 77013 | Tube Sub-assy, Fuel Tank Breather, NO.2 |
| 77015 | Tube Sub-assy, Fuel Tank Breather, NO.4 |

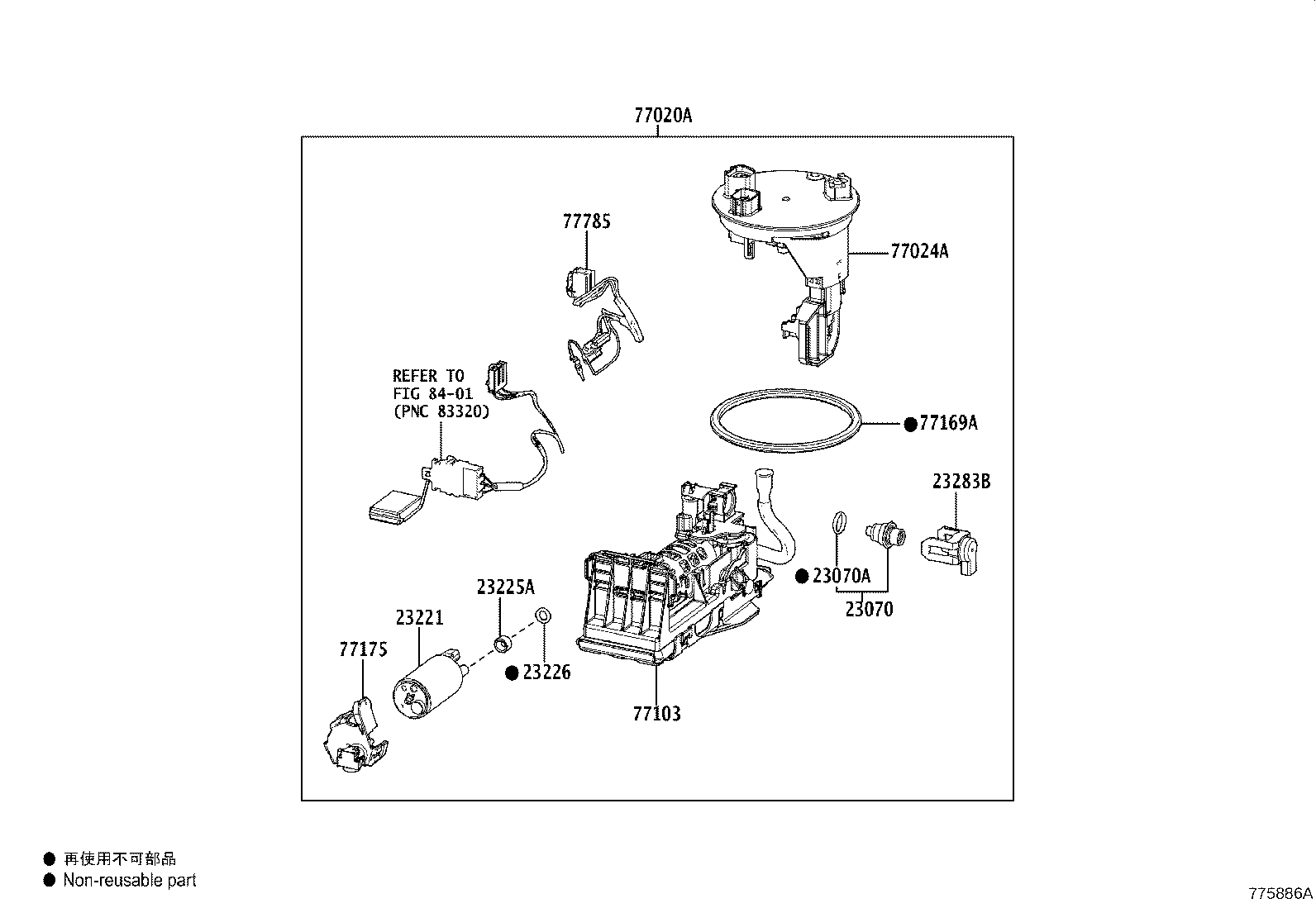

| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026B | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77214 | Pipe, Fuel Tank Filler |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |

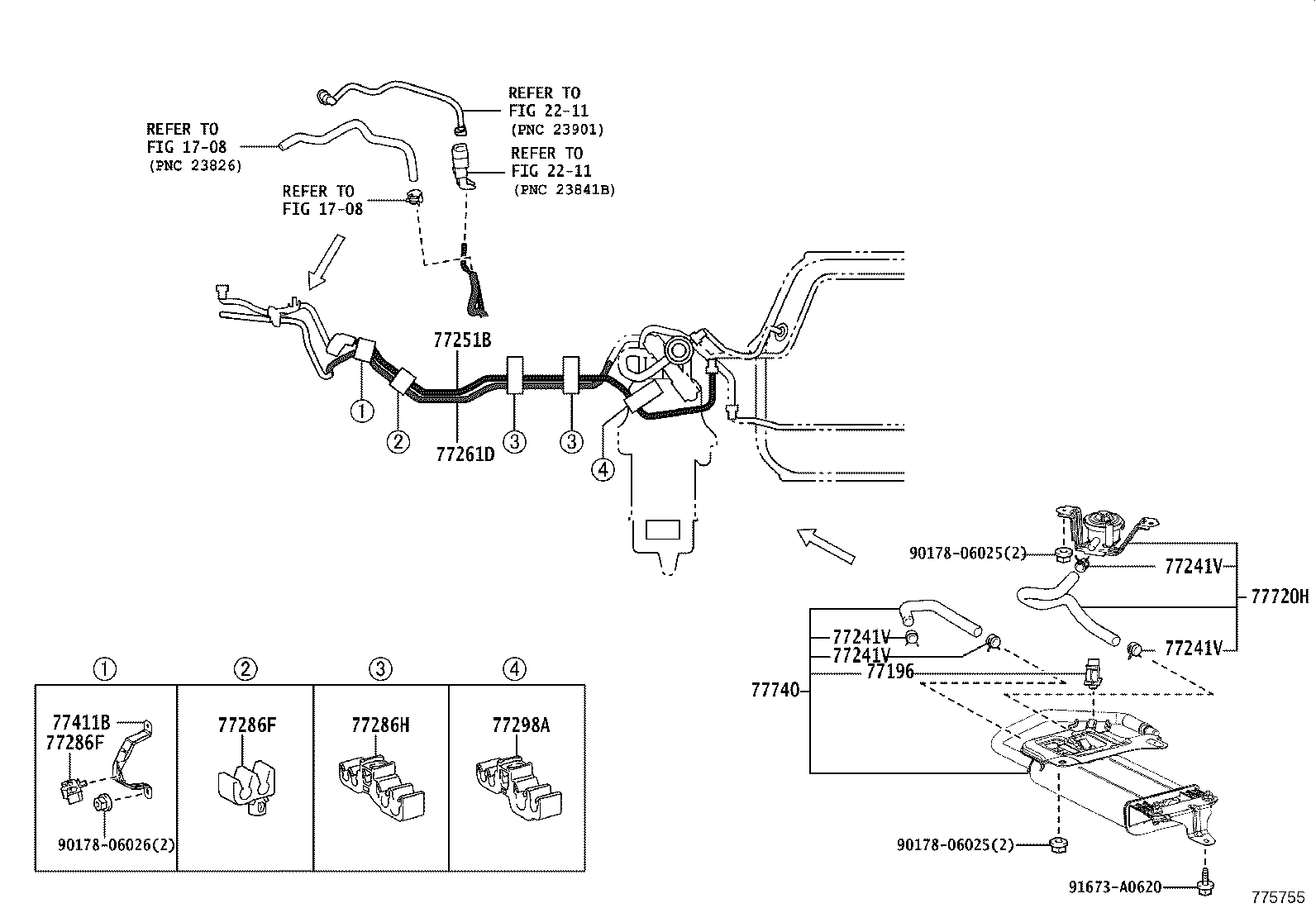

| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77272B | Support, Breather Tube, NO.1 |
| 77272C | Support, Breather Tube, NO.3 |
| 77273C | Support, Breather Tube, NO.2 |
| 77276 | Protector, Fuel Hose |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |

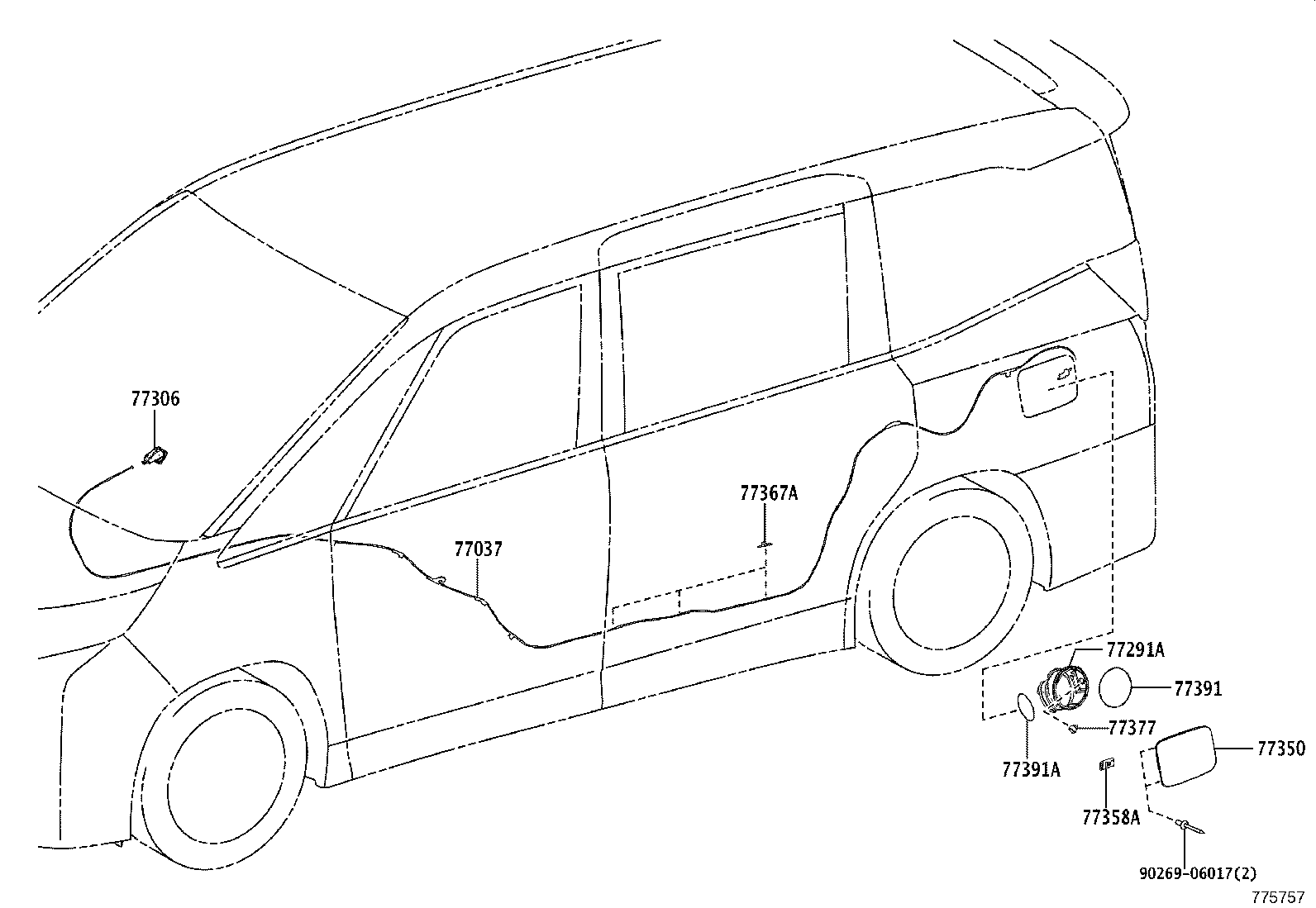

| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77367A | Clamp, Fuel Filler Lid Pin, NO.1 |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77607C | Protector Sub-assy, Fuel Tank, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77644 | Bolt, Fuel Tank |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77720H | Valve Assy, Fuel Outlet |
| 77740 | Canister Assy, Charcoal |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
