Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01

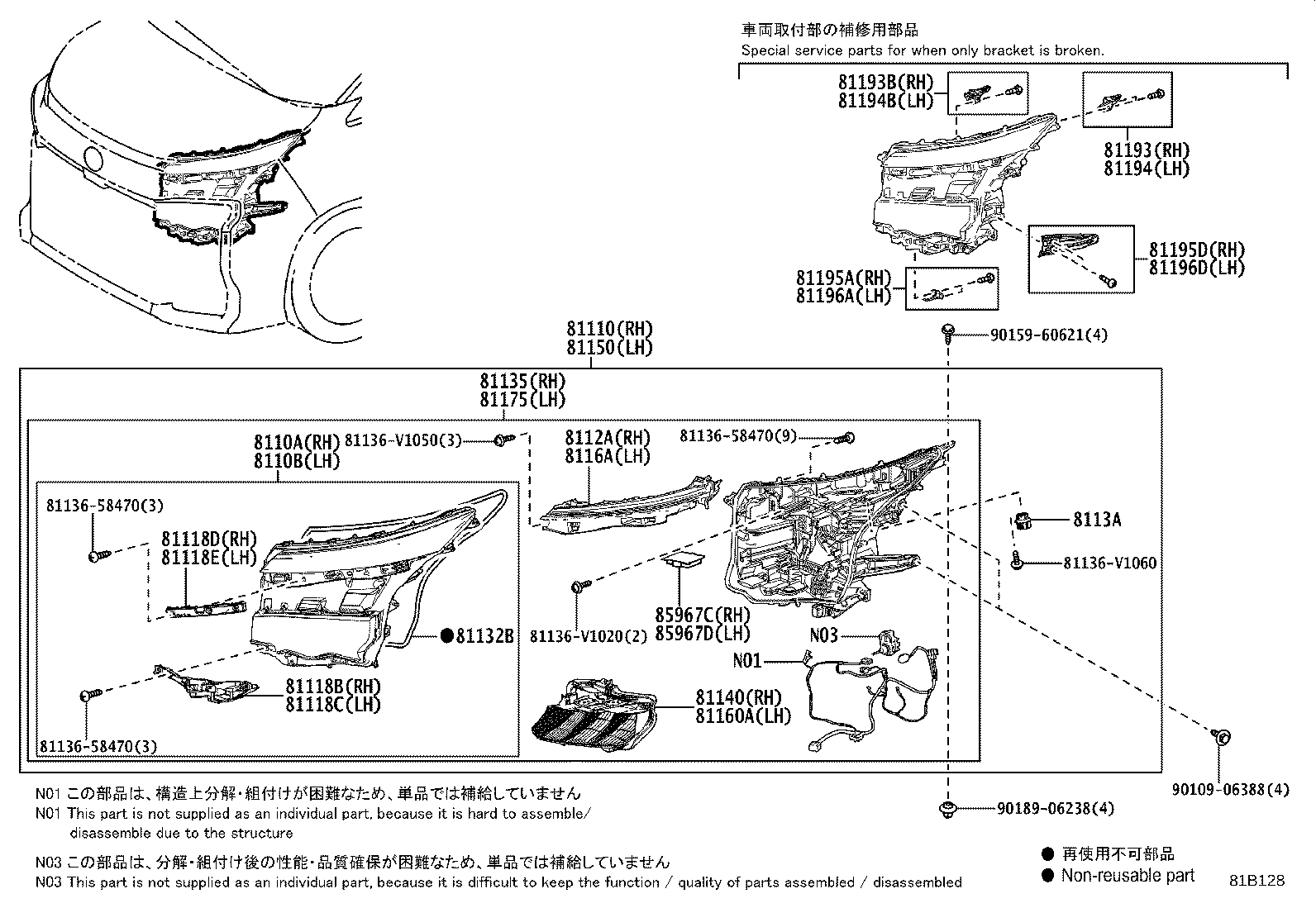

Headlamp
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81118B | Bracket, Headlamp, RH NO.1 |
| 81118C | Bracket, Headlamp, LH NO.1 |
| 81118D | Bracket, Headlamp, RH NO.2 |
| 81118E | Bracket, Headlamp, LH NO.2 |
| 81129A | Reflector, Headlamp, RH |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 8112AA | Unit, Headlamp Clearance Led, RH |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81150 | Headlamp Assy, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 81169 | Reflector, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 8116AA | Unit, Headlamp Clearance Led, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81195D | Retainer, Headlamp Protector, Lower RH NO.2 |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81196D | Retainer, Headlamp Protector, Lower LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
