Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 2 illustrations

Illustrations

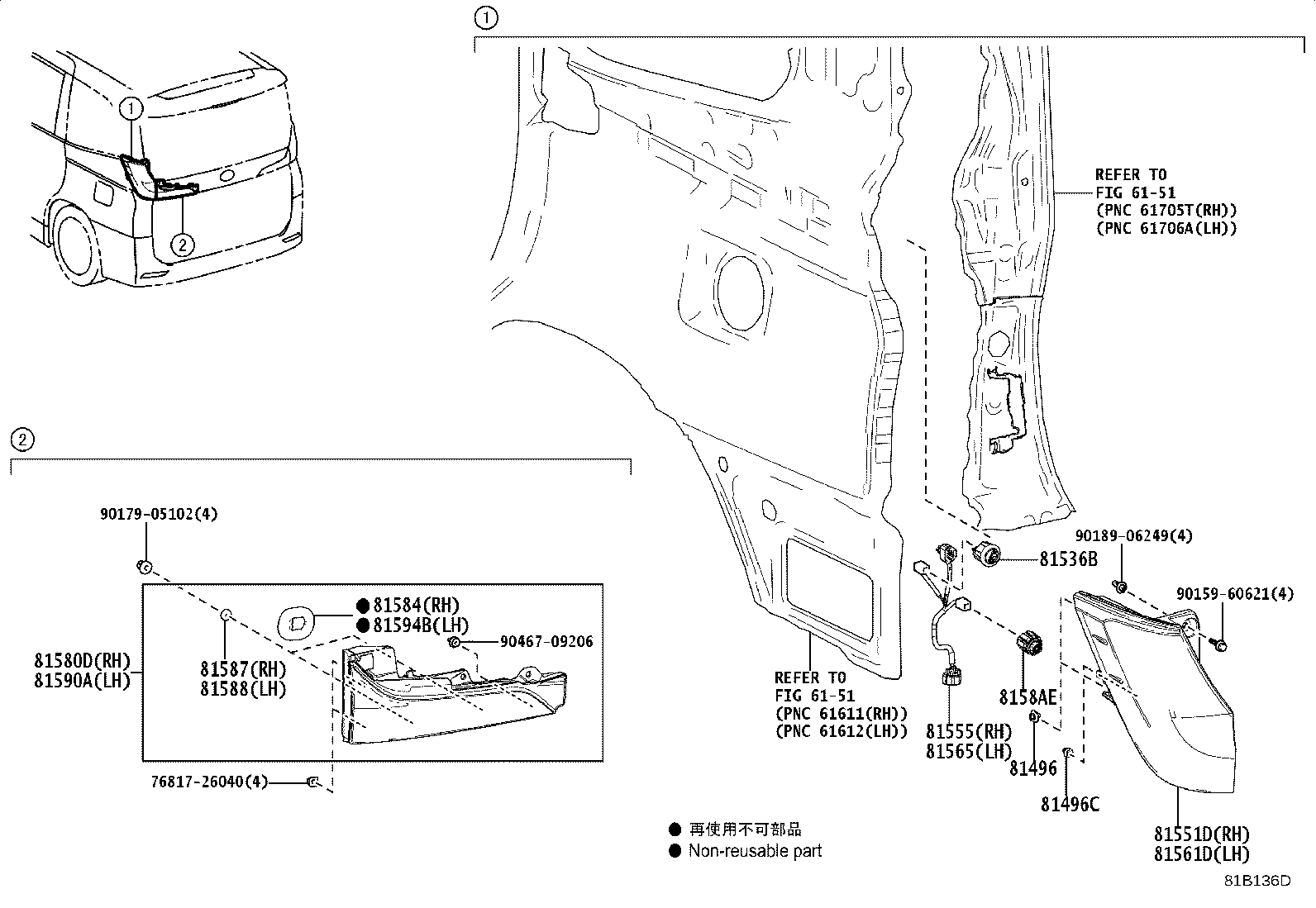

Figure 81A944E 81A944E 2022-01 → — Figure 81B136D 81B136D 2022-01 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81536B Led, Rear Turn Signal Lamp
81550L Bulb, Rear Turn Signal Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81587 Protector, Rear Lamp, RH
81588 Protector, Rear Lamp, LH
8158AE Led, Back-up Lamp
81590A Lamp Assy, Rear, LH
81594B Packing, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
