Toyota Noah/Voxy

2022-01 → present · chassis MZRA90 · catalogue 651290 · General

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

13 part groups · 2 illustrations

Illustrations

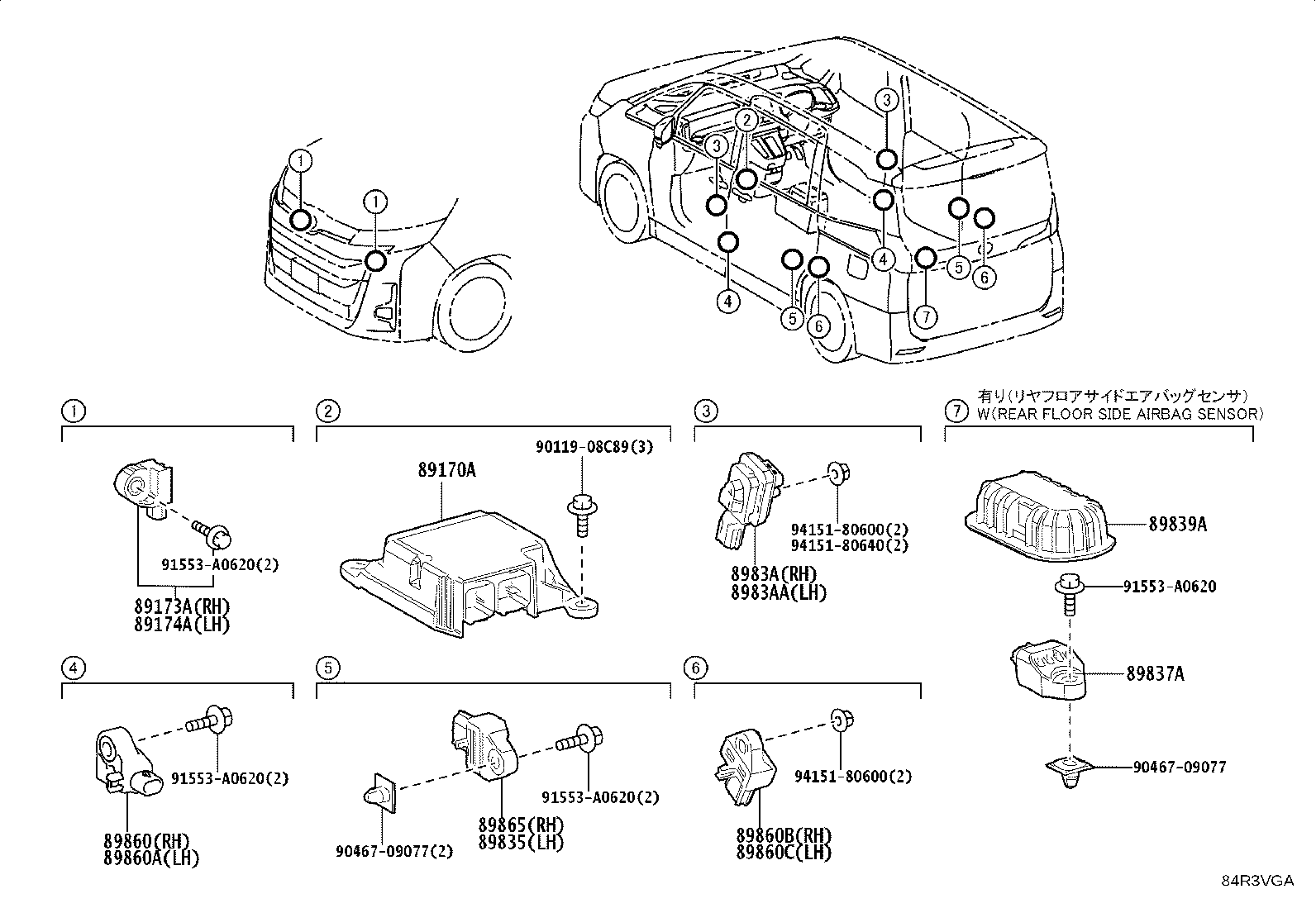

Figure 84O396B 84O396B 2022-01 → 2025-01 Figure 84R3VGA 84R3VGA 2025-01 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89835 Sensor, Door Side Airbag, LH
89837A Sensor, Rear Floor Side Airbag
89839A Cover, Rear Floor Side Airbag Sensor
8983A Sensor, Side Airbag Pressure, RH
8983AA Sensor, Side Airbag Pressure, LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89860B Sensor Assy, Side Airbag, RH, NO.2
89860C Sensor Assy, Side Airbag, LH, NO.2
89865 Sensor, Door Side Airbag, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
