Toyota Noah/Voxy
2022-01 → present · chassis MZRA90 · catalogue 651290 · General
Supported model
Data version 2022-01

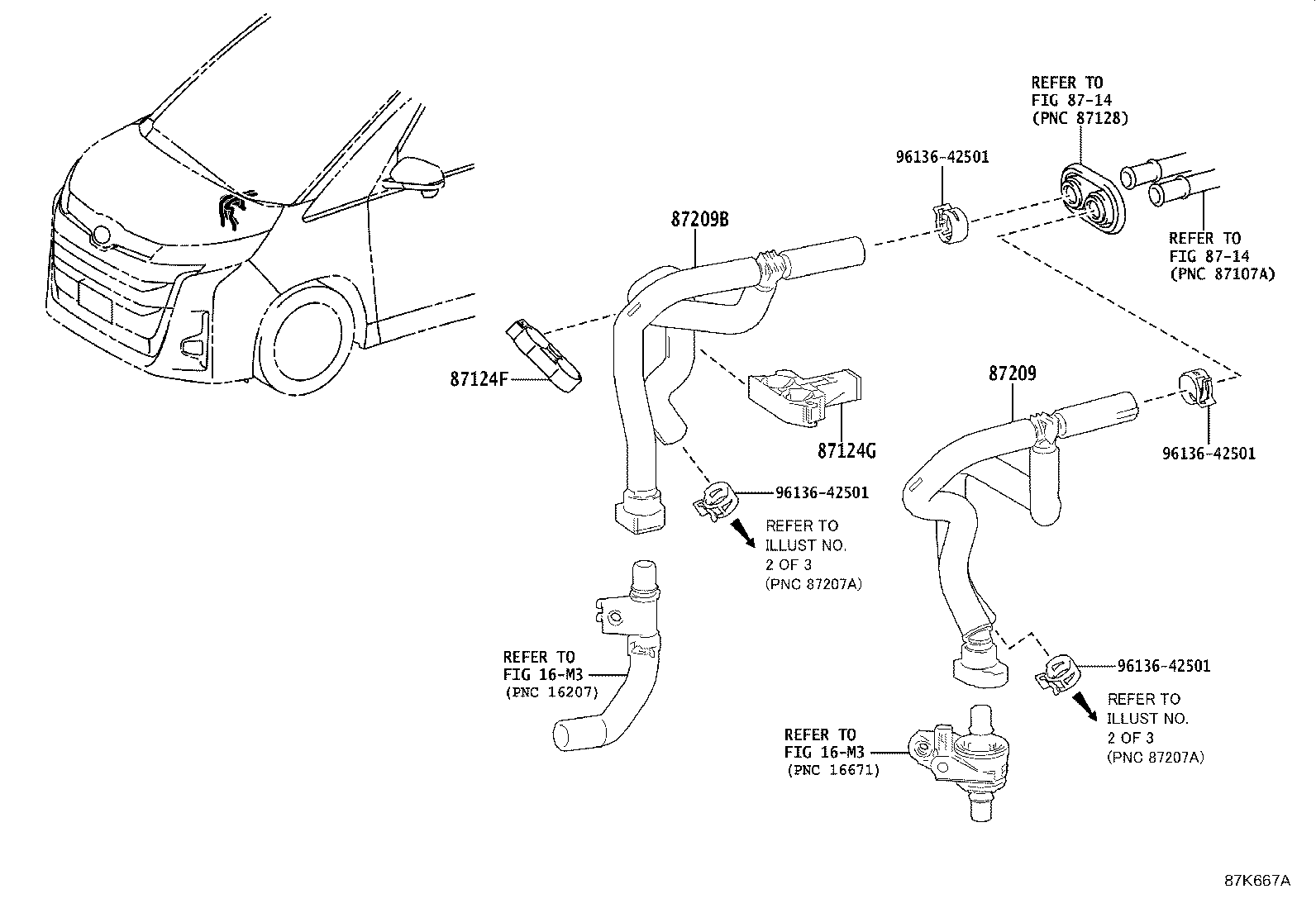

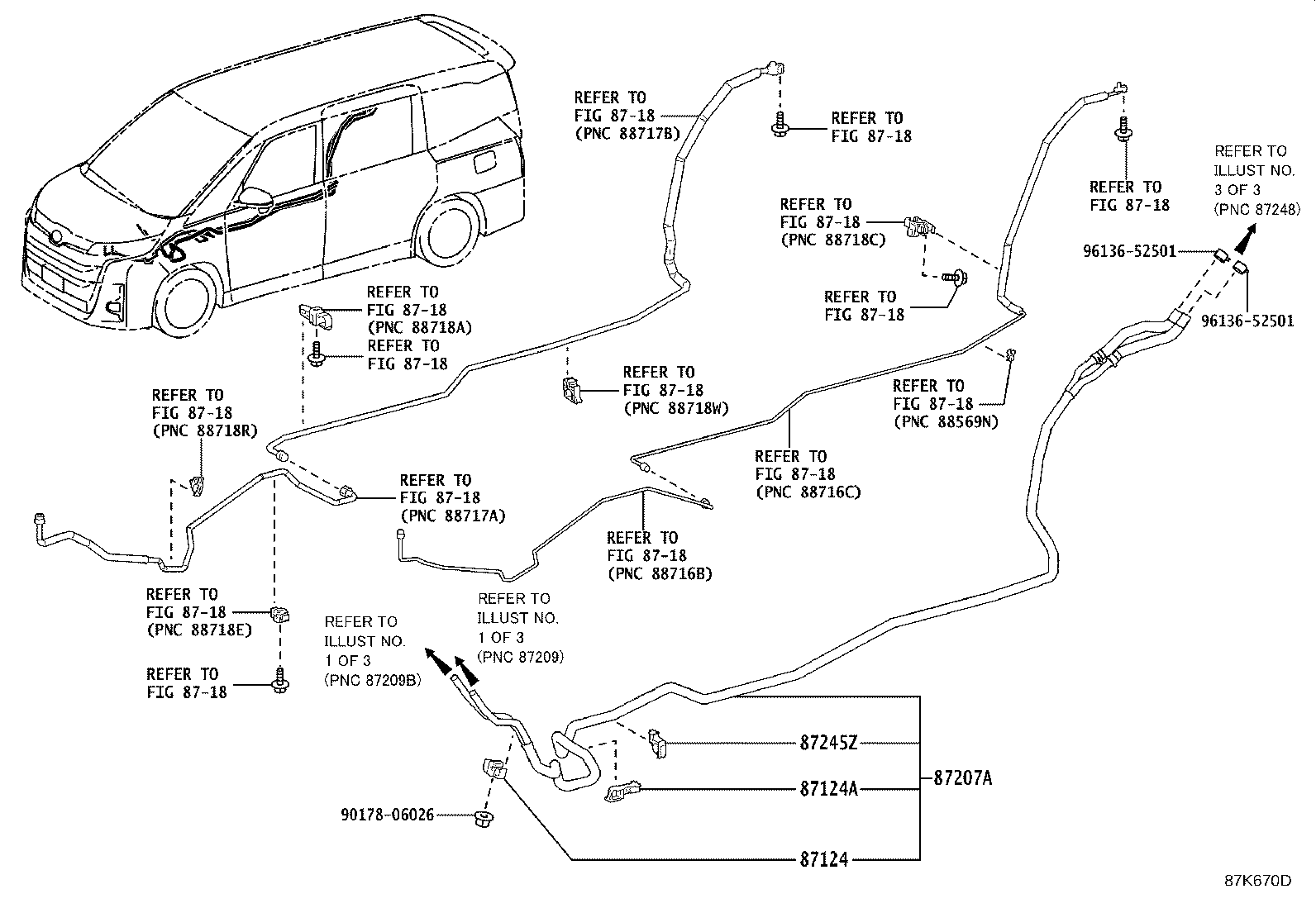

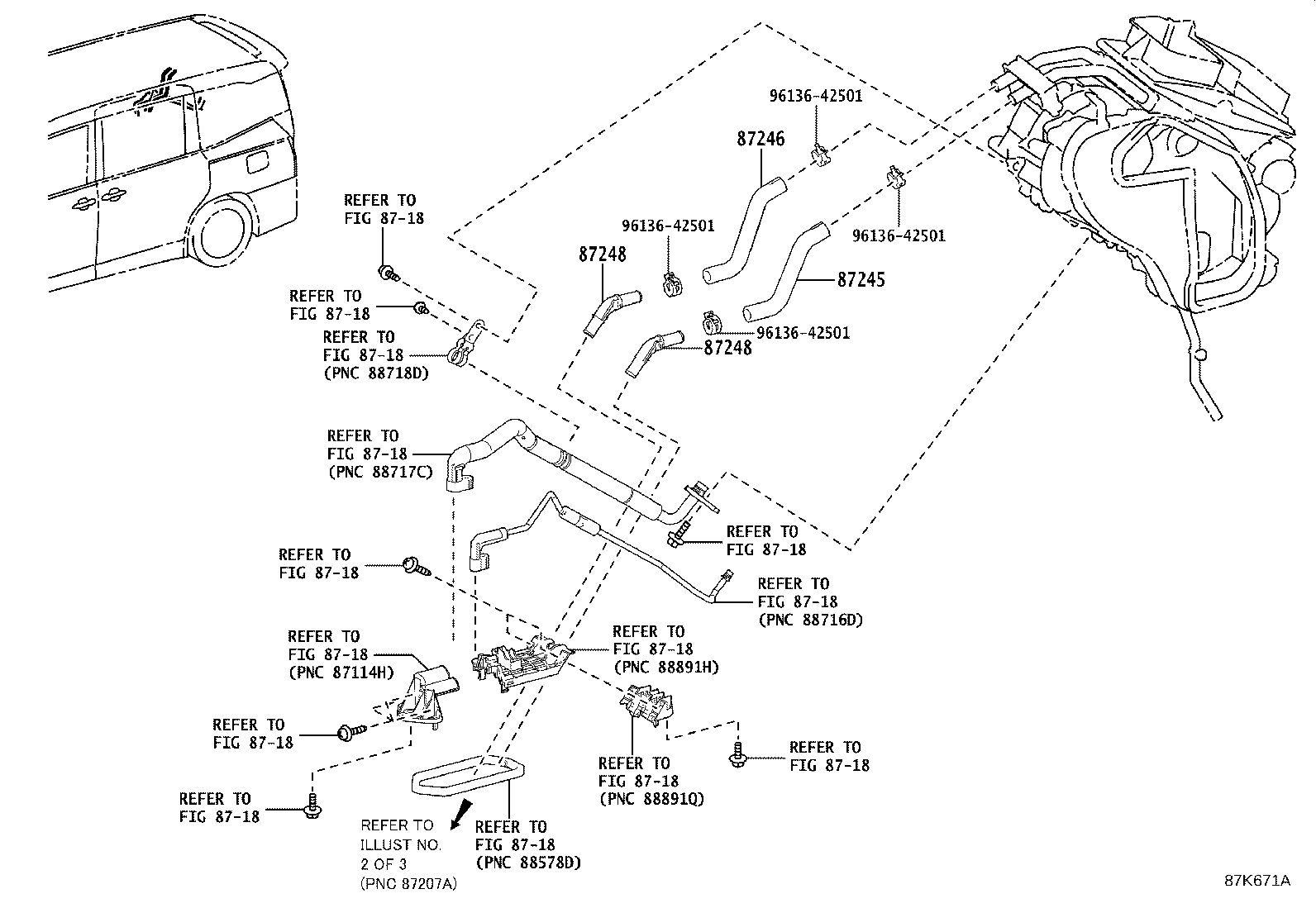

Heating & Air Conditioning - Water Piping
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87124 | Clamp, Heater |
| 87124A | Clamp, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87207A | Pipe & Hose Sub-assy, Water A |
| 87209 | Hose Sub-assy, Water |
| 87209B | Hose Sub-assy, Water, B |
| 87245 | Hose, Heater Water, Inlet |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246 | Hose, Heater Water, Outlet |
| 87248 | Pipe Sub-assy, Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
