Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31,CR21 · catalogue 651330 · General

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

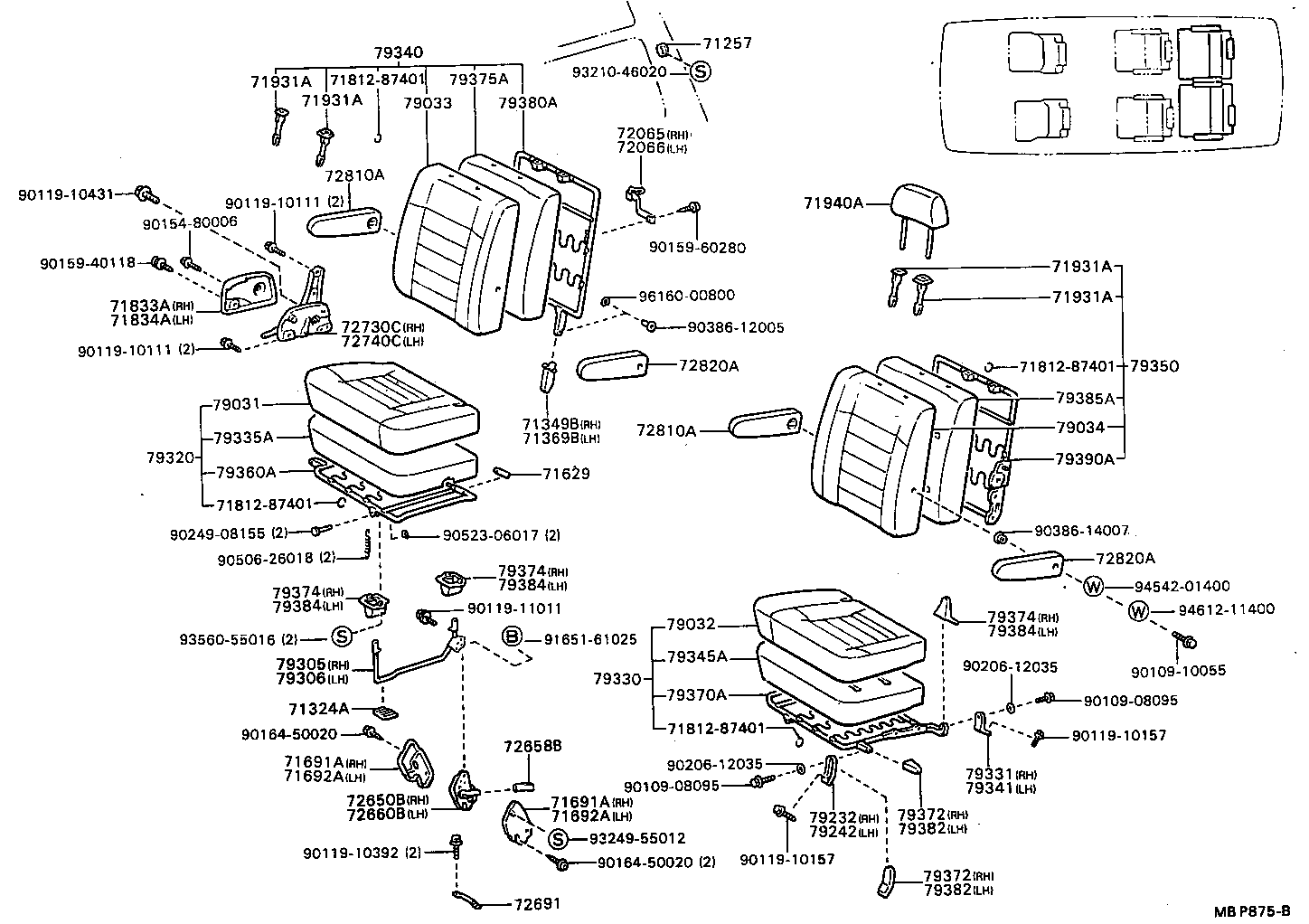

Exploded illustration MBP875B 71257 — PLATE, REAR SEATBACK ANCHOR (2 parts) 79340 — BACK ASSY, NO.3 SEAT, RH (8 parts) 9321046020 — not listed in this catalogue 79375A — PAD, NO.3 SEATBACK, RH (2 parts) 7181287401 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (4 parts) 71931A — SUPPORT, REAR SEAT HEADREST (4 parts) 79380A — SPRING ASSY, NO.3 SEATBACK, RH (3 parts) 79033 — COVER SUB-ASSY, NO.3 SEATBACK, RH (8 parts) 72065 — BELT SUB-ASSY, REAR SEAT HOOK, RH (6 parts) 72066 — BELT SUB-ASSY, REAR SEAT HOOK, LH (4 parts) 72810A — ARMREST ASSY, SEAT, RH (4 parts) 9011910431 — not listed in this catalogue 9011910111 — not listed in this catalogue 71940A — HEADREST ASSY, REAR SEAT (7 parts) 9015480006 — not listed in this catalogue 9015960280 — not listed in this catalogue 9015940118 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (4 parts) 9616000800 — not listed in this catalogue 71931A — SUPPORT, REAR SEAT HEADREST (4 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (2 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (2 parts) 72730C — ADJUSTER ASSY, NO.2 SEAT RECLINING, RH (6 parts) 9038612005 — not listed in this catalogue 72740C — ADJUSTER ASSY, NO.2 SEAT RECLINING, LH (6 parts) 9011910111 — not listed in this catalogue 7181287401 — not listed in this catalogue 72820A — ARMREST ASSY, SEAT, LH (4 parts) 79350 — BACK ASSY, NO.3 SEAT, LH (8 parts) 79385A — PAD, NO.3 SEATBACK, LH (2 parts) 79031 — COVER SUB-ASSY, NO.3 SEAT CUSHION, RH (8 parts) 71349B — COVER, REAR SEATBACK STAY, RH (2 parts) 79034 — COVER SUB-ASSY, NO.3 SEATBACK, LH (8 parts) 72810A — ARMREST ASSY, SEAT, RH (4 parts) 79335A — PAD, NO.3 SEAT CUSHION, RH (2 parts) 71369B — COVER, REAR SEATBACK STAY, LH (2 parts) 79320 — CUSHION ASSY, NO.3 SEAT, RH (8 parts) 79390A — SPRING ASSY, NO.3 SEATBACK, LH (3 parts) 79360A — SPRING ASSY, NO.3 SEAT CUSHION, RH (1 parts) 71629 — COVER, REAR SEAT CUSHION HINGE (3 parts) 7181287401 — not listed in this catalogue 9038614007 — not listed in this catalogue 9024908155 — not listed in this catalogue 9052306017 — not listed in this catalogue 9050626018 — not listed in this catalogue 72820A — ARMREST ASSY, SEAT, LH (4 parts) 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 9454201400 — not listed in this catalogue 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 9011911011 — not listed in this catalogue 9461211400 — not listed in this catalogue 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79032 — COVER SUB-ASSY, NO.3 SEAT CUSHION, LH (8 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 9356055016 — not listed in this catalogue 9165161025 — not listed in this catalogue 79345A — PAD, NO.3 SEAT CUSHION, LH (2 parts) 79305 — LEG SUB-ASSY, NO.3 SEAT (2 parts) 9020612035 — not listed in this catalogue 9010910055 — not listed in this catalogue 79306 — LEG SUB ASSY, NO.3 SEAT, LH (2 parts) 79330 — CUSHION ASSY, NO.3 SEAT, LH (8 parts) 79370A — SPRING ASSY, NO.3 SEAT CUSHION, LH (1 parts) 9010908095 — not listed in this catalogue 71324A — CUSHION, REAR SEAT (1 parts) 7181287401 — not listed in this catalogue 9016450020 — not listed in this catalogue 9011910157 — not listed in this catalogue 72658B — KNOB, REAR SEAT LOCK HANDLE (2 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 9020612035 — not listed in this catalogue 79331 — LEG, NO.3 SEAT, OUTER RH (1 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 9010908095 — not listed in this catalogue 79341 — LEG, NO.3 SEAT, OUTER LH (1 parts) 72650B — LOCK ASSY, REAR NO.3 SEAT, RH (1 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 72660B — LOCK ASSY, REAR NO.3 SEAT, LH (1 parts) 79372 — COVER, NO.3 SEAT FRONT BRACKET, RH (4 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 79232 — LEG, REAR NO.2 SEAT, RH (1 parts) 79382 — COVER, NO.3 SEAT FRONT BRACKET, LH (4 parts) 79242 — LEG, REAR NO.2 SEAT, LH (1 parts) 9324955012 — not listed in this catalogue 9011910392 — not listed in this catalogue 9011910157 — not listed in this catalogue 9016450020 — not listed in this catalogue 79372 — COVER, NO.3 SEAT FRONT BRACKET, RH (4 parts) 79382 — COVER, NO.3 SEAT FRONT BRACKET, LH (4 parts) 72691 — STRIKER, REAR NO.3 SEAT LOCK (1 parts)
MBP875B · 60 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
176 parts on this figure
Part number Description Fitment Price
71257 — Plate, Rear Seatback Anchor
71257-87002-03 note Plate, Rear Seatback Anchor
1988-08 → 1990-01 ended
YR2#,31 MRF —
71257-87002-06 note Plate, Rear Seatback Anchor
1988-08 → 1990-01 ended
YR2#,31 GL —
71324A — Cushion, Rear Seat
71324-87002 Cushion, Rear Seat
1988-08 → 1990-01 ended
YR2#,31 —
71349B — Cover, Rear Seatback Stay, RH
71349-87002-03 note Cover, Rear Seatback Stay, RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71349-87002-16 note Cover, Rear Seatback Stay, RH
1988-08 → 1990-01 ended
YR2#,31 GL —
71369B — Cover, Rear Seatback Stay, LH
71369-87002-03 note Cover, Rear Seatback Stay, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71369-87002-16 note Cover, Rear Seatback Stay, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
71629 — Cover, Rear Seat Cushion Hinge
71629-87001-01 note Cover, Rear Seat Cushion Hinge
1988-11 → 1990-01 ended
YR2#,31 —
71629-87001-03 note Cover, Rear Seat Cushion Hinge
1988-08 → 1988-11 ended
YR2#,31 MRF —
71629-87001-16 note Cover, Rear Seat Cushion Hinge
1988-08 → 1988-11 ended
YR2#,31 GL —
71691A — Cover, Rear NO.3 Seat Lock, RH
71691-87002-03 note Cover, Rear NO.3 Seat Lock, RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71691-87002-16 note Cover, Rear NO.3 Seat Lock, RH
1988-08 → 1990-01 ended
YR2#,31 GL —
71691-87003-03 note Cover, Rear NO.3 Seat Lock, RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71691-87003-16 note Cover, Rear NO.3 Seat Lock, RH
1988-08 → 1990-01 ended
YR2#,31 GL —
71692A — Cover, Rear NO.3 Seat Lock, LH
71692-87002-03 note Cover, Rear NO.3 Seat Lock, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71692-87002-16 note Cover, Rear NO.3 Seat Lock, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
71692-87003-03 note Cover, Rear NO.3 Seat Lock, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71692-87003-16 note Cover, Rear NO.3 Seat Lock, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71811-87001-03 note Cover, Rear Seat Reclining, NO.1 RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71811-87001-16 note Cover, Rear Seat Reclining, NO.1 RH
1988-08 → 1990-01 ended
YR2#,31 GL —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71812-87001-03 note Cover, Rear Seat Reclining, NO.1 LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
71812-87001-16 note Cover, Rear Seat Reclining, NO.1 LH
1988-08 → 1990-01 ended
YR2#,31 GL —
71931A — Support, Rear Seat Headrest
71930-10060-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR2#,31 MRF —
71930-10060-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR2#,31 GL —
71931-10010-33 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR2#,31 MRF —
71931-10010-50 note Support, Rear Seat Headrest
1988-08 → 1990-01 ended
YR2#,31 GL —
71940A — Headrest Assy, Rear Seat
71940-28040-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR21 DLX —
71940-87030-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22 DLX —
71940-87031-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR22 DLX —
71940-95D00-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR2#,31 GL —
71940-95D00-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR2#,31 GL —
71940-95D01-03 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR21 GEN —
71940-95D01-06 note Headrest Assy, Rear Seat
1988-08 → 1990-01 ended
YR21 GEN —
72065 — Belt Sub-assy, Rear Seat Hook, RH
72065-87003-03 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR2# DLX;YR21 GEN —
72065-87003-03 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
72065-87003-16 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR21 GEN —
72065-87003-16 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
72065-87004-03 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72065-87004-16 note Belt Sub-assy, Rear Seat Hook, RH
1988-08 → 1990-01 ended
YR22 4FC —
72066 — Belt Sub-assy, Rear Seat Hook, LH
72065-87003-03 note Belt Sub-assy, Rear Seat Hook, LH
1988-08 → 1990-01 ended
YR2# DLX;YR21 GEN —
72065-87003-16 note Belt Sub-assy, Rear Seat Hook, LH
1988-08 → 1990-01 ended
YR21 GEN —
72065-87004-03 note Belt Sub-assy, Rear Seat Hook, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72065-87004-16 note Belt Sub-assy, Rear Seat Hook, LH
1988-08 → 1990-01 ended
YR22 4FC —
72650B — Lock Assy, Rear NO.3 Seat, RH
72660-87002 Lock Assy, Rear NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 GEN —
72658B — Knob, Rear Seat Lock Handle
72658-95701-01 note Knob, Rear Seat Lock Handle
1988-08 → 1990-01 ended
YR21 GEN —
72658-95701-01 note Knob, Rear Seat Lock Handle
1988-08 → 1990-01 ended
YR2#,31 ARL —
72660B — Lock Assy, Rear NO.3 Seat, LH
72650-87003 Lock Assy, Rear NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 GEN —
72691 — Striker, Rear NO.3 Seat Lock
72691-87001 Striker, Rear NO.3 Seat Lock
1988-08 → 1990-01 ended
YR21 GEN —
72730C — Adjuster Assy, NO.2 Seat Reclining, RH
72730-87015-03 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR21 GEN —
72730-87015-16 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR21 GEN —
72730-87019-03 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR2#,31 MRF ARL —
72730-87019-16 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
72730-87020-03 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72730-87020-16 note Adjuster Assy, NO.2 Seat Reclining, RH
1988-08 → 1990-01 ended
YR22 4FC —
72740C — Adjuster Assy, NO.2 Seat Reclining, LH
72740-87012-03 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR21 GEN —
72740-87012-16 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR21 GEN —
72740-87016-03 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR2#,31 MRF ARL —
72740-87016-16 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
72740-87017-03 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72740-87017-16 note Adjuster Assy, NO.2 Seat Reclining, LH
1988-08 → 1990-01 ended
YR22 4FC —
72810A — Armrest Assy, Seat, RH
72810-95D00-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72810-95D00-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22 4FC —
72810-95D01-03 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72810-95D01-06 note Armrest Assy, Seat, RH
1988-08 → 1990-01 ended
YR22 4FC —
72820A — Armrest Assy, Seat, LH
72820-95D00-03 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72820-95D00-06 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22 4FC —
72820-95D01-03 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
72820-95D01-06 note Armrest Assy, Seat, LH
1988-08 → 1990-01 ended
YR22 4FC —
79031 — Cover Sub-assy, NO.3 Seat Cushion, RH
79031-87019-03 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR22 DLX —
79031-87026-03 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR21 DLX —
79031-95D00-03 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79031-95D00-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79031-95D01-03 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR21 GEN —
79031-95D01-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR21 GEN —
79031-95D02-03 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79031-95D02-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR22 4FC —
79032 — Cover Sub-assy, NO.3 Seat Cushion, LH
79032-87018-03 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22 DLX —
79032-87025-03 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR21 DLX —
79032-95D00-03 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79032-95D00-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79032-95D01-03 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR21 GEN —
79032-95D01-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR21 GEN —
79032-95D02-03 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79032-95D02-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22 4FC —
79033 — Cover Sub-assy, NO.3 Seatback, RH
79033-87013-03 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR22 DLX —
79033-87018-03 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR21 DLX —
79033-95D00-03 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79033-95D00-06 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79033-95D01-03 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR21 GEN —
79033-95D01-06 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR21 GEN —
79033-95D02-03 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79033-95D02-06 note Cover Sub-assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR22 4FC —
79034 — Cover Sub-assy, NO.3 Seatback, LH
79034-87013-03 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR22 DLX —
79034-87018-03 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR21 DLX —
79034-95D00-03 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79034-95D00-06 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79034-95D01-03 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR21 GEN —
79034-95D01-06 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR21 GEN —
79034-95D02-03 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79034-95D02-06 note Cover Sub-assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR22 4FC —
79232 — Leg, Rear NO.2 Seat, RH
79232-87002 Leg, Rear NO.2 Seat, RH
1988-08 → 1990-01 ended
YR2#,31 —
79242 — Leg, Rear NO.2 Seat, LH
79242-87002 Leg, Rear NO.2 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 —
79305 — Leg Sub-assy, NO.3 Seat
79305-87003-03 note Leg Sub-assy, NO.3 Seat
1988-08 → 1990-01 ended
YR2#,31 MRF —
79305-87003-06 note Leg Sub-assy, NO.3 Seat
1988-08 → 1990-01 ended
YR2#,31 GL —
79306 — Leg Sub Assy, NO.3 Seat, LH
79306-87003-03 note Leg Sub Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79306-87003-06 note Leg Sub Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79320 — Cushion Assy, NO.3 Seat, RH
79320-87022-13 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 DLX —
79320-87025-03 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 DLX —
79320-95D00-03 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79320-95D00-06 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79320-95D01-03 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 GEN —
79320-95D01-06 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 GEN —
79320-95D02-03 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79320-95D02-06 note Cushion Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 4FC —
79330 — Cushion Assy, NO.3 Seat, LH
79330-87019-03 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 DLX —
79330-87024-03 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 DLX —
79330-95D00-03 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79330-95D00-06 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79330-95D01-03 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 GEN —
79330-95D01-06 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 GEN —
79330-95D02-03 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79330-95D02-06 note Cushion Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 4FC —
79331 — Leg, NO.3 Seat, Outer RH
79331-87001 Leg, NO.3 Seat, Outer RH
1988-08 → 1990-01 ended
YR2#,31 —
79335A — Pad, NO.3 Seat Cushion, RH
79335-87004 Pad, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR2#,31 —
79335-87005 note Pad, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR22 4FC —
79340 — Back Assy, NO.3 Seat, RH
79340-87016-03 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 DLX —
79340-87017-03 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 DLX —
79340-95D00-03 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79340-95D00-06 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79340-95D01-03 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 GEN —
79340-95D01-06 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR21 GEN —
79340-95D02-03 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79340-95D02-06 note Back Assy, NO.3 Seat, RH
1988-08 → 1990-01 ended
YR22 4FC —
79341 — Leg, NO.3 Seat, Outer LH
79341-87001 Leg, NO.3 Seat, Outer LH
1988-08 → 1990-01 ended
YR2#,31 —
79345A — Pad, NO.3 Seat Cushion, LH
79345-87004 Pad, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR2#,31 —
79345-87005 note Pad, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR22 4FC —
79350 — Back Assy, NO.3 Seat, LH
79350-87017-03 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 DLX —
79350-87018-03 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 DLX —
79350-95D00-03 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 MRF GL ARL —
79350-95D00-06 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR2#,31 GL ARL —
79350-95D01-03 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 GEN —
79350-95D01-06 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR21 GEN —
79350-95D02-03 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 MRF 4FC —
79350-95D02-06 note Back Assy, NO.3 Seat, LH
1988-08 → 1990-01 ended
YR22 4FC —
79360A — Spring Assy, NO.3 Seat Cushion, RH
79360-87001 Spring Assy, NO.3 Seat Cushion, RH
1988-08 → 1990-01 ended
YR2#,31 —
79370A — Spring Assy, NO.3 Seat Cushion, LH
79370-87001 Spring Assy, NO.3 Seat Cushion, LH
1988-08 → 1990-01 ended
YR2#,31 —
79372 — Cover, NO.3 Seat Front Bracket, RH
79372-87001-03 note Cover, NO.3 Seat Front Bracket, RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79372-87001-16 note Cover, NO.3 Seat Front Bracket, RH
1988-08 → 1990-01 ended
YR2#,31 GL —
79372-87002-03 note Cover, NO.3 Seat Front Bracket, RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79372-87002-16 note Cover, NO.3 Seat Front Bracket, RH
1988-08 → 1990-01 ended
YR2#,31 GL —
79374 — Cover, NO.3 Seat Leg, Rear RH
79374-87001-03 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79374-87001-16 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 GL —
79374-95700-03 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79374-95700-36 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 GL —
79384-95701-03 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79384-95701-36 note Cover, NO.3 Seat Leg, Rear RH
1988-08 → 1990-01 ended
YR2#,31 GL —
79375A — Pad, NO.3 Seatback, RH
79375-87005 note Pad, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR22 4FC —
79375-87007 Pad, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR2#,31 —
79380A — Spring Assy, NO.3 Seatback, RH
79380-87005 note Spring Assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR22 4FC —
79380-87007 Spring Assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR21 GEN —
79380-87008 Spring Assy, NO.3 Seatback, RH
1988-08 → 1990-01 ended
YR2#,31 ARL —
79382 — Cover, NO.3 Seat Front Bracket, LH
79382-87001-03 note Cover, NO.3 Seat Front Bracket, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79382-87001-16 note Cover, NO.3 Seat Front Bracket, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79382-87002-03 note Cover, NO.3 Seat Front Bracket, LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79382-87002-16 note Cover, NO.3 Seat Front Bracket, LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79384 — Cover, NO.3 Seat Leg, Rear LH
79374-95700-03 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79374-95700-36 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79384-87001-03 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79384-87001-16 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79384-95701-03 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 MRF —
79384-95701-36 note Cover, NO.3 Seat Leg, Rear LH
1988-08 → 1990-01 ended
YR2#,31 GL —
79385A — Pad, NO.3 Seatback, LH
79385-87005 note Pad, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR22 4FC —
79385-87009 Pad, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR2#,31 —
79390A — Spring Assy, NO.3 Seatback, LH
79390-87005 note Spring Assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR22 4FC —
79390-87007 Spring Assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR21 GEN —
79390-87008 Spring Assy, NO.3 Seatback, LH
1988-08 → 1990-01 ended
YR2#,31 ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
