Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31,CR21 · catalogue 651330 · General

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 2 illustrations

Illustrations

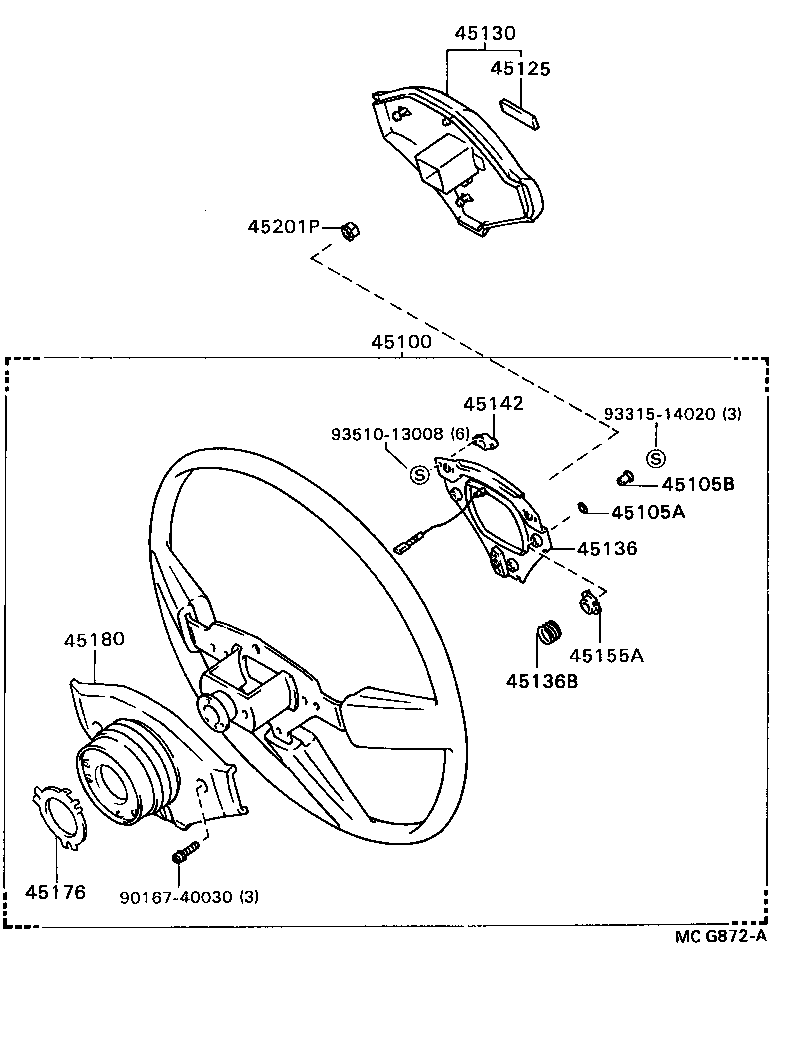

Figure MCG907 MCG907 1988-08 → — Figure MCG872A MCG872A 1988-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45155A Spacer, Horn Contact
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
