Toyota Model-f

1988-08 → 1990-01 · chassis YR2#,31,CR21 · catalogue 651330 · General

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

17 part groups · 2 illustrations

Illustrations

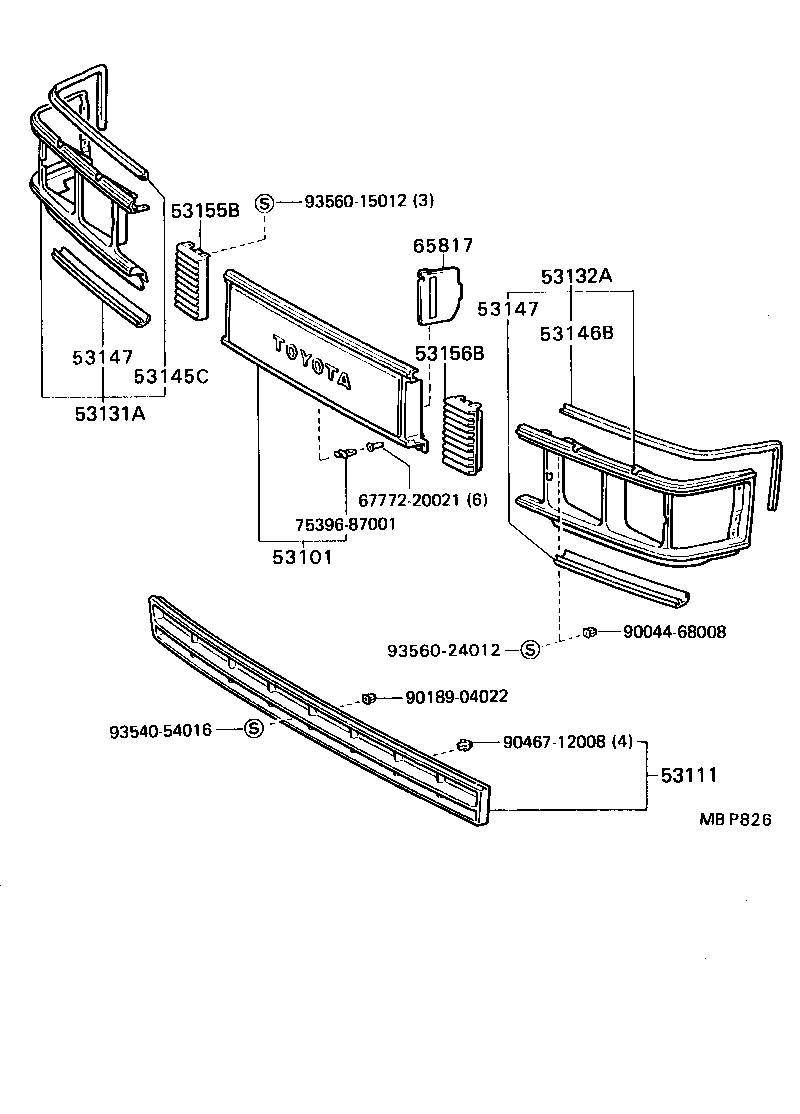

Figure MBP825B MBP825B 1988-08 → — Figure MBP826 MBP826 1988-08 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53145C Protector, Headlamp Door, Side RH
53146B Protector, Headlamp Door, Side LH
53147 Weatherstrip, Headlamp Ornament, NO.1
53155B Bezel, Headlamp, Outer RH
53156B Bezel, Headlamp, Outer LH
53158B Pad, Headlamp Door
53169A Protector, Headlamp Door, NO.2 RH
53179A Protector, Headlamp Door, NO.2 LH
53927 Garnish, Front Panel, Center Upper
53929 Garnish, Front Panel, Center Lower
65817 Pad, Cover Top Panel End
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
