Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

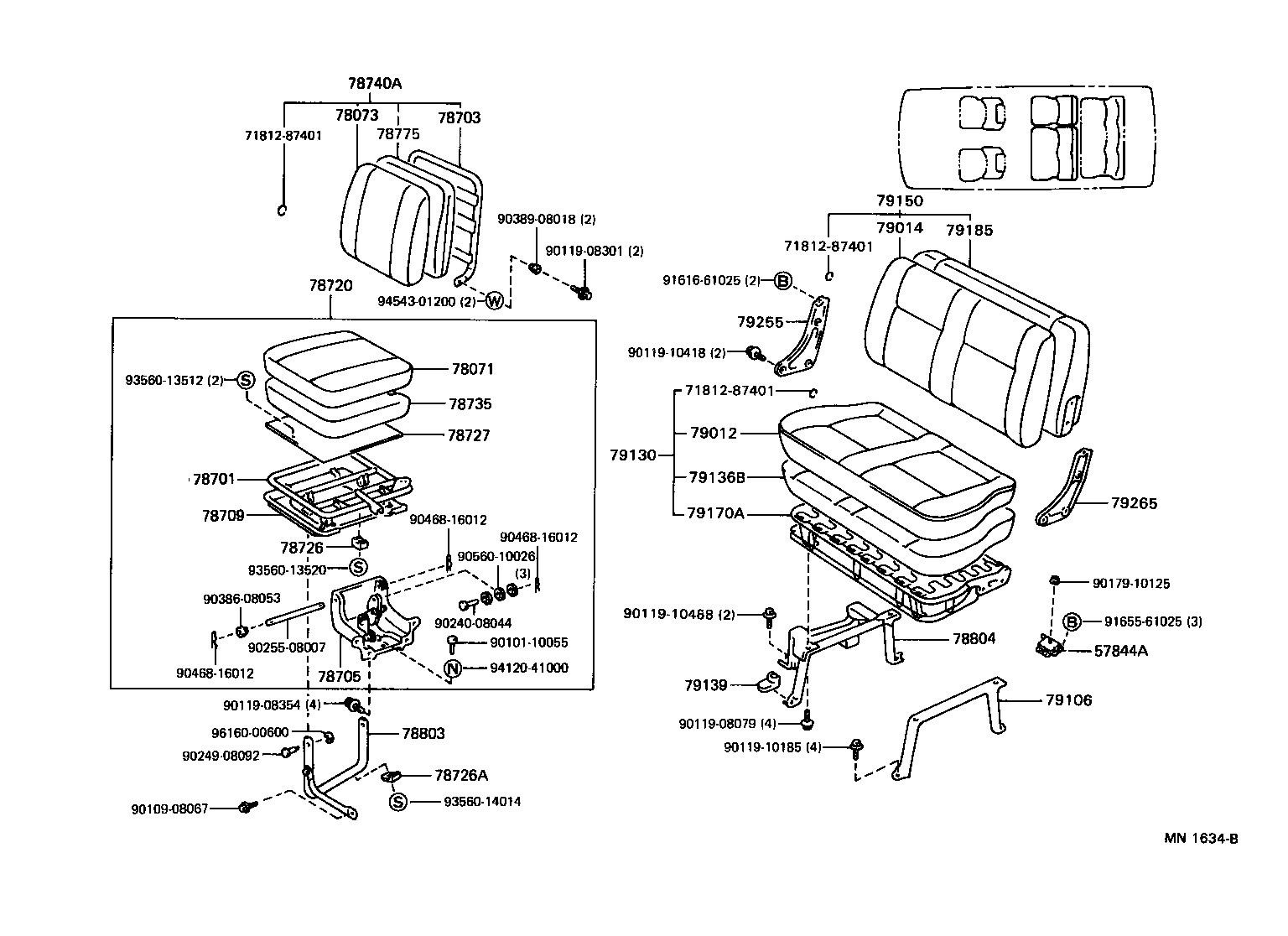

Exploded illustration MN1634B 78740A — BACK ASSY, SUB SEAT, RH (1 parts) 78073 — COVER SUB-ASSY, SUB SEATBACK, RH (1 parts) 78703 — FRAME SUB-ASSY, SUB SEATBACK (1 parts) 78775 — PAD, SUB SEATBACK (1 parts) 7181287401 — not listed in this catalogue 79150 — BACK ASSY, NO.1 SEAT, LH (13 parts) 9038908018 — not listed in this catalogue 79014 — COVER SUB-ASSY, NO.1 SEATBACK, LH (10 parts) 79185 — PAD, NO.1 SEATBACK, LH (3 parts) 7181287401 — not listed in this catalogue 9011908301 — not listed in this catalogue 9161661025 — not listed in this catalogue 78720 — CUSHION ASSY, SUB SEAT, RH (1 parts) 9454301200 — not listed in this catalogue 79255 — SUPPORT, NO.2 SEATBACK, RH (1 parts) 9011910418 — not listed in this catalogue 78071 — COVER SUB-ASSY, SUB SEAT CUSHION, RH (1 parts) 9356013512 — not listed in this catalogue 7181287401 — not listed in this catalogue 78735 — PAD, SUB SEAT CUSHION (1 parts) 79012 — COVER SUB-ASSY, NO.1 SEAT CUSHION, LH (10 parts) 78727 — BOARD, SUB SEAT CUSHION (1 parts) 79130 — CUSHION ASSY, NO.1 SEAT, LH (10 parts) 79136B — PAD, NO.1 SEAT CUSHION, LH (3 parts) 78701 — FRAME SUB-ASSY, SUB SEAT CUSHION, RH (1 parts) 79265 — SUPPORT, NO.2 SEATBACK HINGE, LH (1 parts) 79170A — SPRING ASSY, NO.1 SEAT CUSUION, LH (3 parts) 78709 — PANEL SUB-ASSY, SUB SEAT CUSHION (1 parts) 9046816012 — not listed in this catalogue 9046816012 — not listed in this catalogue 78726 — CUSHION, SUB SEAT CUSHION FRAME (1 parts) 9056010026 — not listed in this catalogue 9356013520 — not listed in this catalogue 9017910125 — not listed in this catalogue 9038608053 — not listed in this catalogue 9011910488 — not listed in this catalogue 9165561025 — not listed in this catalogue 9024008044 — not listed in this catalogue 78804 — LEG SUB ASSY, SUB SEAT CUSHION (1 parts) 9010110055 — not listed in this catalogue 9025508007 — not listed in this catalogue 57844A — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.6 (1 parts) 9412041000 — not listed in this catalogue 9046816012 — not listed in this catalogue 78705 — BRACKET SUB-ASSY, SUB SEAT CUSHION (1 parts) 79139 — COVER, REAR SEAT LEG (1 parts) 79106 — LEG SUB ASSY, NO.1 SEAT, LH (2 parts) 9011908354 — not listed in this catalogue 9011908079 — not listed in this catalogue 9616000600 — not listed in this catalogue 78803 — LEG SUB-ASSY, SUB SEAT (1 parts) 9011910185 — not listed in this catalogue 9024908092 — not listed in this catalogue 78726A — CUSHION, SUB SEAT CUSHION FRAME, NO.2 (1 parts) 9356014014 — not listed in this catalogue 9010908067 — not listed in this catalogue
MN1634B · 27 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
73 parts on this figure
Part number Description Fitment Price
57844A — Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
57844-28010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1992-01 → 1996-10 ended
KR28 —
78071 — Cover Sub-assy, Sub Seat Cushion, RH
78071-28010-B0 note Cover Sub-assy, Sub Seat Cushion, RH
1992-01 → 1996-10 ended
KR28 —
78073 — Cover Sub-assy, Sub Seatback, RH
78073-28010-B0 note Cover Sub-assy, Sub Seatback, RH
1992-01 → 1996-10 ended
KR28 —
78701 — Frame Sub-assy, Sub Seat Cushion, RH
78701-95703-B0 note Frame Sub-assy, Sub Seat Cushion, RH
1992-01 → 1996-10 ended
KR28 —
78703 — Frame Sub-assy, Sub Seatback
78703-95701-B0 note Frame Sub-assy, Sub Seatback
1992-01 → 1996-10 ended
KR28 —
78705 — Bracket Sub-assy, Sub Seat Cushion
78705-95700-B0 note Bracket Sub-assy, Sub Seat Cushion
1992-01 → 1996-10 ended
KR28 —
78709 — Panel Sub-assy, Sub Seat Cushion
78709-95703-B0 note Panel Sub-assy, Sub Seat Cushion
1992-01 → 1996-10 ended
KR28 —
78720 — Cushion Assy, Sub Seat, RH
78720-28010-B0 note Cushion Assy, Sub Seat, RH
1992-01 → 1996-10 ended
KR28 —
78726 — Cushion, Sub Seat Cushion Frame
78726-90B00 Cushion, Sub Seat Cushion Frame
1992-01 → 1996-10 ended
KR28 —
78726A — Cushion, Sub Seat Cushion Frame, NO.2
78726-90C00 Cushion, Sub Seat Cushion Frame, NO.2
1992-01 → 1996-10 ended
KR28 —
78727 — Board, Sub Seat Cushion
78727-90B00 Board, Sub Seat Cushion
1992-01 → 1996-10 ended
KR28 —
78735 — Pad, Sub Seat Cushion
78735-95702 Pad, Sub Seat Cushion
1992-01 → 1996-10 ended
KR28 —
78740A — Back Assy, Sub Seat, RH
78740-28010-B0 note Back Assy, Sub Seat, RH
1992-01 → 1996-10 ended
KR28 —
78775 — Pad, Sub Seatback
78775-95701 Pad, Sub Seatback
1992-01 → 1996-10 ended
KR28 —
78803 — Leg Sub-assy, Sub Seat
78803-95700 Leg Sub-assy, Sub Seat
1992-01 → 1996-10 ended
KR28 —
78804 — Leg Sub Assy, Sub Seat Cushion
78803-28010 Leg Sub Assy, Sub Seat Cushion
1992-01 → 1996-10 ended
KR28 —
79012 — Cover Sub-assy, NO.1 Seat Cushion, LH
71066-28060-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1992-01 → 1994-08 ended
YR21 —
71066-28070-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1992-01 → 1994-08 ended
YR22 STD —
71066-28080-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1992-01 → 1993-09 ended
YR22 DX —
71066-28160-B1 note Cover Sub-assy, NO.1 Seat Cushion, LH
1993-09 → 1994-08 ended
YR21 —
71066-28170-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1994-08 → 2000-07 ended
YR21 —
71066-28210-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1994-08 → 1995-08 ended
YR22 —
71066-28220-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1994-08 → 1995-08 ended
YR21 —
71066-28260-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1995-08 → 1996-10 ended
YR22 —
71066-28270-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1995-08 → 2000-07 ended
YR21 —
79021-28070-B0 note Cover Sub-assy, NO.1 Seat Cushion, LH
1992-01 → 1996-10 ended
KR28 —
79014 — Cover Sub-assy, NO.1 Seatback, LH
71078-28070-B0 note Cover Sub-assy, NO.1 Seatback, LH
1992-01 → 1994-08 ended
YR21 —
71078-28080-B0 note Cover Sub-assy, NO.1 Seatback, LH
1992-01 → 1994-08 ended
YR22 STD —
71078-28090-B0 note Cover Sub-assy, NO.1 Seatback, LH
1992-01 → 1993-09 ended
YR22 DX —
71078-28160-B1 note Cover Sub-assy, NO.1 Seatback, LH
1993-09 → 1994-08 ended
YR21 —
71078-28170-B0 note Cover Sub-assy, NO.1 Seatback, LH
1994-08 → 2000-07 ended
YR21 —
71078-28200-B0 note Cover Sub-assy, NO.1 Seatback, LH
1994-08 → 1995-08 ended
YR22 —
71078-28210-B0 note Cover Sub-assy, NO.1 Seatback, LH
1994-08 → 1995-08 ended
YR21 —
71078-28250-B0 note Cover Sub-assy, NO.1 Seatback, LH
1995-08 → 1996-10 ended
YR22 —
71078-28260-B0 note Cover Sub-assy, NO.1 Seatback, LH
1995-08 → 2000-07 ended
YR21 —
79023-28060-B0 note Cover Sub-assy, NO.1 Seatback, LH
1992-01 → 1996-10 ended
KR28 —
79106 — Leg Sub Assy, NO.1 Seat, LH
79105-87001 Leg Sub Assy, NO.1 Seat, LH
1992-01 → 1996-10 ended
YR22 —
79205-95703 Leg Sub Assy, NO.1 Seat, LH
1992-01 → 1996-10 ended
KR28 —
79130 — Cushion Assy, NO.1 Seat, LH
79130-28090-B0 note Cushion Assy, NO.1 Seat, LH
1992-01 → 1994-08 ended
YR21 —
79130-28100-B0 note Cushion Assy, NO.1 Seat, LH
1992-01 → 1994-08 ended
YR22 STD —
79130-28110-B0 note Cushion Assy, NO.1 Seat, LH
1992-01 → 1993-09 ended
YR22 DX —
79130-28210-B1 note Cushion Assy, NO.1 Seat, LH
1993-09 → 1994-08 ended
YR21 —
79130-28300-B0 note Cushion Assy, NO.1 Seat, LH
1994-08 → 2000-07 ended
YR21 —
79130-28310-B0 note Cushion Assy, NO.1 Seat, LH
1994-08 → 1995-08 ended
YR22 —
79130-28320-B0 note Cushion Assy, NO.1 Seat, LH
1994-08 → 1995-08 ended
YR21 —
79130-28410-B0 note Cushion Assy, NO.1 Seat, LH
1995-08 → 1996-10 ended
YR22 —
79130-28420-B0 note Cushion Assy, NO.1 Seat, LH
1995-08 → 2000-07 ended
YR21 —
79220-28100-B0 note Cushion Assy, NO.1 Seat, LH
1992-01 → 1996-10 ended
KR28 —
79136B — Pad, NO.1 Seat Cushion, LH
71612-28040 Pad, NO.1 Seat Cushion, LH
1992-01 → 2000-07 ended
YR21 —
71612-28050 Pad, NO.1 Seat Cushion, LH
1992-01 → 1996-10 ended
YR22 —
79235-95700 Pad, NO.1 Seat Cushion, LH
1992-01 → 1996-10 ended
KR28 —
79139 — Cover, Rear Seat Leg
79139-95J00-B0 note Cover, Rear Seat Leg
1992-01 → 1996-10 ended
KR28 —
79150 — Back Assy, NO.1 Seat, LH
79150-28200-B0 note Back Assy, NO.1 Seat, LH
1992-01 → 1993-07 ended
YR21 —
79150-28200-B0 note Back Assy, NO.1 Seat, LH
1993-07 → 1993-09 ended
YR21 —
79150-28210-B0 note Back Assy, NO.1 Seat, LH
1992-01 → 1994-08 ended
YR22 STD —
79150-28220-B0 note Back Assy, NO.1 Seat, LH
1992-01 → 1993-09 ended
YR22 DX —
79150-28380-B0 note Back Assy, NO.1 Seat, LH
1993-07 → 1994-08 ended
YR21 —
79150-28380-B1 note Back Assy, NO.1 Seat, LH
1993-09 → 1994-08 ended
YR21 —
79150-28390-B1 note Back Assy, NO.1 Seat, LH
1993-09 → 1994-08 ended
YR21 —
79150-28490-B0 note Back Assy, NO.1 Seat, LH
1994-08 → 2000-07 ended
YR21 —
79150-28500-B0 note Back Assy, NO.1 Seat, LH
1994-08 → 1995-08 ended
YR22 —
79150-28510-B0 note Back Assy, NO.1 Seat, LH
1994-08 → 1995-08 ended
YR21 —
79150-28600-B0 note Back Assy, NO.1 Seat, LH
1995-08 → 1996-10 ended
YR22 —
79150-28610-B0 note Back Assy, NO.1 Seat, LH
1995-08 → 2000-07 ended
YR21 —
79240-28130-B0 note Back Assy, NO.1 Seat, LH
1992-01 → 1996-10 ended
KR28 —
79170A — Spring Assy, NO.1 Seat Cusuion, LH
79170-28060 Spring Assy, NO.1 Seat Cusuion, LH
1992-01 → 2000-07 ended
YR21 —
79170-28070 Spring Assy, NO.1 Seat Cusuion, LH
1992-01 → 1996-10 ended
YR22 —
79260-95707 Spring Assy, NO.1 Seat Cusuion, LH
1992-01 → 1996-10 ended
KR28 —
79185 — Pad, NO.1 Seatback, LH
71651-28110 Pad, NO.1 Seatback, LH
1992-01 → 1994-08 ended
YR21 —
71652-28060 Pad, NO.1 Seatback, LH
1992-01 → 1996-10 ended
YR22 —
79027-95705 Pad, NO.1 Seatback, LH
1992-01 → 1996-10 ended
KR28 —
79255 — Support, NO.2 Seatback, RH
79255-95700-B0 note Support, NO.2 Seatback, RH
1992-01 → 1996-10 ended
KR28 —
79265 — Support, NO.2 Seatback Hinge, LH
79265-95702-B0 note Support, NO.2 Seatback Hinge, LH
1992-01 → 1996-10 ended
KR28 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
