Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

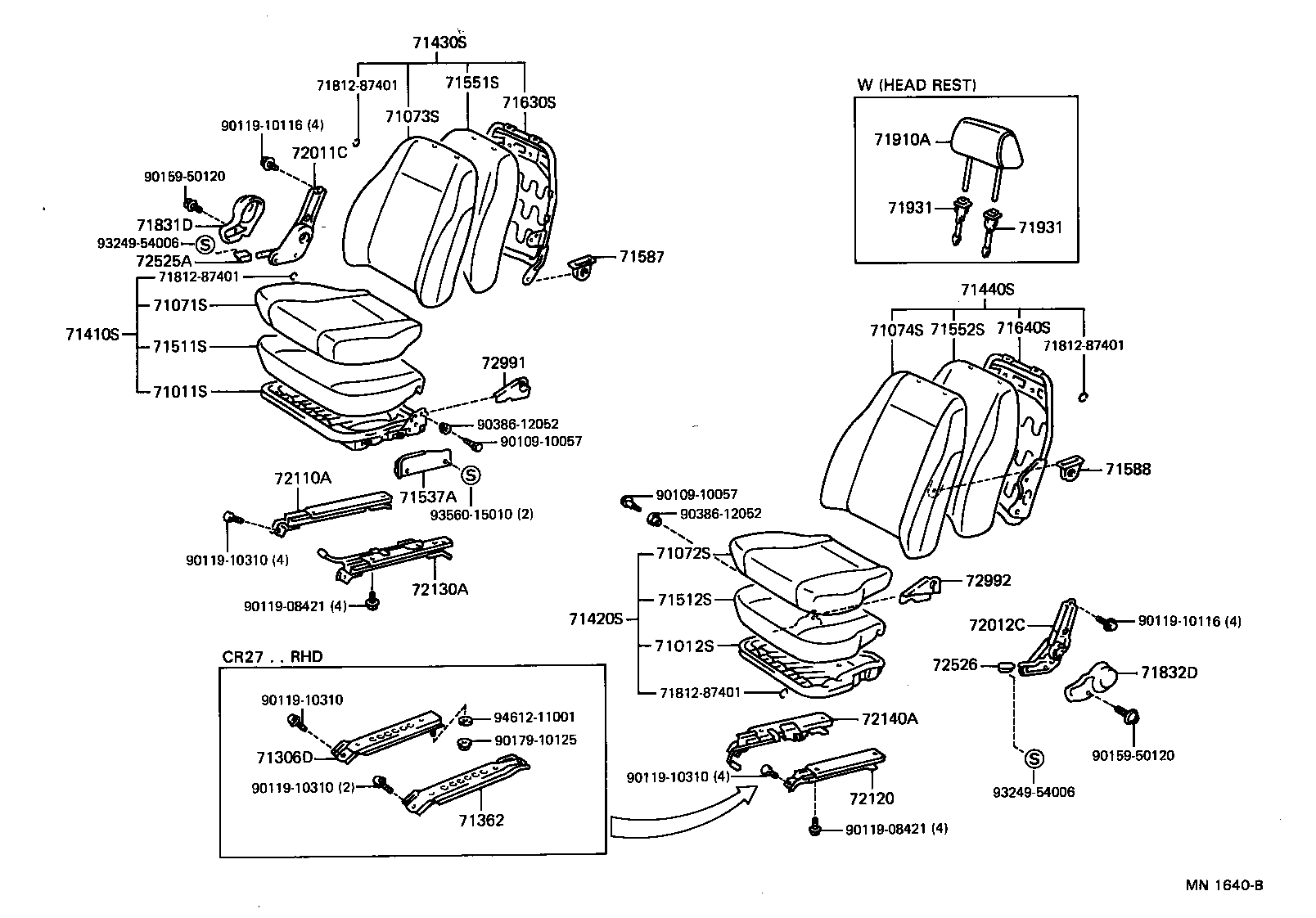

Exploded illustration MN1640B 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (22 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 7181287401 — not listed in this catalogue 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (10 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (17 parts) 9011910116 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (5 parts) 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (1 parts) 9015950120 — not listed in this catalogue 71931 — SUPPORT, FRONT SEAT HEADREST (6 parts) 71831D — COVER, FRONT SEAT HINGE, RH (1 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (6 parts) 9324954006 — not listed in this catalogue 71587 — PROTECTOR, FRONT SEATBACK EDGE (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (1 parts) 7181287401 — not listed in this catalogue 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (21 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (16 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (18 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (12 parts) 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (21 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 7181287401 — not listed in this catalogue 72991 — COVER, FRONT SEAT CUSHION, RH (2 parts) 71011S — FRAME SUB-ASSY, FRONT SEAT CUSHION, RH (7 parts) 9038612052 — not listed in this catalogue 9010910057 — not listed in this catalogue 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (1 parts) 72110A — TRACK ASSY, FRONT SEAT, OUTER RH (1 parts) 9010910057 — not listed in this catalogue 71537A — PROTECTOR, FRONT SEAT CUSHION (13 parts) 9038612052 — not listed in this catalogue 9356015010 — not listed in this catalogue 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (16 parts) 9011910310 — not listed in this catalogue 72992 — COVER, FRONT SEAT CUSHION, LH (1 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (3 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (3 parts) 9011908421 — not listed in this catalogue 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (19 parts) 9011910116 — not listed in this catalogue 72012C — ADJUSTER SUB-ASSY, FRONT SEAT, LH (2 parts) 71012S — FRAME SUB-ASSY, FRONT SEAT CUSHION, LH (4 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (1 parts) 71832D — COVER, FRONT SEAT HINGE, LH (1 parts) 7181287401 — not listed in this catalogue 9011910310 — not listed in this catalogue 9461211001 — not listed in this catalogue 72140A — TRACK ASSY, FRONT SEAT,INNER LH (2 parts) 9017910125 — not listed in this catalogue 9015950120 — not listed in this catalogue 71306D — BRACKET SUB-ASSY, FRONT SEAT SET (1 parts) 9011910310 — not listed in this catalogue 9011910310 — not listed in this catalogue 9324954006 — not listed in this catalogue 72120 — TRACK ASSY, FRONT SEAT, OUTER LH (1 parts) 71362 — BRACKET, FRONT SEAT SET, NO.2 (1 parts) 9011908421 — not listed in this catalogue
MN1640B · 36 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
239 parts on this figure
Part number Description Fitment Price
71011S — Frame Sub-assy, Front Seat Cushion, RH
71011-28090 Frame Sub-assy, Front Seat Cushion, RH
1992-01 → 1996-10 ended
KR27 RHD —
71011-28100 Frame Sub-assy, Front Seat Cushion, RH
1992-01 → 1993-09 ended
YR39 05S;CR27,KR2# 02S,05S,08S —
71011-28100 Frame Sub-assy, Front Seat Cushion, RH
1993-09 → 1996-10 ended
CR27,KR2# 02S,05S,08S —
71011-87018 Frame Sub-assy, Front Seat Cushion, RH
1992-01 → 1993-09 ended
YR2#,39 02S,08S —
71011-87018 Frame Sub-assy, Front Seat Cushion, RH
1993-09 → 2000-07 ended
YR2#,39 —
71011-87018 note Frame Sub-assy, Front Seat Cushion, RH
1992-01 → 1993-09 ended
YR39 05S;CR27,KR2# 02S,05S,08S —
71011-87018 note Frame Sub-assy, Front Seat Cushion, RH
1993-09 → 1996-10 ended
CR27,KR2# 02S,05S,08S —
71012S — Frame Sub-assy, Front Seat Cushion, LH
71012-28090 Frame Sub-assy, Front Seat Cushion, LH
1992-01 → 1996-10 ended
KR27 RHD —
71012-28100 Frame Sub-assy, Front Seat Cushion, LH
1992-01 → 1996-10 ended
CR27,KR2#,YR22,39 02S,05S,08S —
71012-28110 note Frame Sub-assy, Front Seat Cushion, LH
1992-01 → 1996-10 ended
CR27,KR2# LHD —
71012-28110 Frame Sub-assy, Front Seat Cushion, LH
1992-01 → 2000-07 ended
YR21 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-28180-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71071-28190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71071-28190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71071-28190-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71071-28220-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71071-28220-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39;CR27,KR27 02S —
71071-28230-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71071-28250-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21;YR22 STD —
71071-28260-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71071-28560-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71071-28610-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71071-28650-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71071-28650-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71071-28690-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71071-28820-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71071-28820-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-28170-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71072-28180-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71072-28180-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71072-28180-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71072-28210-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71072-28210-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39;CR27,KR27 02S —
71072-28230-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71072-28240-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71072-28250-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21;YR22 STD —
71072-28560-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71072-28600-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71072-28640-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71072-28640-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71072-28690-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71072-28810-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71072-28810-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-28240-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71073-28250-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71073-28250-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71073-28250-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71073-28270-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71073-28270-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71073-28270-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39 —
71073-28280-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71073-28290-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 03S,05S,06S,08S —
71073-28310-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21;YR22 STD —
71073-28490-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71073-28540-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71073-28580-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71073-28580-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71073-28630-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71073-28880-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71073-28880-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-28270-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71074-28280-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71074-28280-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71074-28280-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71074-28320-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71074-28320-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39 —
71074-28320-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71074-28330-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71074-28340-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71074-28350-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71074-28360-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21;YR22 STD —
71074-28540-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71074-28610-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71074-28650-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71074-28650-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71074-28700-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71074-2J040-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71074-2J040-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71306D — Bracket Sub-assy, Front Seat Set
71306-28030 Bracket Sub-assy, Front Seat Set
1992-01 → 1996-10 ended
CR27 RHD —
71362 — Bracket, Front Seat Set, NO.2
71362-28030 Bracket, Front Seat Set, NO.2
1992-01 → 1996-10 ended
CR27 RHD —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-28180-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71410-28190-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71410-28190-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71410-28190-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71410-28210-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21;YR22 STD —
71410-28240-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71410-28240-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S;CR27,KR27 02S —
71410-28240-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1996-10 ended
CR27,KR27 02S —
71410-28240-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1996-10 ended
YR39 —
71410-28250-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71410-28280-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71410-28290-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71410-28300-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S;CR27,KR27 02S —
71410-28300-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1996-10 ended
CR27,KR27 02S —
71410-28440-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71410-28530-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71410-28540-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71410-28570-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71410-28570-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71410-28720-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71410-28720-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-28170-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71420-28180-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71420-28180-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71420-28180-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71420-28210-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71420-28210-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39;CR27,KR27 02S —
71420-28220-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR21 —
71420-28230-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 02S —
71420-28240-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71420-28270-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1994-08 ended
YR22 STD —
71420-28290-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71420-28300-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# LHD 4D —
71420-28430-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71420-28510-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71420-28520-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71420-28560-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71420-28570-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71420-28660-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71420-28670-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-28320-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71430-28330-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR39 05S —
71430-28330-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR39 02S —
71430-28350-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71430-28350-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71430-28350-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39 —
71430-28360-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR21;YR22 STD —
71430-28360-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR21 —
71430-28370-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 03S,05S,06S,08S —
71430-28380-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71430-28600-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71430-28610-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR2# —
71430-28610-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR22 STD —
71430-28660-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71430-28660-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR39 05S —
71430-28660-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR39 02S —
71430-28740-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71430-28750-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71430-28780-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71430-28780-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71430-2J060-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71430-2J060-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-28270-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR22 DX —
71440-28320-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71440-28320-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71440-28320-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
YR39 —
71440-28330-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR21;YR22 STD —
71440-28330-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR21 —
71440-28340-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR27 02S —
71440-28350-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71440-28380-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71440-28420-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 05S —
71440-28420-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR39 —
71440-28420-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1992-01 → 1993-09 ended
YR39 02S —
71440-28600-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR21 —
71440-28610-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-09 → 1994-08 ended
YR2# —
71440-28610-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR22 STD —
71440-28740-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-08 → 1996-10 ended
YR39 —
71440-28750-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-08 → 2000-07 ended
YR21 —
71440-28780-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR21 —
71440-28780-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1994-08 → 1995-08 ended
YR22 —
71440-2J020-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1995-08 → 2000-07 ended
YR21 —
71440-2J020-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1995-08 → 1996-10 ended
YR22 —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-28060 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
71511-28070 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71511-28080 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-28060 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71512-28070 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1992-01 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
71512-28080 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71537A — Protector, Front Seat Cushion
71537-28010-B0 note Protector, Front Seat Cushion
1994-08 → 2000-07 ended
CR27,KR2#,YR21 LHD 4D —
71537-28010-B0 note Protector, Front Seat Cushion
1992-01 → 1996-10 ended
KR27 02S —
71537-28010-B0 note Protector, Front Seat Cushion
1993-09 → 1994-08 ended
CR27,KR2# LHD 4D —
71537-28010-B0 note Protector, Front Seat Cushion
1992-01 → 1993-09 ended
CR27,KR2#,YR21 LHD 4D —
71537-87001-B0 note Protector, Front Seat Cushion
1992-01 → 1993-09 ended
YR39 02S;CR27,YR22 RHD —
71537-87001-B0 note Protector, Front Seat Cushion
1992-01 → 1993-09 ended
YR39 05S —
71537-87001-B0 note Protector, Front Seat Cushion
1994-08 → 2000-07 ended
CR27,YR22,39 RHD —
71537-87001-B0 note Protector, Front Seat Cushion
1994-08 → 2000-07 ended
CR27,KR2#,YR21 LHD 4D —
71537-87001-B0 note Protector, Front Seat Cushion
1992-01 → 1996-10 ended
KR27 02S —
71537-87001-B0 note Protector, Front Seat Cushion
1992-01 → 1996-10 ended
KR27 02S —
71537-87001-B0 note Protector, Front Seat Cushion
1992-01 → 1993-09 ended
CR27,KR2#,YR21 LHD 4D —
71537-87001-B0 note Protector, Front Seat Cushion
1993-09 → 1994-08 ended
YR21;CR27,YR22,39 RHD —
71537-87001-B0 note Protector, Front Seat Cushion
1993-09 → 1994-08 ended
CR27,KR2# LHD 4D —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-28080 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
71551-28090 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 03S,05S,06S,08S —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-28080 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
71552-28090 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
CR27,KR2# 05S,08S —
71552-28120 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1996-10 ended
KR27 RHD —
71587 — Protector, Front Seatback Edge
71587-28010-B0 note Protector, Front Seatback Edge
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
71588 — Protector, Front Seatback Edge, NO.2
71588-28010-B0 note Protector, Front Seatback Edge, NO.2
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 02S,05S,08S —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-28110 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR2#,39 —
71630-28110 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR2# DX —
71630-28110 note Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR27 02S —
71630-28120 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR2# 03S,05S,06S,08S —
71630-28140 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR27 02S —
71630-28210 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR22,39 STD —
71630-28210 note Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR27 02S —
71630-28210 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-09 → 2000-07 ended
YR2#,39 —
71630-28220 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR2# 03S,05S,06S,08S —
71630-28240 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR27 02S —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71640-28100 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
YR2#,39 —
71640-28100 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR27 02S —
71640-28100 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR2# DX —
71640-28110 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR2# 05S,08S —
71640-28120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
KR27 RHD —
71640-28160 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1992-01 → 1993-07 ended
CR27,KR27 02S —
71640-28290 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1993-09 ended
YR22,39 STD —
71640-28290 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-09 → 2000-07 ended
YR2#,39 —
71640-28290 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR27 02S —
71640-28310 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR2# 05S,08S —
71640-28330 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
CR27,KR27 02S —
71640-28340 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1993-07 → 1996-10 ended
KR27 RHD —
71831D — Cover, Front Seat Hinge, RH
71831-87003-B0 note Cover, Front Seat Hinge, RH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
71832D — Cover, Front Seat Hinge, LH
71832-87002-B0 note Cover, Front Seat Hinge, LH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
71910A — Headrest Assy, Front Seat
71910-28140-B0 note Headrest Assy, Front Seat
1992-01 → 2000-07 ended
YR22,39 STD;CR27,KR27,YR21 02S,08S —
71910-28160-B0 note Headrest Assy, Front Seat
1992-01 → 1993-09 ended
YR22 DX —
71910-28230-B1 note Headrest Assy, Front Seat
1993-09 → 1994-08 ended
YR21 —
71910-28340-B0 note Headrest Assy, Front Seat
1994-08 → 1995-08 ended
YR21 —
71910-28480-B0 note Headrest Assy, Front Seat
1995-08 → 2000-07 ended
YR21 —
71931 — Support, Front Seat Headrest
71930-10070-13 note Support, Front Seat Headrest
1992-01 → 1995-02 ended
YR39;CR27,KR27,YR2# 02S,08S —
71930-10070-B2 note Support, Front Seat Headrest
1995-02 → 1995-12 ended
YR39;CR27,KR27,YR2# 02S,08S —
71930-10070-B7 note Support, Front Seat Headrest
1995-12 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
71931-10020-13 note Support, Front Seat Headrest
1992-01 → 1995-02 ended
YR39;CR27,KR27,YR2# 02S,08S —
71931-10020-B2 note Support, Front Seat Headrest
1995-02 → 1995-12 ended
YR39;CR27,KR27,YR2# 02S,08S —
71931-10020-B6 note Support, Front Seat Headrest
1995-12 → 2000-07 ended
YR39;CR27,KR27,YR2# 02S,08S —
72011C — Adjuster Sub-assy, Front Seat, RH
72010-87003 Adjuster Sub-assy, Front Seat, RH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
72012C — Adjuster Sub-assy, Front Seat, LH
72020-28040 Adjuster Sub-assy, Front Seat, LH
1992-01 → 1996-10 ended
YR22 —
72020-28060 Adjuster Sub-assy, Front Seat, LH
1992-01 → 2000-07 ended
CR27,KR2#,YR21,39 —
72110A — Track Assy, Front Seat, Outer RH
72110-28040 Track Assy, Front Seat, Outer RH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
72120 — Track Assy, Front Seat, Outer LH
72120-28030 Track Assy, Front Seat, Outer LH
1992-01 → 2000-07 ended
YR22,39;CR27,KR2#,YR21 LHD —
72130A — Track Assy, Front Seat, Inner RH
72130-28030 Track Assy, Front Seat, Inner RH
1992-01 → 1996-10 ended
KR27 RHD —
72130-28040 Track Assy, Front Seat, Inner RH
1992-01 → 1996-10 ended
CR27,YR22,39 RHD —
72130-28050 Track Assy, Front Seat, Inner RH
1992-01 → 2000-07 ended
CR27,KR2#,YR21 LHD —
72140A — Track Assy, Front Seat,Inner LH
72140-28040 Track Assy, Front Seat,Inner LH
1992-01 → 2000-07 ended
CR27,KR2#,YR21 LHD —
72140-28050 Track Assy, Front Seat,Inner LH
1992-01 → 1996-10 ended
YR22,39 —
72525A — Handle, Reclining Adjuster Release, RH
72525-28020-B0 note Handle, Reclining Adjuster Release, RH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
72526 — Handle, Reclining Adjuster Release, LH
72526-28020-B0 note Handle, Reclining Adjuster Release, LH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 —
72991 — Cover, Front Seat Cushion, RH
72991-28040-B1 note Cover, Front Seat Cushion, RH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 02S,05S,08S —
72991-28060-B0 note Cover, Front Seat Cushion, RH
1992-01 → 1996-10 ended
KR27 RHD —
72992 — Cover, Front Seat Cushion, LH
72992-28010-B1 note Cover, Front Seat Cushion, LH
1992-01 → 2000-07 ended
CR27,KR2#,YR2#,39 02S,05S,08S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
