Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

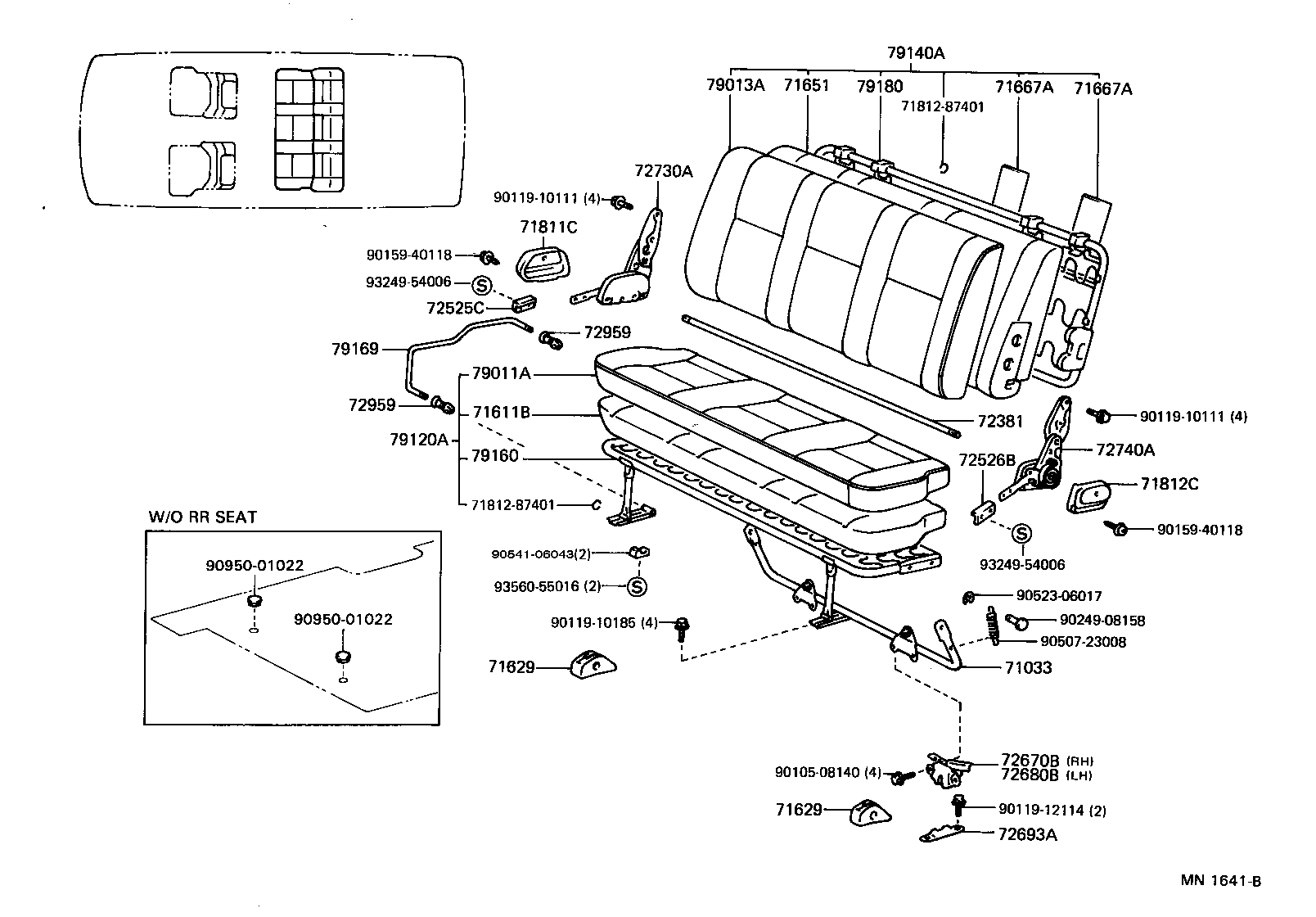

Exploded illustration MN1641B 79140A — BACK ASSY, NO.1 SEAT (6 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (5 parts) 71651 — PAD, REAR NO.1 SEATBACK (3 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (4 parts) 71667A — PAD, REAR SEATBACK, CENTER A (3 parts) 71667A — PAD, REAR SEATBACK, CENTER A (3 parts) 7181287401 — not listed in this catalogue 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (6 parts) 9011910111 — not listed in this catalogue 71811C — COVER, RECLINING ADJUSTER, RH (5 parts) 9015940118 — not listed in this catalogue 9324954006 — not listed in this catalogue 72525C — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH (2 parts) 72959 — SPACER, REAR SEAT TURN SIDE (1 parts) 79169 — ROD, REAR SEAT HINGE CONNECTOR (5 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (5 parts) 72959 — SPACER, REAR SEAT TURN SIDE (1 parts) 71611B — PAD, REAR NO.1 SEAT CUSHION (3 parts) 9011910111 — not listed in this catalogue 72381 — ROD, RECLINING ADJUSTER EQUALIZING, NO.1 (3 parts) 79120A — CUSHION ASSY, NO.1 SEAT (7 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (6 parts) 79160 — SPRING ASSY, NO.1 SEAT CUSHION (5 parts) 72526B — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH (2 parts) 71812C — COVER, RECLINING ADJUSTER, LH (5 parts) 7181287401 — not listed in this catalogue 9015940118 — not listed in this catalogue 9054106043 — not listed in this catalogue 9324954006 — not listed in this catalogue 9095001022 — not listed in this catalogue 9356055016 — not listed in this catalogue 9052306017 — not listed in this catalogue 9095001022 — not listed in this catalogue 9024908158 — not listed in this catalogue 9011910185 — not listed in this catalogue 9050723008 — not listed in this catalogue 71629 — COVER, REAR SEAT CUSHION HINGE (3 parts) 71033 — LEG SUB-ASSY, REAR SEAT CUSHION (5 parts) 72670B — LOCK ASSY, REAR SEAT CUSHION, RH (3 parts) 9010508140 — not listed in this catalogue 72680B — LOCK ASSY, REAR SEAT CUSHION, LH (3 parts) 71629 — COVER, REAR SEAT CUSHION HINGE (3 parts) 9011912114 — not listed in this catalogue 72693A — STRIKER, REAR SEAT CUSHION LOCK, NO.3 (3 parts)
MN1641B · 26 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
71033 — Leg Sub-assy, Rear Seat Cushion
71033-28050 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
71033-28080 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S —
71309-28030 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71309-28030 note Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
CR27 RHD 05S —
71309-28040 note Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
71611B — Pad, Rear NO.1 Seat Cushion
71611-87013 Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71611-87015 Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71611-87015 note Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71629 — Cover, Rear Seat Cushion Hinge
71629-87001-01 note Cover, Rear Seat Cushion Hinge
1992-01 → 2000-07 ended
YR2# —
71629-87002 Cover, Rear Seat Cushion Hinge
1992-01 → 1996-10 ended
YR39 05S —
71629-87002 note Cover, Rear Seat Cushion Hinge
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71651 — Pad, Rear NO.1 Seatback
71651-28100 Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
71651-28100 note Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71661-87001 Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71667A — Pad, Rear Seatback, Center A
71667-87001 Pad, Rear Seatback, Center A
1992-01 → 1994-01 ended
YR2# —
71667-87001 Pad, Rear Seatback, Center A
1992-01 → 1994-01 ended
KR28,YR39 05S,08S —
71667-87001 note Pad, Rear Seatback, Center A
1992-01 → 1994-01 ended
CR27,KR27 RHD (05S,06S) —
71811C — Cover, Reclining Adjuster, RH
71811-28050-B0 note Cover, Reclining Adjuster, RH
1992-01 → 2000-07 ended
YR22 —
71811-28050-B0 note Cover, Reclining Adjuster, RH
1992-01 → 2000-07 ended
YR21 —
71811-28060-B0 note Cover, Reclining Adjuster, RH
1992-01 → 1996-10 ended
YR39 05S —
71811-28060-B0 note Cover, Reclining Adjuster, RH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71811-28070-B0 note Cover, Reclining Adjuster, RH
1992-01 → 2000-07 ended
YR21 —
71812C — Cover, Reclining Adjuster, LH
71812-28050-B0 note Cover, Reclining Adjuster, LH
1992-01 → 2000-07 ended
YR22 —
71812-28050-B0 note Cover, Reclining Adjuster, LH
1992-01 → 2000-07 ended
YR21 —
71812-28060-B0 note Cover, Reclining Adjuster, LH
1992-01 → 1996-10 ended
YR39 05S —
71812-28060-B0 note Cover, Reclining Adjuster, LH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71812-28070-B0 note Cover, Reclining Adjuster, LH
1992-01 → 1996-10 ended
YR22 —
72381 — Rod, Reclining Adjuster Equalizing, NO.1
72381-28030 Rod, Reclining Adjuster Equalizing, NO.1
1992-01 → 2000-07 ended
YR2# —
72382-87001 note Rod, Reclining Adjuster Equalizing, NO.1
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72382-87001 Rod, Reclining Adjuster Equalizing, NO.1
1992-01 → 1996-10 ended
YR39 05S —
72525C — Handle, Reclining Adjuster Release, NO.1 RH
72525-28020-B0 note Handle, Reclining Adjuster Release, NO.1 RH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72525-28020-B0 note Handle, Reclining Adjuster Release, NO.1 RH
1992-01 → 2000-07 ended
YR2#,39 05S,08S —
72526B — Handle, Reclining Adjuster Release, NO.1 LH
72526-28020-B0 note Handle, Reclining Adjuster Release, NO.1 LH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72526-28020-B0 note Handle, Reclining Adjuster Release, NO.1 LH
1992-01 → 2000-07 ended
YR2#,39 05S,08S —
72670B — Lock Assy, Rear Seat Cushion, RH
72670-28031 Lock Assy, Rear Seat Cushion, RH
1992-01 → 2000-07 ended
YR21 —
72670-28050 Lock Assy, Rear Seat Cushion, RH
1992-01 → 1996-10 ended
YR39 05S —
72670-28050 note Lock Assy, Rear Seat Cushion, RH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72680B — Lock Assy, Rear Seat Cushion, LH
72680-28031 Lock Assy, Rear Seat Cushion, LH
1992-01 → 1996-10 ended
YR22 —
72680-28050 Lock Assy, Rear Seat Cushion, LH
1992-01 → 1996-10 ended
YR39 05S —
72680-28050 note Lock Assy, Rear Seat Cushion, LH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72693A — Striker, Rear Seat Cushion Lock, NO.3
72693-28030 Striker, Rear Seat Cushion Lock, NO.3
1992-01 → 2000-07 ended
YR2# —
72693-87002 Striker, Rear Seat Cushion Lock, NO.3
1992-01 → 1996-10 ended
YR39 05S —
72693-87002 note Striker, Rear Seat Cushion Lock, NO.3
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72730A — Adjuster Assy, Rear Seat Reclining, RH
71302-87005-03 note Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 1996-10 ended
YR22 —
71303-28060 note Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72730-28200 note Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 1996-10 ended
YR22 —
72730-28210 note Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 2000-07 ended
YR21 —
72730-28220-B0 note Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 2000-07 ended
YR21 —
72730-28230 Adjuster Assy, Rear Seat Reclining, RH
1992-01 → 1996-10 ended
YR39 05S —
72740A — Adjuster Assy, Rear Seat Reclining, LH
71301-87004-03 note Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 2000-07 ended
YR21 —
71304-28060 note Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
72740-28200 note Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 1996-10 ended
YR22 —
72740-28210-B0 note Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 1996-10 ended
YR22 —
72740-28220 note Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 2000-07 ended
YR21 —
72740-28230 Adjuster Assy, Rear Seat Reclining, LH
1992-01 → 1996-10 ended
YR39 05S —
72959 — Spacer, Rear Seat Turn Side
72959-87005 Spacer, Rear Seat Turn Side
1992-01 → 1996-10 ended
CR27,KR27,YR39 05S,06S —
79011A — Cover Sub-assy, NO.1 Seat Cushion
71075-28140-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1994-08 ended
YR39 05S —
71075-28170-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71075-28170-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71075-28180-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71075-28330-B0 note Cover Sub-assy, NO.1 Seat Cushion
1994-08 → 1996-10 ended
YR39 05S —
79013A — Cover Sub-assy, NO.1 Seatback
71077-28120-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1994-08 ended
YR39 05S —
71077-28190-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
71077-28190-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71077-28200-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71077-28360-B0 note Cover Sub-assy, NO.1 Seatback
1994-08 → 1996-10 ended
YR39 05S —
79120A — Cushion Assy, NO.1 Seat
71460-28030-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1994-08 ended
YR39 05S —
71460-28120-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
YR39 05S —
71460-28120-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27 RHD 05S —
71460-28130-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 05S —
71460-28150-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
KR27 06S —
71460-28200-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
KR27 06S —
71460-28240-B0 note Cushion Assy, NO.1 Seat
1994-08 → 1996-10 ended
YR39 05S —
79140A — Back Assy, NO.1 Seat
71480-28030-B0 note Back Assy, NO.1 Seat
1992-01 → 1994-08 ended
YR39 05S —
71480-28080-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
YR39 05S —
71480-28080-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71480-28090-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71480-28130-B0 note Back Assy, NO.1 Seat
1994-08 → 1996-10 ended
YR39 05S —
79140-28710-B0 note Back Assy, NO.1 Seat
1995-08 → 1996-10 ended
YR22 —
79160 — Spring Assy, NO.1 Seat Cushion
71015-87021 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S —
71015-87022 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
79160-28140 note Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
79160-28150 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
79160-28150 note Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27 RHD 05S —
79169 — Rod, Rear Seat Hinge Connector
79169-28010 note Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
KR27 06S —
79169-28040 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
YR39 05S —
79169-28040 note Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
CR27 RHD 05S —
79169-87002 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
CR27,KR27 05S —
79169-87003 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
KR27 06S —
79180 — Spring Assy, NO.1 Seatback
71017-87005 Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
79280-87001 Spring Assy, NO.1 Seatback
1992-01 → 1993-03 ended
KR28 —
79280-87004 Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
79280-87004 note Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
