Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

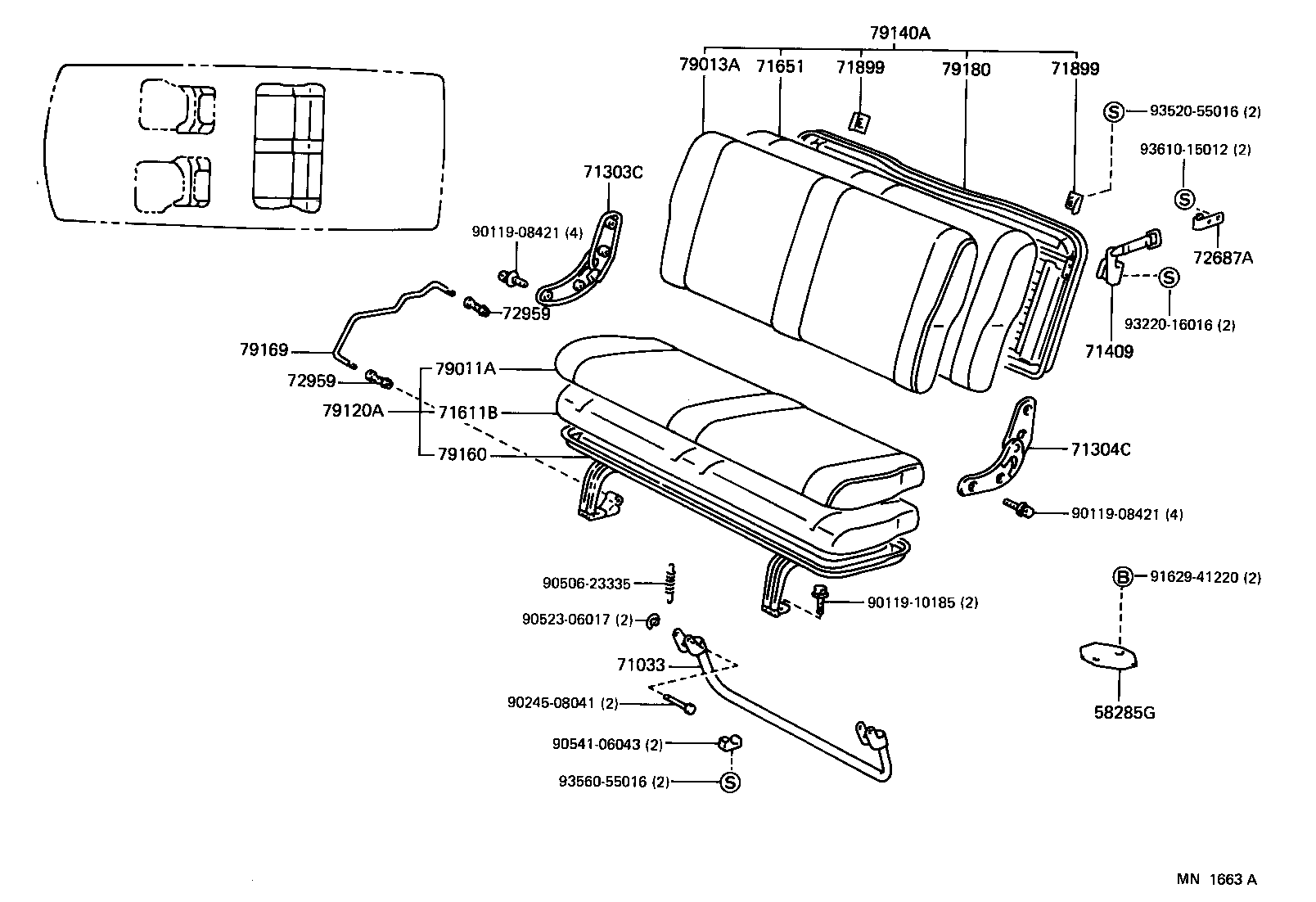

Exploded illustration MN1663A 79140A — BACK ASSY, NO.1 SEAT (6 parts) 79013A — COVER SUB-ASSY, NO.1 SEATBACK (5 parts) 71651 — PAD, REAR NO.1 SEATBACK (3 parts) 71899 — PROTECTOR, REAR SEATBACK (1 parts) 79180 — SPRING ASSY, NO.1 SEATBACK (4 parts) 71899 — PROTECTOR, REAR SEATBACK (1 parts) 9352055016 — not listed in this catalogue 9361015012 — not listed in this catalogue 71303C — HINGE SUB-ASSY, REAR SEATBACK, RH (1 parts) 9011908421 — not listed in this catalogue 72687A — HOLDER, REAR SEATBACK LOCK (1 parts) 72959 — SPACER, REAR SEAT TURN SIDE (1 parts) 9322016016 — not listed in this catalogue 79169 — ROD, REAR SEAT HINGE CONNECTOR (5 parts) 71409 — STOPPER SUB-ASSY, REAR SEATBACK (1 parts) 79011A — COVER SUB-ASSY, NO.1 SEAT CUSHION (5 parts) 72959 — SPACER, REAR SEAT TURN SIDE (1 parts) 79120A — CUSHION ASSY, NO.1 SEAT (7 parts) 71611B — PAD, REAR NO.1 SEAT CUSHION (3 parts) 71304C — HINGE SUB-ASSY, REAR SEATBACK, LH (1 parts) 79160 — SPRING ASSY, NO.1 SEAT CUSHION (5 parts) 9011908421 — not listed in this catalogue 9162941220 — not listed in this catalogue 9050623335 — not listed in this catalogue 9011910185 — not listed in this catalogue 9052306017 — not listed in this catalogue 71033 — LEG SUB-ASSY, REAR SEAT CUSHION (5 parts) 9024508041 — not listed in this catalogue 58285G — COVER, REAR FLOOR HOLE (1 parts) 9054106043 — not listed in this catalogue 9356055016 — not listed in this catalogue
MN1663A · 19 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
58285G — Cover, Rear Floor Hole
58285-87002 Cover, Rear Floor Hole
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71033 — Leg Sub-assy, Rear Seat Cushion
71033-28050 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
71033-28080 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S —
71309-28030 Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71309-28030 note Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
CR27 RHD 05S —
71309-28040 note Leg Sub-assy, Rear Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
71303C — Hinge Sub-assy, Rear Seatback, RH
71303-28030 Hinge Sub-assy, Rear Seatback, RH
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71304C — Hinge Sub-assy, Rear Seatback, LH
71304-28030 Hinge Sub-assy, Rear Seatback, LH
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71409 — Stopper Sub-assy, Rear Seatback
71409-87002-B0 note Stopper Sub-assy, Rear Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71611B — Pad, Rear NO.1 Seat Cushion
71611-87013 Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71611-87015 Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71611-87015 note Pad, Rear NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71651 — Pad, Rear NO.1 Seatback
71651-28100 Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
71651-28100 note Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71661-87001 Pad, Rear NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71899 — Protector, Rear Seatback
71899-87001 Protector, Rear Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
72687A — Holder, Rear Seatback Lock
72687-87001 Holder, Rear Seatback Lock
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
72959 — Spacer, Rear Seat Turn Side
72959-87005 Spacer, Rear Seat Turn Side
1992-01 → 1996-10 ended
CR27,KR27,YR39 05S,06S —
79011A — Cover Sub-assy, NO.1 Seat Cushion
71075-28140-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1994-08 ended
YR39 05S —
71075-28170-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
71075-28170-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71075-28180-B0 note Cover Sub-assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71075-28330-B0 note Cover Sub-assy, NO.1 Seat Cushion
1994-08 → 1996-10 ended
YR39 05S —
79013A — Cover Sub-assy, NO.1 Seatback
71077-28120-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1994-08 ended
YR39 05S —
71077-28190-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
71077-28190-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71077-28200-B0 note Cover Sub-assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71077-28360-B0 note Cover Sub-assy, NO.1 Seatback
1994-08 → 1996-10 ended
YR39 05S —
79120A — Cushion Assy, NO.1 Seat
71460-28030-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1994-08 ended
YR39 05S —
71460-28120-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
YR39 05S —
71460-28120-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27 RHD 05S —
71460-28130-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 05S —
71460-28150-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
KR27 06S —
71460-28200-B0 note Cushion Assy, NO.1 Seat
1992-01 → 1996-10 ended
KR27 06S —
71460-28240-B0 note Cushion Assy, NO.1 Seat
1994-08 → 1996-10 ended
YR39 05S —
79140A — Back Assy, NO.1 Seat
71480-28030-B0 note Back Assy, NO.1 Seat
1992-01 → 1994-08 ended
YR39 05S —
71480-28080-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
YR39 05S —
71480-28080-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
71480-28090-B0 note Back Assy, NO.1 Seat
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
71480-28130-B0 note Back Assy, NO.1 Seat
1994-08 → 1996-10 ended
YR39 05S —
79140-28710-B0 note Back Assy, NO.1 Seat
1995-08 → 1996-10 ended
YR22 —
79160 — Spring Assy, NO.1 Seat Cushion
71015-87021 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27,KR27 05S —
71015-87022 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
79160-28140 note Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
KR27 06S —
79160-28150 Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
YR39 05S —
79160-28150 note Spring Assy, NO.1 Seat Cushion
1992-01 → 1996-10 ended
CR27 RHD 05S —
79169 — Rod, Rear Seat Hinge Connector
79169-28010 note Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
KR27 06S —
79169-28040 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
YR39 05S —
79169-28040 note Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
CR27 RHD 05S —
79169-87002 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
CR27,KR27 05S —
79169-87003 Rod, Rear Seat Hinge Connector
1992-01 → 1996-10 ended
KR27 06S —
79180 — Spring Assy, NO.1 Seatback
71017-87005 Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 05S,06S —
79280-87001 Spring Assy, NO.1 Seatback
1992-01 → 1993-03 ended
KR28 —
79280-87004 Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
YR39 05S —
79280-87004 note Spring Assy, NO.1 Seatback
1992-01 → 1996-10 ended
CR27,KR27 RHD (05S,06S) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
