Toyota Liteace Van Wagon
1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General
Discontinued model
Data version 2001-01
Manifold
34 part groups · 4 illustrations
Part groups

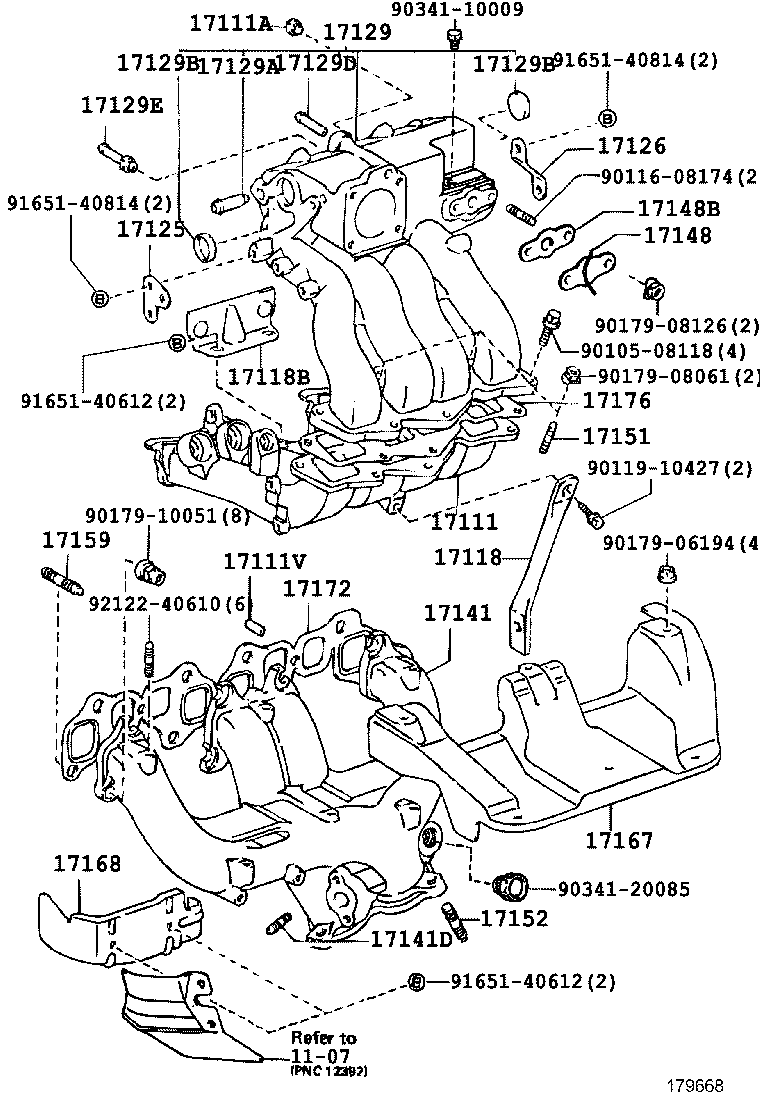

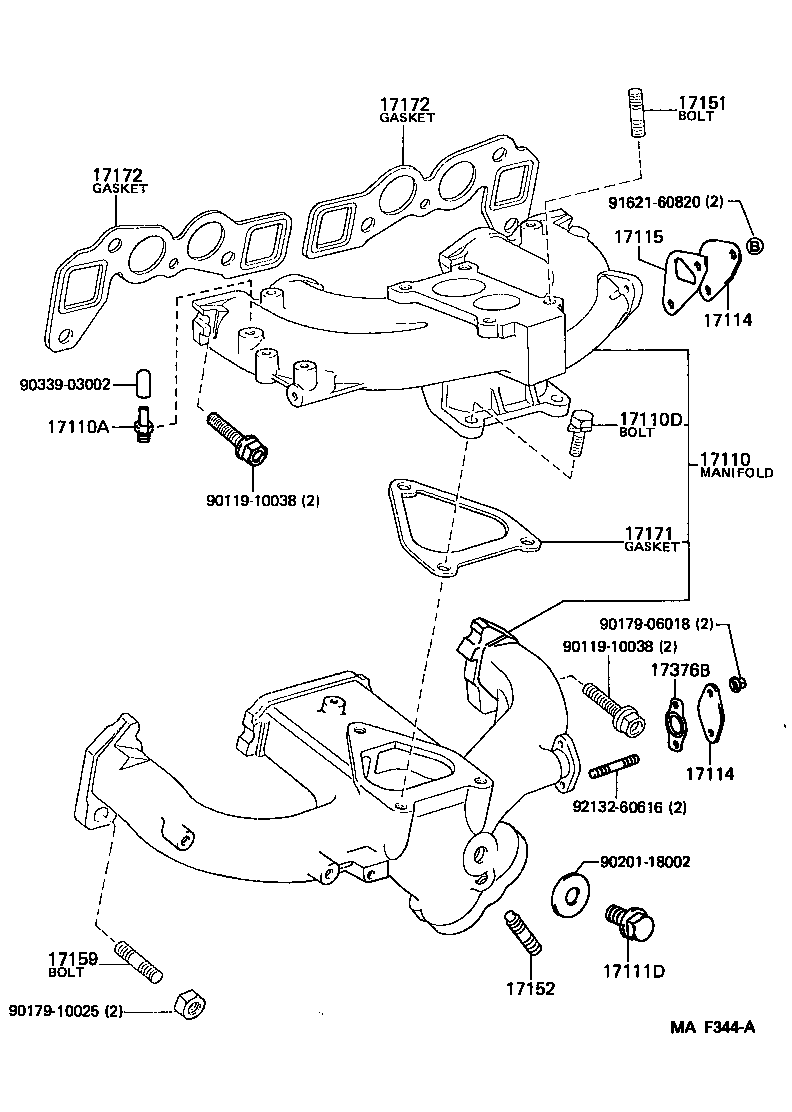

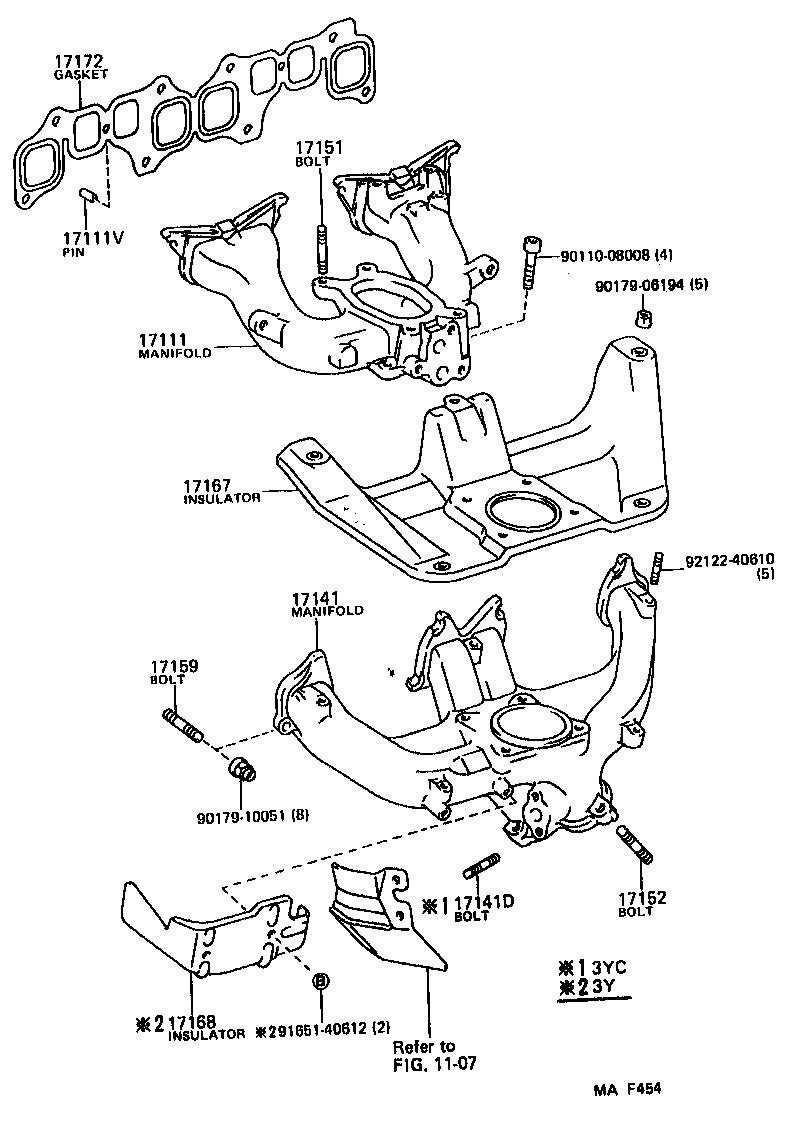

| PNC | Description |
|---|---|
| 17110 | Manifold Assy |
| 17110A | Union, Vacuum Hose |
| 17110D | Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111D | Plug, NO.4 |
| 17111S | Gasket(FOR MANIFOLD PLUG) |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17114 | Plate, Intake Manifold Hole Cover |
| 17115 | Gasket, Intake Manifold Hole Cover |
| 17118 | Stay, Manifold |
| 17118B | Insulator, Intake Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17129A | Union, NO.1 |
| 17129B | Plug |
| 17129D | Union, NO.2 |
| 17129E | Union, NO.3 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17148 | Plate, Exhaust Manifold(FOR EGR INLET) |
| 17148B | Gasket, Egr Inlet |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17376B | Gasket, Exhaust Manifold Hole Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
