Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

13 part groups · 2 illustrations

Illustrations

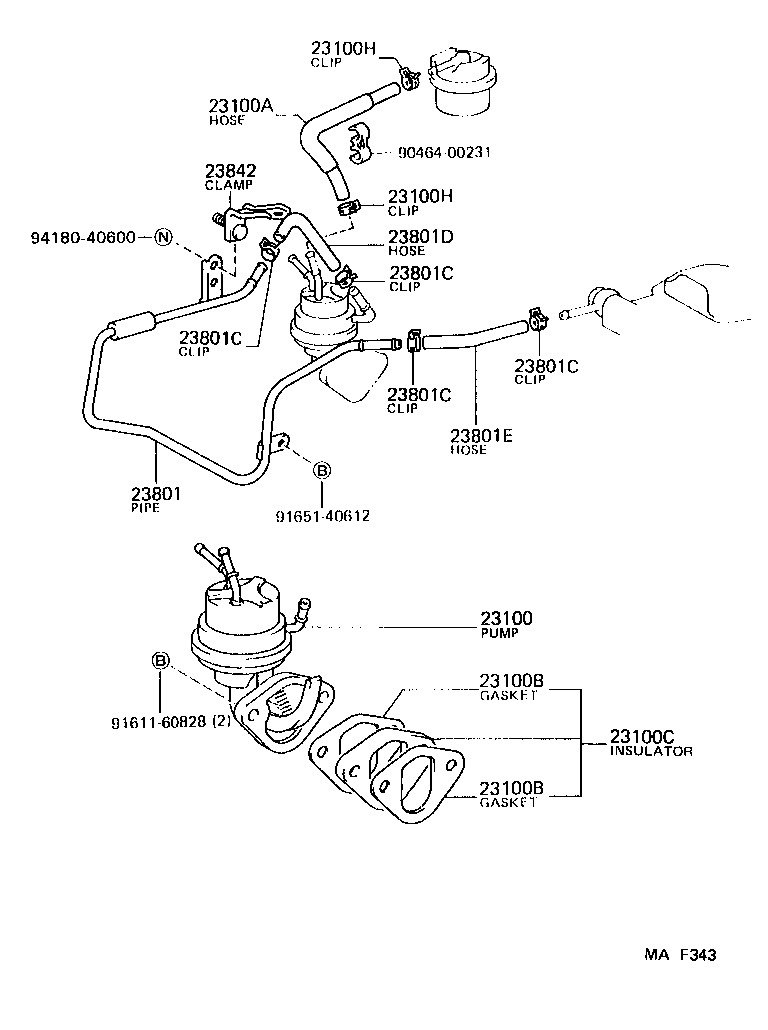

Figure MAF361A MAF361A 1992-01 → — Figure MAF343 MAF343 1992-01 → —

Part groups

PNCDescription
21100E Bolt, Carburetor TO Carburetor Hose Union
21100F Gasket, Carburetor TO Carburetor Hose Union Bolt
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23801E Hose, Fuel Pipe, NO.2
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
