Toyota Liteace Van Wagon
1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General
Discontinued model
Data version 2001-01

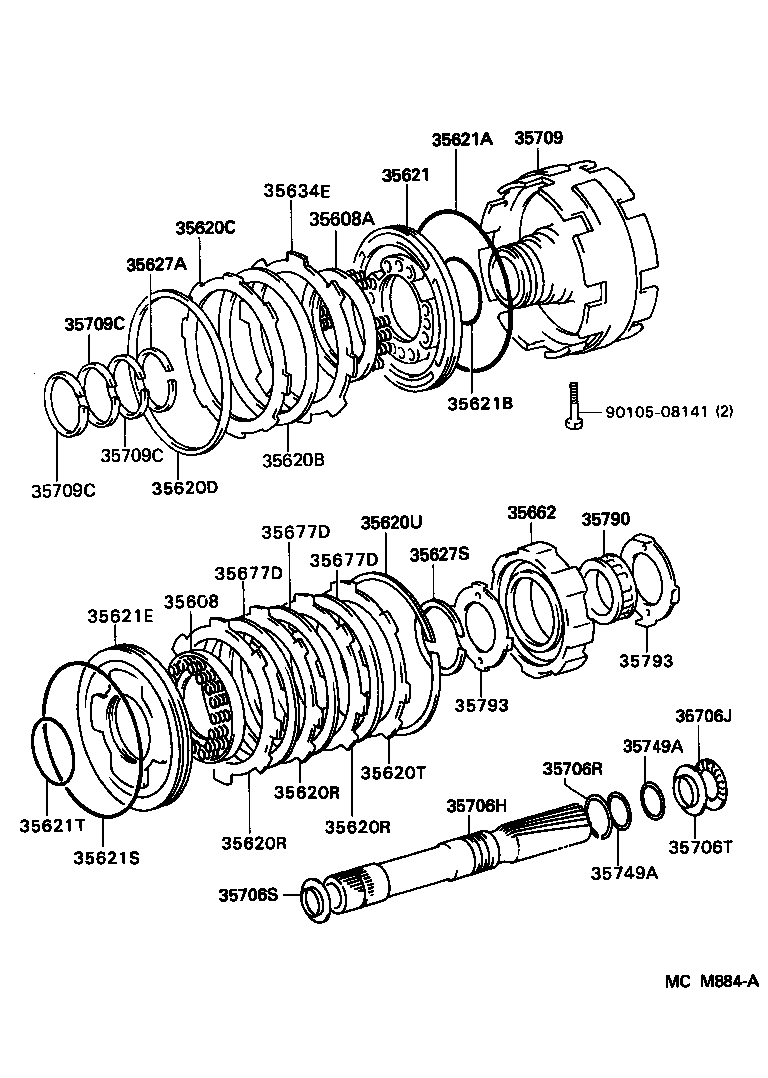

Center Support & Planetary Sun Gear (ATM)
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35608A | Spring Sub-assy, Brake Piston Return |
| 35620B | Disc, Clutch (FOR BRAKE) |
| 35620C | Flange, Clutch (FOR BRAKE) |
| 35620D | Ring (FOR BRAKE) |
| 35620R | Plate, Clutch (FOR REAR BRAKE) |
| 35620T | Flange, Clutch (FOR REAR BRAKE) |
| 35620U | Ring (FOR REAR BRAKE) |
| 35621 | Piston, Brake, NO.1 |
| 35621A | Ring, O (FOR BRAKE PISTON OUTER) |
| 35621B | Ring, O (FOR BRAKE PISTON INNER) |
| 35621E | Piston, Brake (FOR REAR BRAKE) |
| 35621S | Ring (FOR REAR BRAKE PISTON OUTER) |
| 35621T | Ring (FOR REAR BRAKE PISTON INNER) |
| 35627A | Ring, Shaft Snap (FOR BRAKE RETURN SPRING SEAT) |
| 35627S | Ring, Shaft Snap (FOR REAR BRAKE RETURN SPRING SEAT) |
| 35634E | Plate, Clutch (FOR BRAKE) |
| 35662 | Hub, Brake |
| 35677D | Disc, Clutch (FOR REAR BRAKE) |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35706R | Ring, Shaft Snap (FOR PLANETARY SUN GEAR) |
| 35706S | Race, Thrust Bearing (FOR PLANETARY SUN GEAR FRONT) |
| 35706T | Race, Thrust Bearing (FOR PLANETARY SUN GEAR REAR) |
| 35709 | Support Sub-assy, Center |
| 35709C | Ring, Oil Seal (FOR CENTER SUPPORT) |
| 35719A | Gear, Rear Planetary Sun |
| 35749A | Ring, Sun Gear Shaft Oil Seal |
| 35790 | Clutch Assy, 1 Way |
| 35793 | Retainer, 1 Way Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
