Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

15 part groups · 4 illustrations

Illustrations

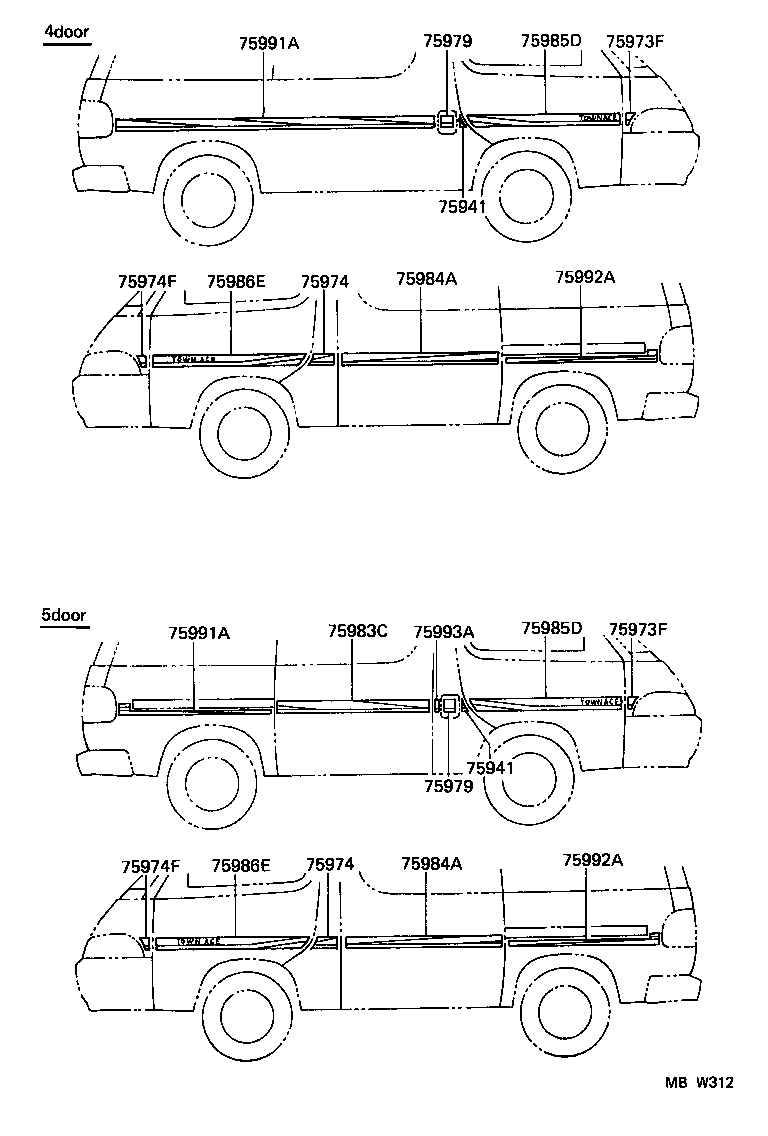

Figure MBW311 MBW311 1992-01 → — Figure MBW312 MBW312 1992-01 → — Figure MBW313 MBW313 1992-01 → — Figure MBX924 MBX924 1993-09 → —

Part groups

PNCDescription
75941 Stripe, Center Pillar, RH
75973F Stripe, Front Side Panel, RH
75974 Stripe, Center Pillar, LH NO.2
75974F Stripe, Front Side Panel, LH
75979 Stripe, Fuel Filler Opening Lid
75983C Stripe, Slide Door, RH
75984A Stripe, Slide Door
75984C Stripe, Slide Door, LH Upper
75985D Stripe, Front Door Outside, RH
75986E Stripe, Front Door Outside, LH
75991A Stripe, Quarter, RH
75991E Stripe, Quarter, RH Upper
75992A Stripe, Quarter, LH
75992E Stripe, Quarter, LH Upper
75993A Stripe, Quarter, Rear RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
