Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

6 part groups · 2 illustrations

Illustrations

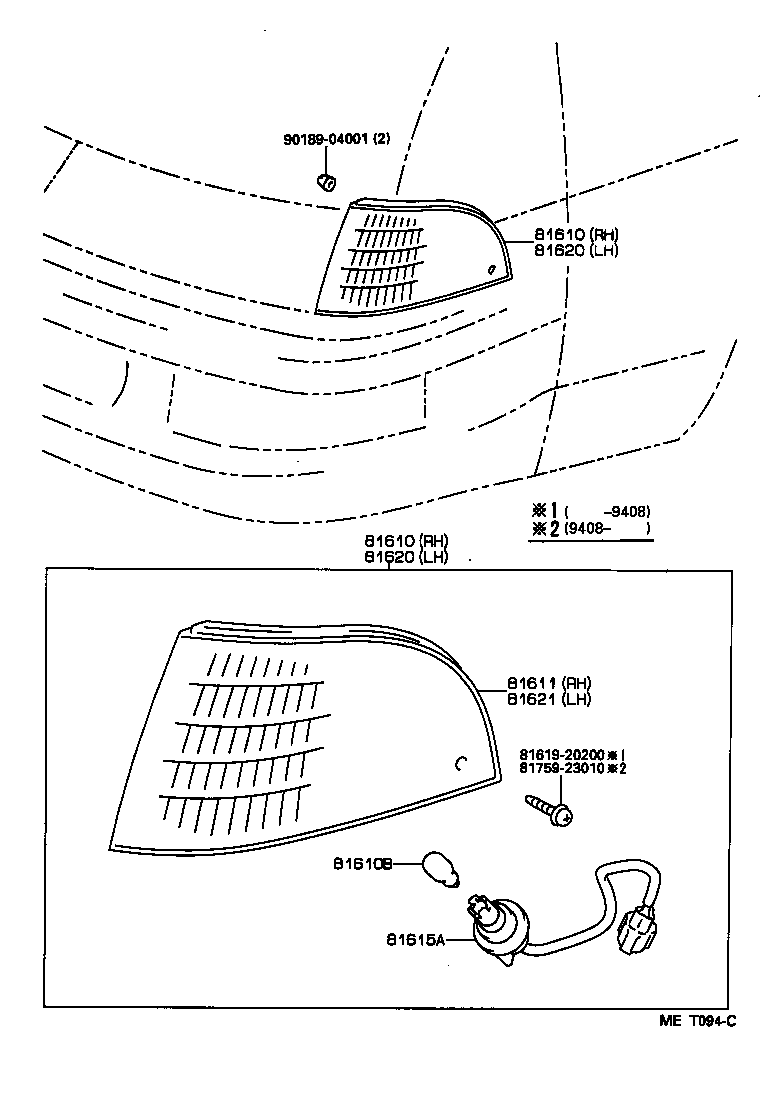

Figure MET093C MET093C 1992-01 → — Figure MET094C MET094C 1992-01 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615A Socket Plug, Clearance Lamp
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
