Toyota Liteace Van Wagon
1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General
Discontinued model
Data version 2001-01
Mirror

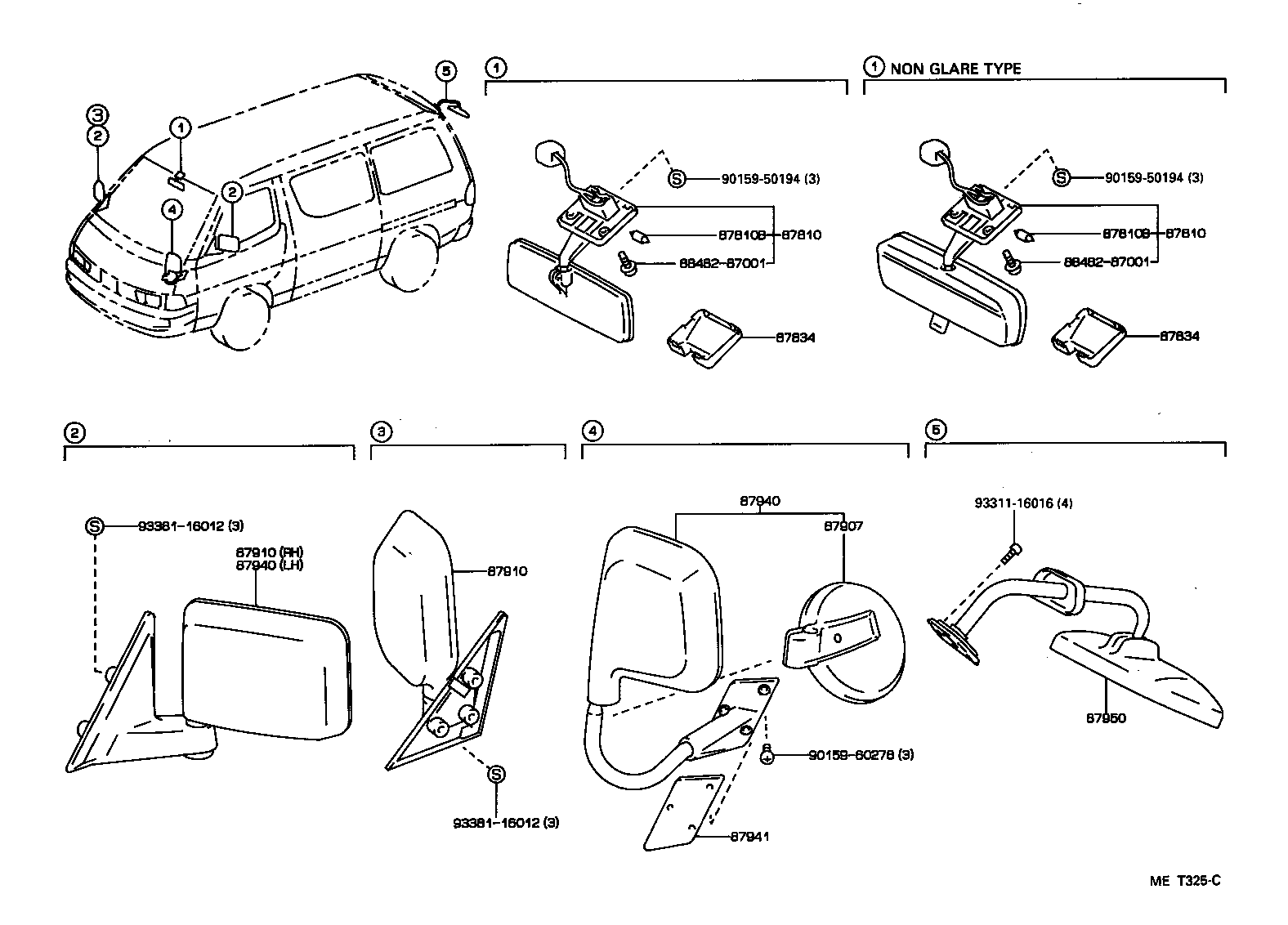

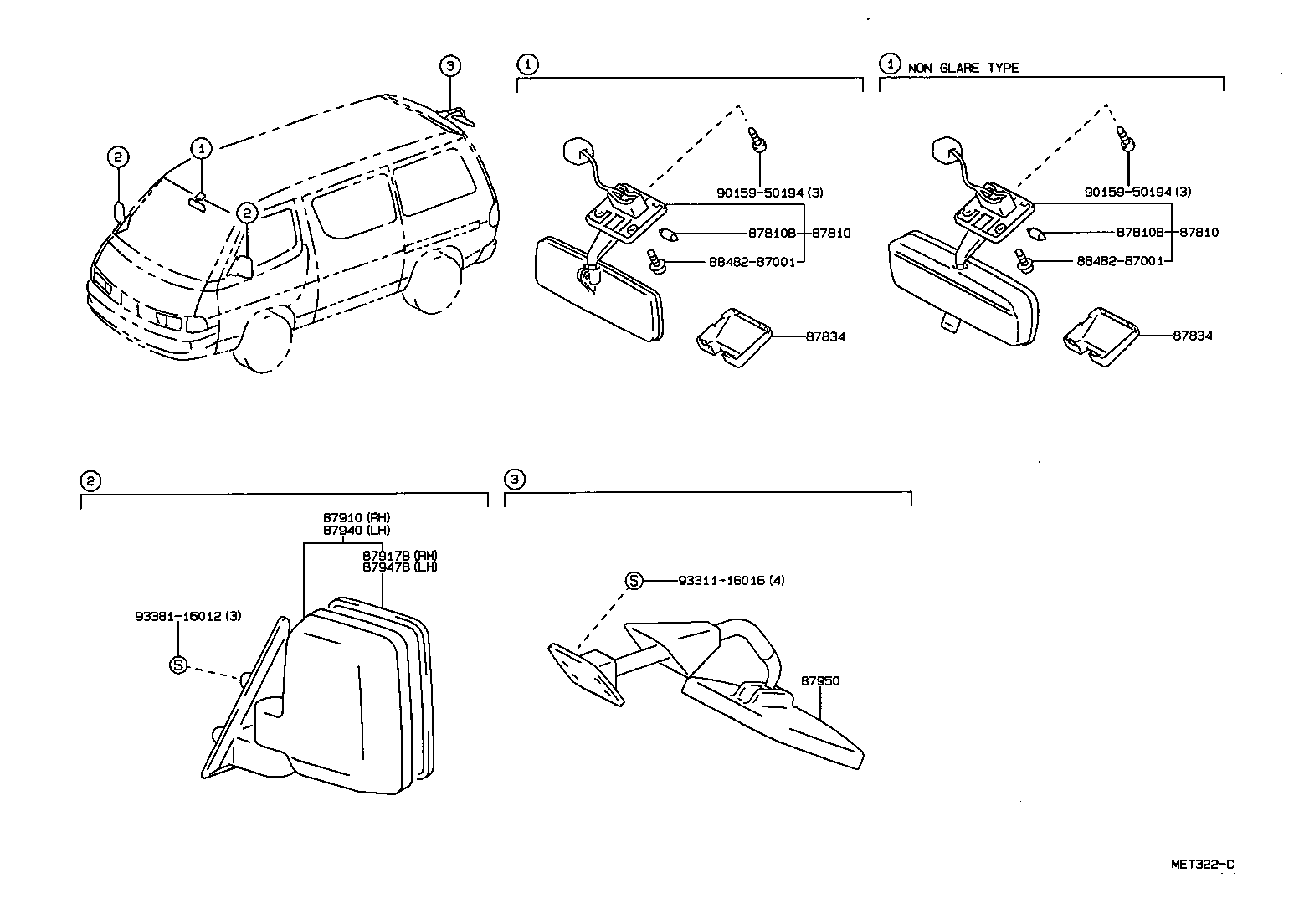

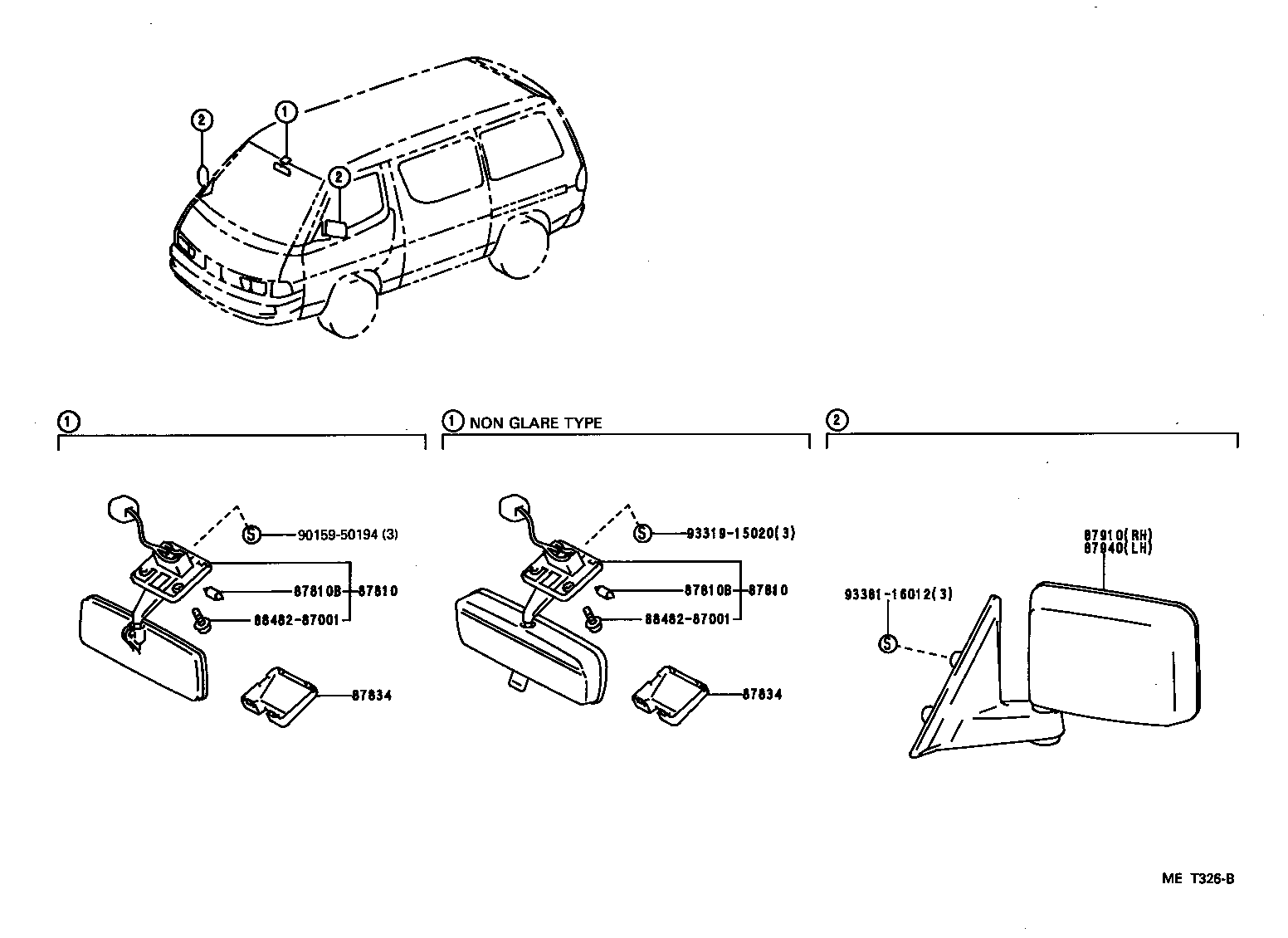

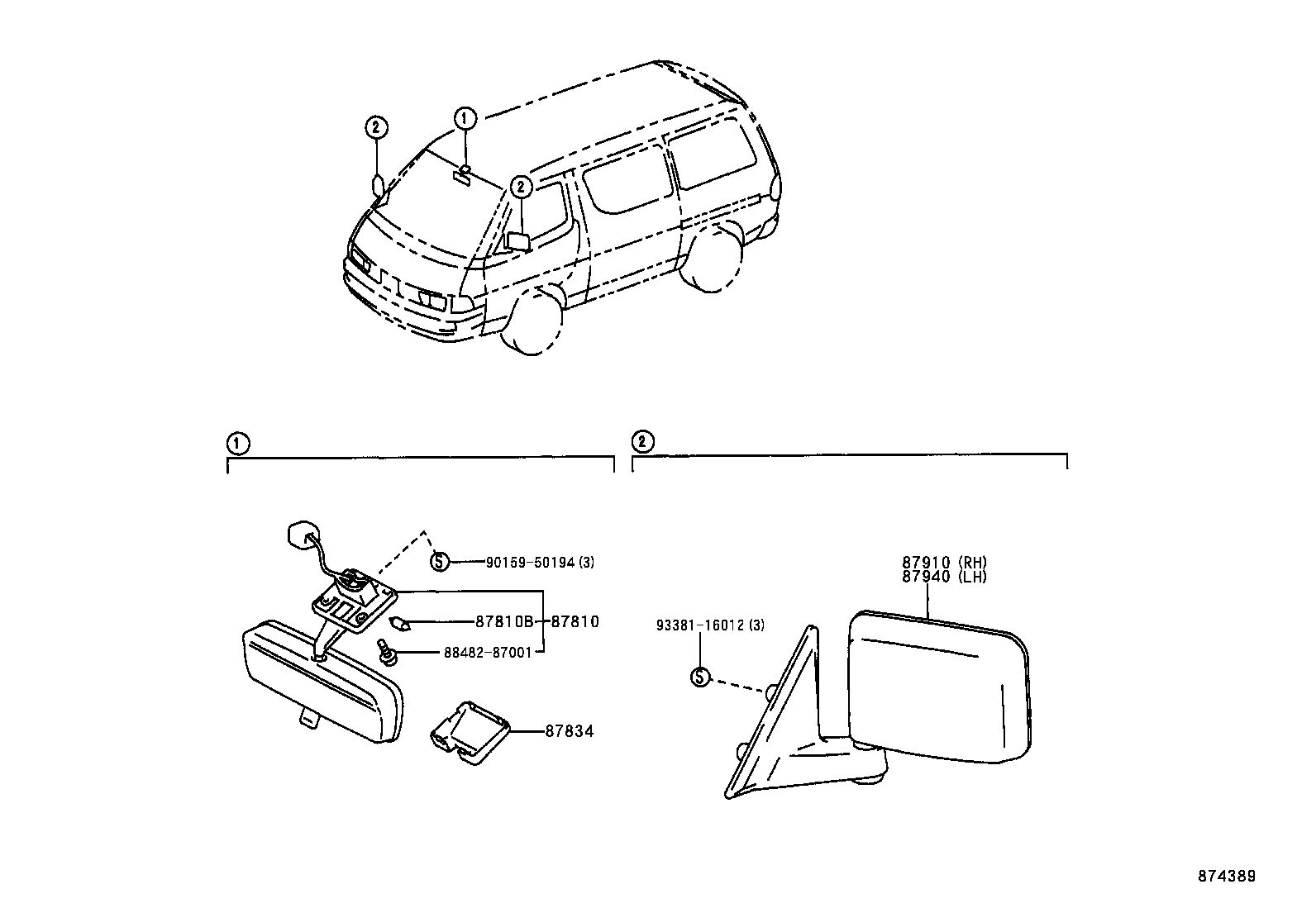

10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87941 | Gasket, Outer Rear View Mirror, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
