Toyota Liteace Van Wagon

1992-01 → 2000-07 · chassis CR27,KR2#,YR2#,39 · catalogue 651340 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

57 part groups · 23 illustrations

Illustrations

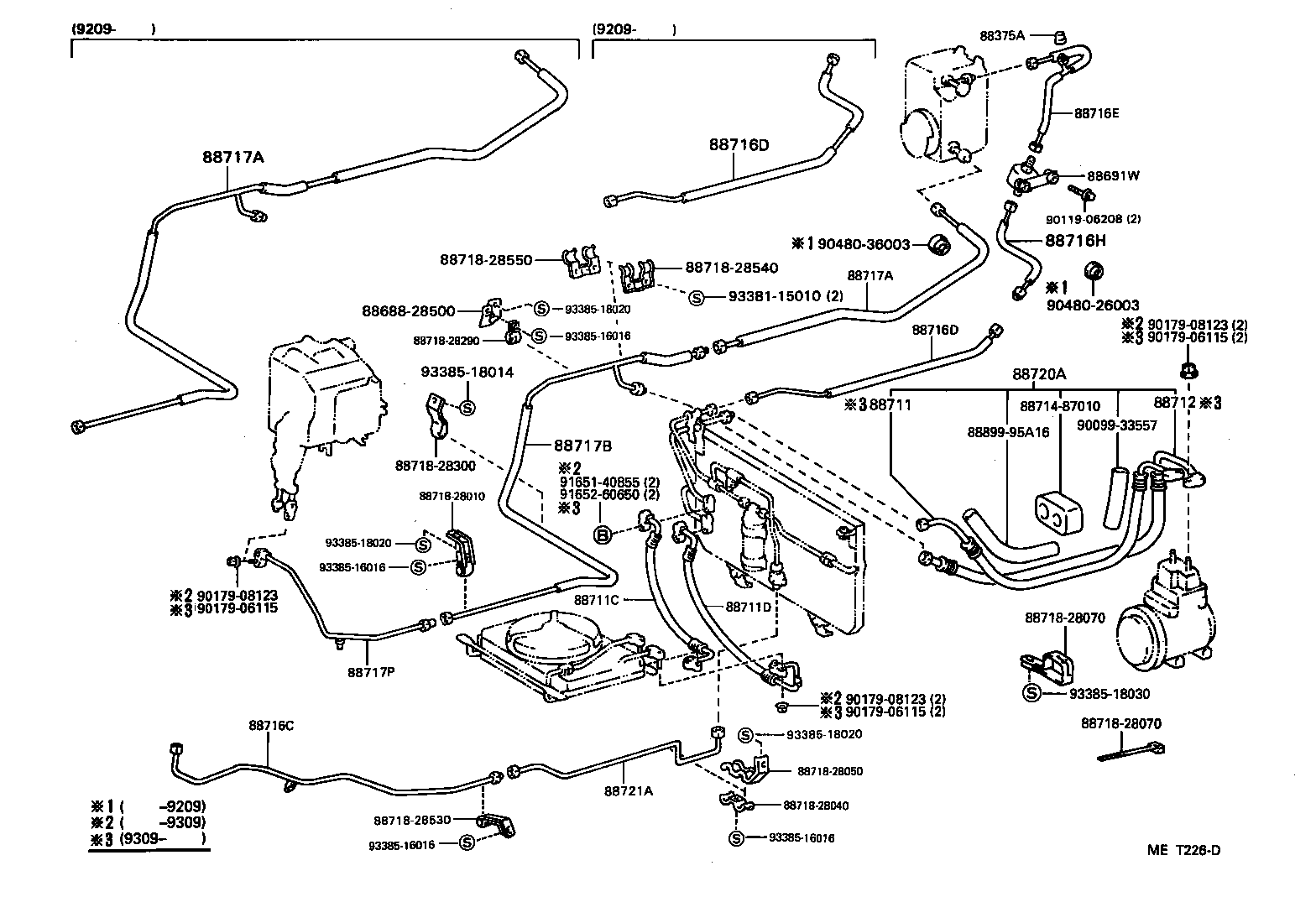

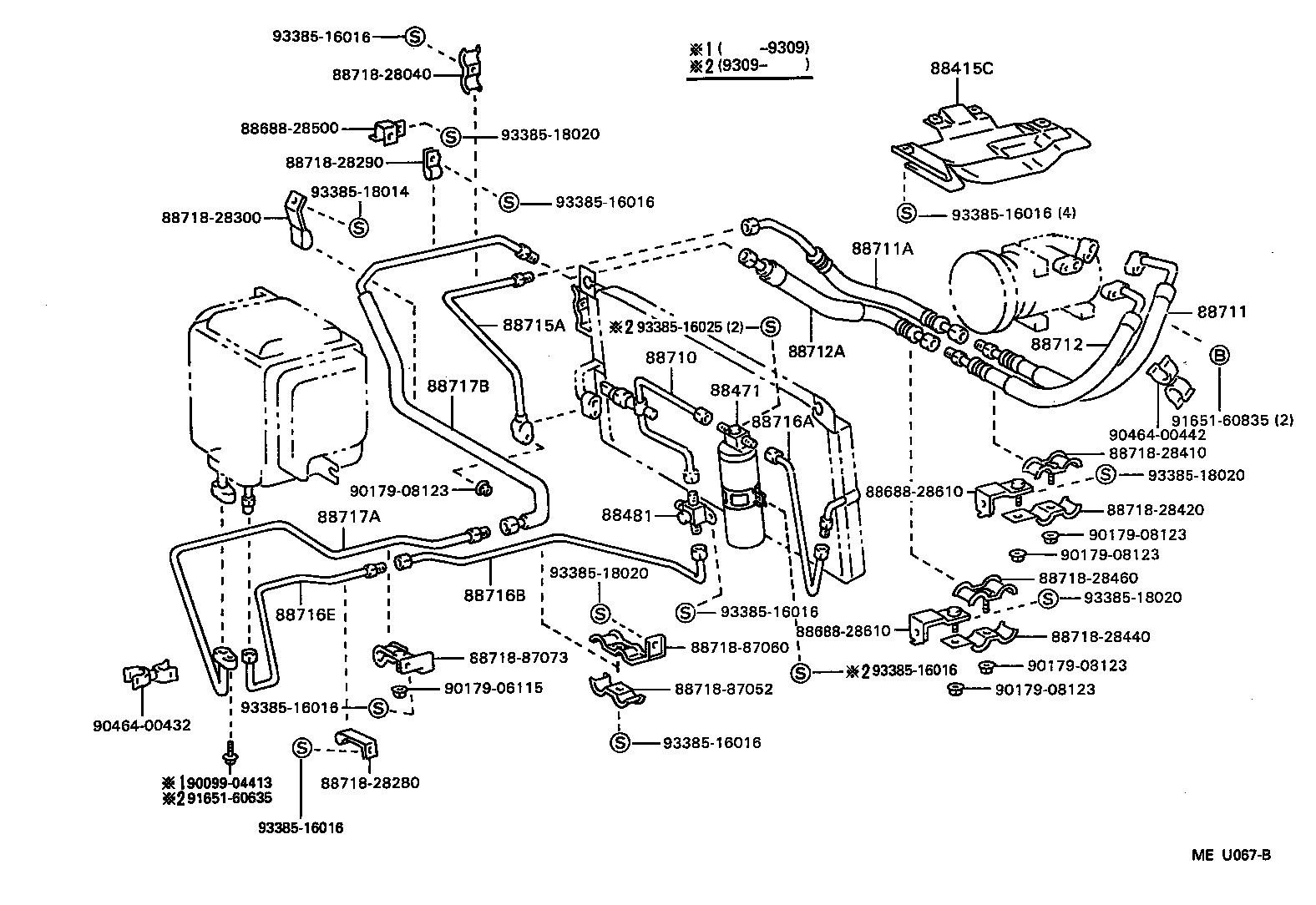

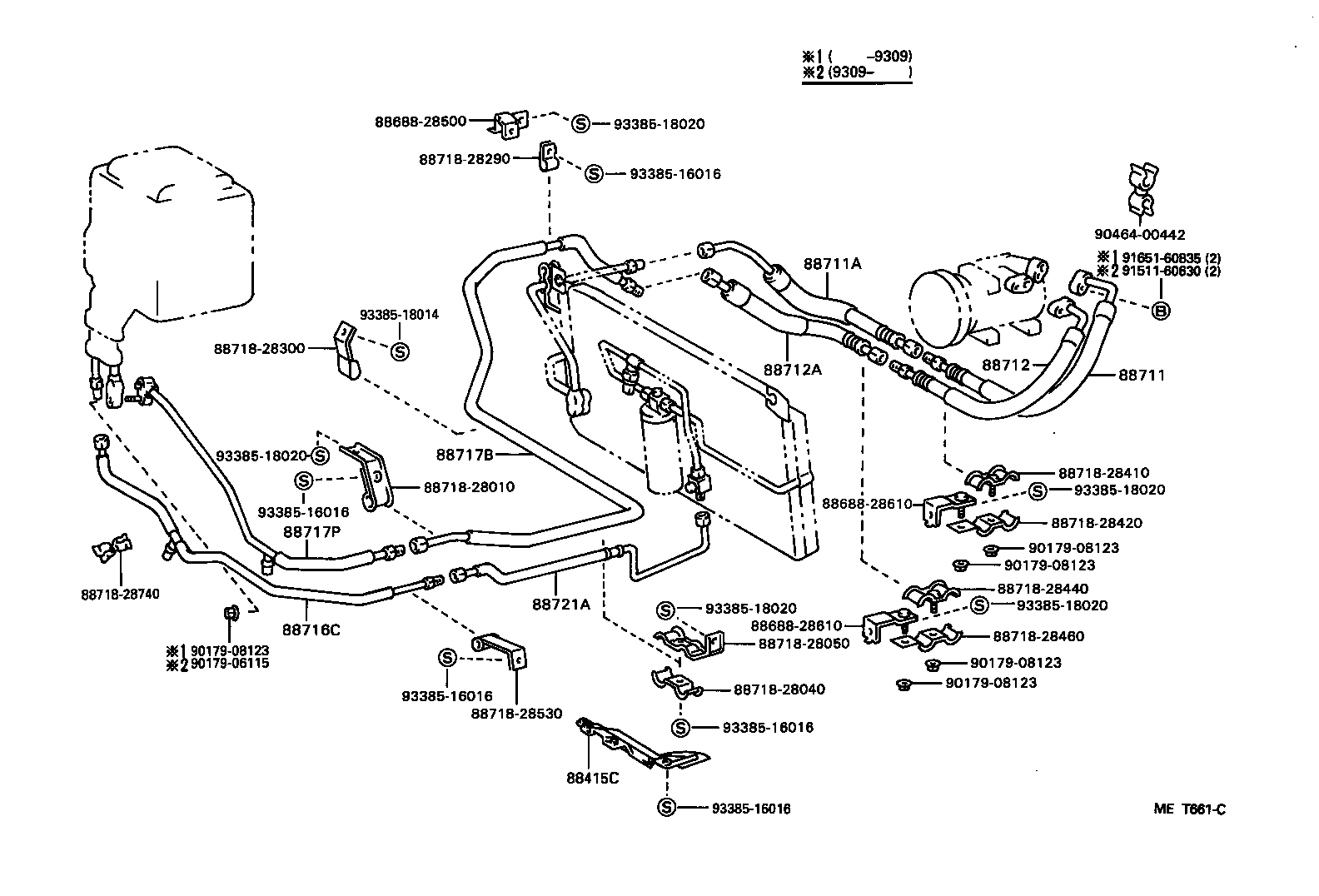

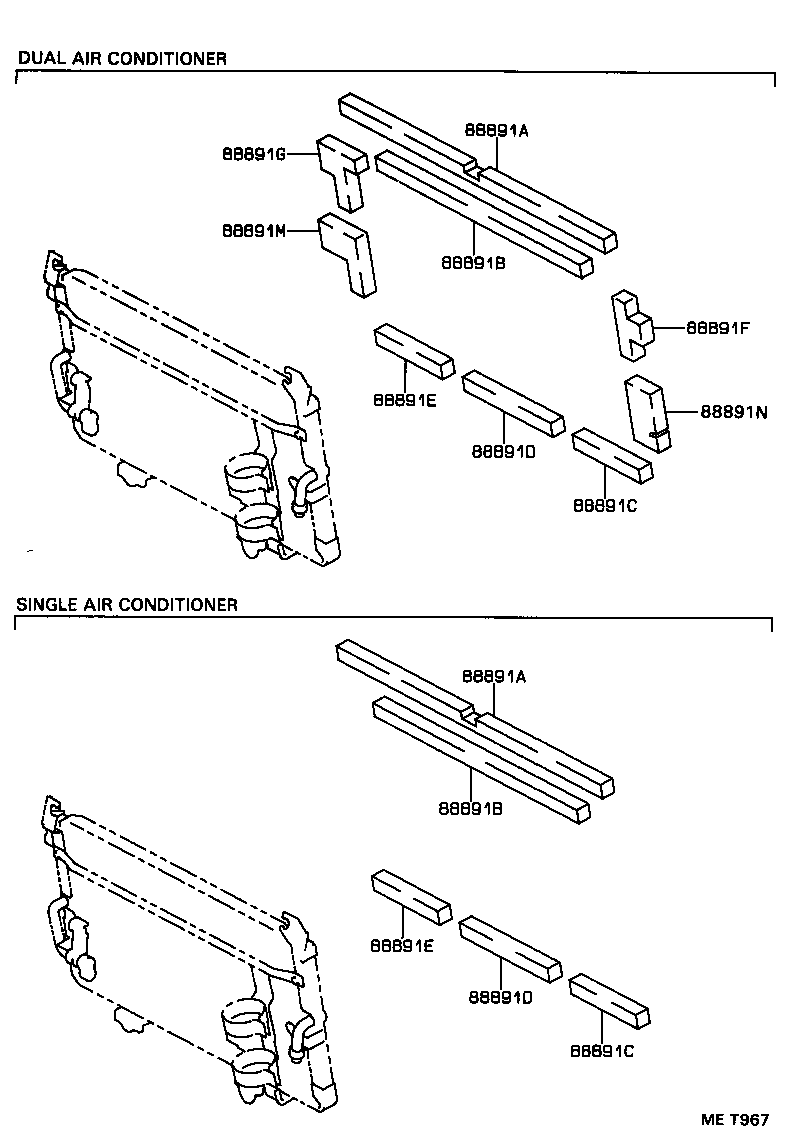

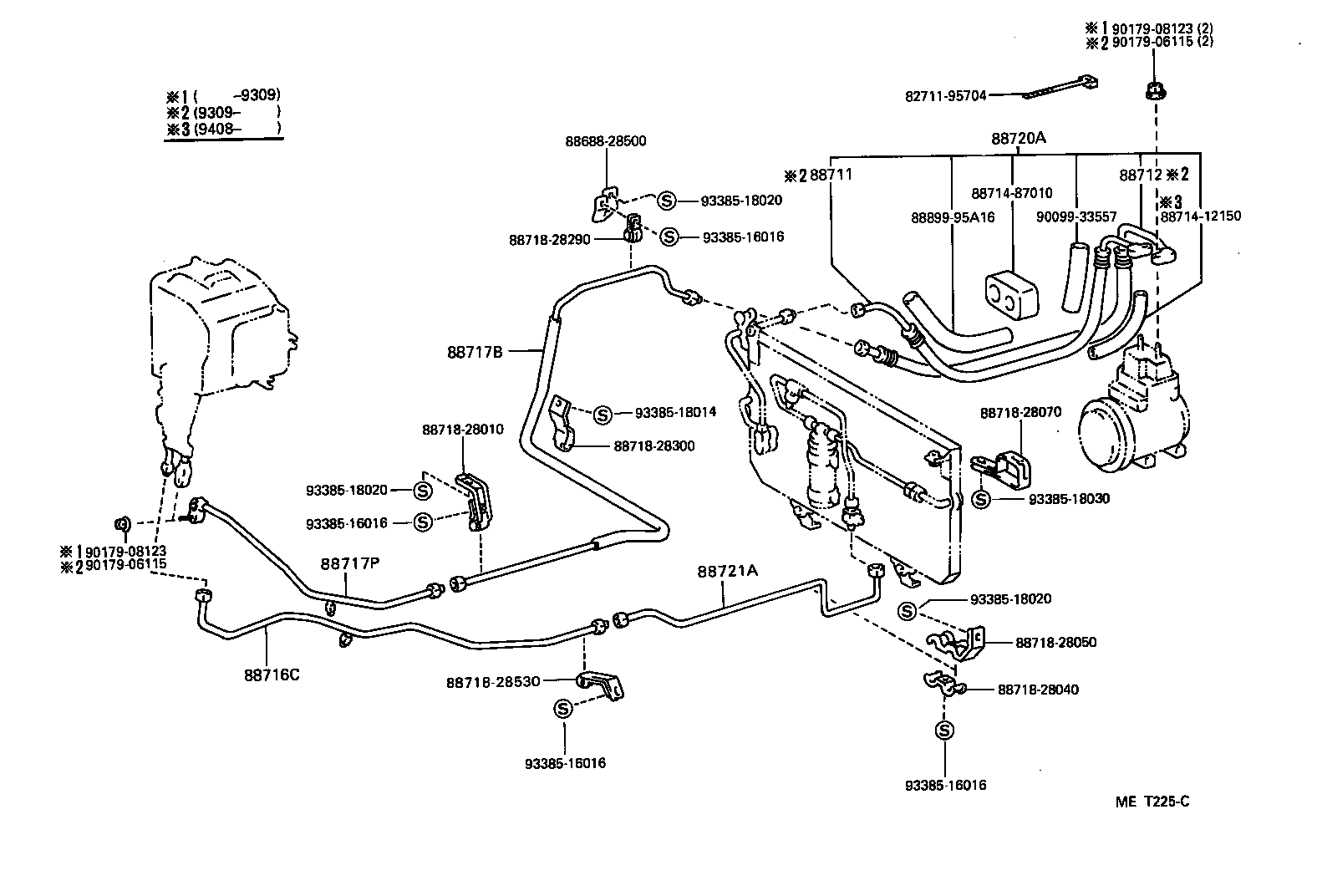

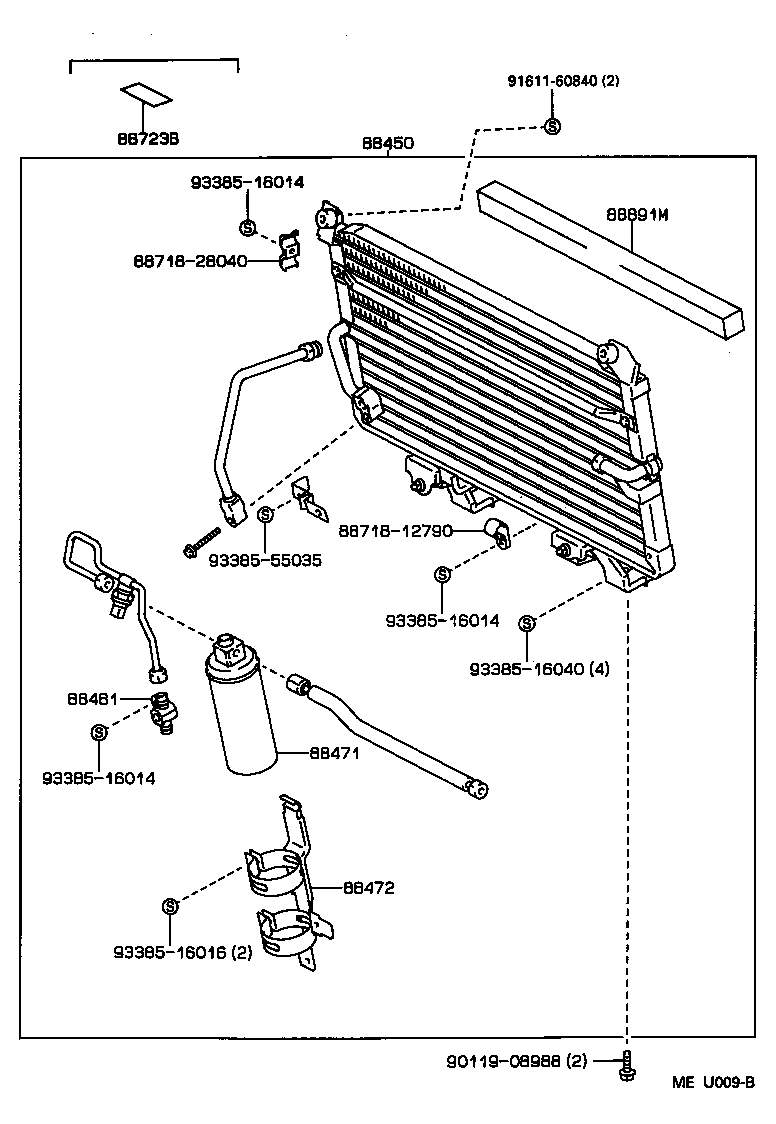

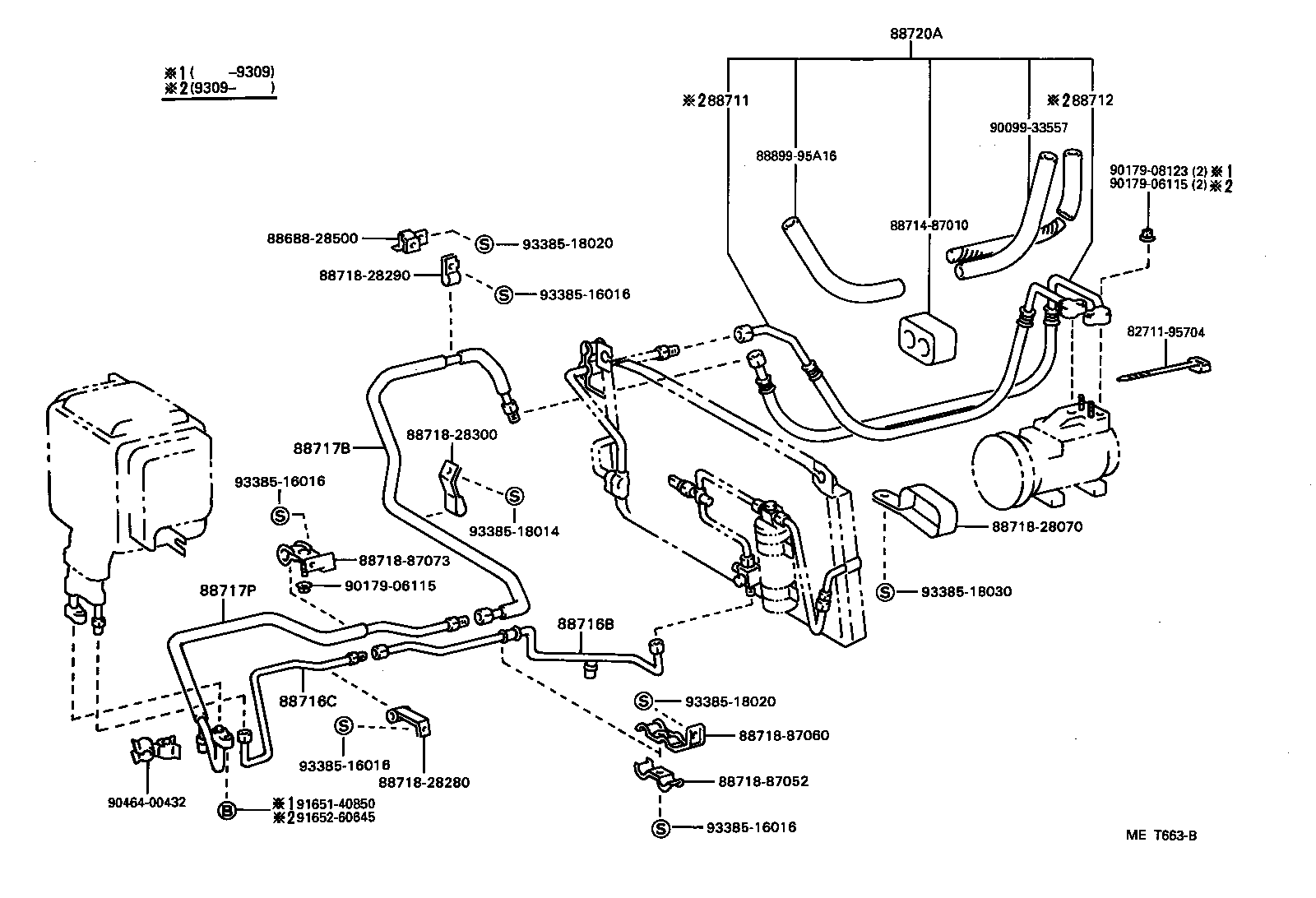

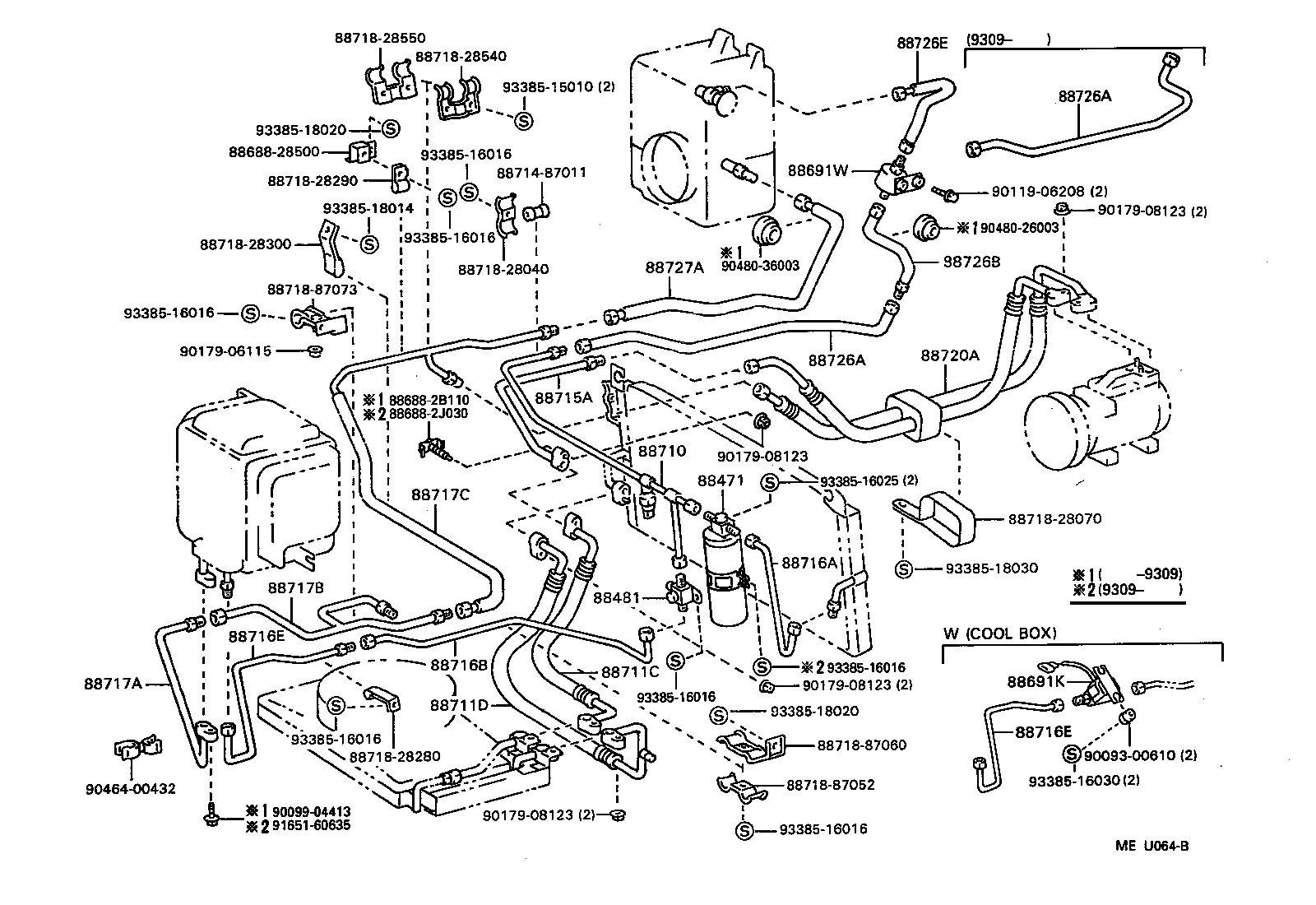

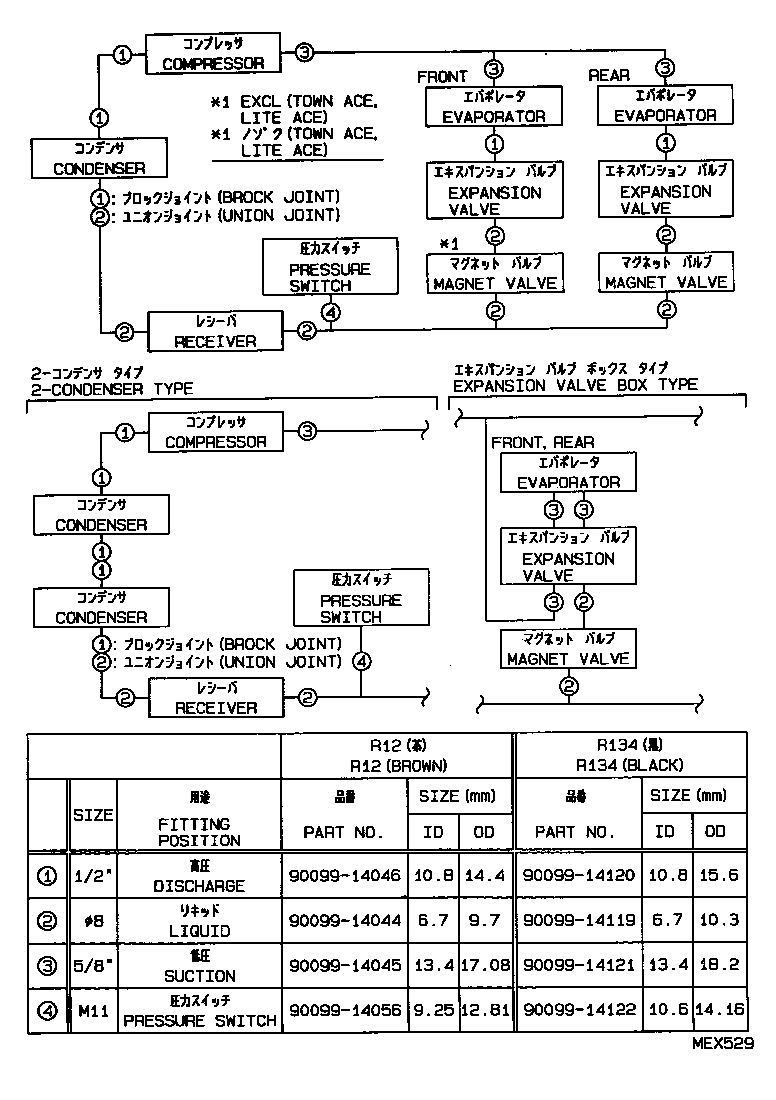

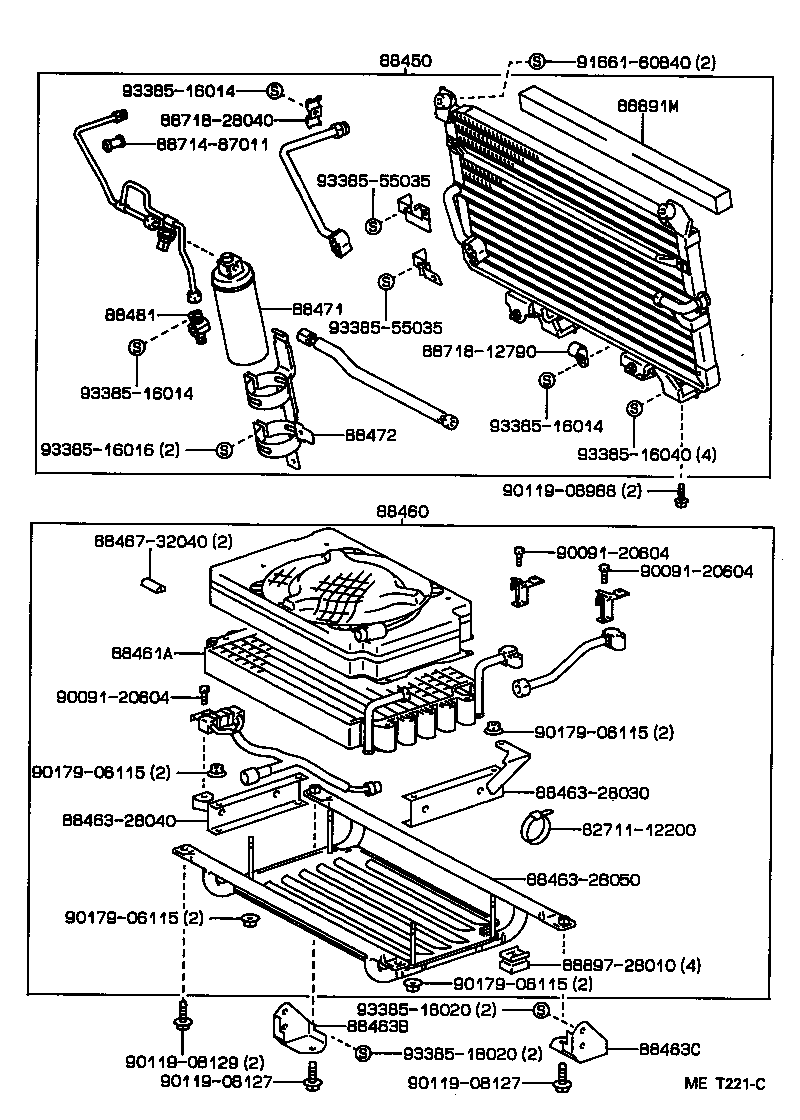

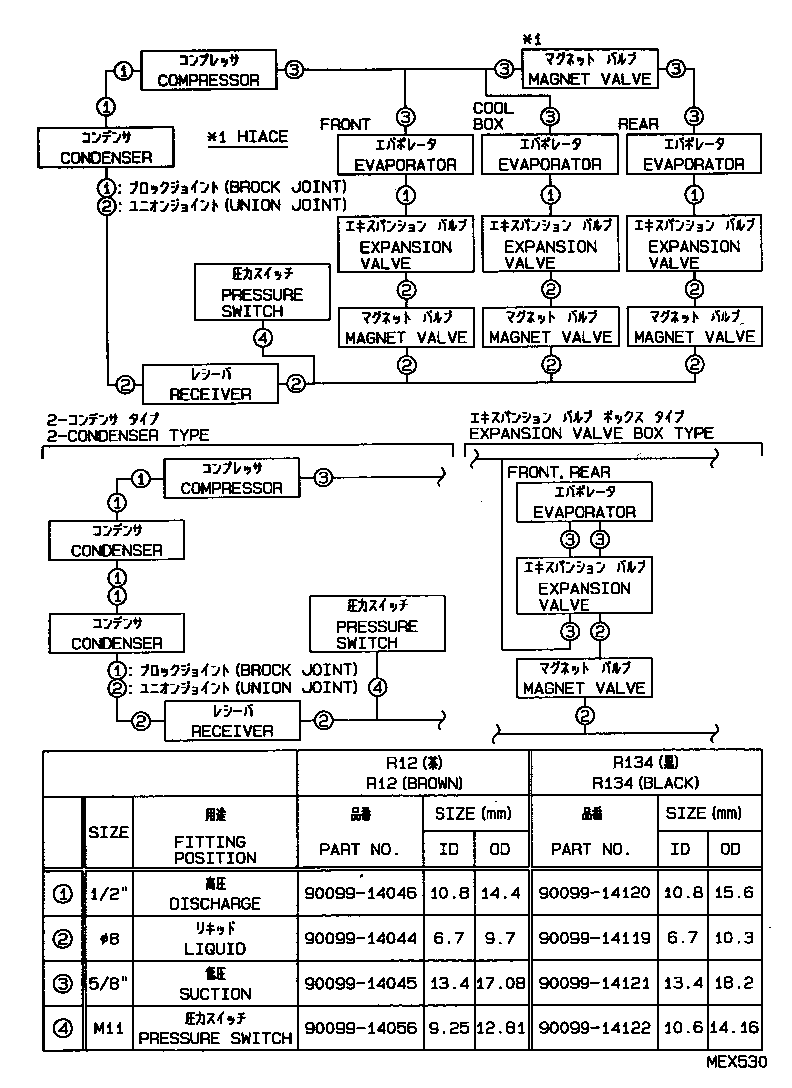

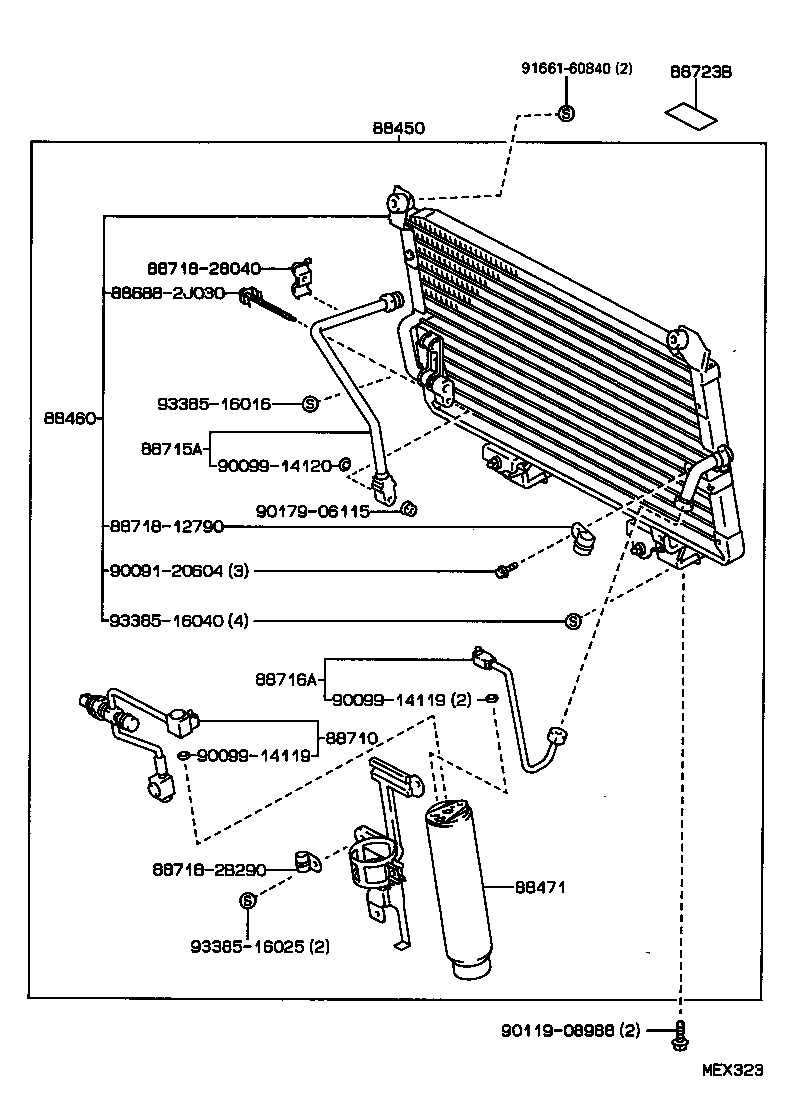

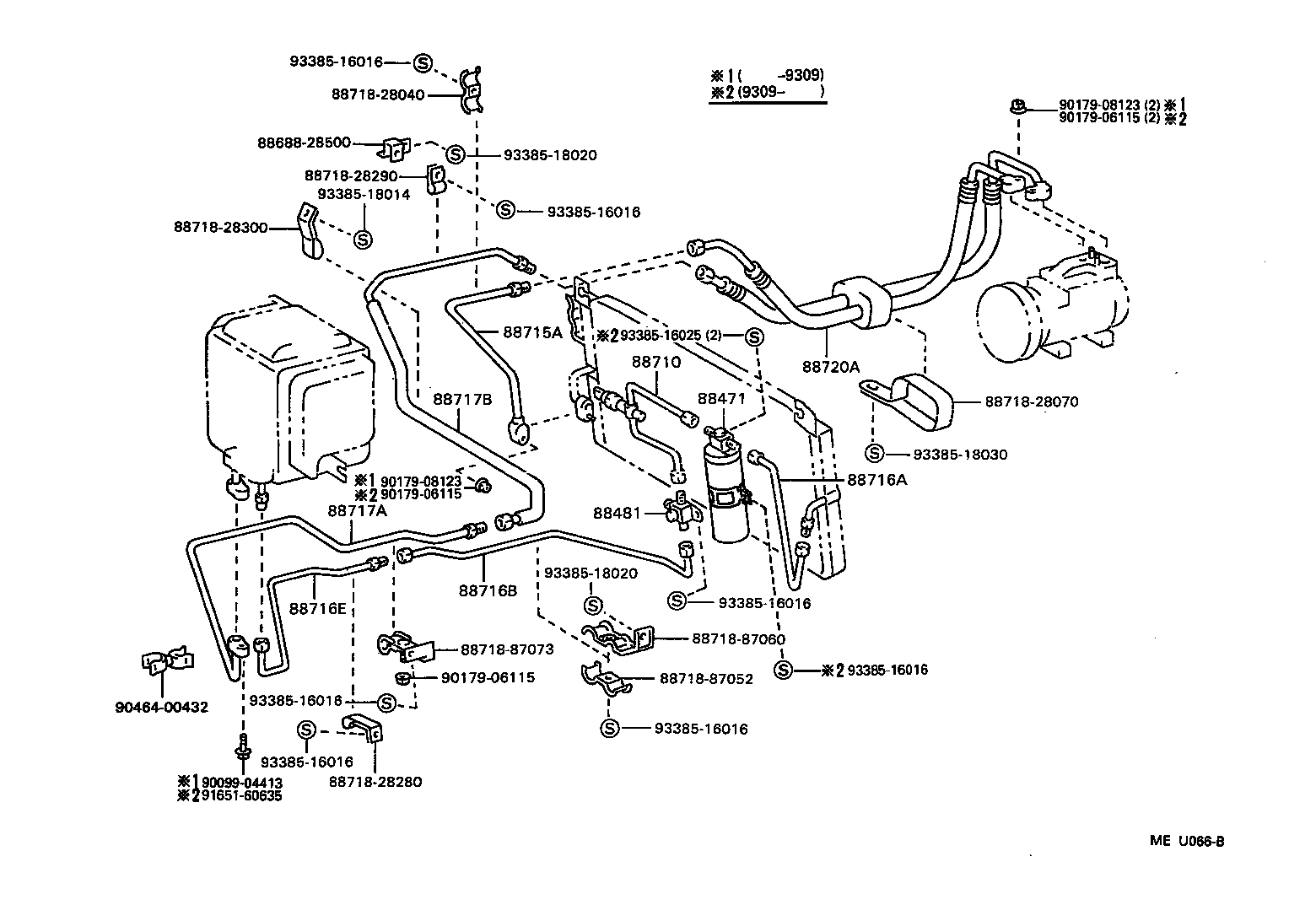

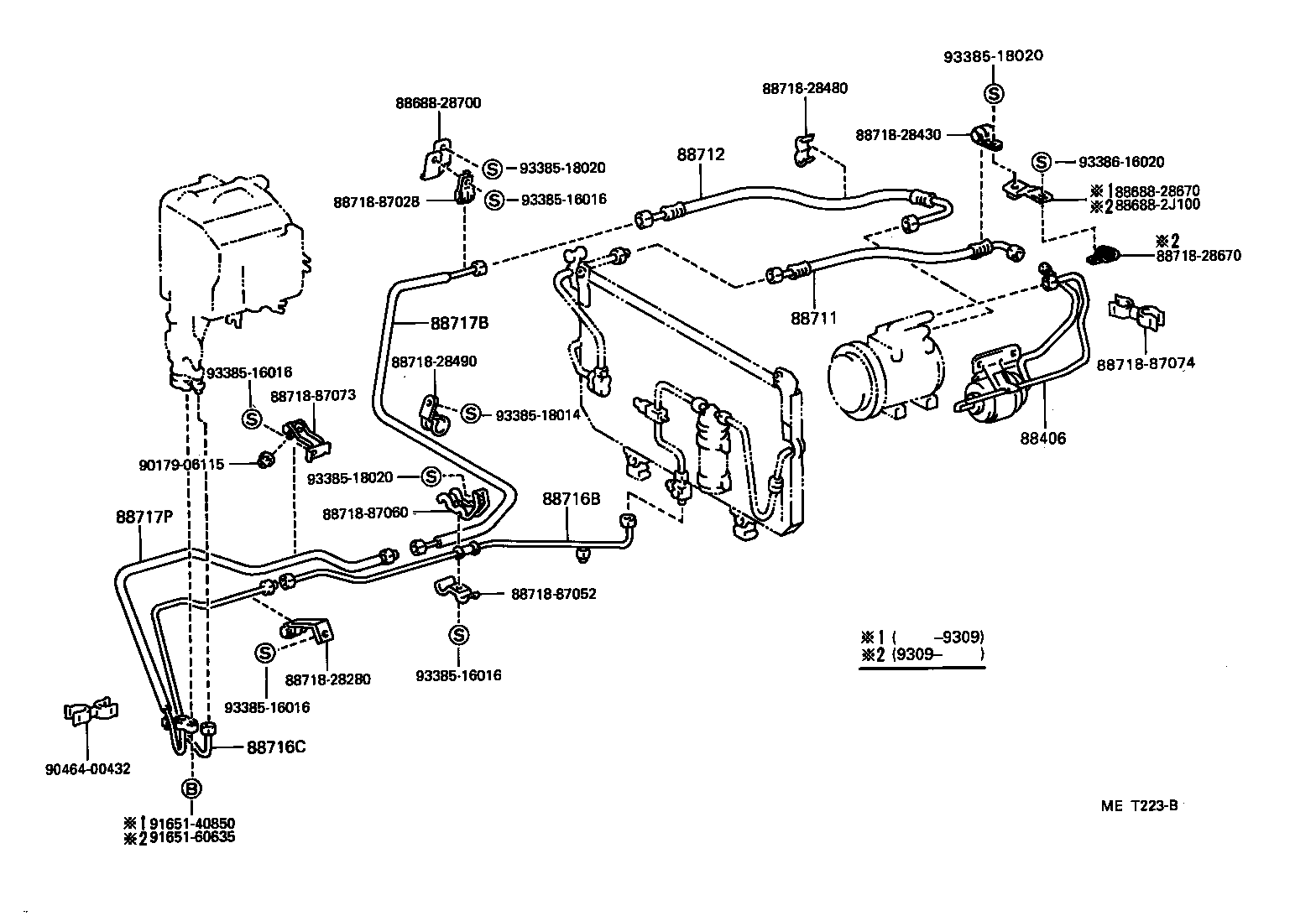

Figure MET220B MET220B 1992-01 → 1993-09 Figure MEX323 MEX323 1993-09 → — Figure MEU009B MEU009B 1992-01 → 1993-09 Figure MEX324 MEX324 1993-09 → — Figure MET953A MET953A 1992-01 → — Figure MET221C MET221C 1992-01 → 1993-09 Figure MEX325A MEX325A 1993-09 → — Figure MEX326 MEX326 1992-01 → — Figure MET222D MET222D 1992-01 → — Figure MET661C MET661C 1992-01 → — Figure MEU067B MEU067B 1992-01 → — Figure MET223B MET223B 1992-01 → — Figure MET662B MET662B 1992-01 → — Figure MEU065A MEU065A 1992-01 → — Figure MET225C MET225C 1992-01 → — Figure MEU066B MEU066B 1992-01 → — Figure MET226D MET226D 1992-01 → — Figure MEU064B MEU064B 1992-01 → — Figure MET663B MET663B 1992-01 → — Figure MET227A MET227A 1992-01 → — Figure MET967 MET967 1992-01 → — Figure MEX529 MEX529 1992-01 → — Figure MEX530 MEX530 1992-01 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88406 Muffler Sub-assy, Discharge
88415C Cover, Dust, NO.1

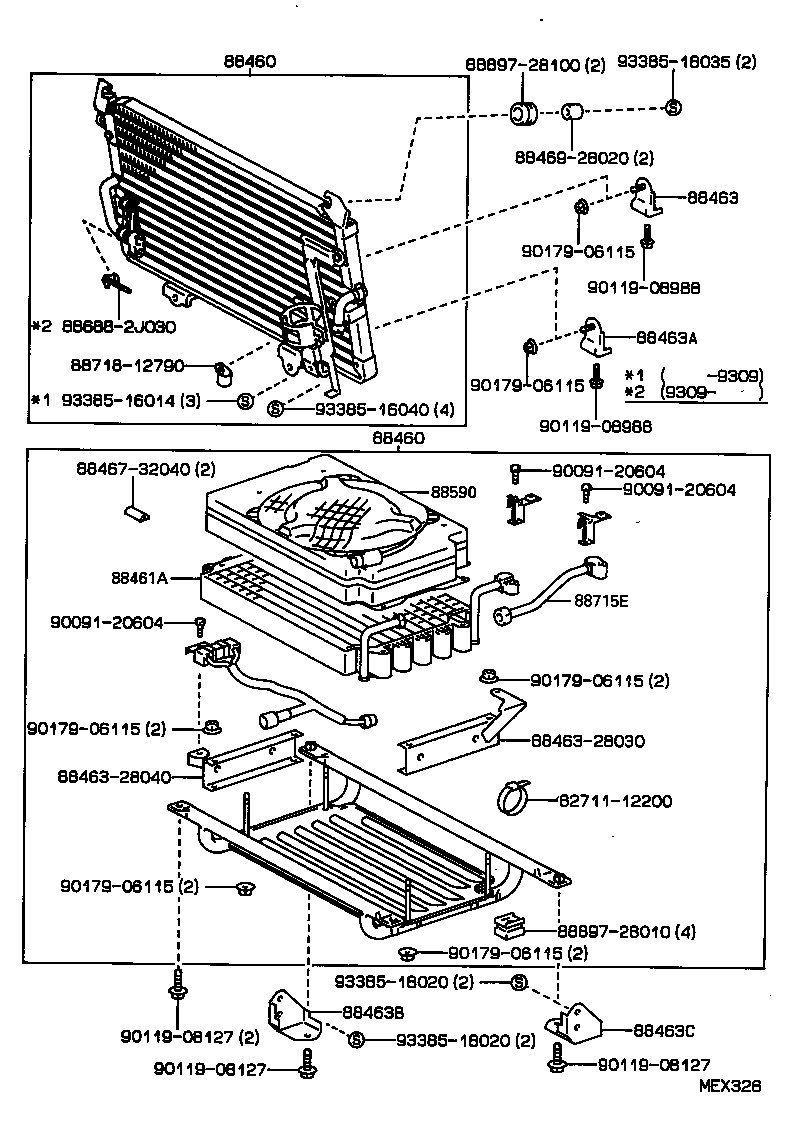

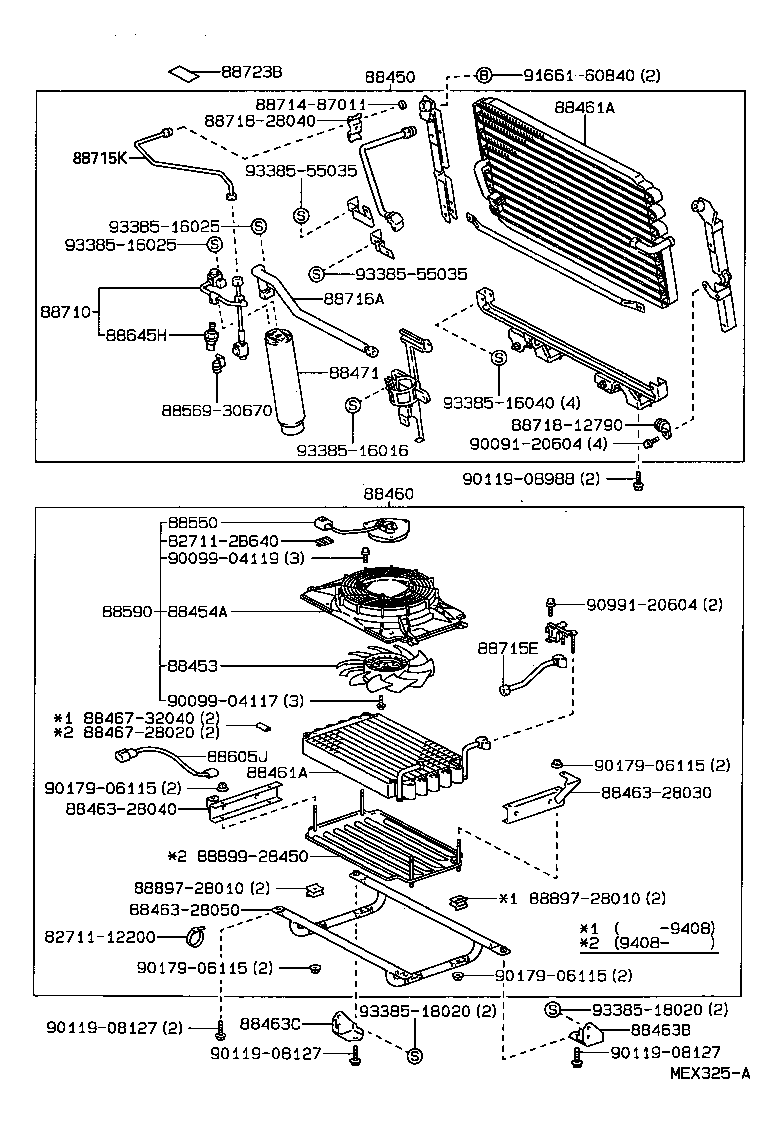

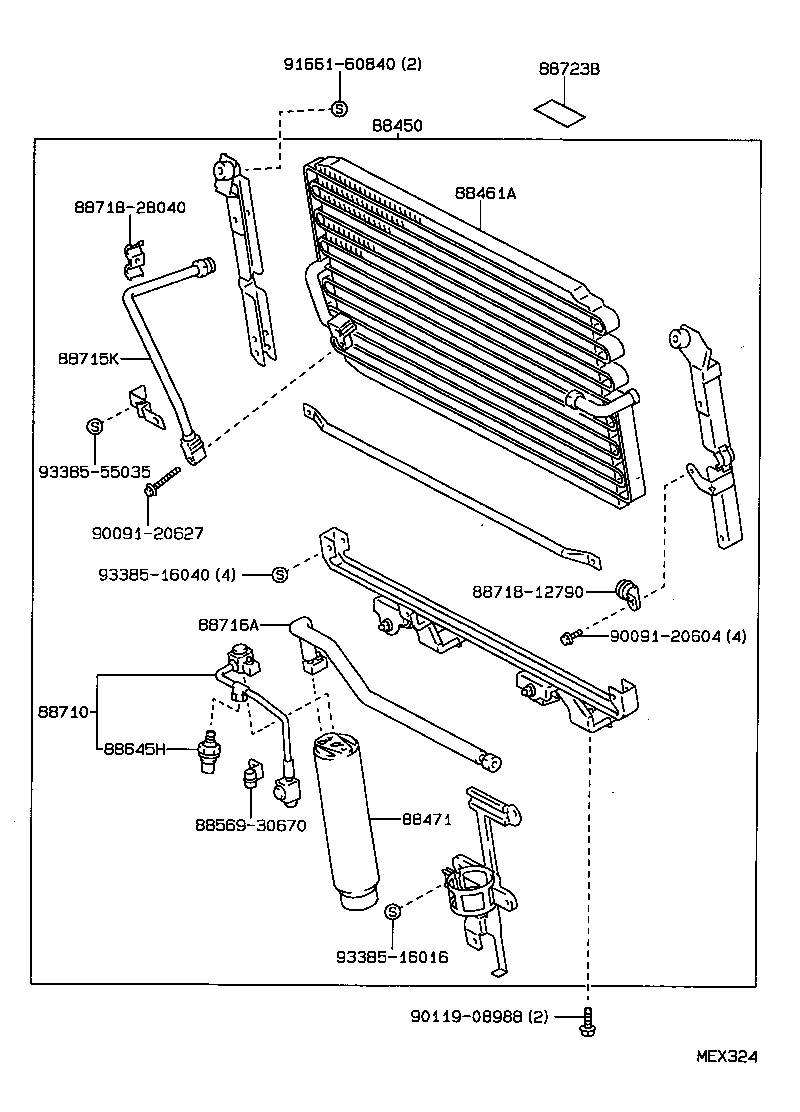

88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan

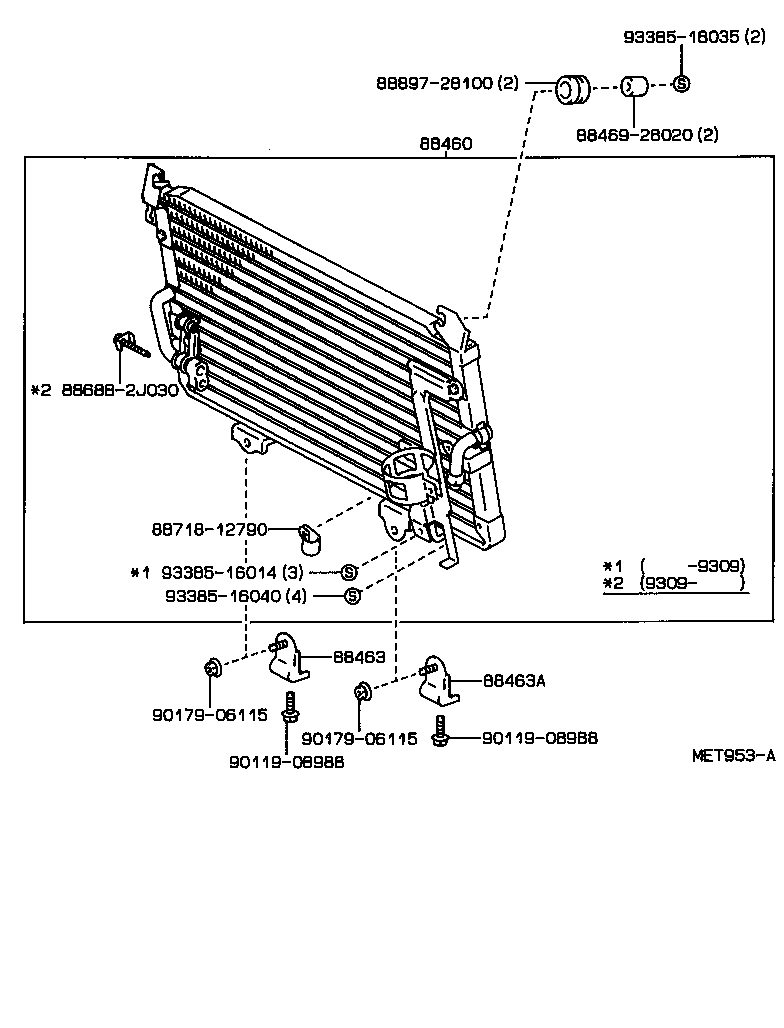

88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88691K Valve Assy, Magnet
88691W Valve, Magnet
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88711D Hose, Cooler Refrigerant Discharge, NO.4
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)

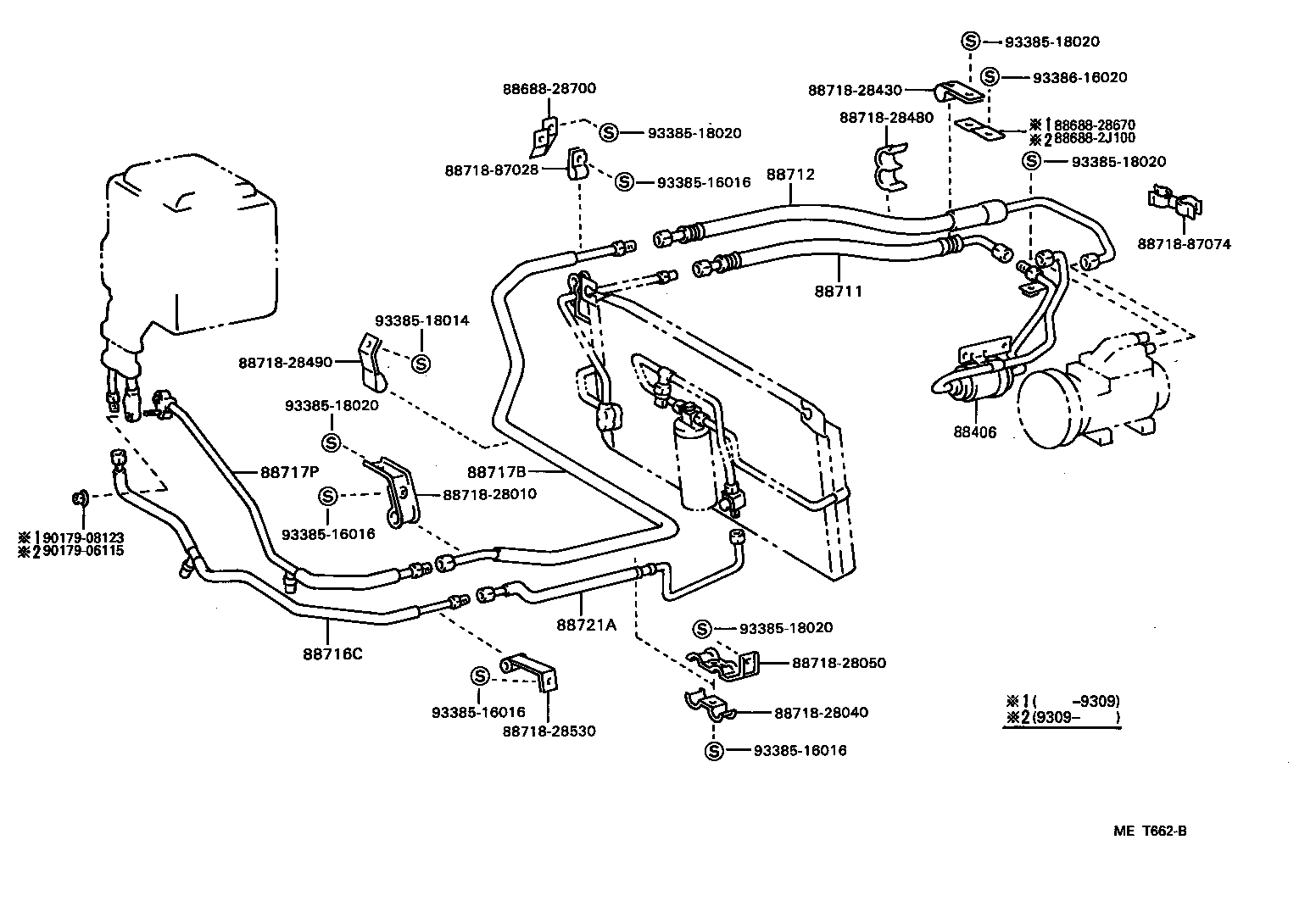

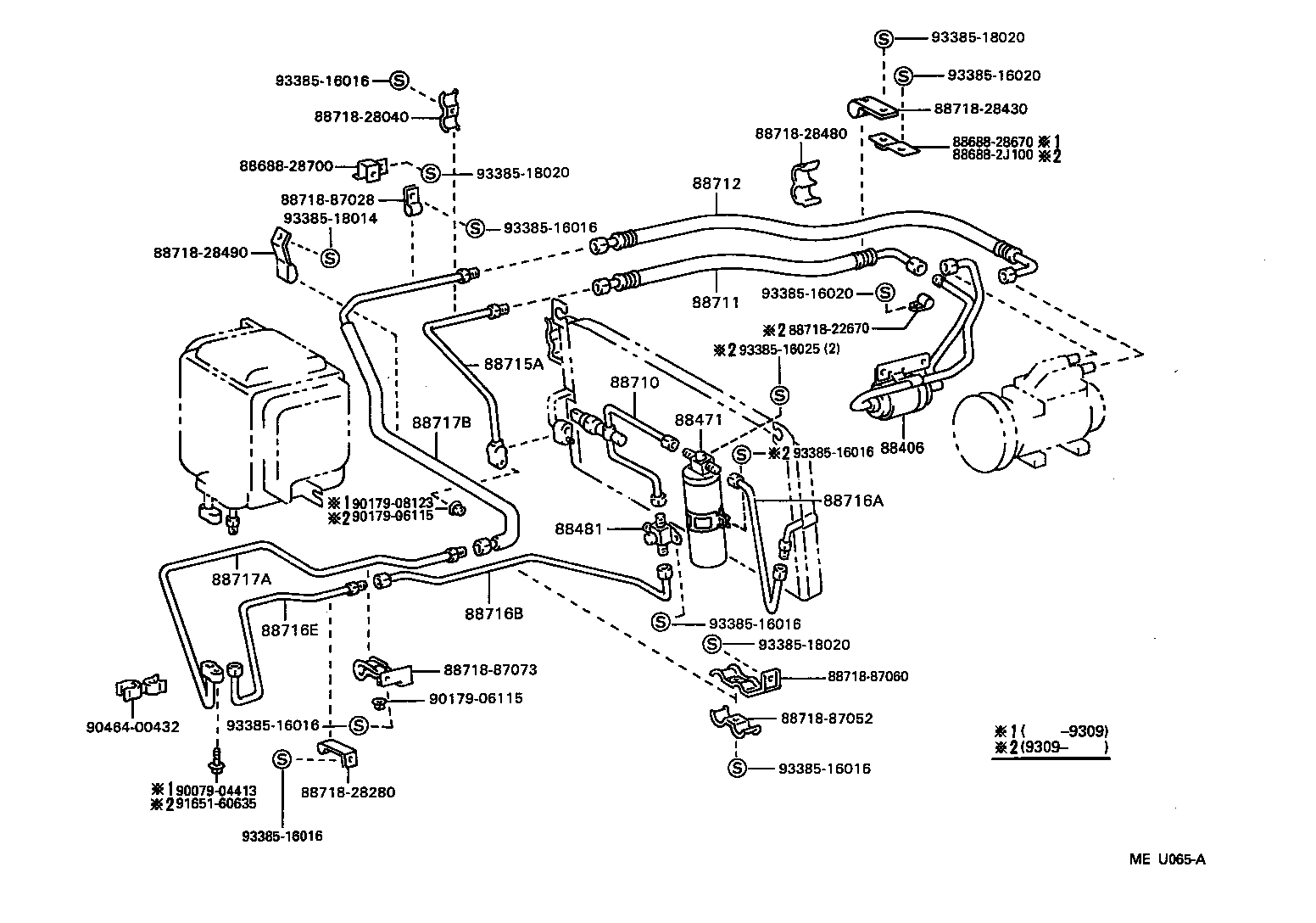

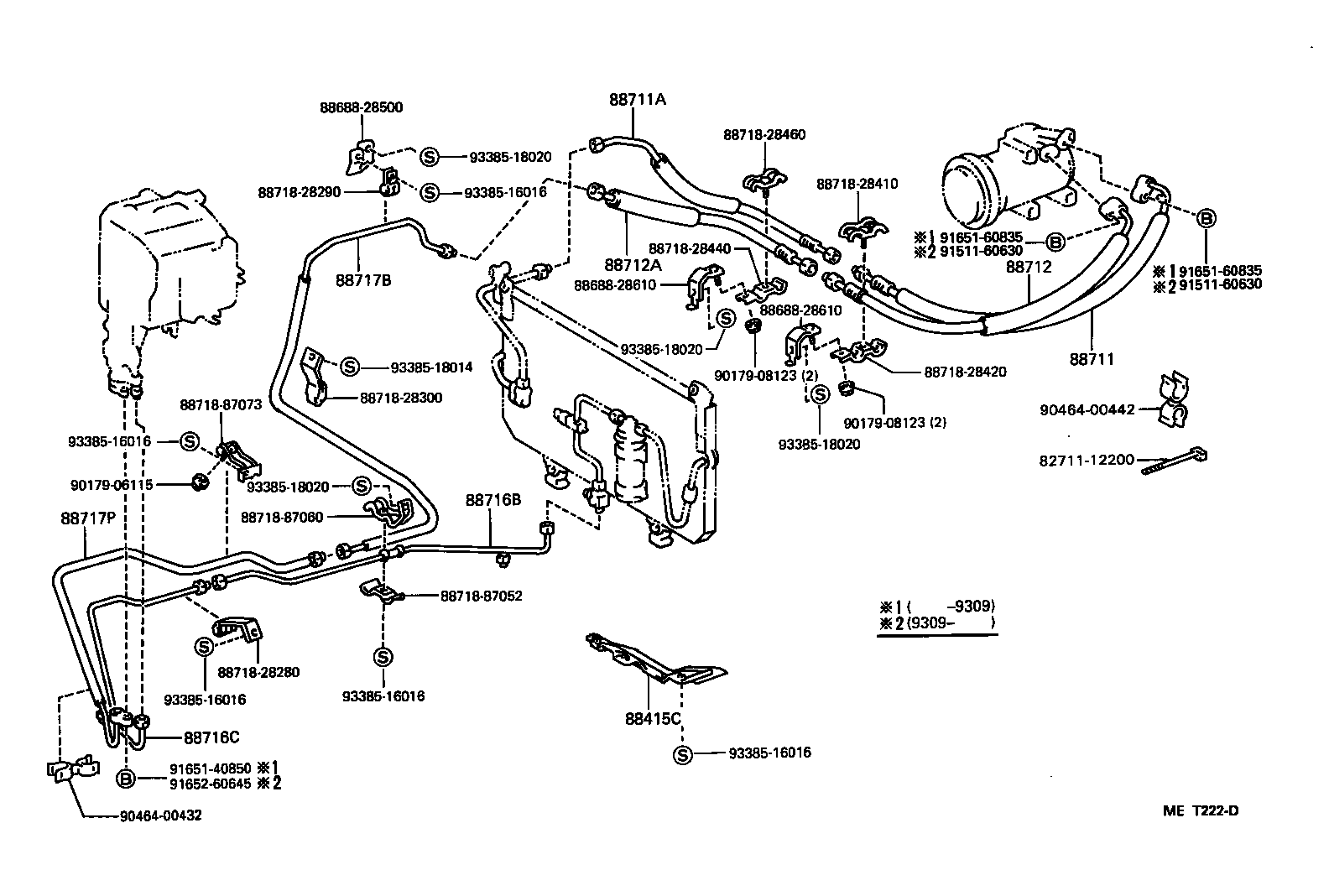

88715A Pipe, Cooler Refrigerant Discharge, A
88715E Pipe, Cooler Refrigerant Discharge, E
88715K Tube, Discharge, K
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717P Pipe, Cooler Refrigerant Suction, P
88720A Hose & Accessory, Air Conditioner
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
88891G Packing G (FOR COOLER)
88891M Packing
88891N Packing, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
