Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 7 illustrations

Illustrations

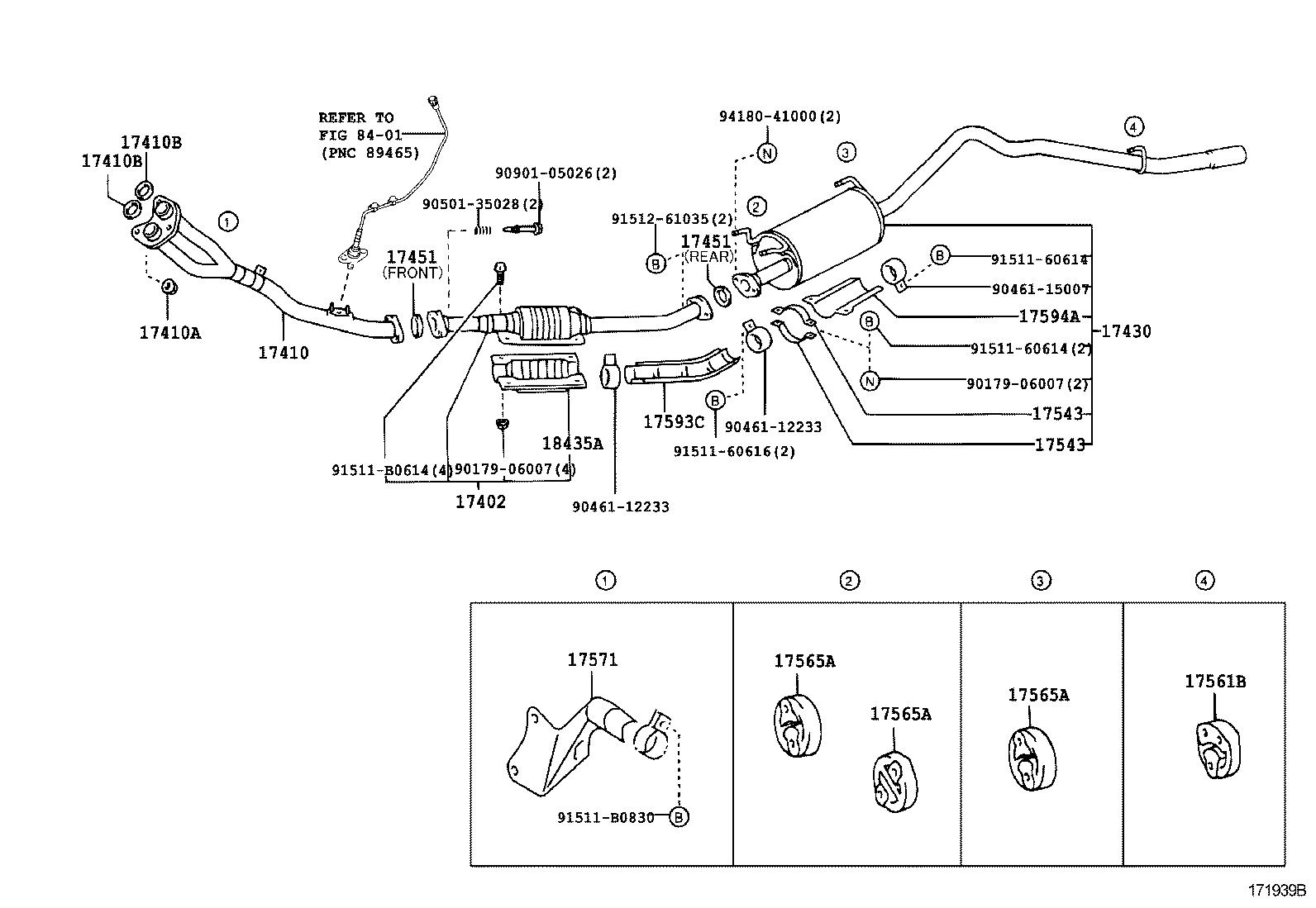

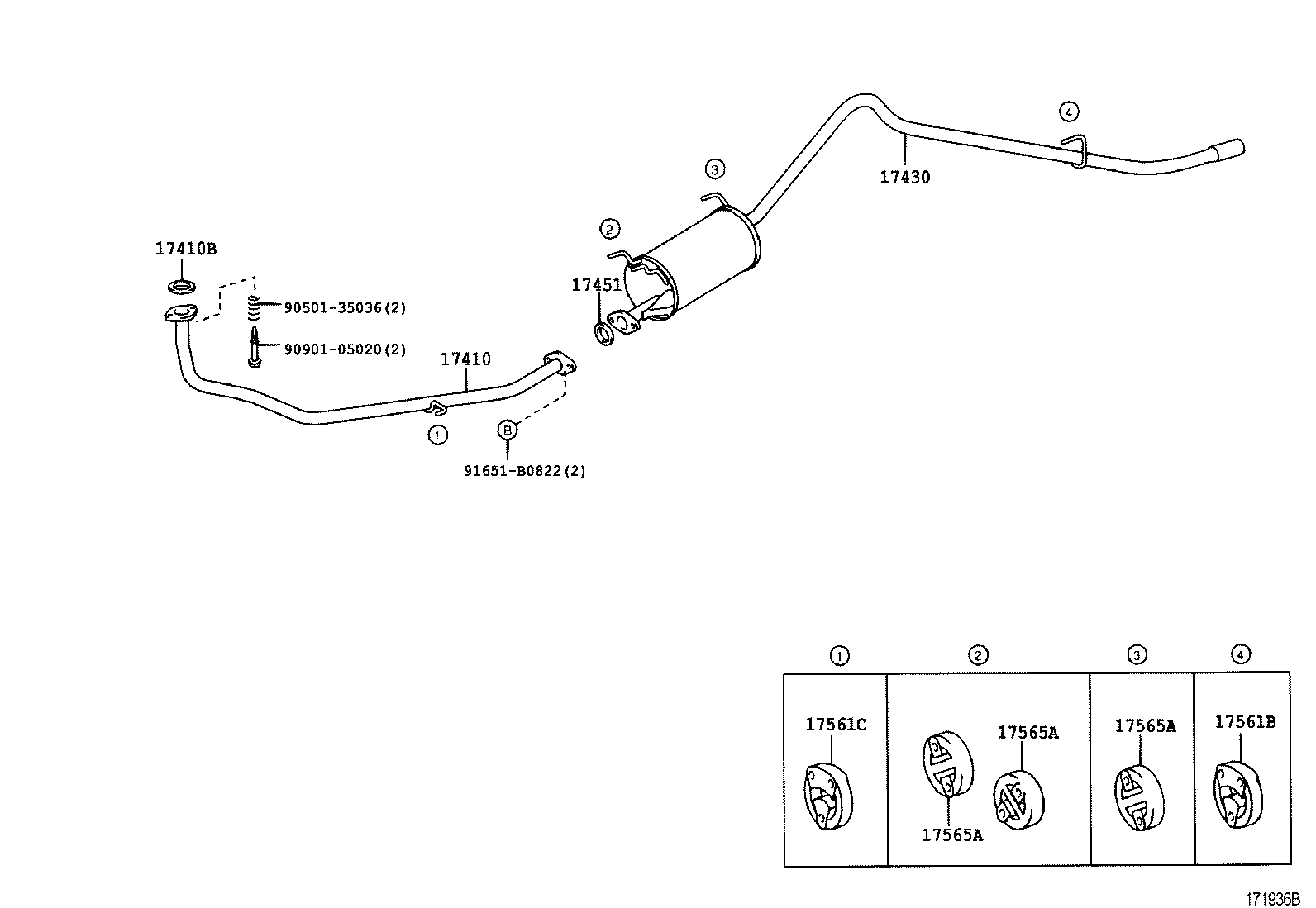

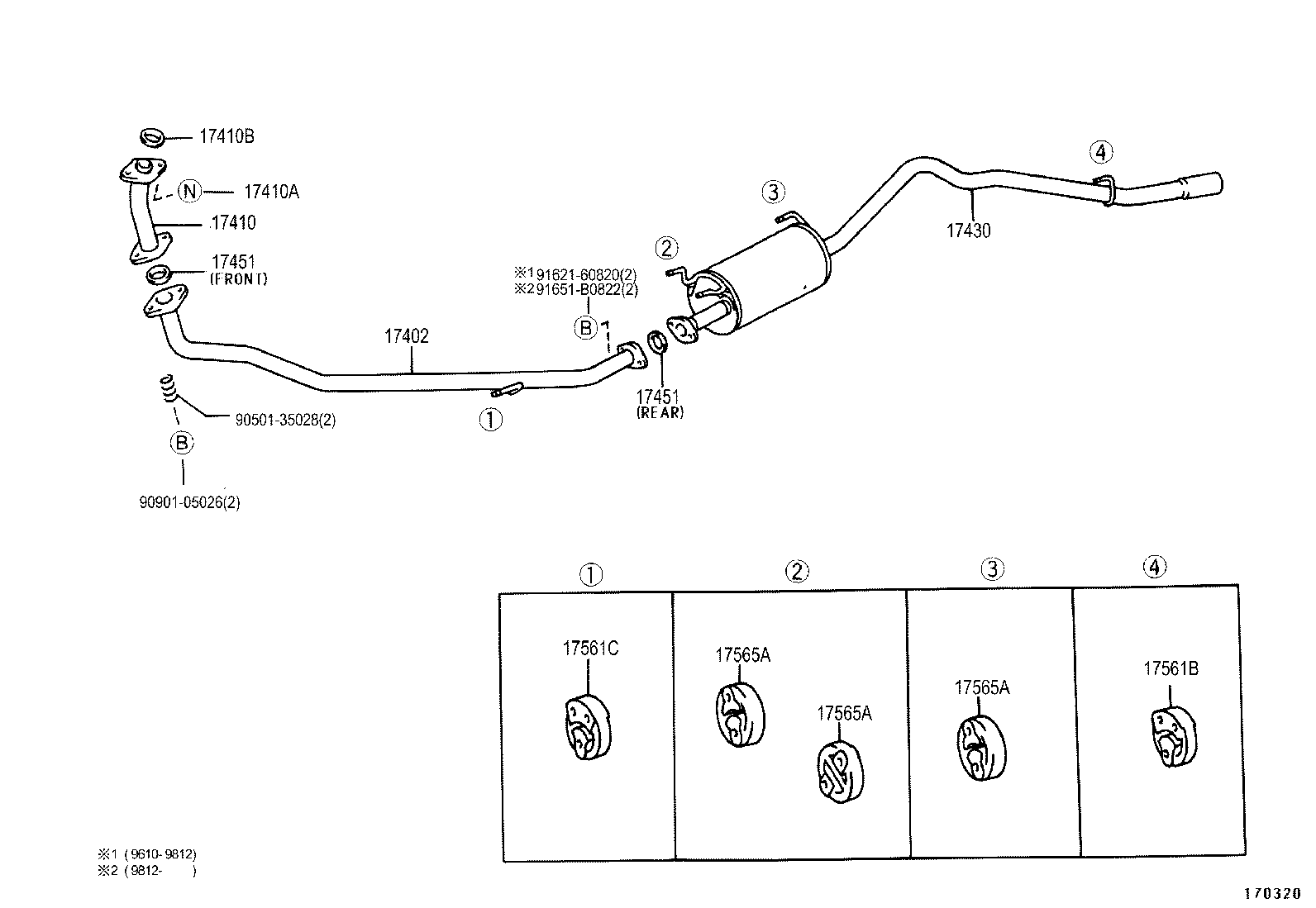

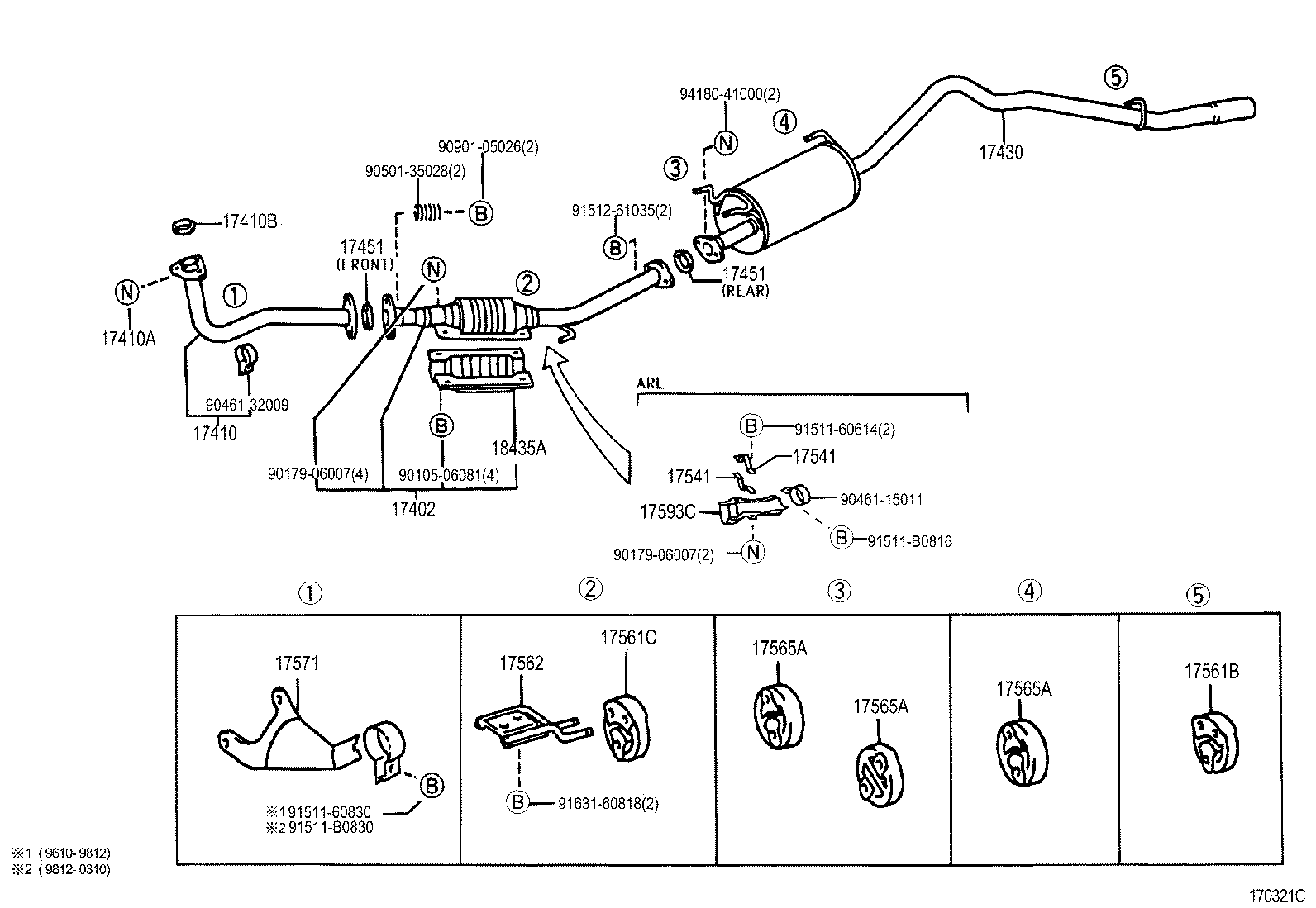

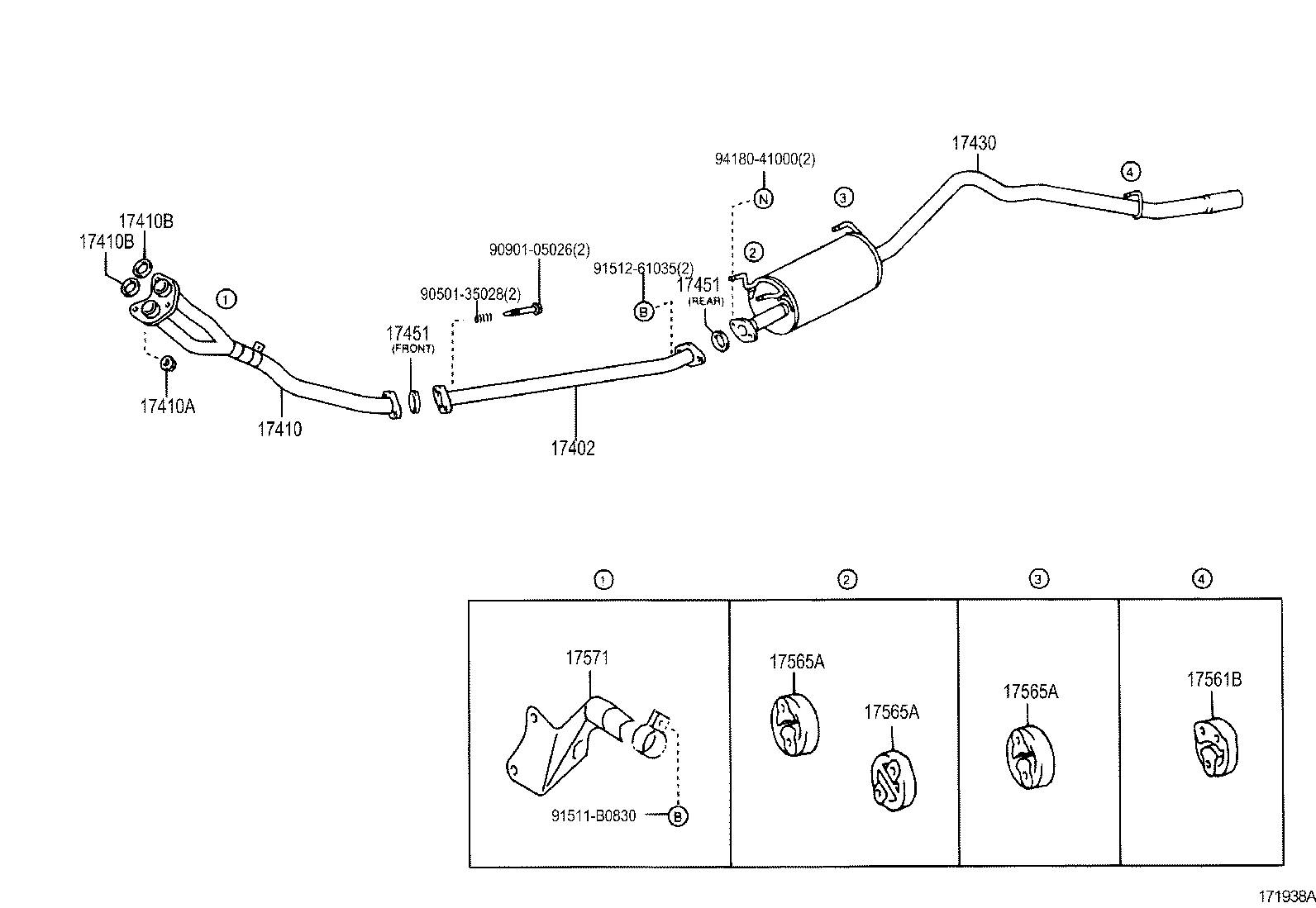

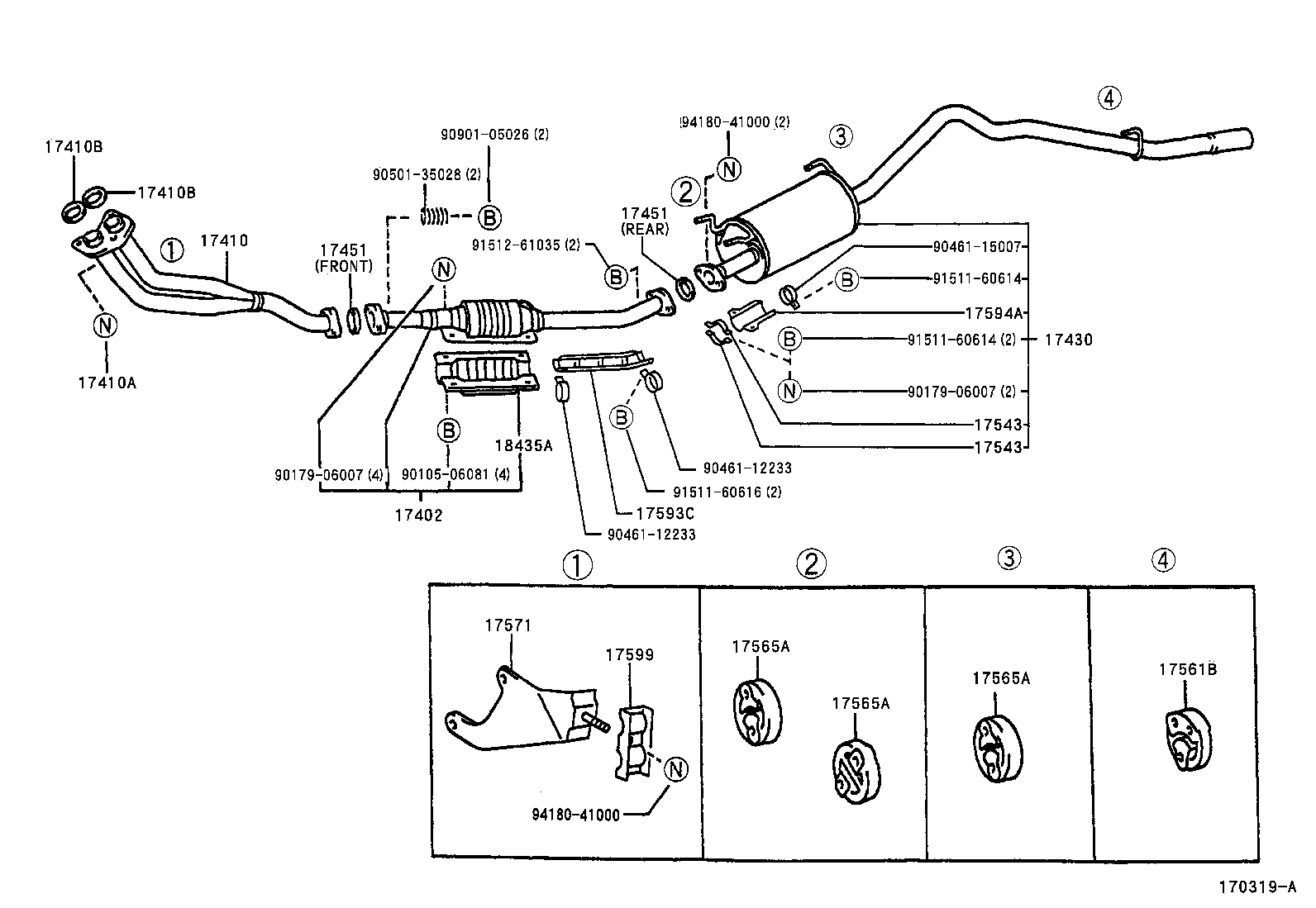

Figure 170318 170318 1996-11 → 1998-12 Figure 170319A 170319A 1996-11 → 1998-12 Figure 171938A 171938A 1998-12 → — Figure 171939B 171939B 1998-12 → — Figure 170320A 170320A 1996-11 → — Figure 170321C 170321C 1996-11 → — Figure 171936B 171936B 2000-08 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17541 Stay, Exhust Pipe Protector, NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17599 Holder, Exhaust Pipe Support Stopper
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
