Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

29 part groups · 11 illustrations

Illustrations

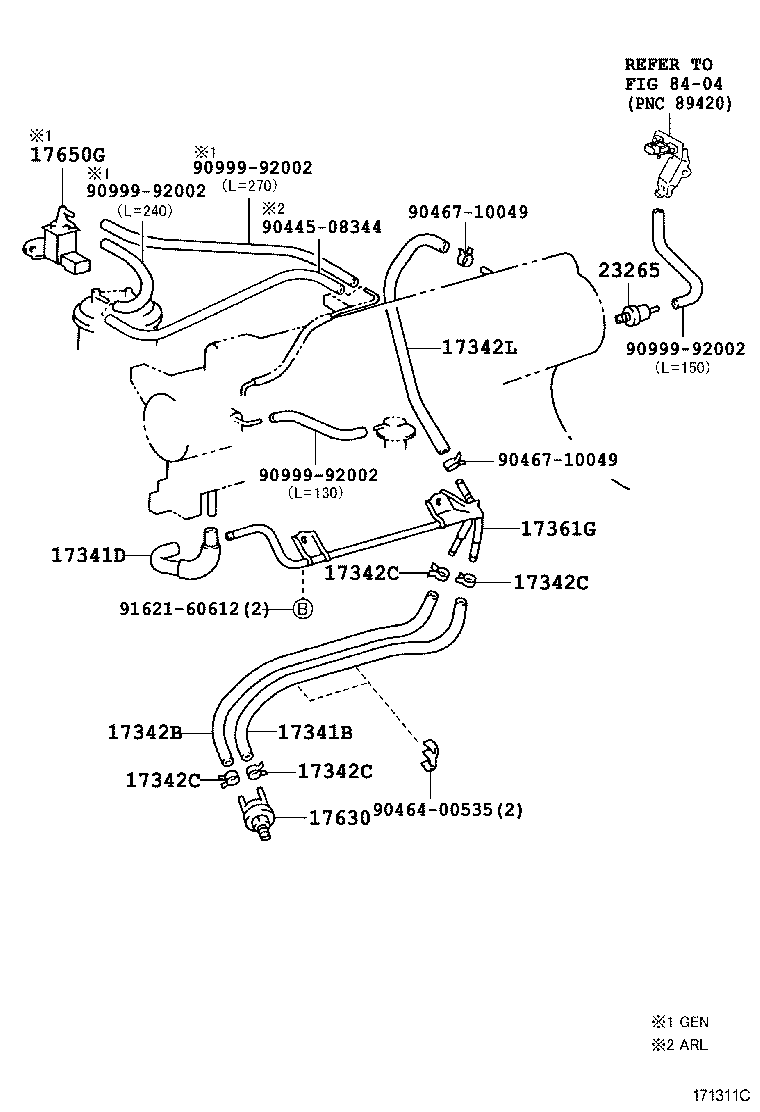

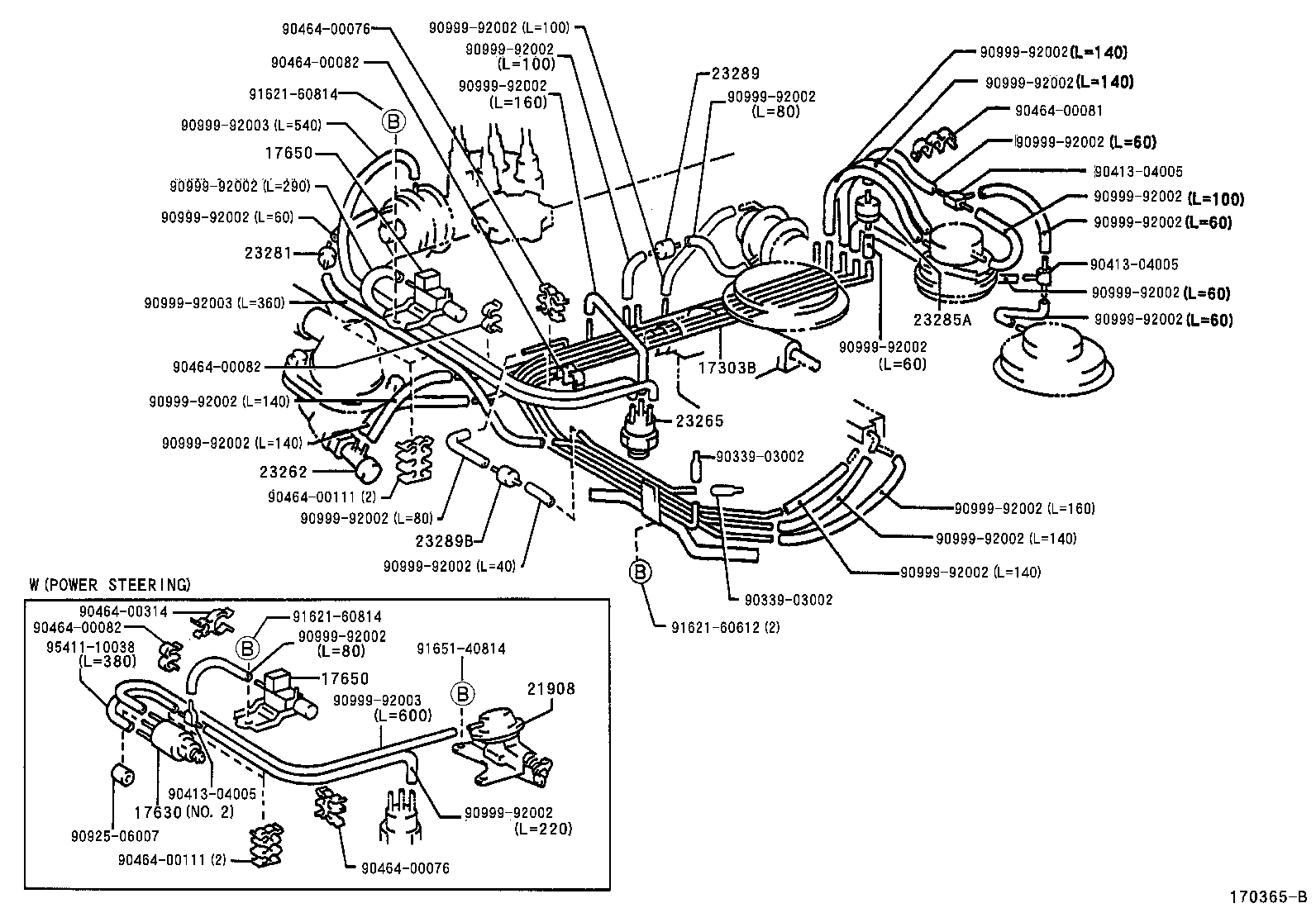

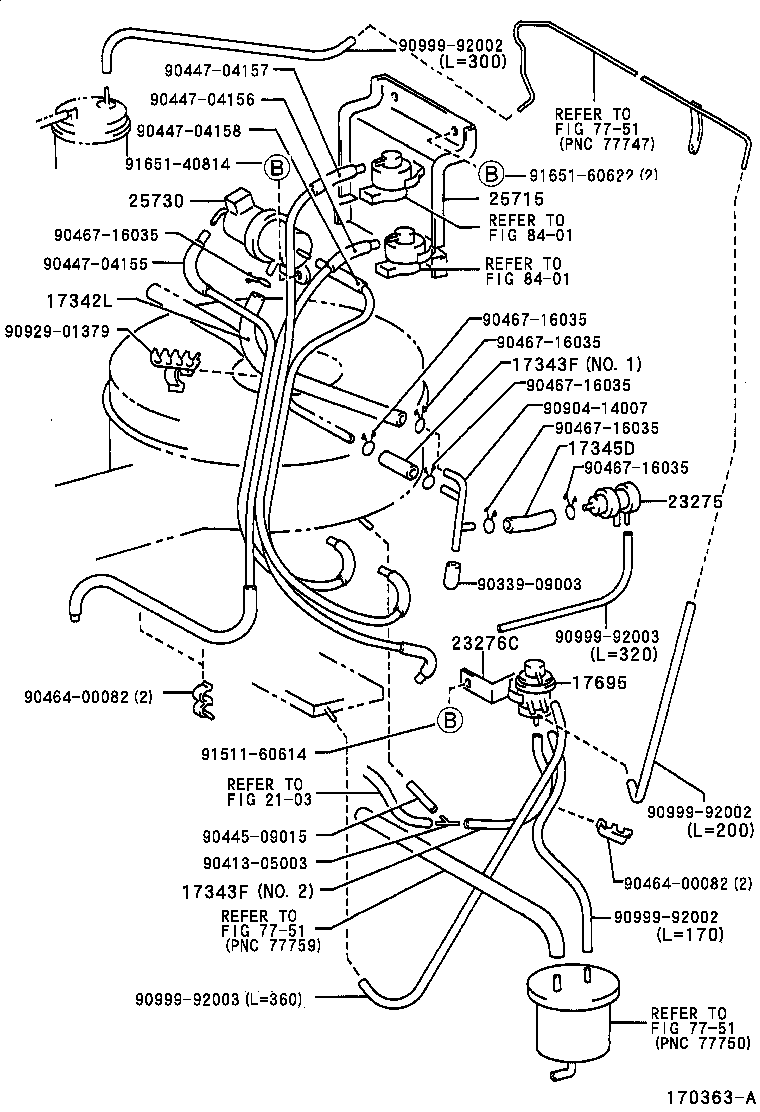

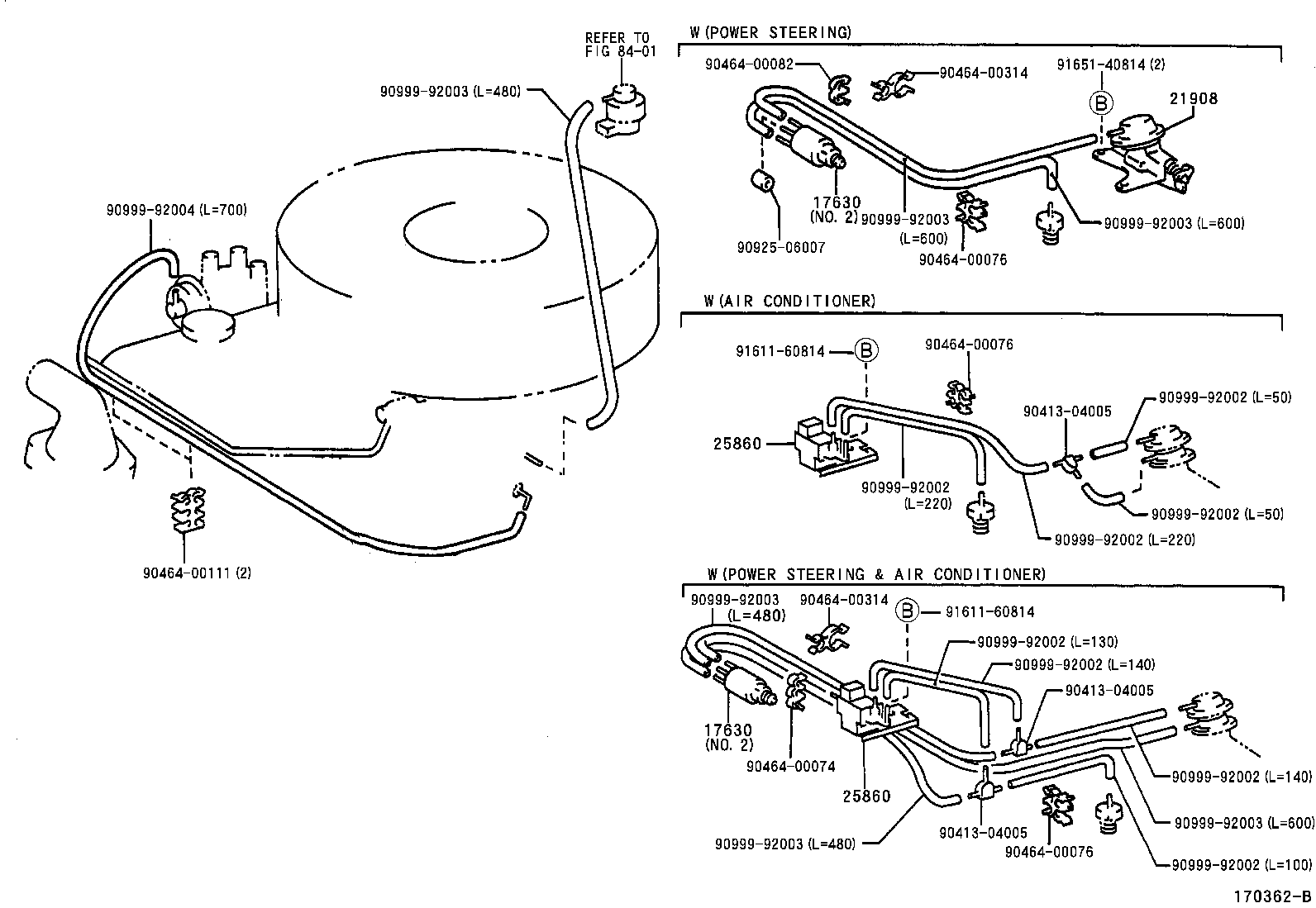

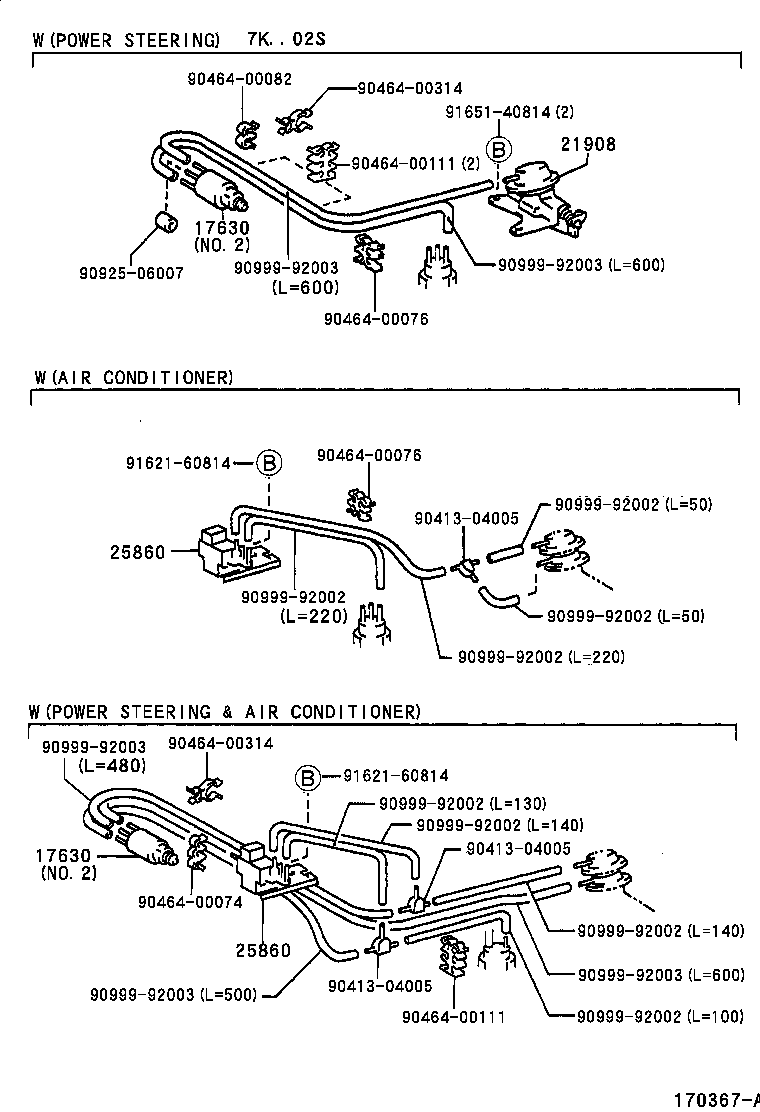

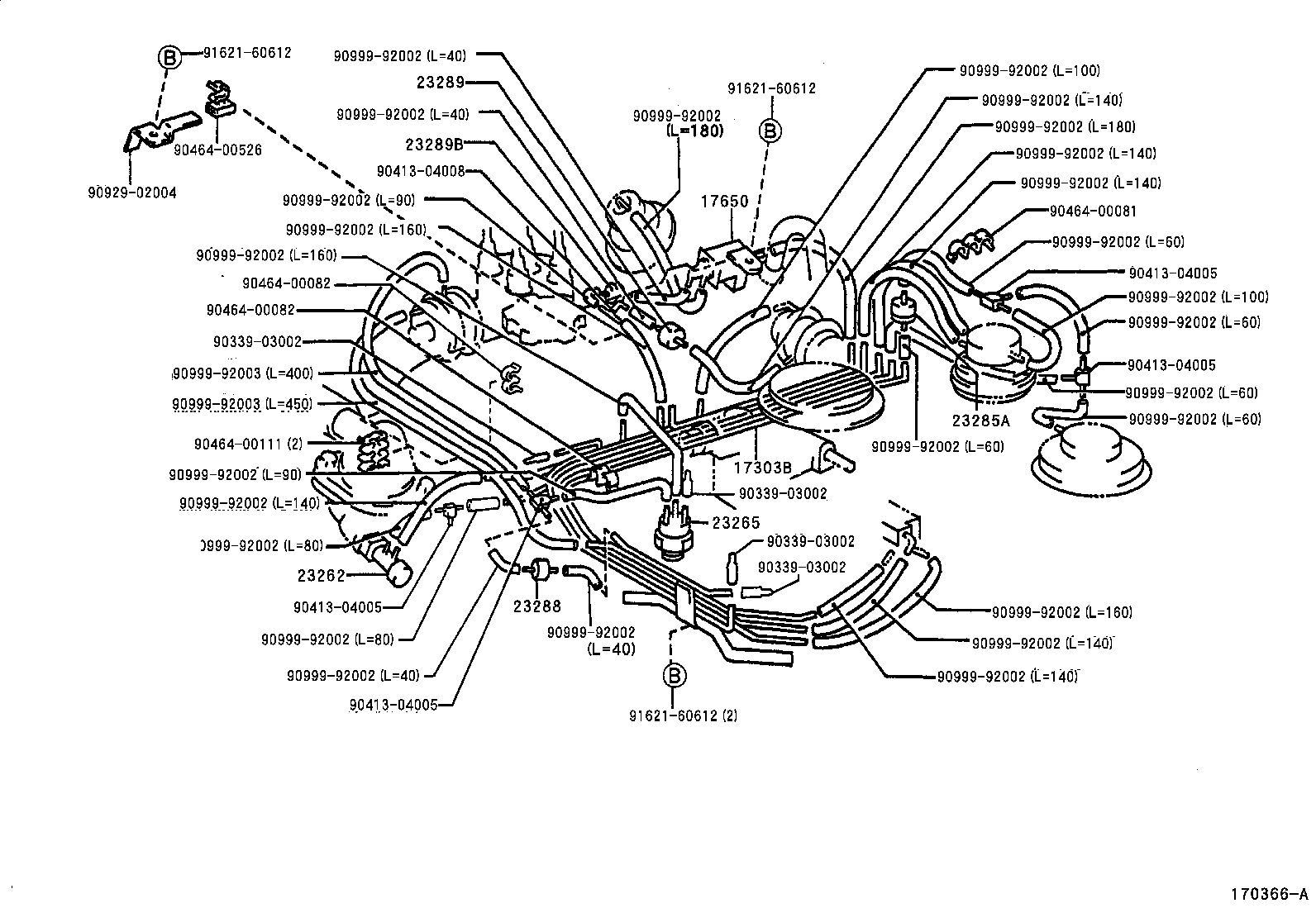

Figure 170021 170021 1996-11 → — Figure 170338C 170338C 1996-11 → — Figure 171957B 171957B 2000-08 → — Figure 170362B 170362B 1996-11 → 1998-12 Figure 170366A 170366A 1996-11 → 1998-12 Figure 170365B 170365B 1996-11 → 1998-12 Figure 170367A 170367A 1996-11 → 1998-12 Figure 170363A 170363A 1996-11 → 1998-12 Figure 170364A 170364A 1996-11 → 1998-12 Figure 171955B 171955B 1998-12 → — Figure 171311C 171311C 1996-11 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17695 Valve Assy, Vacuum Control
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276C Bracket, Vacuum Control Valve, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
23289B Jet, NO.3
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25770 Hose Assy, Vacuum Transmitting, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
88031R Actuator Set, Idle-up
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
