Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

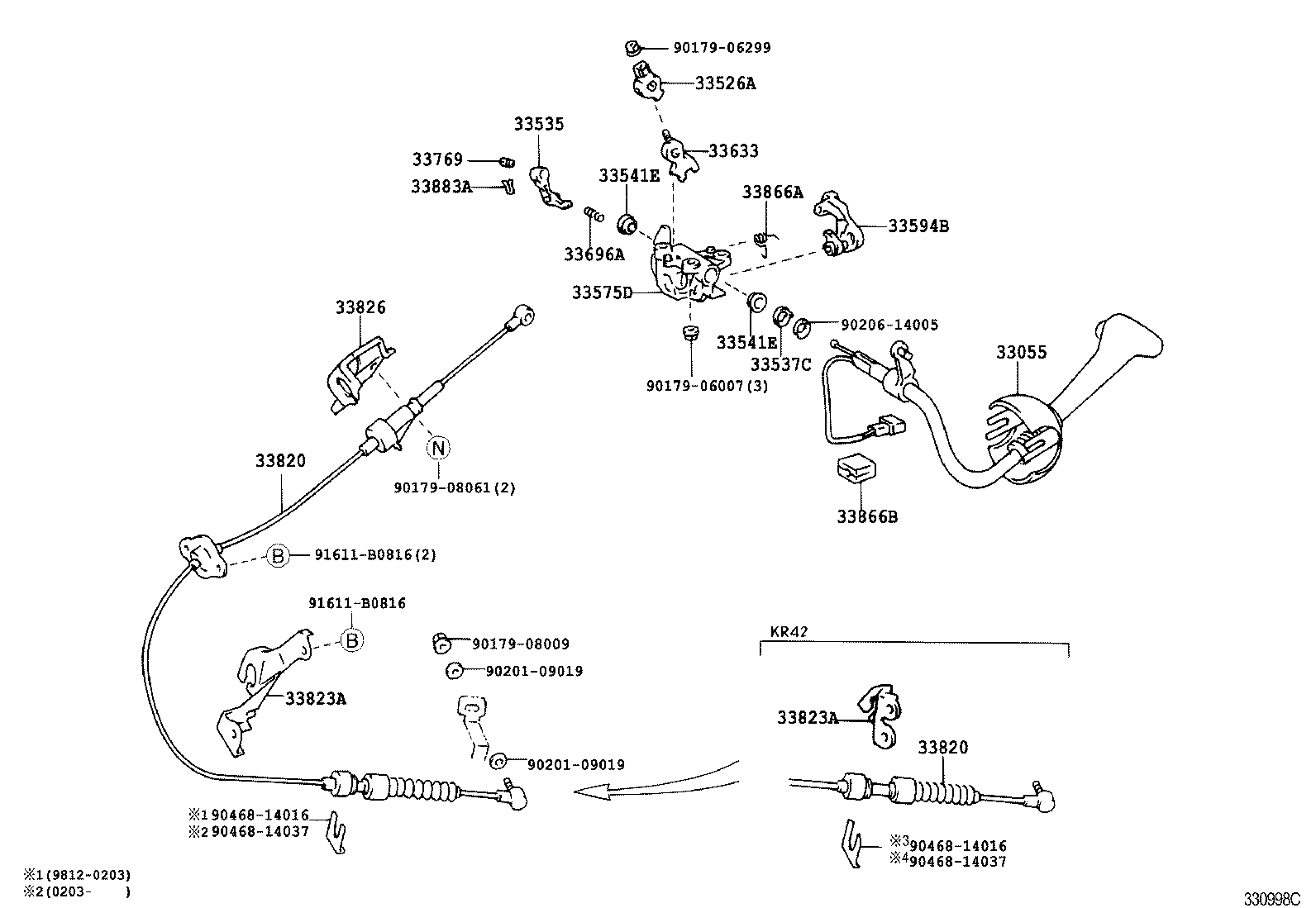

Control Shaft & Crossshaft
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33055 | Lever Sub-assy, Column Shift |
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33506 | Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT) |
| 33526A | Plate, Shift Lever Support, NO.1 |
| 33529D | Bolt, Shift Lever |
| 33535 | Lever, Control Select (FOR COLUMN SHIFT) |
| 33537C | Plate, Column Shift Control Lever |
| 33541C | Lever, Shift (FOR COLUMN SHIFT) |
| 33541E | Bush (FOR COLUMN SHIFT LEVER) |
| 33541H | Spacer (FOR COLUMN SHIFT) |
| 33575D | Retainer, Control Shift Lever (FOR COLUMN SHIFT) |
| 33594B | Plate, Shift Lock (FOR COLUMN SHIFT) |
| 33594C | Plate, Shift Lock |
| 33633 | Plate, Column Shift Lever Detent |
| 33635C | Guide, Wire |
| 33696A | Spring, Compression |
| 33769 | Screw, Control Rod Set |
| 33820 | Cable Assy, Transmission Control (FOR COLUMN SHIFT) |
| 33823A | Bracket, Transmission Control Cable |
| 33826 | Bracket, Transmission Control Cable, NO.2 |
| 33866A | Spring, Shift Lock Release |
| 33866B | Fixed Clamp |
| 33883A | Holder, Cable End Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
