Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

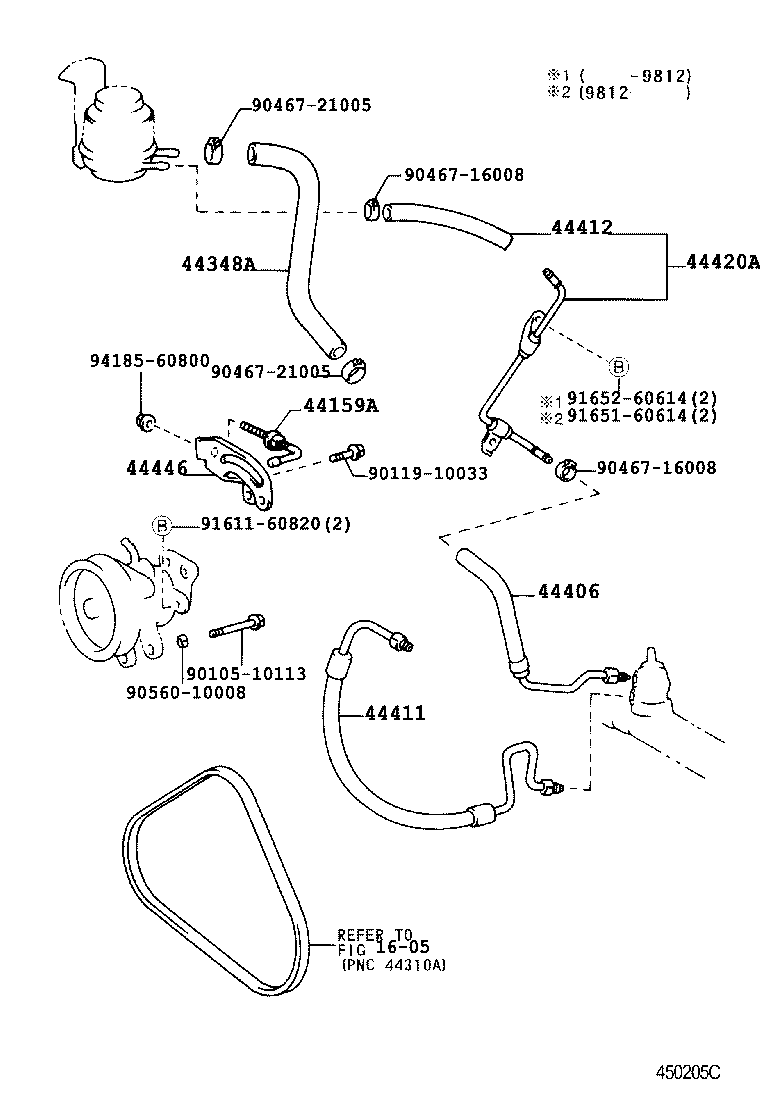

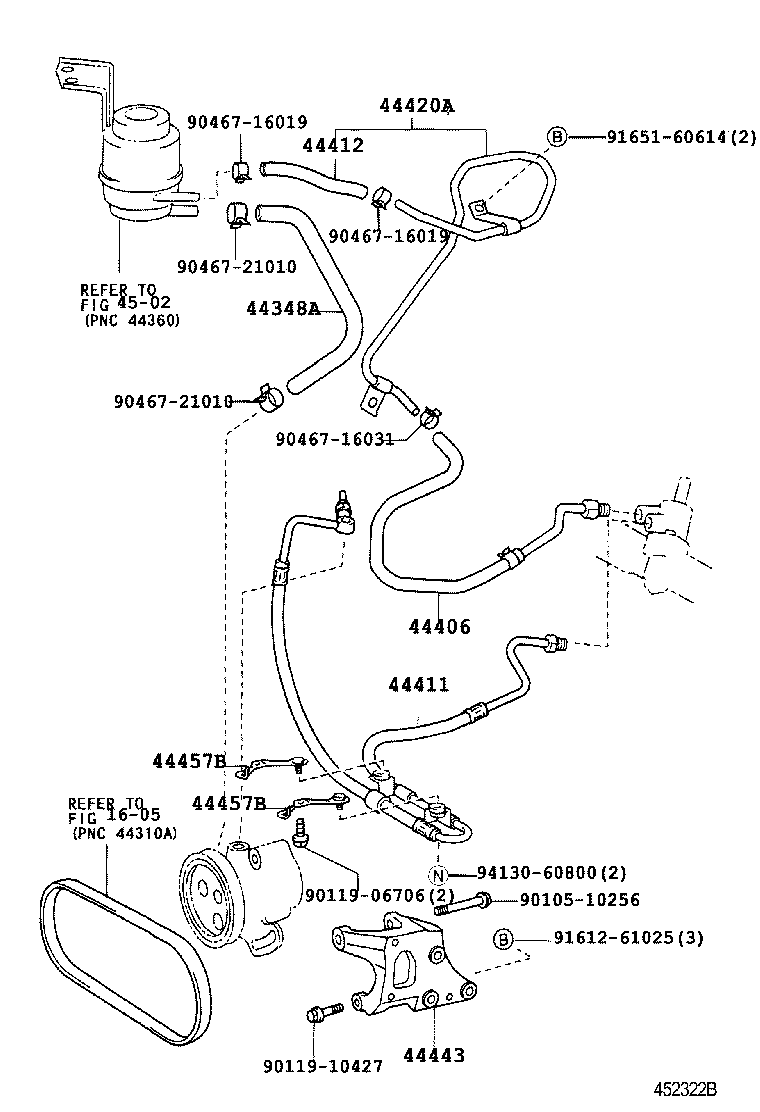

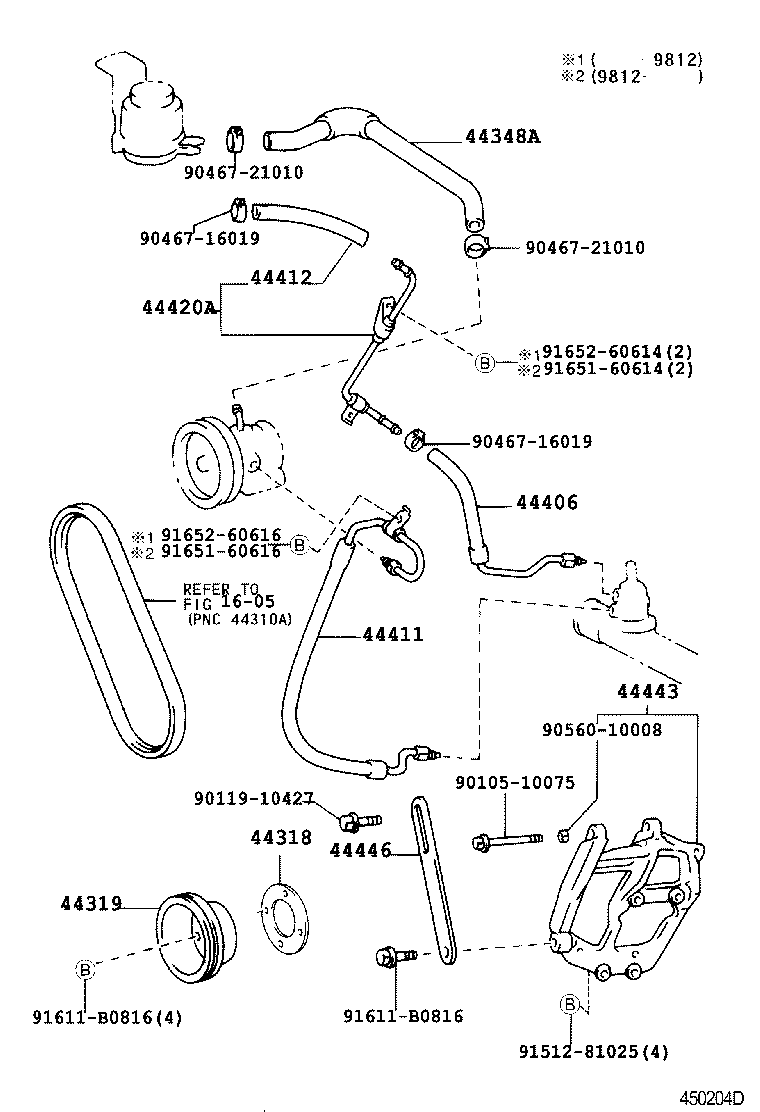

Power Steering Tube
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44159A | Bolt, Adjust(FOR PUMP BRACKET ASSY) |
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44411 | Hose, Pressure Feed |
| 44412 | Hose, Return |
| 44420A | Tube Assy, Return |
| 44443 | Bracket, Pump |
| 44446 | Strut, Adjusting |
| 44457B | Bracket, Power Steering Tube Support, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
