Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

28 part groups · 3 illustrations

Illustrations

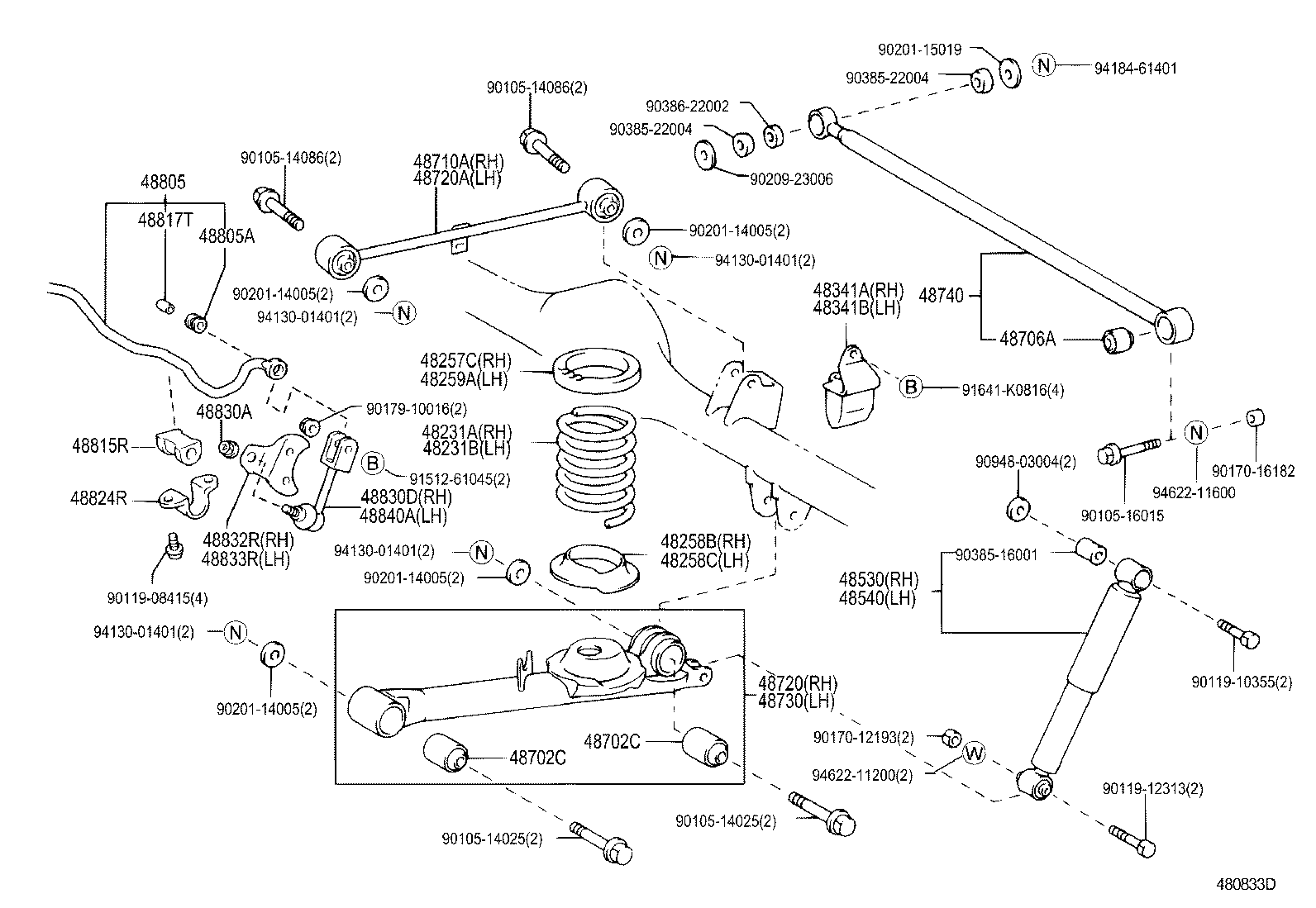

Figure 480115D 480115D 1996-11 → 1998-12 Figure 480115D 480115D 1998-12 → — Figure 480833D 480833D 1996-11 → —

Part groups

PNCDescription
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48258B Insulator, Rear Coil Spring, Lower RH
48258C Insulator, Rear Coil Spring, Lower LH
48259A Insulator, Rear Coil Spring, Upper LH
48302 Spring Sub-assy, Hollow
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48702C Bush Sub-assy, Lower Control Arm
48706A Bush Sub-assy, Rear Lateral Control Rod
48710A Arm Assy, Rear Suspension, NO.1 RH
48720 Arm Assy, Lower Control, RH
48720A Arm Assy, Rear Suspension, NO.1 LH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48805 Bar Sub-assy, Rear Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48815R Bush, Stabilizer(FOR REAR)
48817T Collar(FOR STABILIZER REAR BAR)
48824R Bracket, Stabilizer(FOR REAR)
48830A Nut(FOR REAR STABILIZER LINK)
48830D Link Assy, Rear Stabilizer, RH
48832R Bracket, Rear Stabilizer Bar, NO.1 RH
48833R Bracket, Rear Stabilizer Bar, NO.1 LH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
