Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 3 illustrations

Illustrations

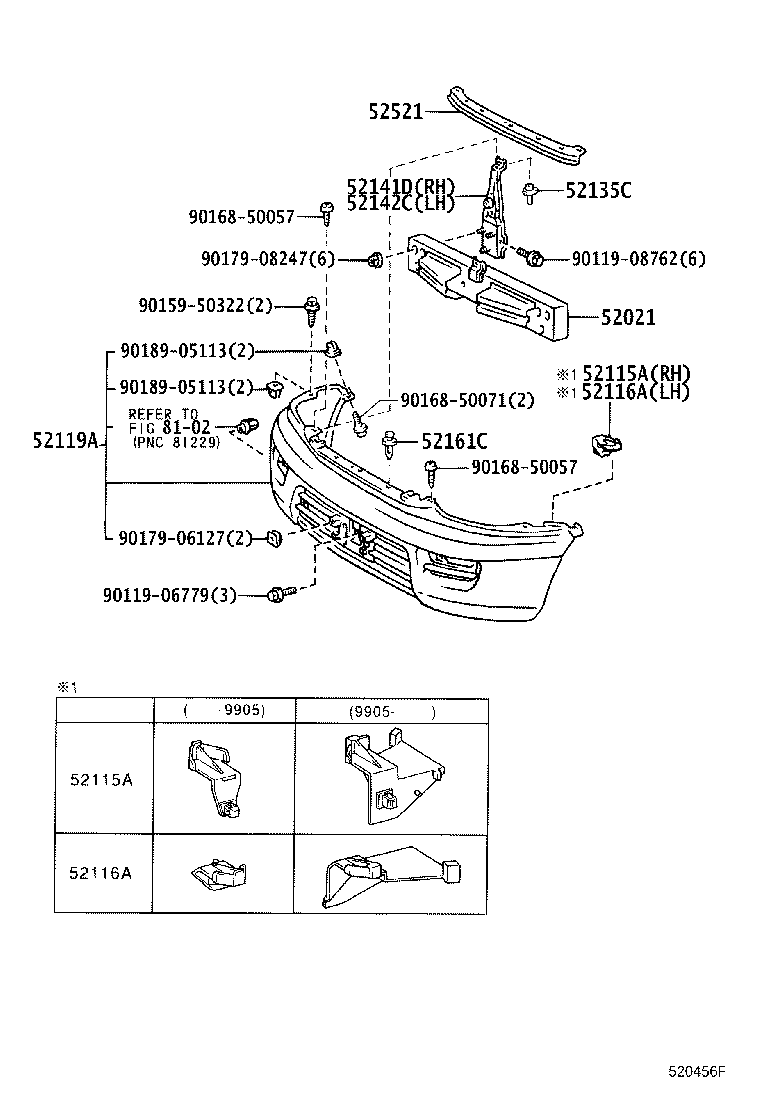

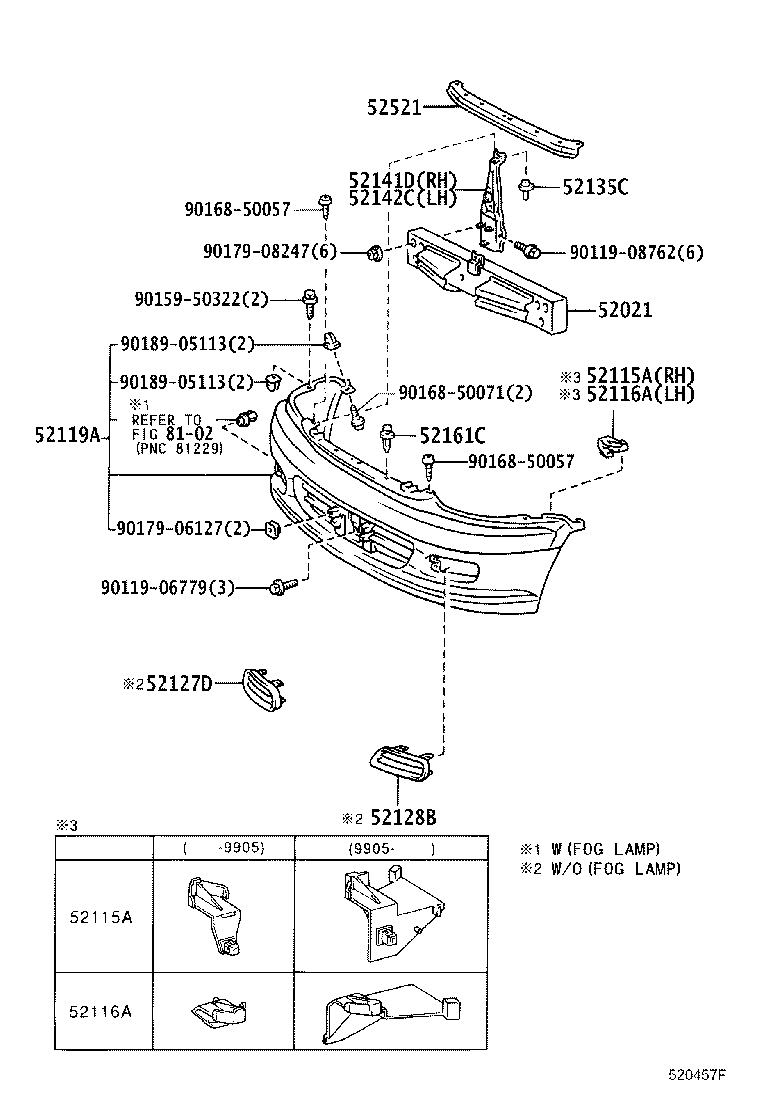

Figure 520779 520779 1996-11 → 1998-12 Figure 520457F 520457F 1998-12 → — Figure 520456F 520456F 1998-12 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52135C Bracket, Front Bumper Arm Mounting
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52161C Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52741 Garnish, Front Bumper Bar, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
