Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

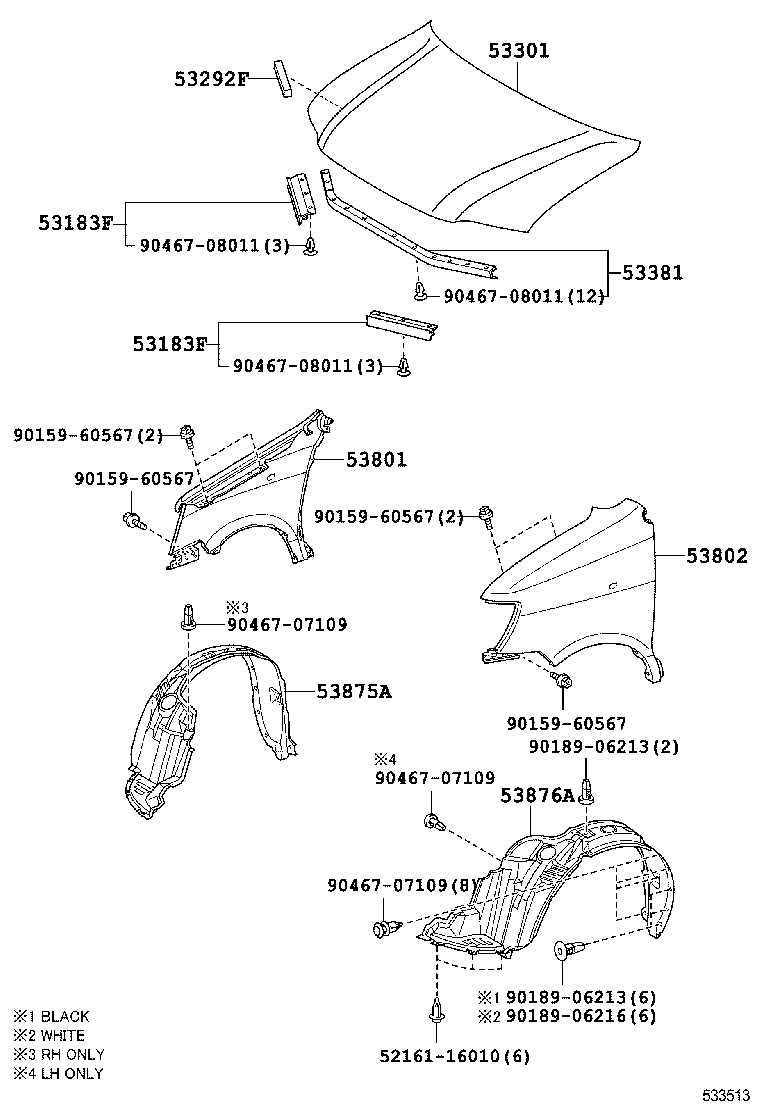

Hood & Front Fender
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183F | Seal, Headlamp Cover TO Hood |
| 53292F | Seal, Radiator Support, Upper |
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
