Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

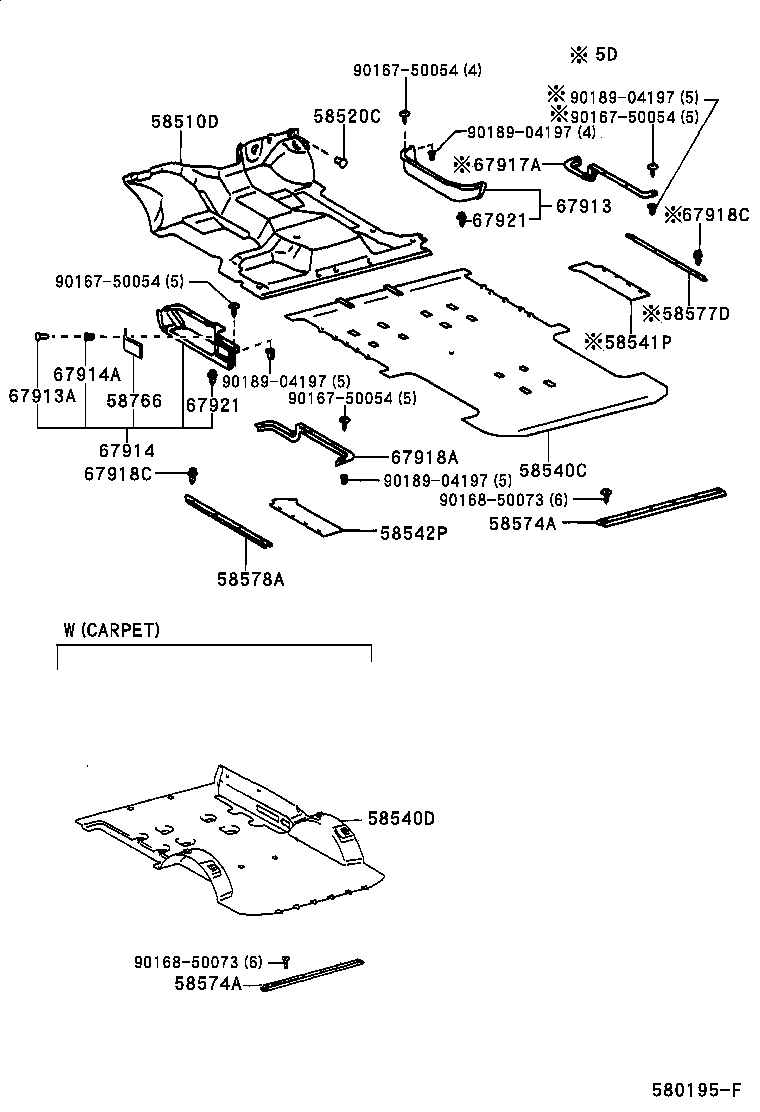

Floor Mat & Silencer Pad
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58325H | Cover, Rear Floor Service Hole |
| 58510D | Carpet Assy, Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58540C | Mat Assy, Floor, Rear |
| 58540D | Carpet Assy, Floor, Rear |
| 58541P | Mat, Step, RH |
| 58542P | Mat, Step, LH |
| 58574A | Plate, Rear Floor Mat Support, Rear |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 58766 | Cover, Jack Box Hole |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67914A | Clip(FOR SCUFF PLATE) |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
| 67921 | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
