Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

23 part groups · 2 illustrations

Illustrations

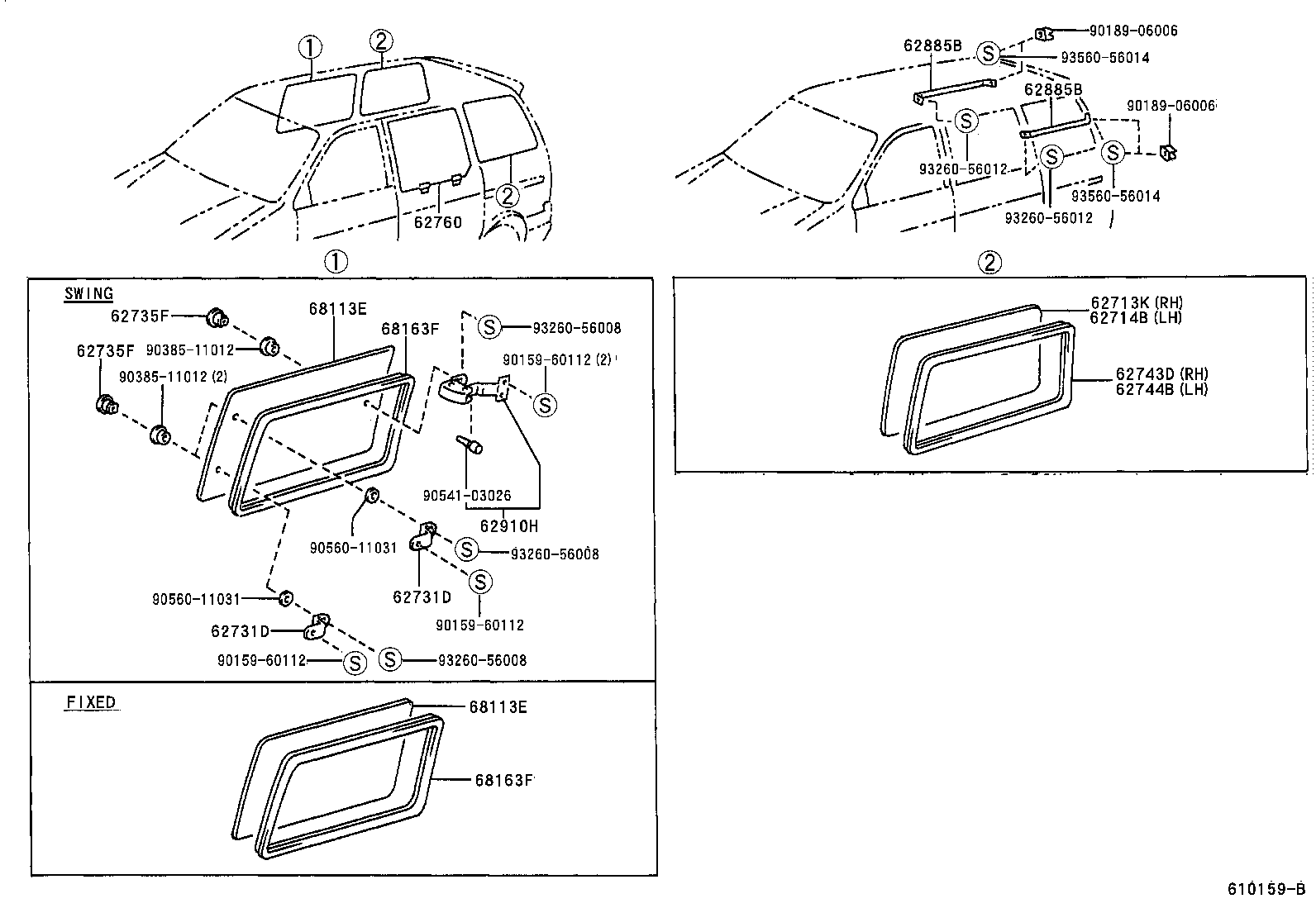

Figure 610158B 610158B 1996-11 → — Figure 610159B 610159B 1996-11 → —

Part groups

PNCDescription
62211E Glass, Side Window, Rear RH
62713K Glass, Side Window, Rear RH
62714B Glass, Side Window, Rear LH
62731B Hinge, Side Front Window, Lower
62731C Hinge, Quarter Window, RH
62731D Hinge, Quarter Window, NO.1
62732B Hinge, Side Rear Window, Upper
62735B Retainer, Side Front Window Hinge, RH
62735D Retainer, Side Rear Window Hinge, RH
62735E Retainer, Side Rear Window Hinge, LH
62735F Retainer, Slide Door Window Hinge, RH
62741 Weatherstrip, Quarter Window, RH
62743D Weatherstrip, Side Rear Window, RH
62744B Weatherstrip, Side Rear Window, LH
62760 Window Assy, Slide Door, LH
62884A Guard, Quarter Window, RH
62885B Guard, Quarter Window, NO.2
62910 Lock Assy, Quarter OR Side Window, RH
62910H Lock Assy, Slide Door Window, RH
62920B Lock Assy, Side Rear Window, LH
62950 Lock Assy, Side Rear Window
68113E Glass, Rear Door, RH
68163F Weatherstrip, Slide Door Glass, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
