Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

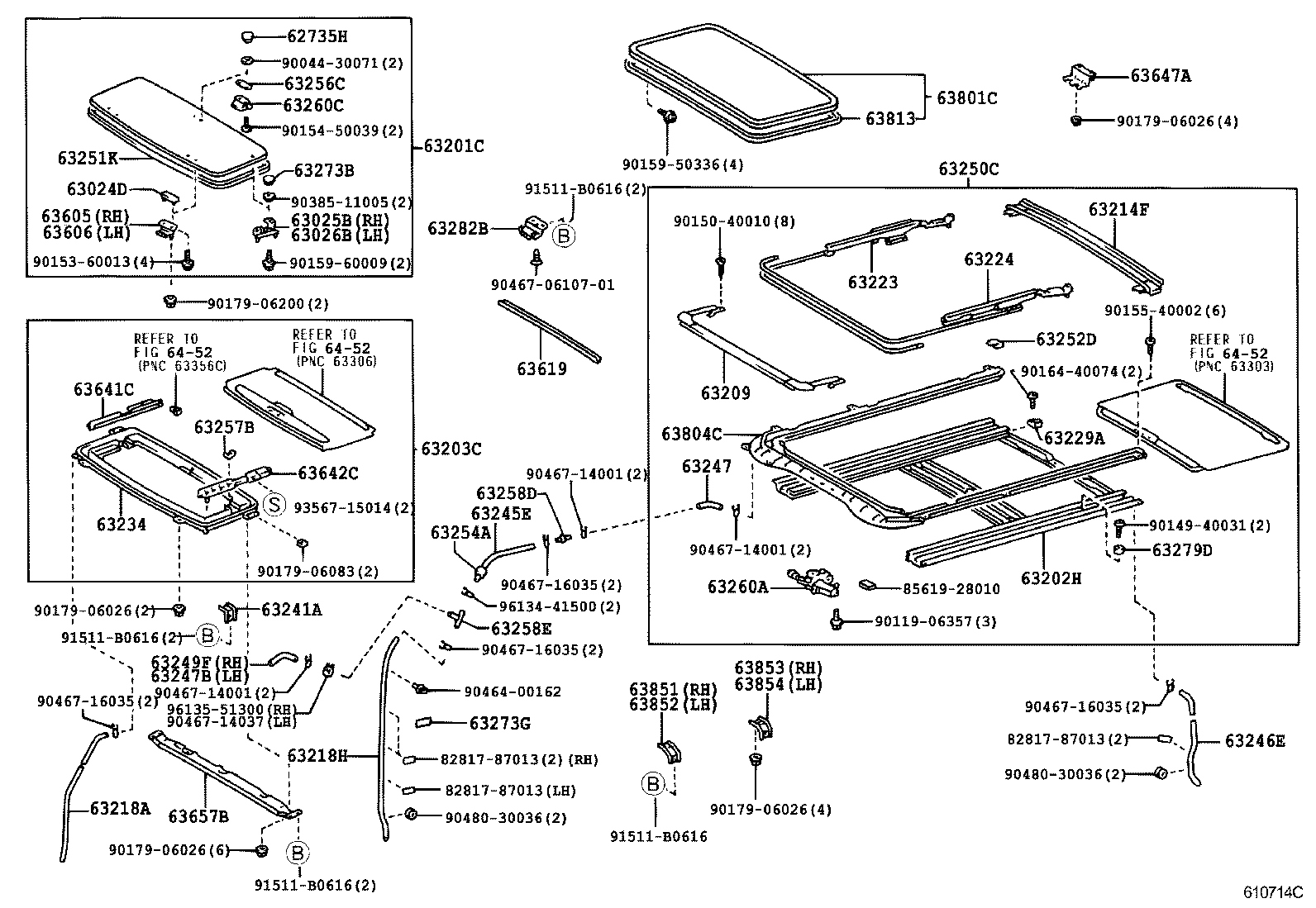

Roof Panel & Back Panel
72 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62735H | Retainer, Quarter Window Hinge |
| 63024D | Seal Sub-assy, Roof Window Hinge, NO.1 |
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63111 | Panel, Roof |
| 63122A | Reinforcement, Roof Panel, Front |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63132 | Panel, Windshield Header, Inner |
| 63134A | Frame, Back Door Opening, Upper |
| 63135A | Frame, Back Door Opening, Lower |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63189A | Bracket, Roof Rack, Center |
| 63199 | Bracket, Roof Rack, Center LH |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218H | Hose, Sliding Roof Drain |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63228E | Bracket, Roof Headlining, NO.1 |
| 63229A | Stopper, Sliding Roof Sunshade |
| 63234 | Protector, Slide Roof Housing |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63245E | Hose, Slide Roof Rain Channel, NO.1 |
| 63246E | Hose, Slide Roof Rain Channel, NO.2 |
| 63247 | Hose, Sliding Roof Housing Drain |
| 63247B | Hose, Sliding Roof |
| 63249F | Hose, Sliding Roof Drain |
| 63250C | Housing Assy, Sliding Roof |
| 63251K | Weatherstrip, Tilt Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63254A | Protector, Water Hose |
| 63256C | Seal, Tilt Roof Glass |
| 63257B | Seal, Sliding Roof |
| 63258D | Joint, Slide Roof Drain Hose |
| 63258E | Joint, Slide Roof Drain Hose, RH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63273B | Retainer, Roof Window Hinge |
| 63273G | Packing, Slide Roof |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63282B | Striker, Tilt Roof Lock |
| 63460A | Rack Assy, Roof, RH |
| 63467 | Bracket, Roof Rack, Rear RH |
| 63468 | Bracket, Roof Rack, Rear LH |
| 63470A | Rack Assy, Roof, LH |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63619 | Cover, Tilt Roof Panel |
| 63641C | Rail, Sunshade, NO.1 Front RH |
| 63642C | Rail, Sunshade, NO.1 Front LH |
| 63647A | Bracket, Sliding Roof Housing, Rear |
| 63657B | Reinforcement, Sun Roof Headlining, NO.1 |
| 63801C | Glass Sub-assy, Rear Slide Roof |
| 63804C | Housing Sub-assy, Rear Slide Roof |
| 63813 | Weatherstrip, Rear Slide Roof |
| 63851 | Bracket, Rear Slide Roof Housing, NO.1 RH |
| 63852 | Bracket, Rear Slide Roof Housing, NO.1 LH |
| 63853 | Bracket, Rear Slide Roof Housing, NO.2 RH |
| 63854 | Bracket, Rear Slide Roof Housing, NO.2 LH |
| 63855 | Bracket, Rear Slide Roof Housing, NO.3 |
| 63855A | Bracket, Rear Slide Roof Housing, NO.3 |
| 68715A | Plate, Door Hinge, Upper |
| 68715B | Plate, Door Hinge, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
