Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

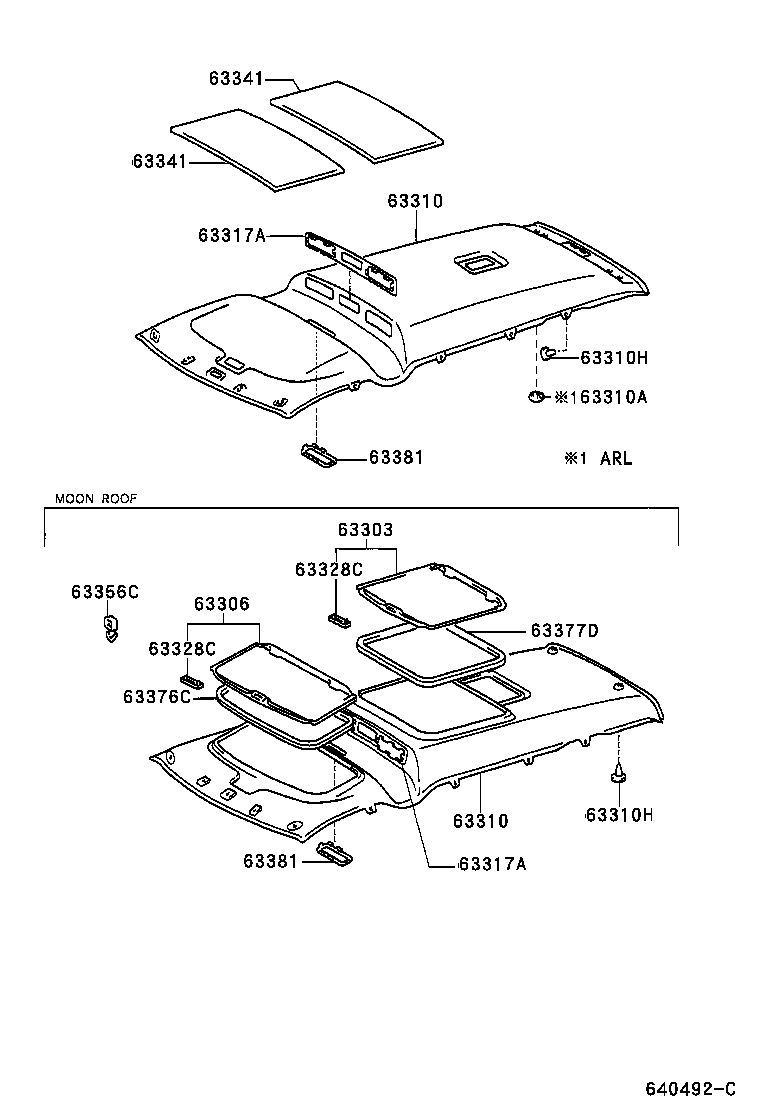

Figure 640110G 640110G 1996-11 → — Figure 640492C 640492C 1996-11 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310A Plug, Hole(FOR ROOF HEADLINING ASSY)
63310H Clip(FOR ROOF HEADLINING)
63317A Retainer, Roof Headlining
63328C Knob, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63356C Holder, Sunshade Trim
63376C Trim, Roof Window Opening, NO.1
63377D Trim, Roof Window Opening, NO.2
63381 Retainer, Headlining, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
