Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

21 part groups · 3 illustrations

Illustrations

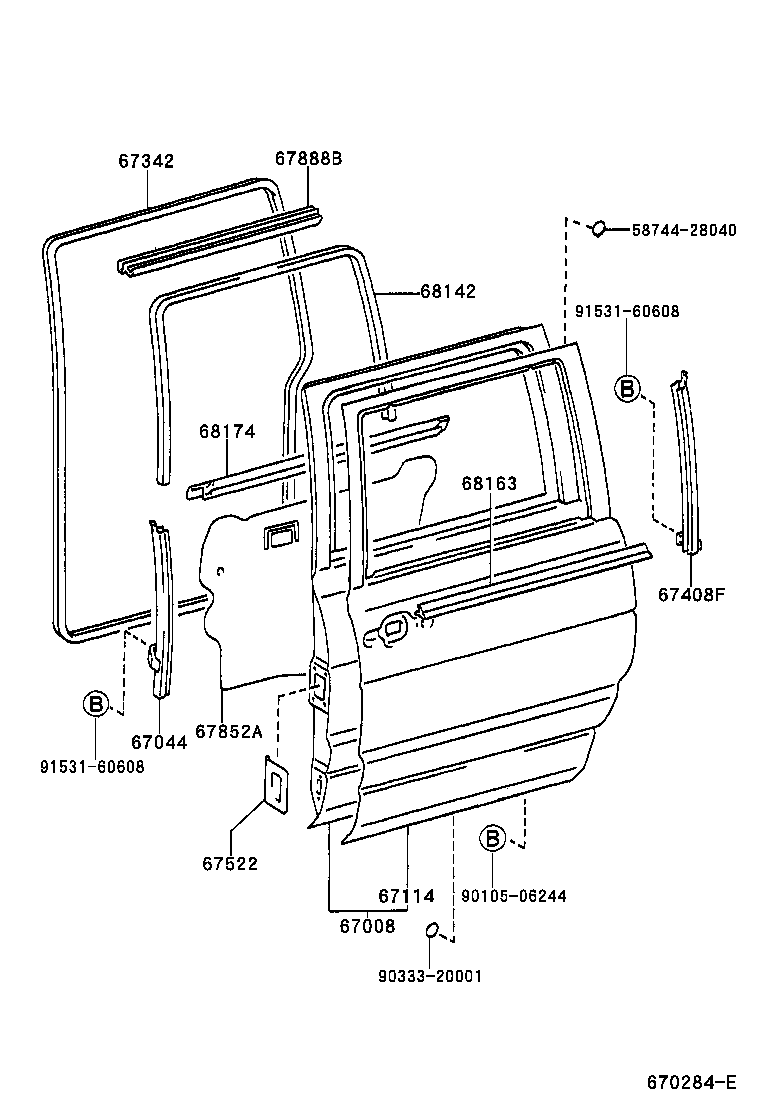

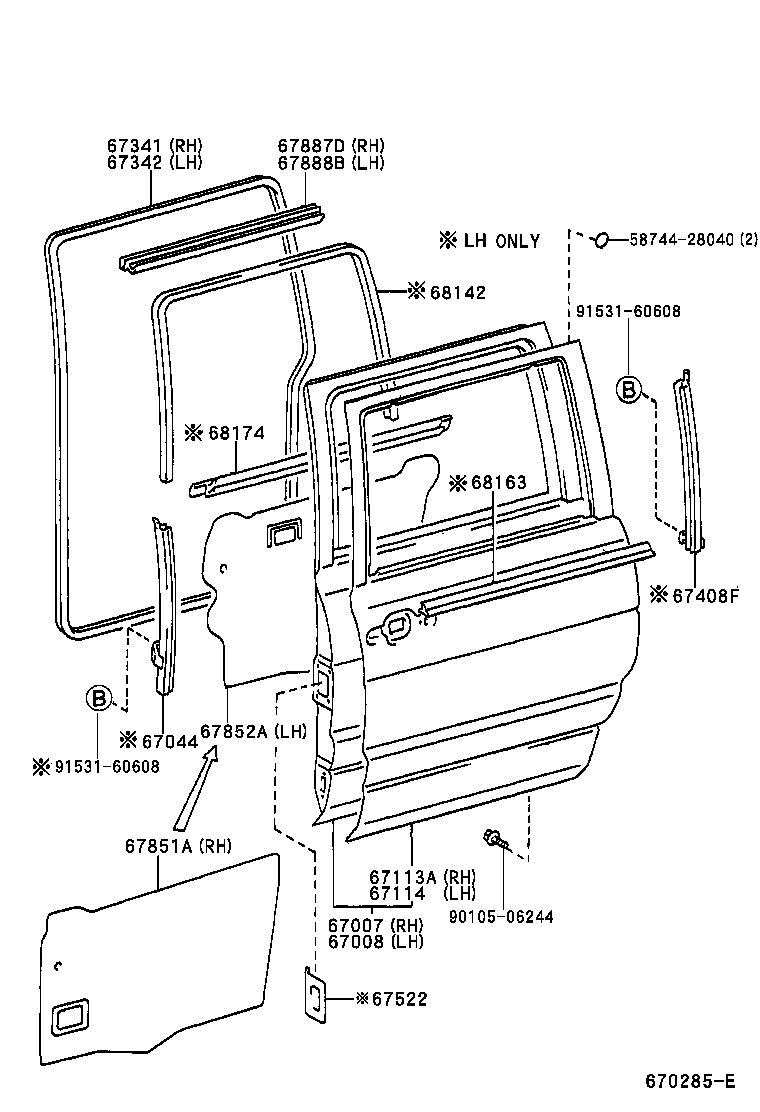

Figure 670248A 670248A 1996-11 → — Figure 670284E 670284E 1996-11 → — Figure 670285E 670285E 1996-11 → —

Part groups

PNCDescription
62036 Trim Sub-assy, Rear Door Trim, Upper LH
67007 Panel Sub-assy, Slide Door, RH
67008 Panel Sub-assy, Slide Door, LH
67044 Frame Sub-assy, Rear Door Window, LH
67113A Panel, Slide Door, Outer RH
67114 Panel, Rear Door, Outer LH
67341 Weatherstrip, Slide Door, RH
67342 Weatherstrip, Slide Door, LH
67408F Frame Sub-assy, Rear Door Window, Rear Lower LH
67522 Cover Sub-assy, Slide Door Panel, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67851A Cover, Slide Door Service Hole, NO.1
67852A Cover, Slide Door Service Hole, NO.2
67887D Weatherstrip, Slide Door, NO.2 RH
67888B Weatherstrip, Slide Door, NO.2 LH
68142 Run, Rear Door Glass
68163 Weatherstrip, Rear Door Glass, Outer
68174 Weatherstrip, Rear Door Glass, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
