Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

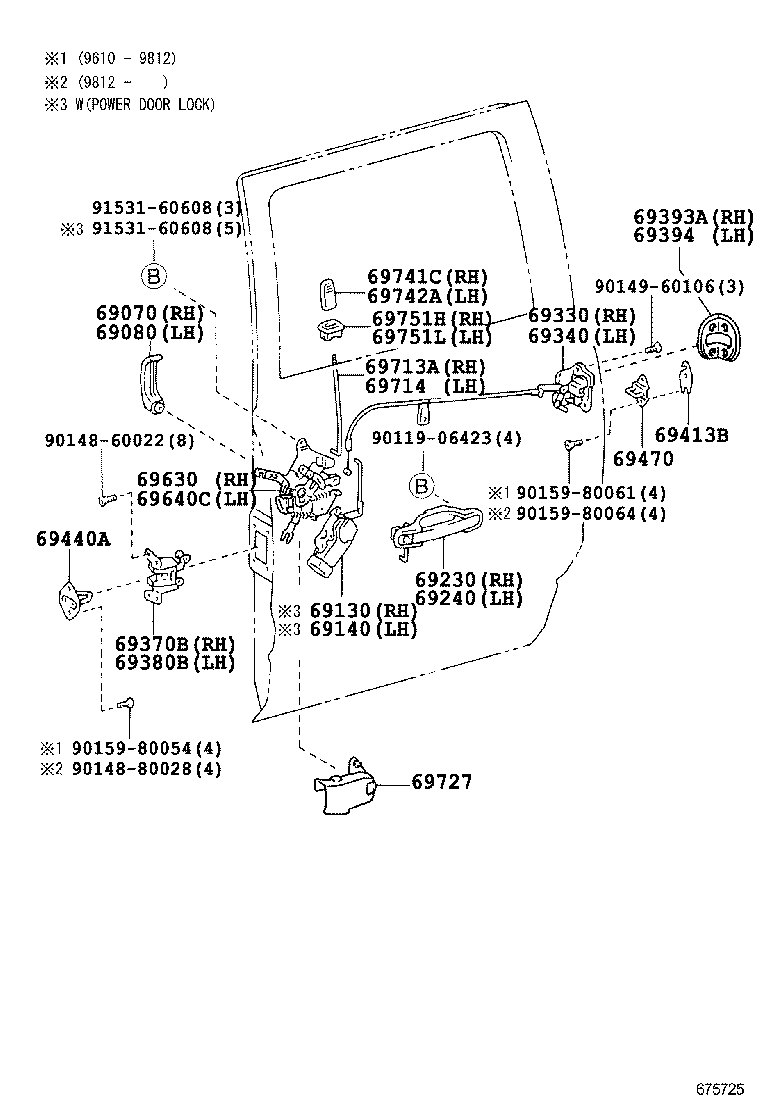

Rear Door Lock & Handle
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69070 | Handle Assy, Slide Door, Inside, RH |
| 69080 | Handle Assy, Slide Door, Inside, LH |
| 69130 | Actuator Assy, Rear Door Lock, RH |
| 69140 | Actuator Assy, Rear Door Lock, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69370B | Lock Assy, Slide Door, Front RH |
| 69380B | Lock Assy, Slide Door, Front LH |
| 69393A | Cover, Rear Door Lock, Outer RH |
| 69394 | Cover, Rear Door Lock, Outer LH |
| 69413B | Shim, Door Lock Striker |
| 69440A | Plate Assy, Slide Door Front Lock Striker |
| 69470 | Plate Assy, Slide Door Lock Striker |
| 69630 | Control Assy, Slide Door Lock Remote |
| 69640C | Control Assy, Slide Door Lock Remote, LH |
| 69713A | Link, Rear Door Lock Remote Control, RH |
| 69714 | Link, Rear Door Lock Remote Control, LH |
| 69727 | Protector, Rear Door Inside Locking Link, RH |
| 69741C | Knob, Rear Door Lock Control |
| 69742A | Knob, Rear Door Lock Control, LH |
| 69751H | Holder, Rear Door Lock Contral Knob |
| 69751L | Holder, Rear Door Lock Control Knob, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
