Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

207 part groups · 11 illustrations

Illustrations

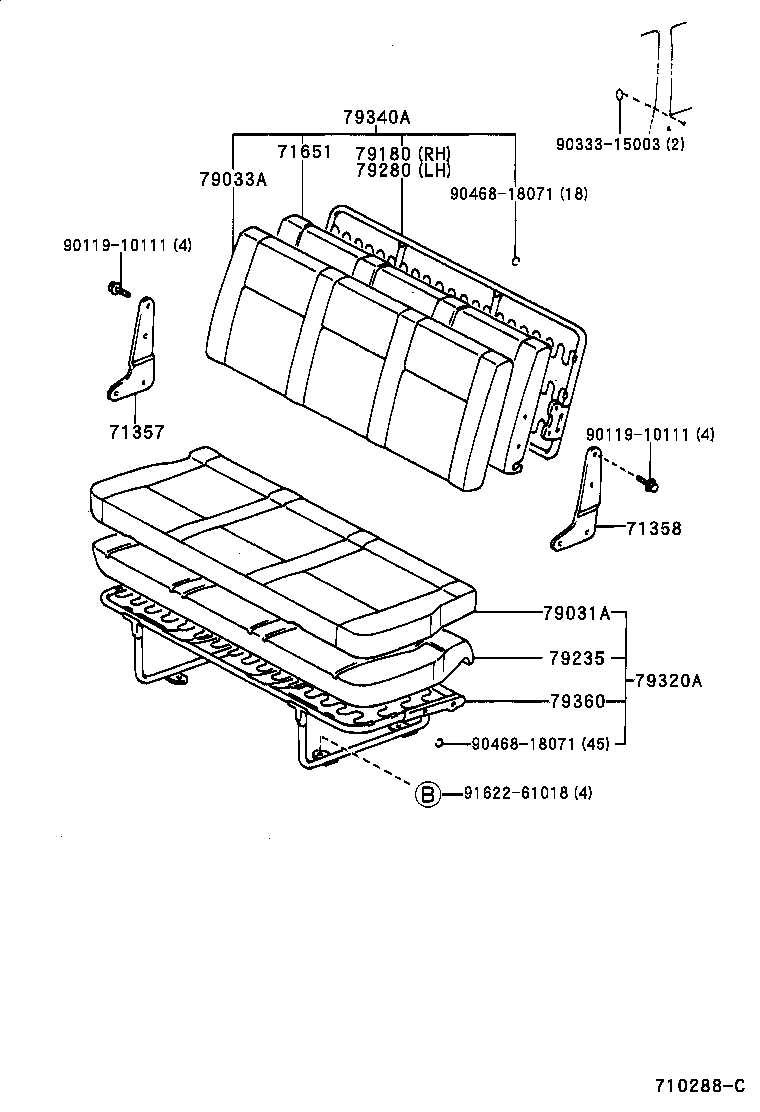

710288C 1996-11 → 2001-12

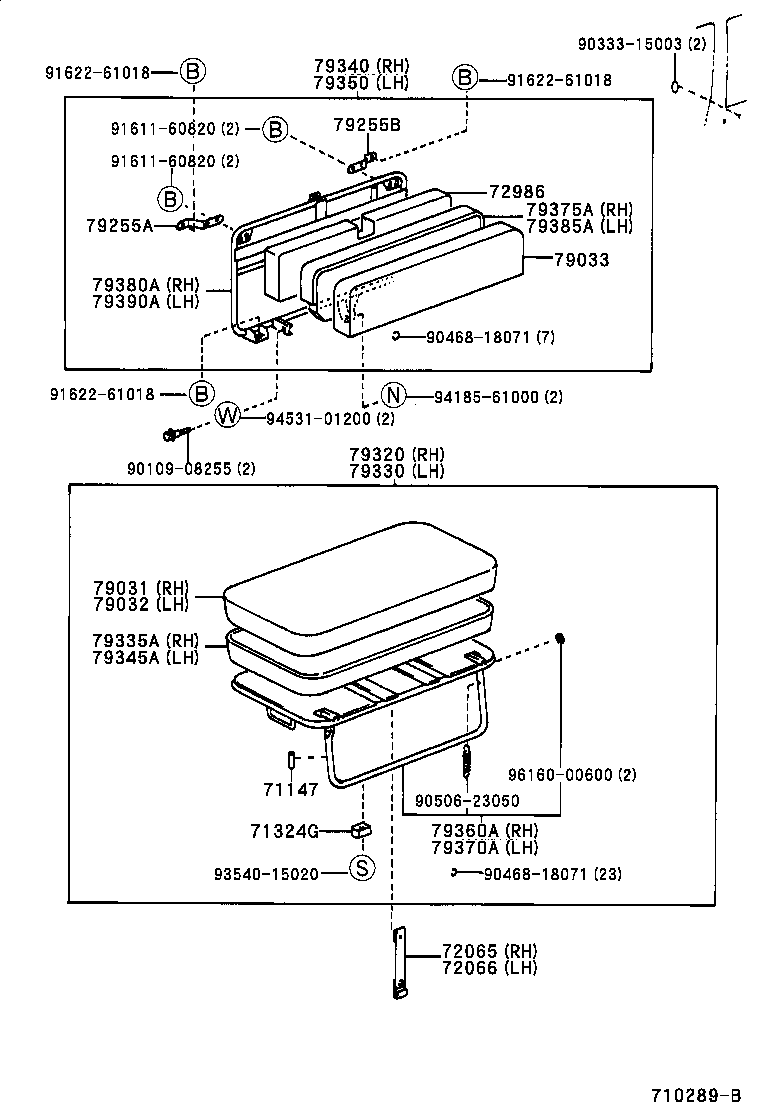

710289B 1996-11 → 2001-12

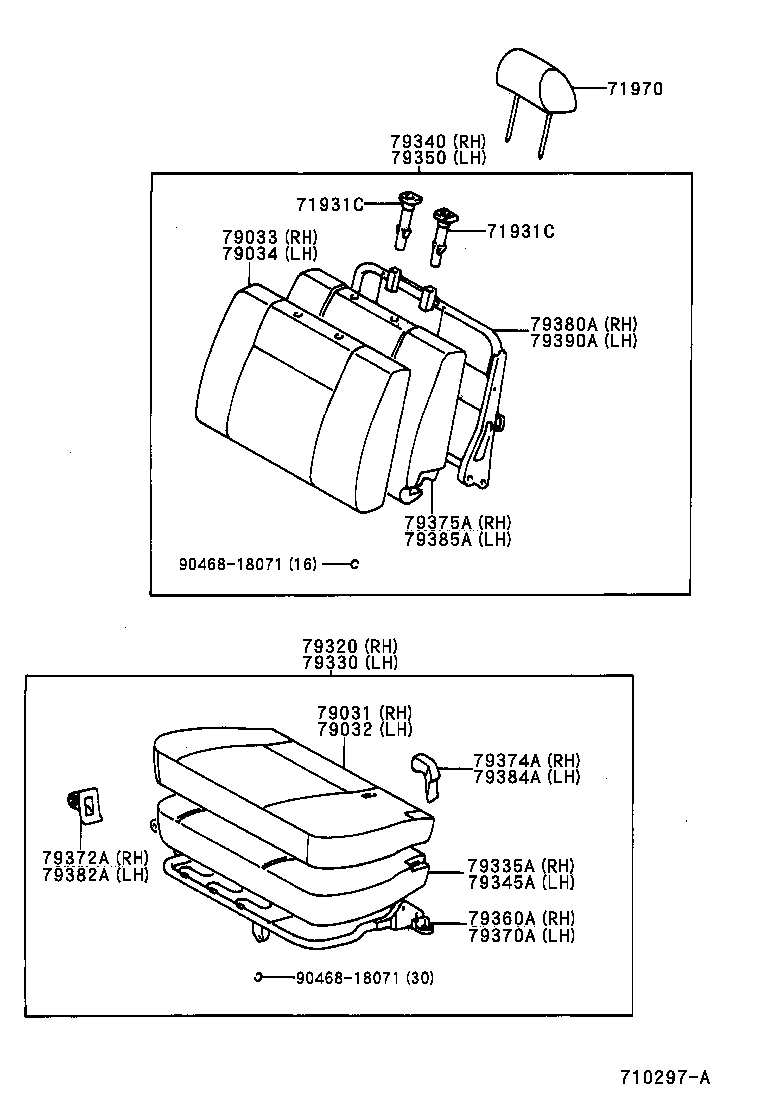

710297A 1996-11 → —

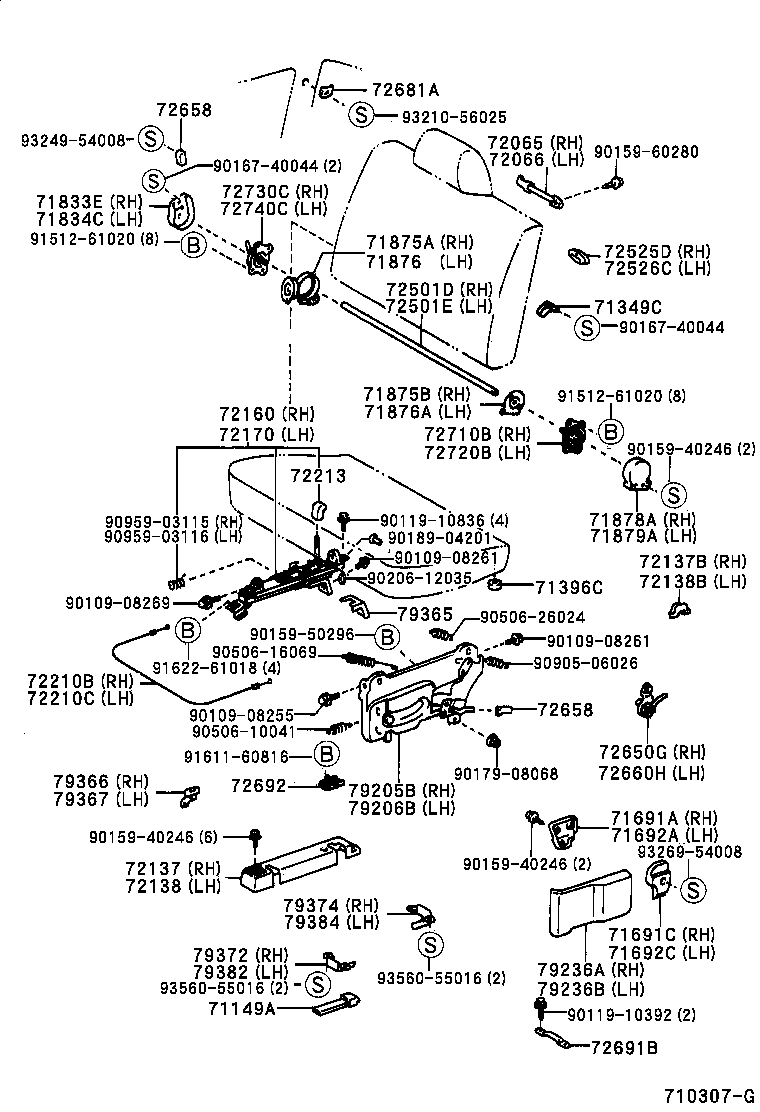

710307G 1996-10 → —

Part groups

PNC	Description
55560D	Lock Assy, Seat Under Tray
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71033	Leg Sub-assy, Rear Seat Cushion
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71104A	Hinge, Front Sub Seat
71108B	Leg Sub-assy, Front Seat, RH
71109B	Leg Sub-assy, Front Seat, LH
71139A	Cover, Front Seat Leg, NO.1
71139C	Cover, Front Seat Leg, RH
71147	Silencer, Seat Spring
71149A	Cover, Front Seat Leg, LH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71324A	Cushion, Rear Seat
71324G	Cushion, Rear NO.2 Seat
71349C	Cover, Rear Seatback Hinge
71357	Plate, Rear Seatback Hinge, Outer LH
71358	Pad, Center Seatback
71373B	Cover, Front Seatback Lock
71396C	Cushion, NO.2 Seat Support, Rear
71409	Stopper Sub-assy, Rear Seatback
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611B	Pad, Rear NO.1 Seat Cushion
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71651	Pad, Rear NO.1 Seatback
71691A	Cover, Rear NO.3 Seat Lock, RH
71691C	Cover, Rear Seat Lock, Inner RH
71692A	Cover, Rear NO.3 Seat Lock, LH
71692C	Cover, Rear Seat Lock, Inner LH
71750A	Tray Assy, Front Seat Under
71769	Cover, Front Seat Under Tray Bracket
71778	Cover, Rear Seat Side Hinge Male, RH
71779	Cover, Rear Seat Side Hinge Male, LH
71811C	Cover, Reclining Adjuster, RH
71811D	Shield, Front Seat Cushion, RH
71812C	Cover, Reclining Adjuster, LH
71812D	Shield, Front Seat Cushion, LH
71822A	Bracket, Front Seat Shield Set, NO.1 LH
71832D	Cover, Front Seat Hinge, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72065	Belt Sub-assy, Rear Seat Hook, RH
72066	Belt Sub-assy, Rear Seat Hook, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72137	Cover, Seat Track, Outer RH
72137A	Clip (FOR SEAT TRACK COVER)
72137B	Cover, Seat Track, RH
72137D	Cover, Rear Seat Track, RH
72138	Cover, Seat Track, Outer LH
72138B	Cover, Seat Track, LH
72150	Track Assy, Rear Seat, RH
72157	Cover, Seat Track Bracket, Inner
72160	Track Assy, Rear Seat, Outer RH
72160A	Track Assy, Rear Seat, LH
72170	Track Assy, Rear Seat, Outer LH
72210B	Cable Assy, Seat Track Control, RH
72210C	Cable Assy, Seat Track Control, LH
72211	Handle, Seat Track Adjusting
72213	Knob, Seat Track Adjusting Handle
72331A	Board, Assistant Seat, Back
72381	Rod, Reclining Adjuster Equalizing, NO.1
72381A	Rod, Rear Seat Reclining Adjuster Equalizing, LH
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72510E	Lock Assy, Front Seatback
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72526	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72553	Cover, Reclining Pedal
72630B	Adjuster Assy, Rear NO.1 Seat, Inner RH
72640B	Adjuster Assy, Rear NO.1 Seat, Inner LH
72650G	Lock Assy, Rear NO.2 Seat, RH
72658	Knob, Rear Seat Handle
72660H	Lock Assy, Rear NO.2 Seat, LH
72670B	Lock Assy, Rear Seat Cushion, RH
72680B	Lock Assy, Rear Seat Cushion, LH
72681A	Hook, Rear Seat
72687A	Holder, Rear Seatback Lock
72691B	Striker, Rear Seat Cushion Lock
72692	Striker, Rear Seat Cushion Lock, NO.2
72710B	Adjuster Assy, Rear Seatback, Inner RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72986	Slipper, Rear Seatback
73515	Rail, Front Seat Under Tray, NO.1
78072	Cover Sub-assy, Sub Seat Cushion, LH
78074	Cover Sub-assy, Sub Seatback, LH
78702	Frame Sub-assy, Sub Seat Cushion, LH
78703	Frame Sub-assy, Sub Seatback
78727	Board, Sub Seat Cushion
78730	Cushion Assy, Sub Seat, LH
78735	Pad, Sub Seat Cushion
78750A	Back Assy, Sub Seat, LH
78775	Pad, Sub Seatback
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79011A	Cover Sub-assy, NO.1 Seat Cushion
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79014	Cover Sub-assy, NO.1 Seatback, LH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79031A	Cover Sub-assy, NO.3 Seat Cushion
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79033A	Cover Sub-assy, NO.3 Seatback
79034	Cover Sub-assy, NO.3 Seatback, LH
79120	Cushion Assy, NO.1 Seat, RH
79120A	Cushion Assy, NO.1 Seat
79130	Cushion Assy, NO.1 Seat, LH
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79140	Back Assy, NO.1 Seat, RH
79140A	Back Assy, NO.1 Seat
79150	Back Assy, NO.1 Seat, LH
79160	Spring Assy, NO.1 Seat Cushion
79160A	Spring Assy, NO.1 Seat Cushion, RH
79170A	Spring Assy, NO.1 Seat Cusuion, LH
79175E	Pad, NO.1 Seatback, RH
79180	Spring Assy, NO.1 Seatback
79180A	Spring Assy, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79190A	Spring Assy, NO.1 Seatback, LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79235	Pad, NO.2 Seat Cushion
79236A	Cover, NO.2 Seat Leg
79236B	Cover, NO.2 Seat Leg, LH
79255A	Plate, NO.2 Seatback, Front
79255B	Plate, NO.2 Seatback, Rear
79280	Spring Assy, NO.2 Seatback
79320	Cushion Assy, NO.3 Seat, RH
79320A	Cushion Assy, NO.3 Seat
79330	Cushion Assy, NO.3 Seat, LH
79335A	Pad, NO.3 Seat Cushion, RH
79340	Back Assy, NO.3 Seat, RH
79340A	Back Assy, NO.3 Seat
79345A	Pad, NO.3 Seat Cushion, LH
79350	Back Assy, NO.3 Seat, LH
79360	Spring Assy, NO.3 Seat Cushion
79360A	Spring Assy, NO.3 Seat Cushion, RH
79365	Cover, NO.3 Seat Leg Bracket
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79370A	Spring Assy, NO.3 Seat Cushion, LH
79372	Cover, NO.3 Seat Front Bracket, RH
79372A	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79374A	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79380A	Spring Assy, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79382A	Cover, NO.3 Seat Front Bracket, LH
79384	Cover, NO.3 Seat Leg, Rear LH
79384A	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79390A	Spring Assy, NO.3 Seatback, LH
79955A	Cover, Rear Seat Front Bracket, RH
79956A	Clip (FOR REAR SEAT LEG BRACKET COVER)
79957A	Cover, Rear Seat Rear Bracket, RH
79958A	Cover, Rear Seat Rear Bracket, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
