Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

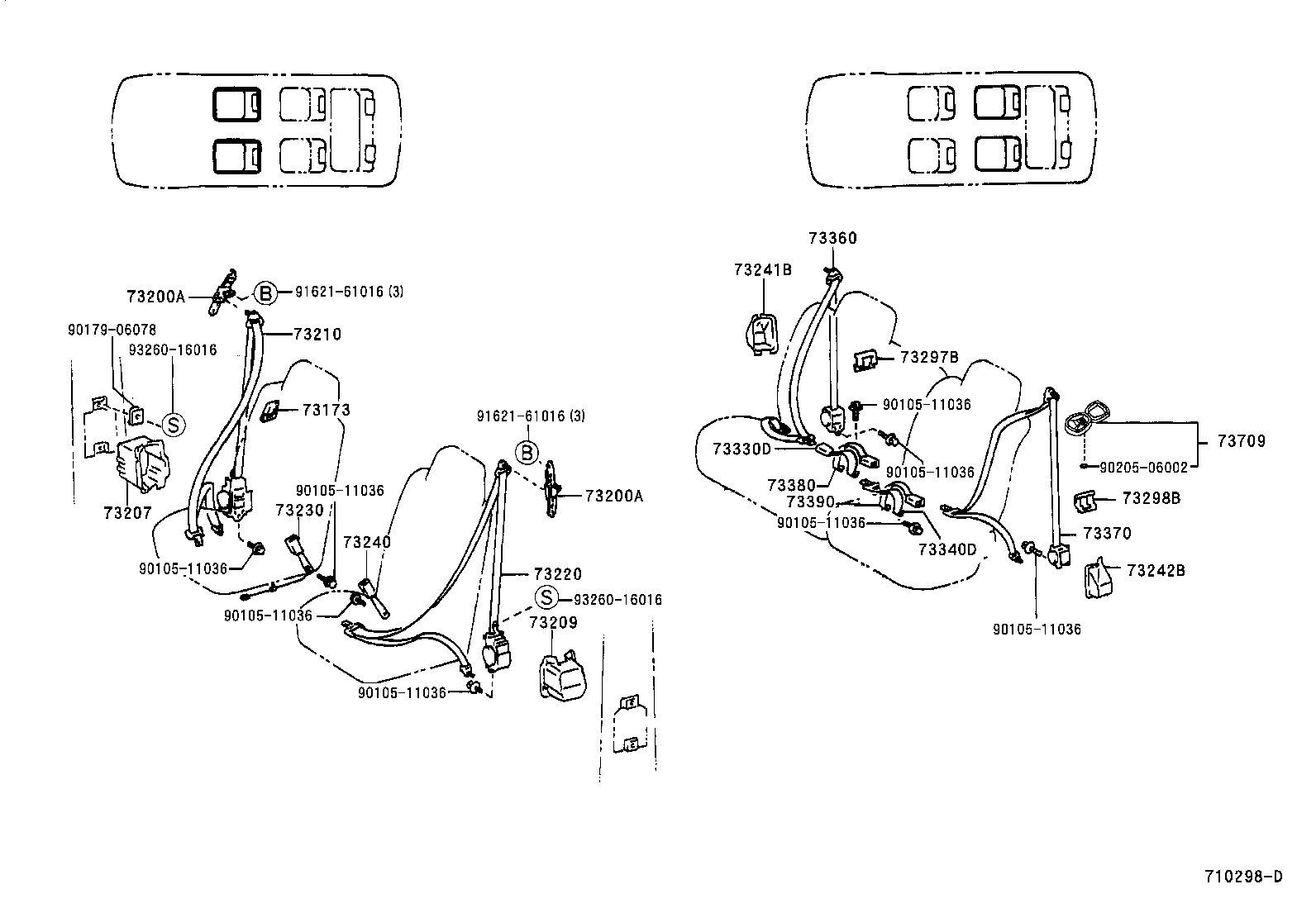

Seat Belt
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73020 | Belt Assy, Front Seat, Center W/Inner |
| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73173 | Cover, Front Seat Belt Hole, RH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73207 | Cover Sub-assy, Seat Belt Retractor, RH |
| 73209 | Cover Sub-assy, Seat Belt Retractor, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73224 | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73241B | Case, Seat Belt Retractor, RH(FOR NO.2 SEAT) |
| 73242B | Case, Seat Belt Retractor, LH(FOR NO.2 SEAT) |
| 73297B | Cover, Quarter Trim Belt Hole, RH |
| 73298 | Cover, Quarter Trim Belt Hole, NO.2 RH |
| 73298B | Cover, Quarter Trim Belt Hole, LH |
| 73299 | Cover, Quarter Trim Belt Hole, NO.2 LH |
| 73330D | Belt Assy, Rear NO.1 Seat Lap Type, Center RH |
| 73340D | Belt Assy, Rear NO.1 Seat Lap Type, Center LH |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73375A | Clip, Rear Seat Belt Cover |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73431A | Cover, Rear Seat Belt Retractor |
| 73530A | Belt Assy, Rear NO.2 Seat Lap Type, RH |
| 73540A | Belt Assy, Rear NO.2 Seat Lap Type, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
| 73709 | Bracket Sub-assy, Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
