Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

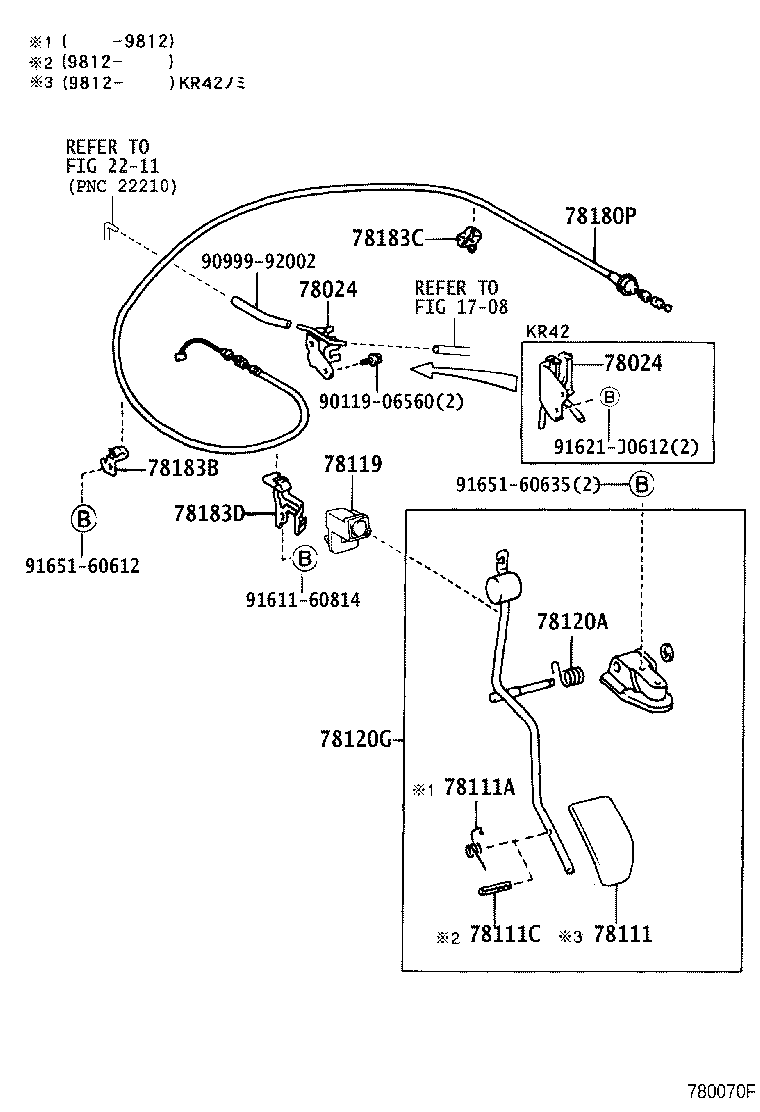

Accelerator Link
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55364B | Bracket, Choke Rod Mounting |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78120A | Spring, Compression (FOR ACCELERATOR LINK ROD) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78183C | Clamp, Accelerator Control Cable |
| 78183D | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78310 | Cable Assy, Choke |
| 78310G | Cover, Choke Rod Spare Switch Hole |
| 78311 | Knob, Choke Control Cable |
| 78311A | Nut, Choke Shaft Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
