Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

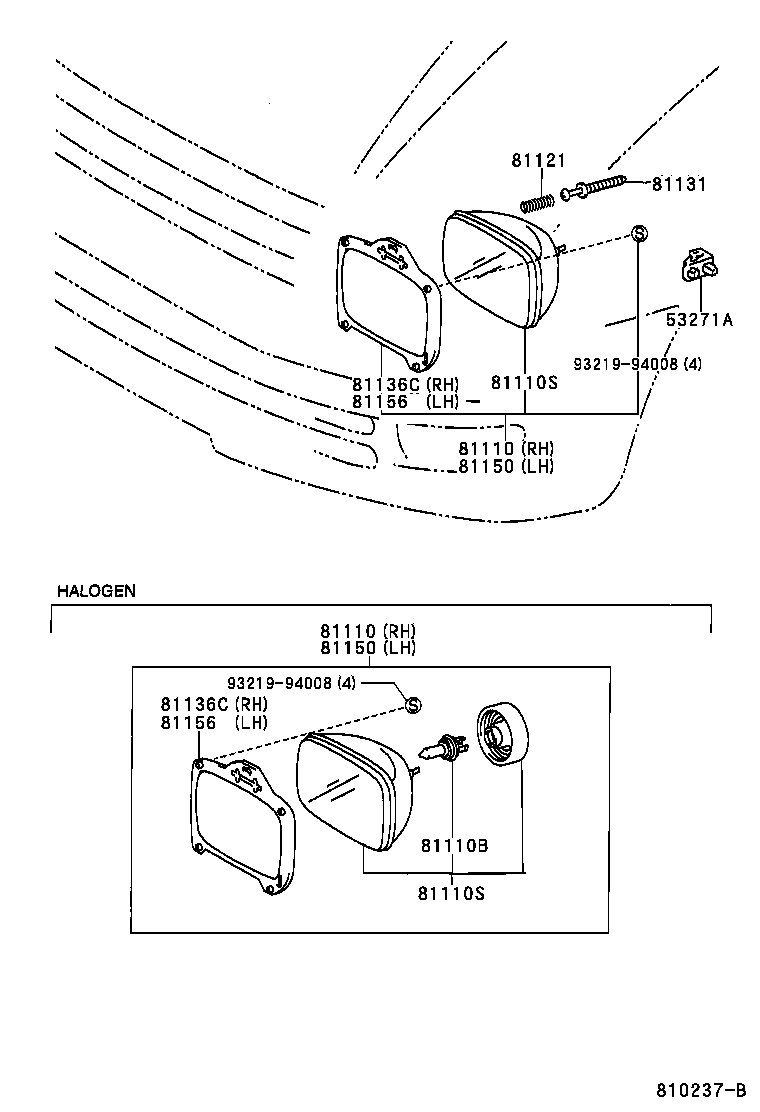

Headlamp
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53271A | Bracket, Headlamp Mounting |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81135 | Unit Assy, Headlamp, RH |
| 81136C | Rim, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81156 | Rim, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
