Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

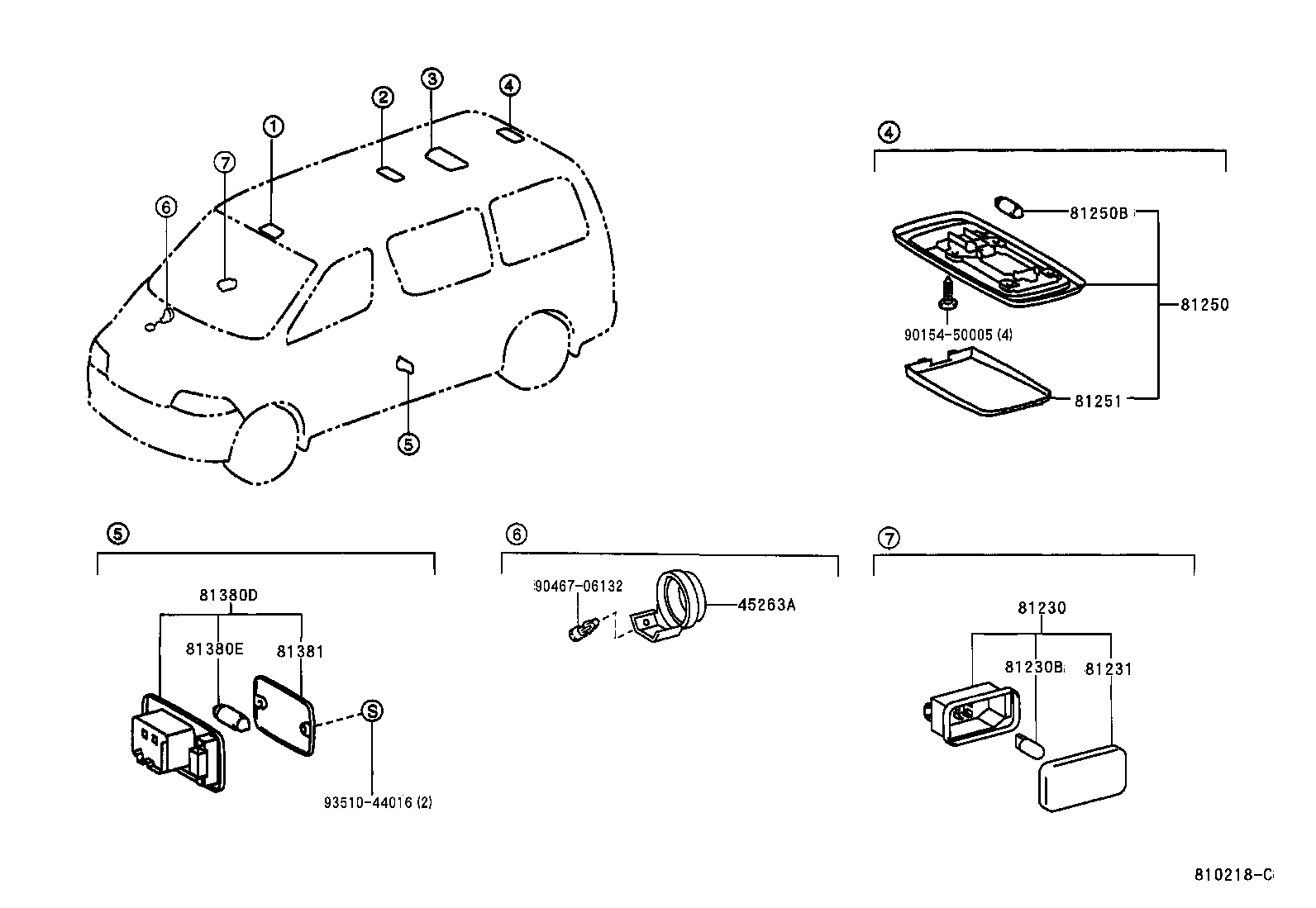

Figure 810217B 810217B 1996-11 → — Figure 810218C 810218C 1996-11 → —

Part groups

PNCDescription
45263A Ring, Steering Column, NO.1
63171C Bracket, Room Lamp
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81231 Lens, Courtesy Lamp
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81243 Body, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81251 Lens, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81261 Lens And Cover, Map Lamp
81380D Lamp Assy, Step
81380E Bulb (FOR STEP LAMP)
81381 Lens, Step Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
