Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 19 illustrations

Illustrations

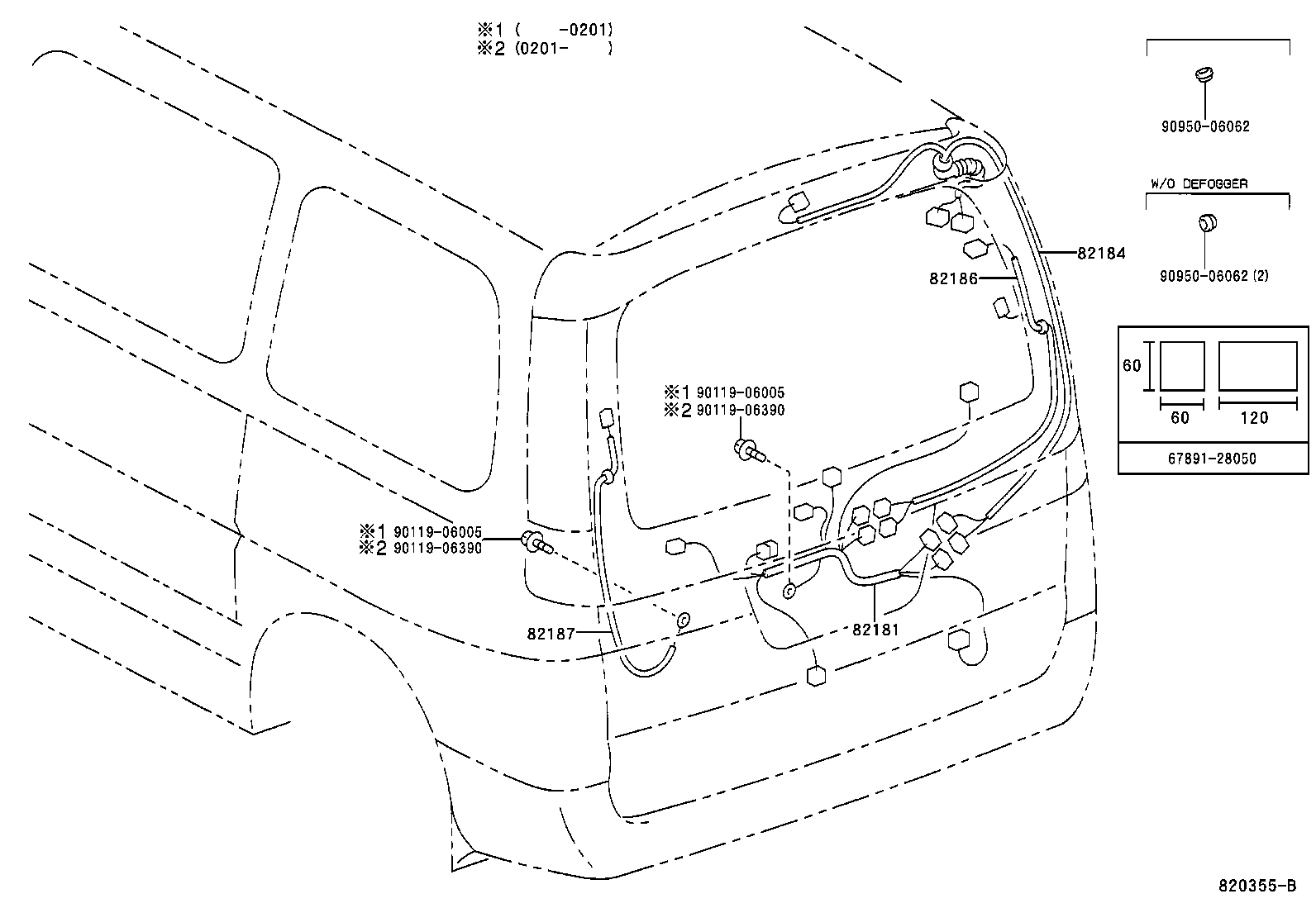

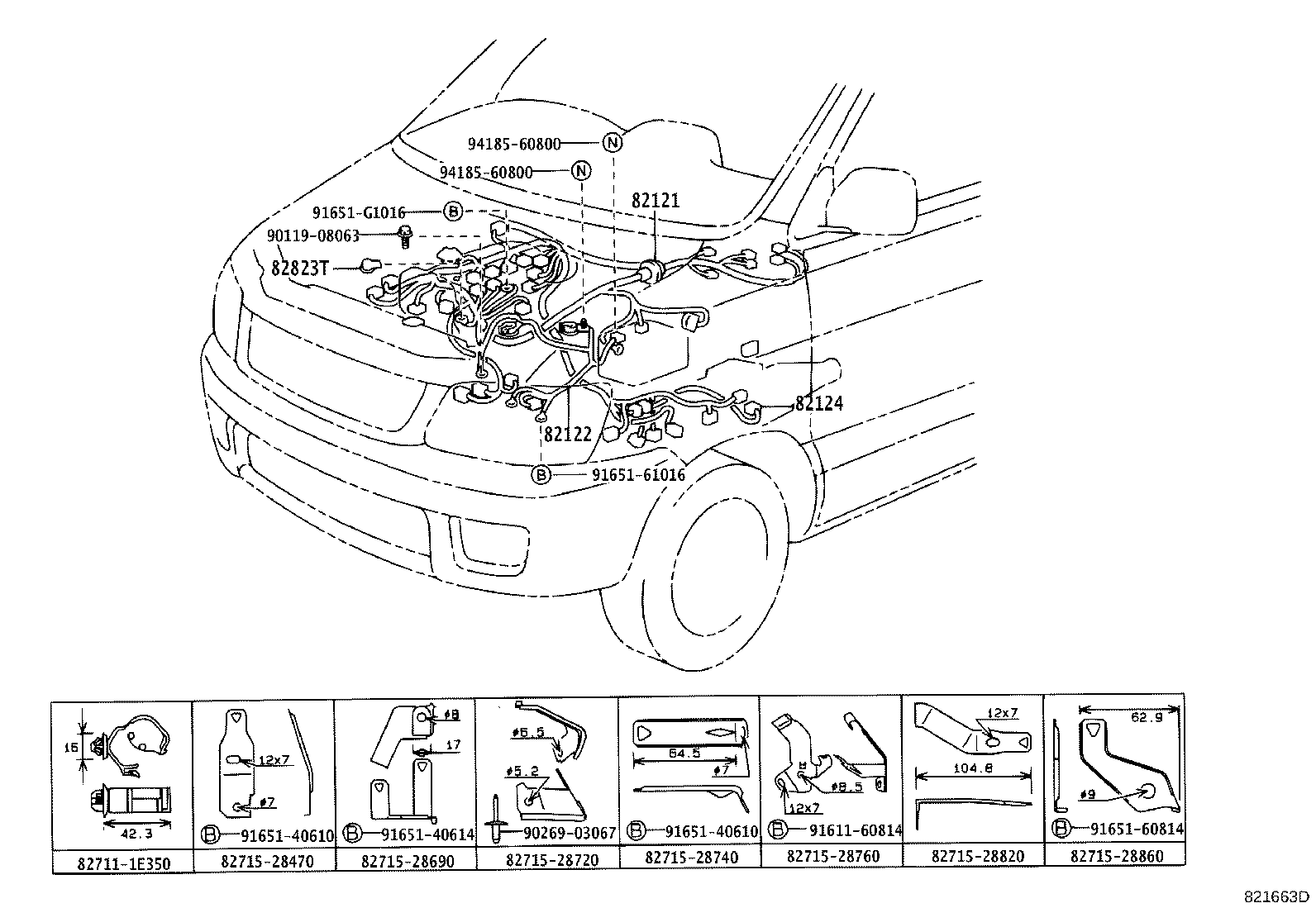

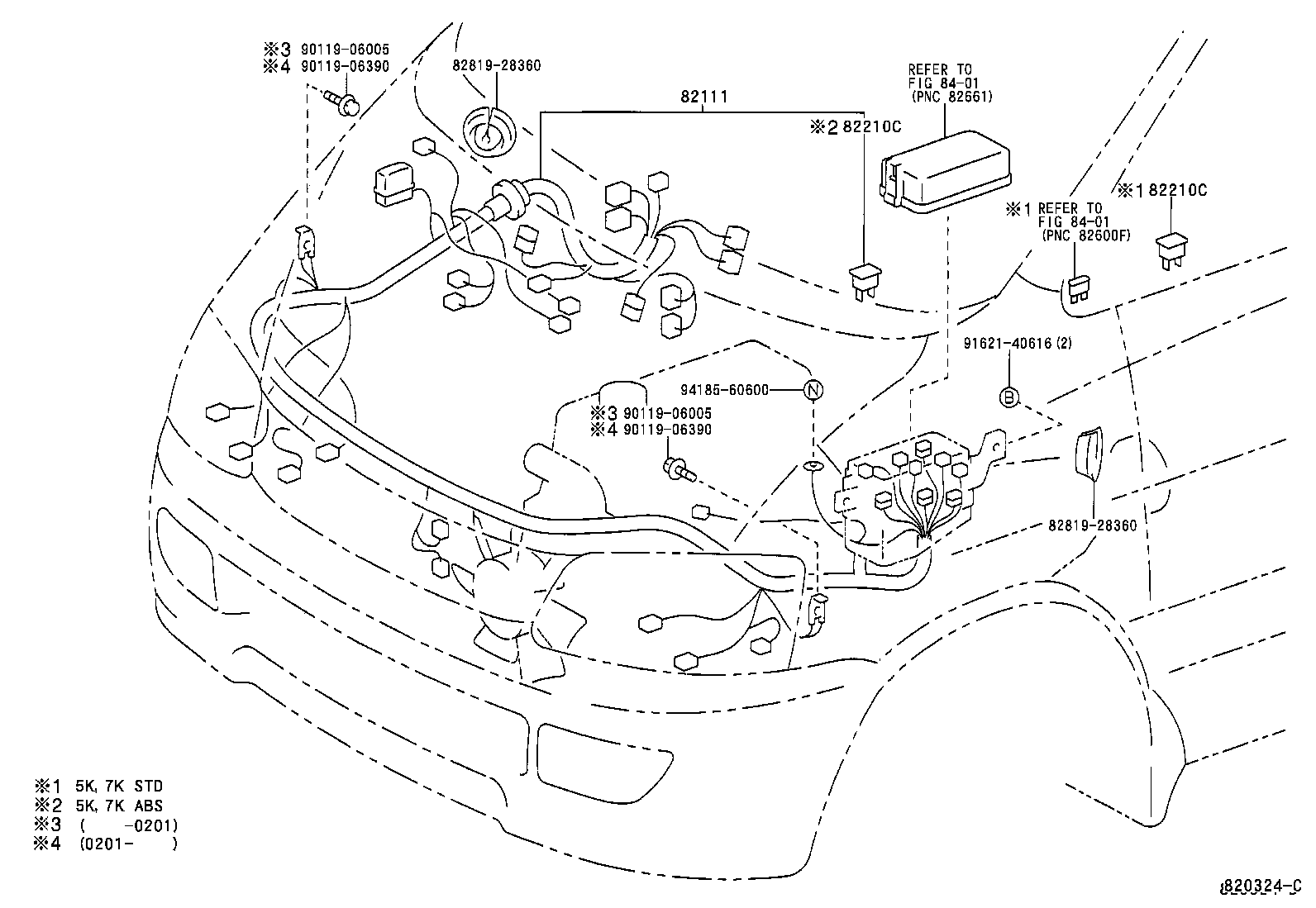

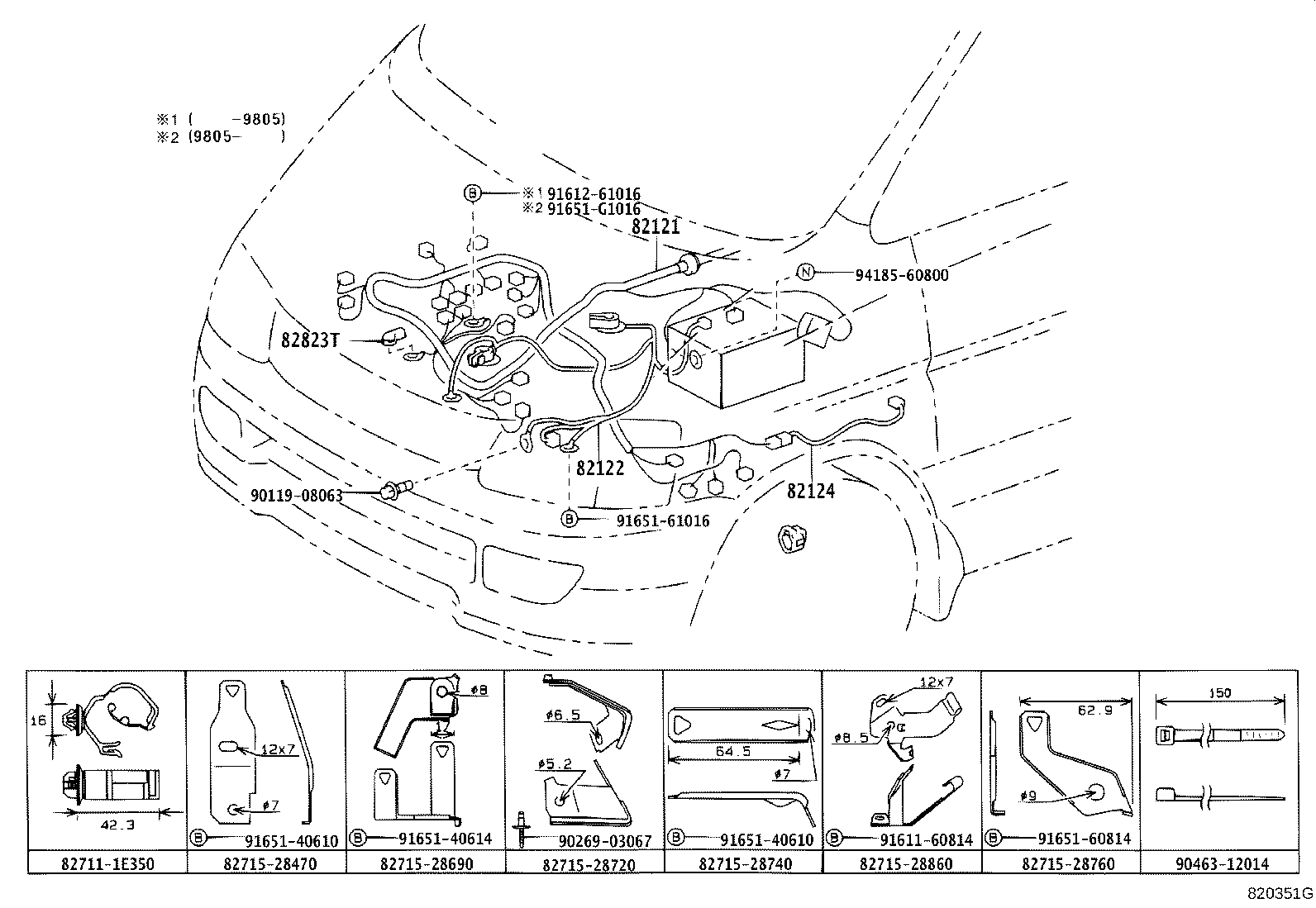

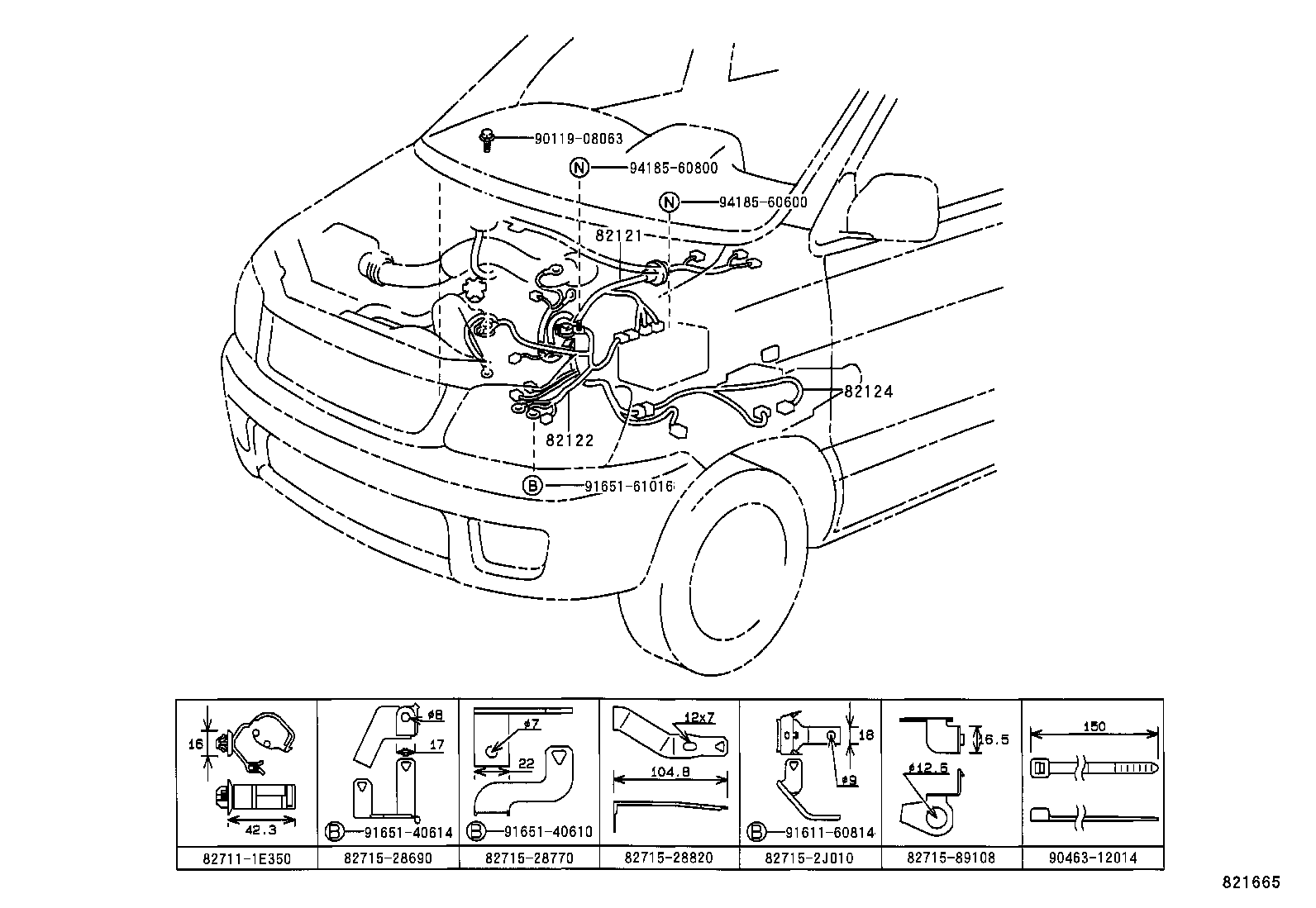

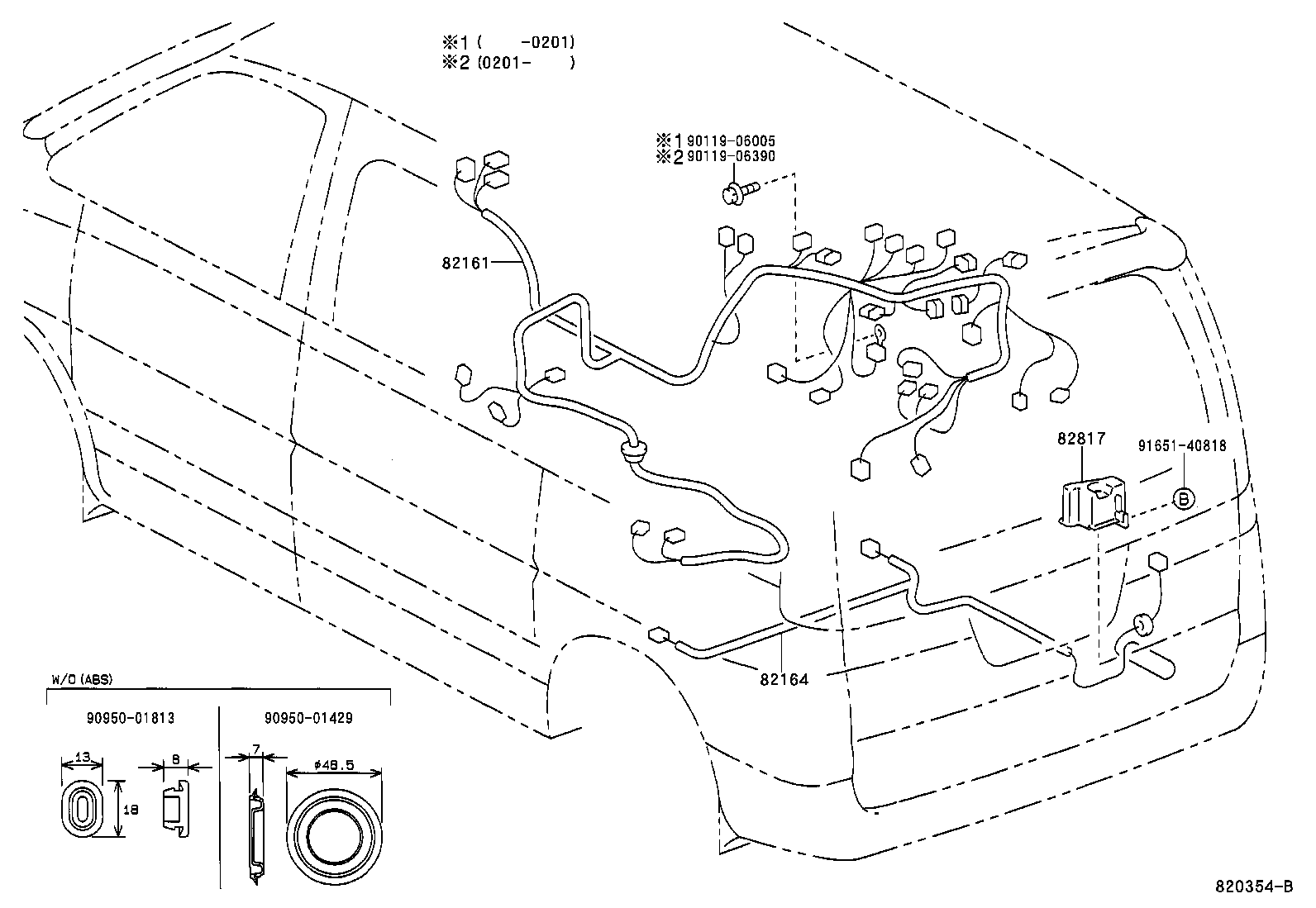

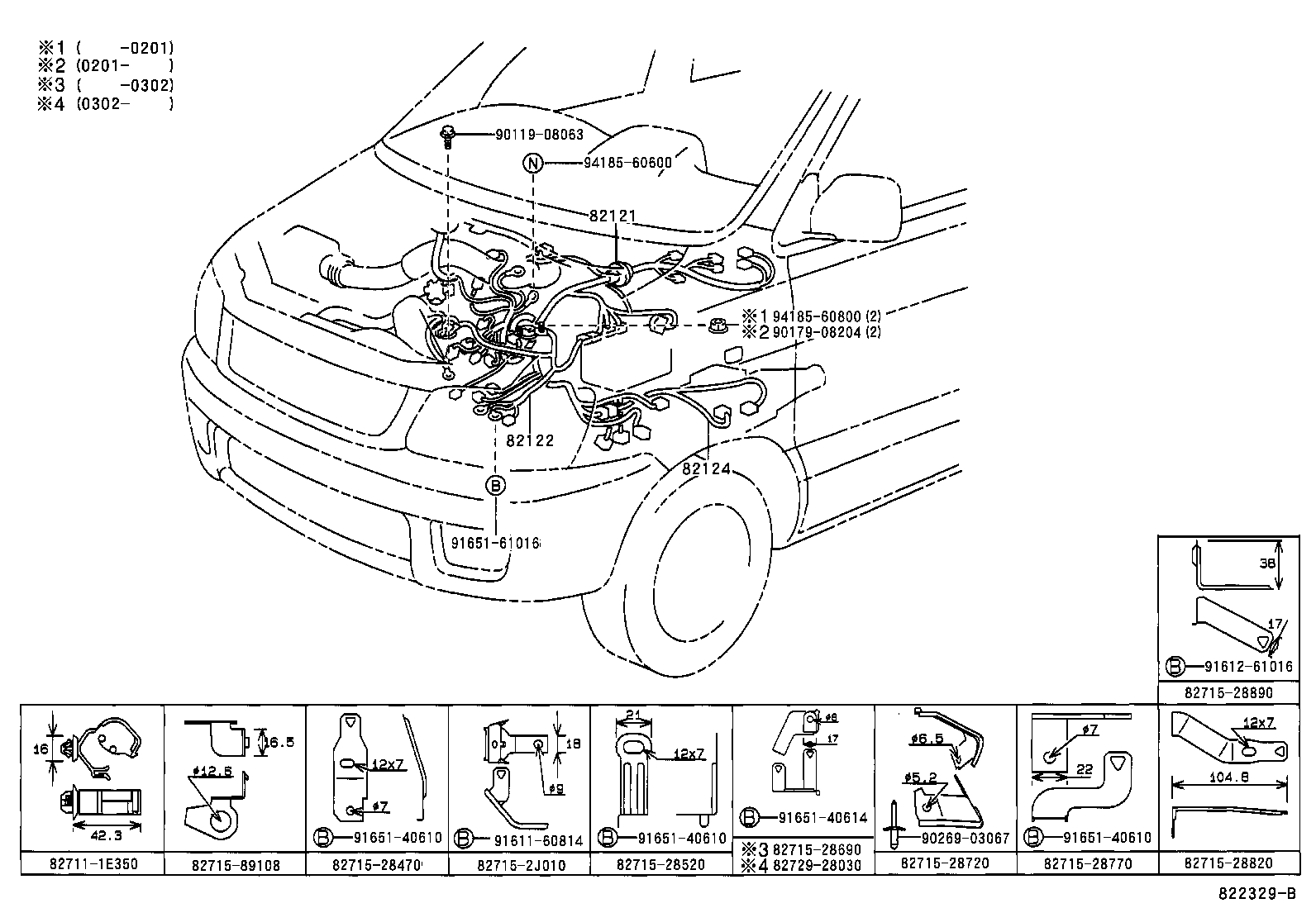

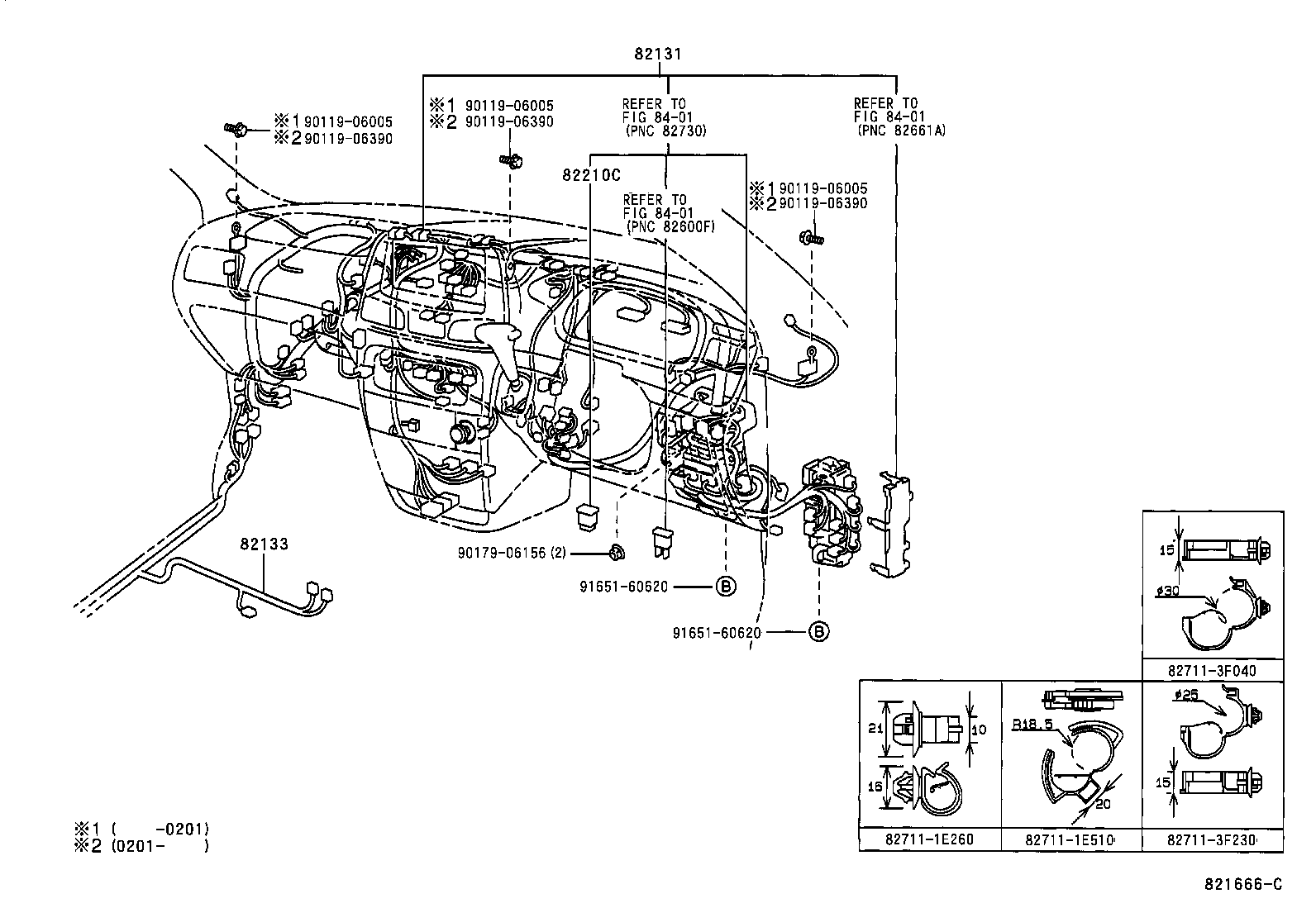

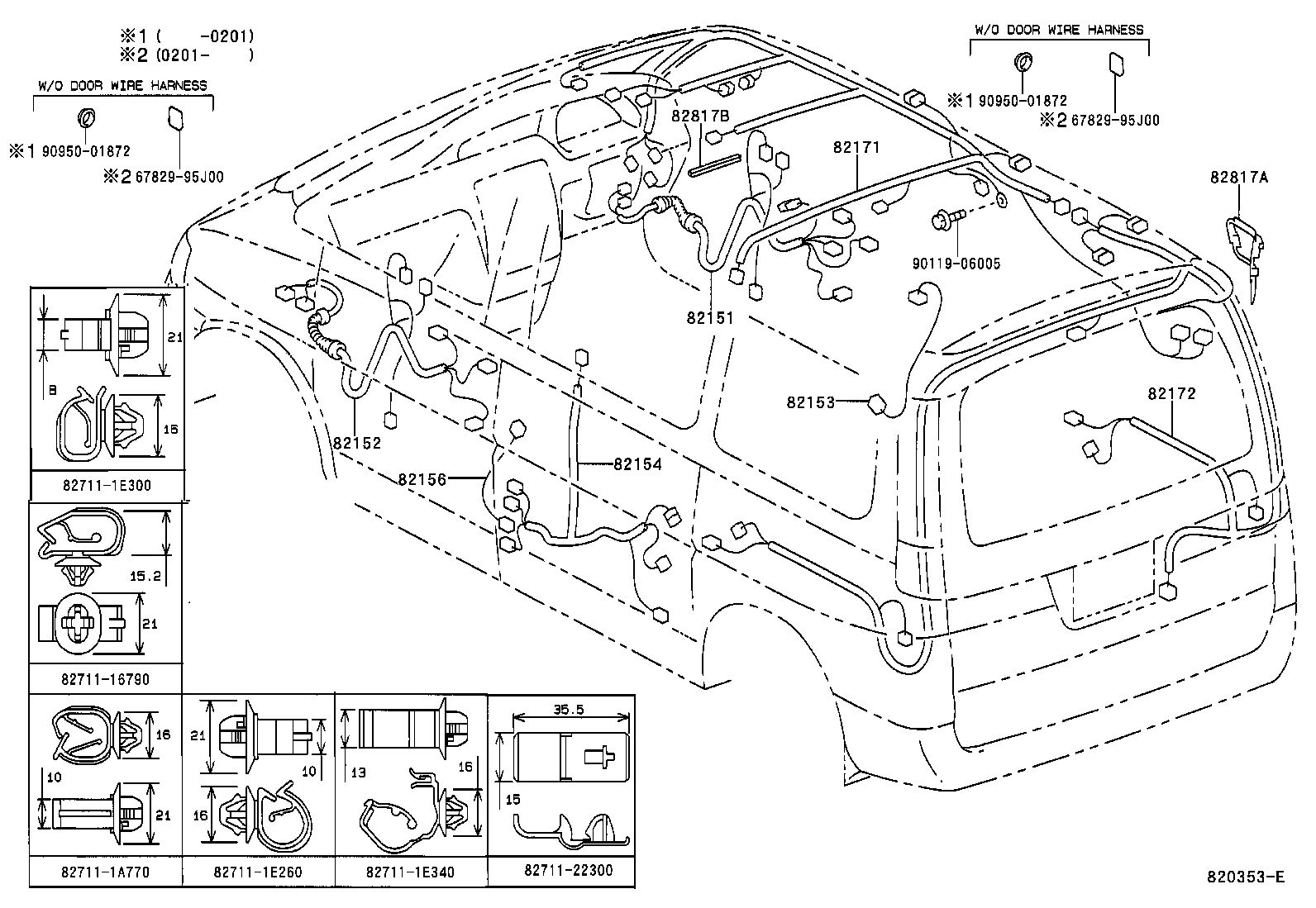

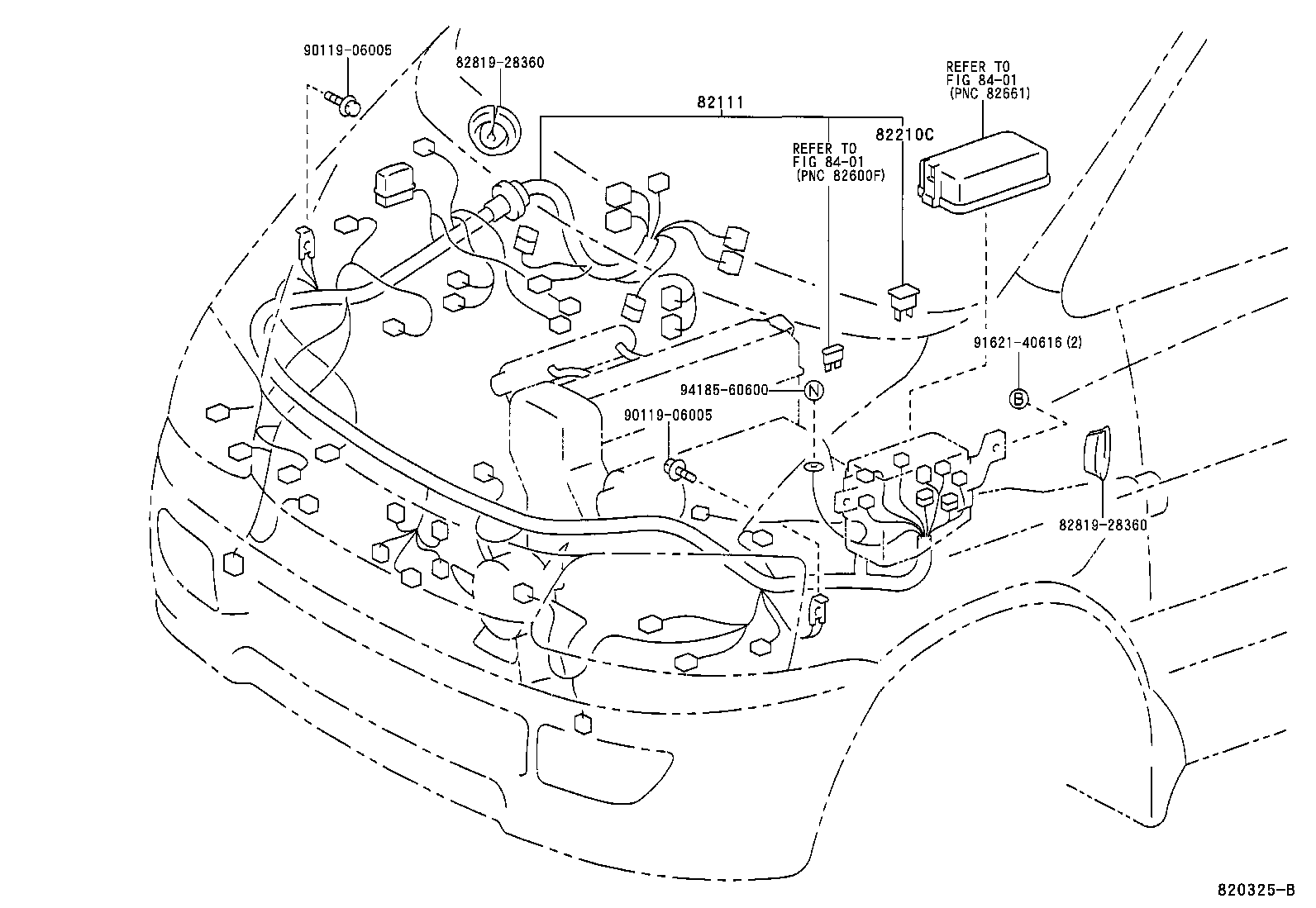

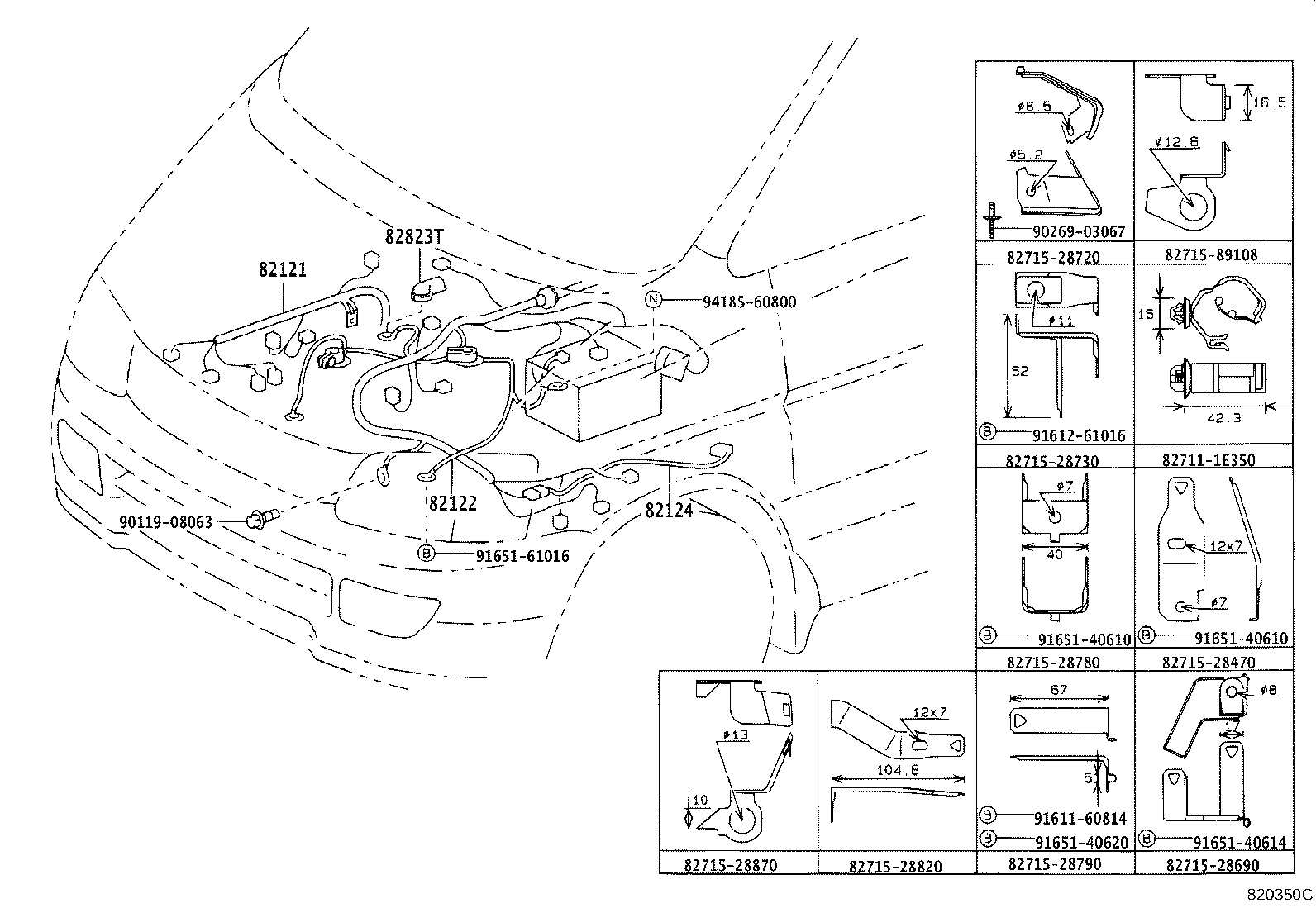

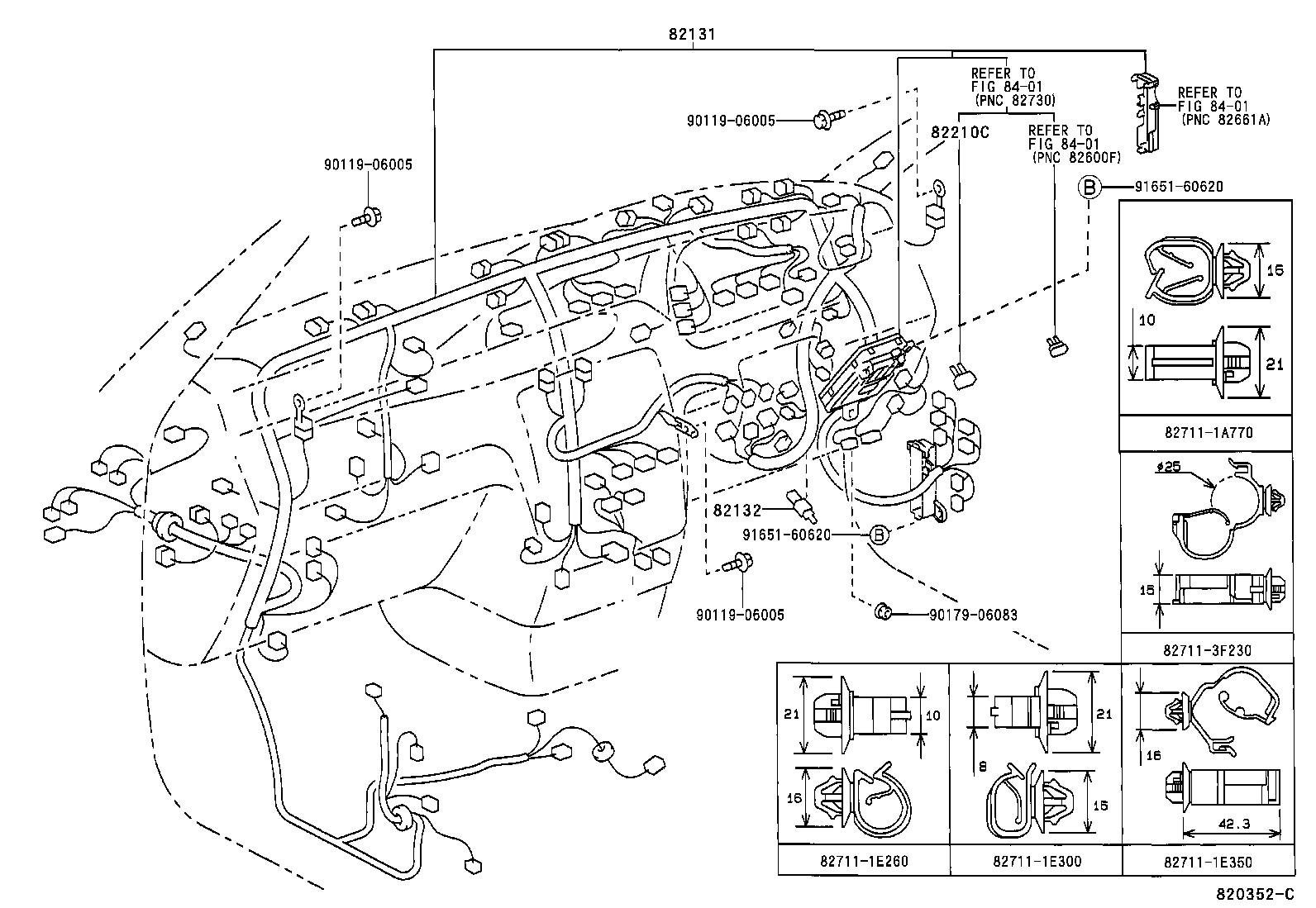

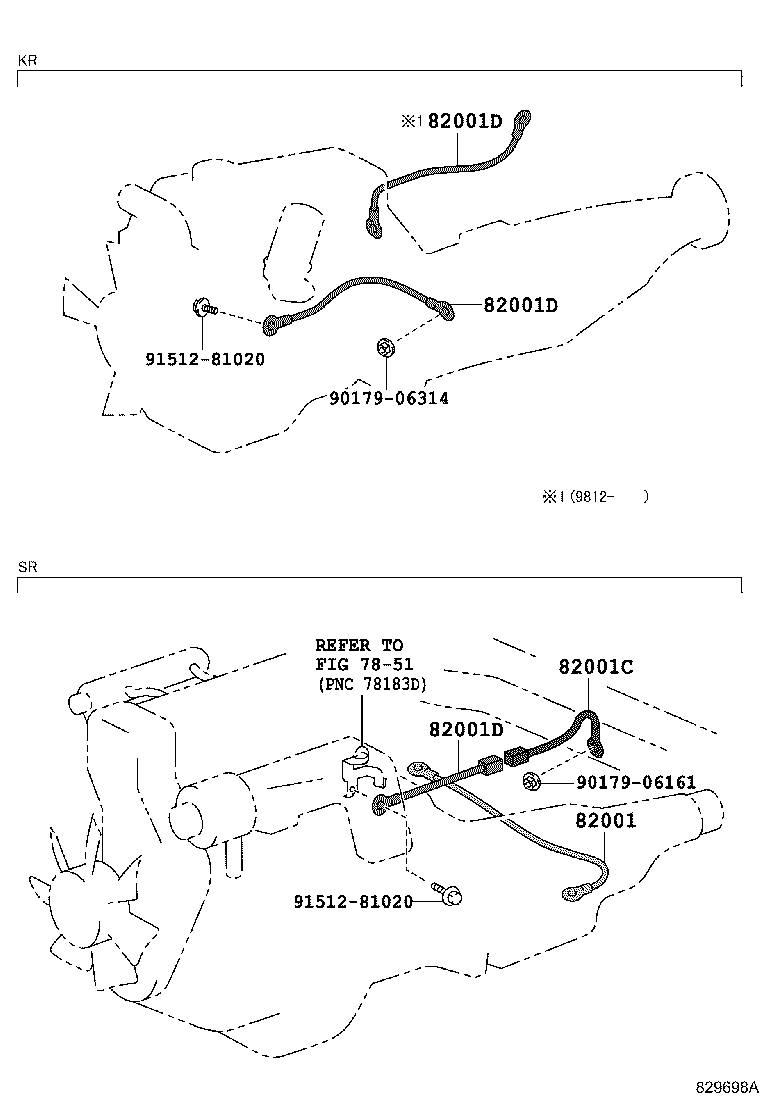

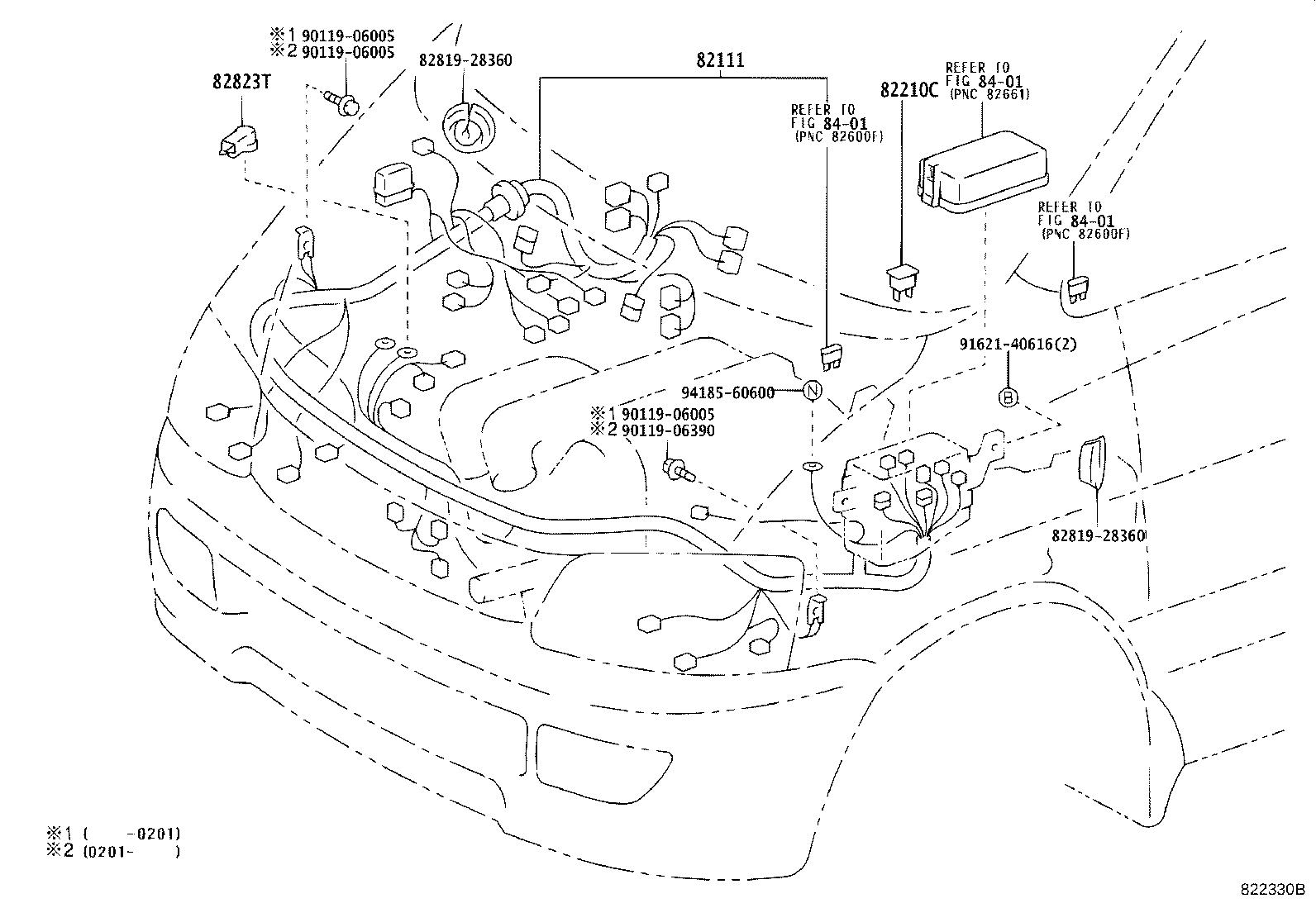

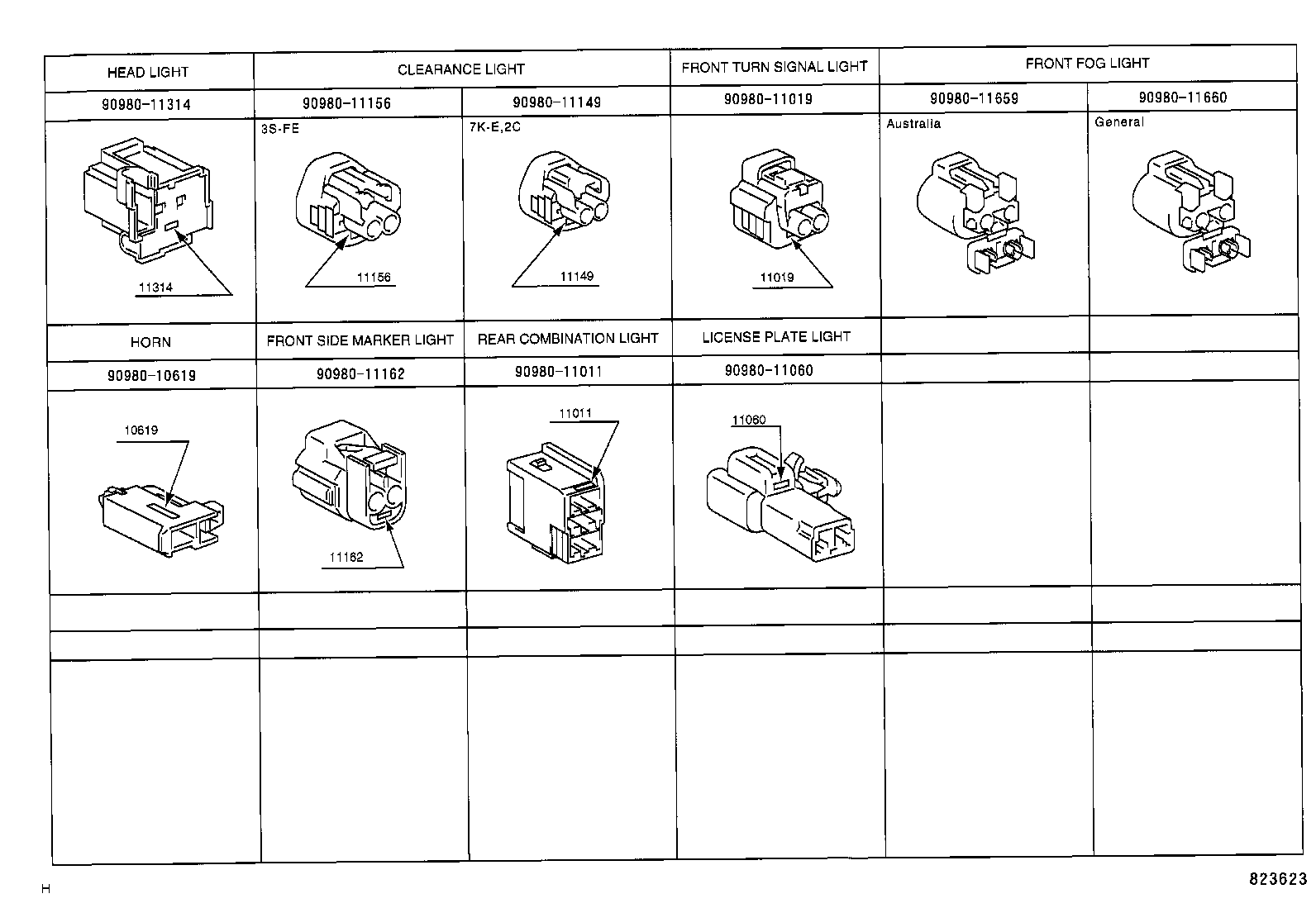

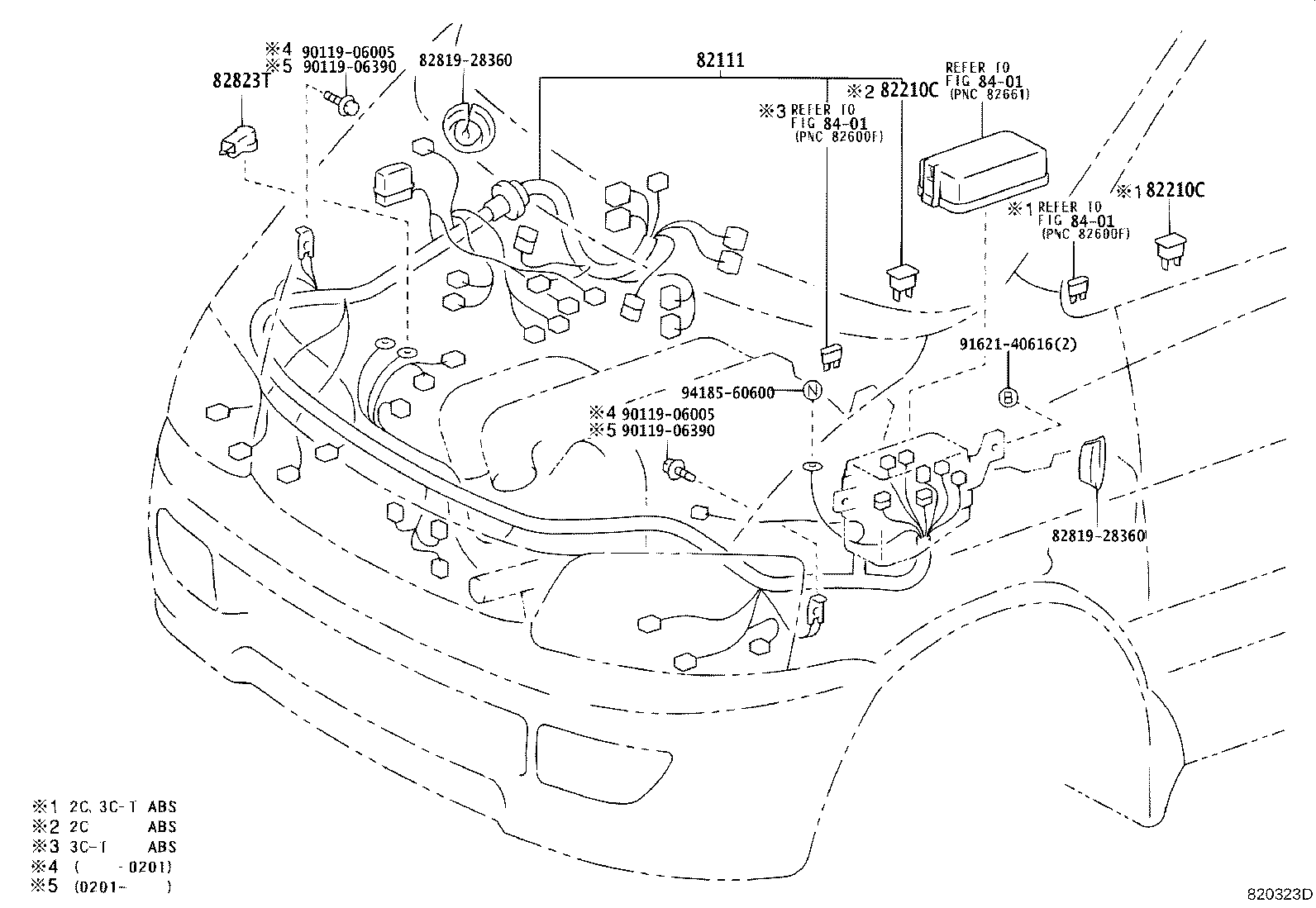

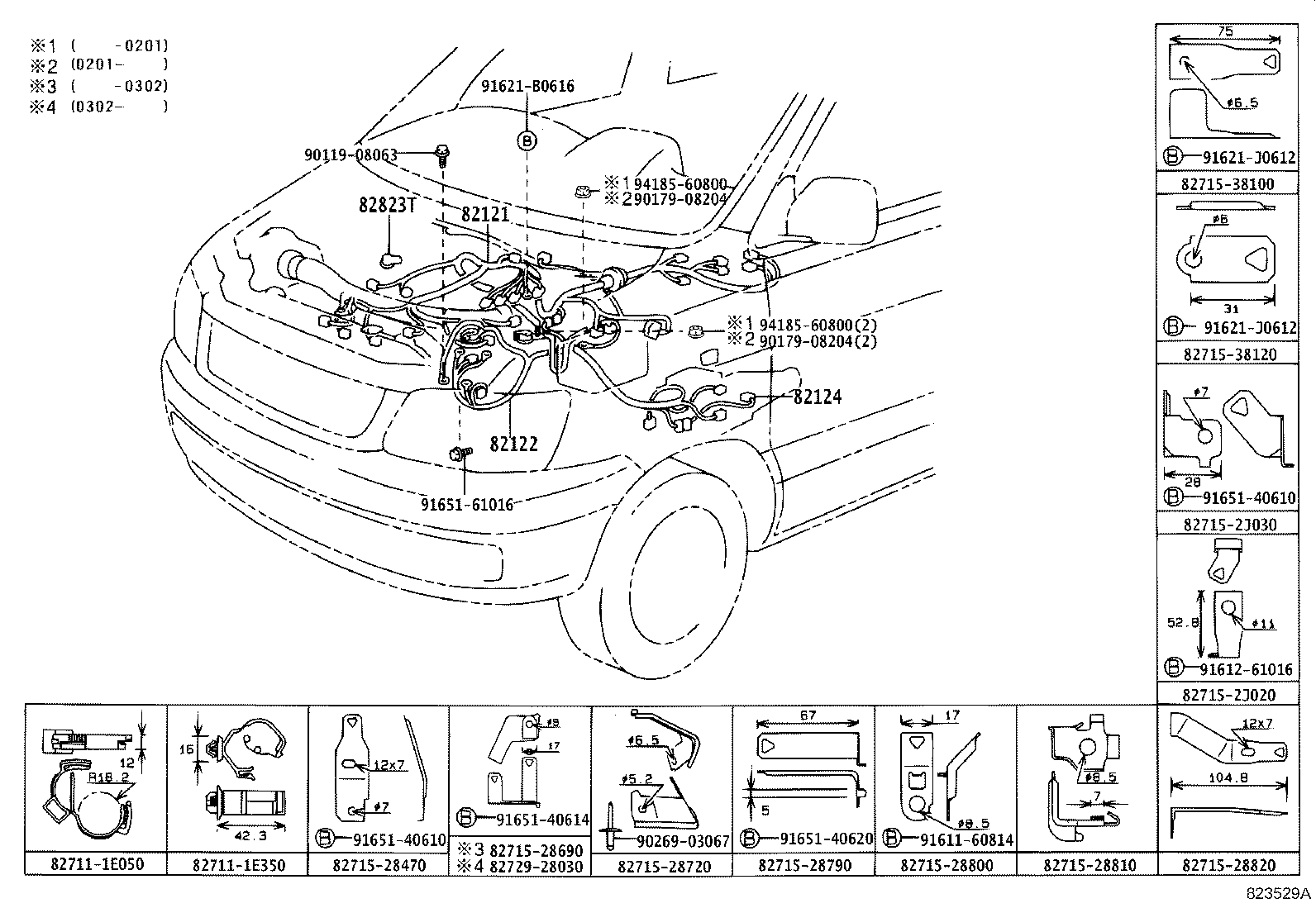

Figure 820349C 820349C 1996-11 → 1998-12 Figure 821665 821665 1998-12 → — Figure 822329B 822329B 2000-08 → — Figure 820350C 820350C 1996-11 → 1998-12 Figure 823529F 823529F 1998-12 → — Figure 820351G 820351G 1996-11 → 1998-12 Figure 821663D 821663D 1998-12 → — Figure 820323D 820323D 1996-11 → — Figure 822330B 822330B 2000-08 → — Figure 820324C 820324C 1996-11 → — Figure 820325B 820325B 1996-11 → — Figure 820326 820326 1996-11 → — Figure 820352C 820352C 1996-11 → 1998-12 Figure 821666C 821666C 1998-12 → — Figure 820353E 820353E 1996-11 → — Figure 820354B 820354B 1996-11 → — Figure 820355B 820355B 1996-11 → — Figure 829698A 829698A 1996-11 → — Figure 823623 823623 1996-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82156 Wire, Slide Door
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
