Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07
Meter
27 part groups · 5 illustrations
Part groups

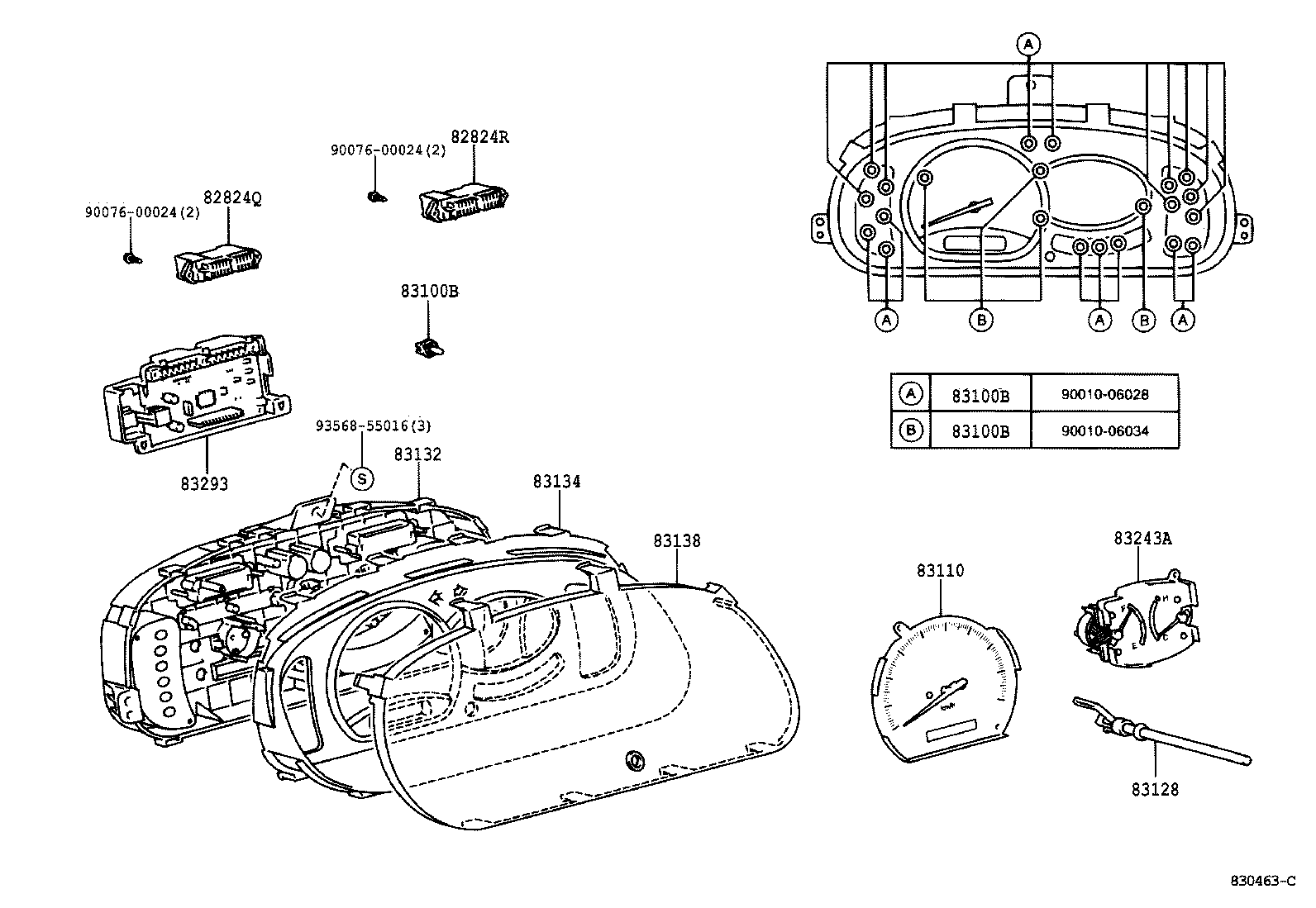

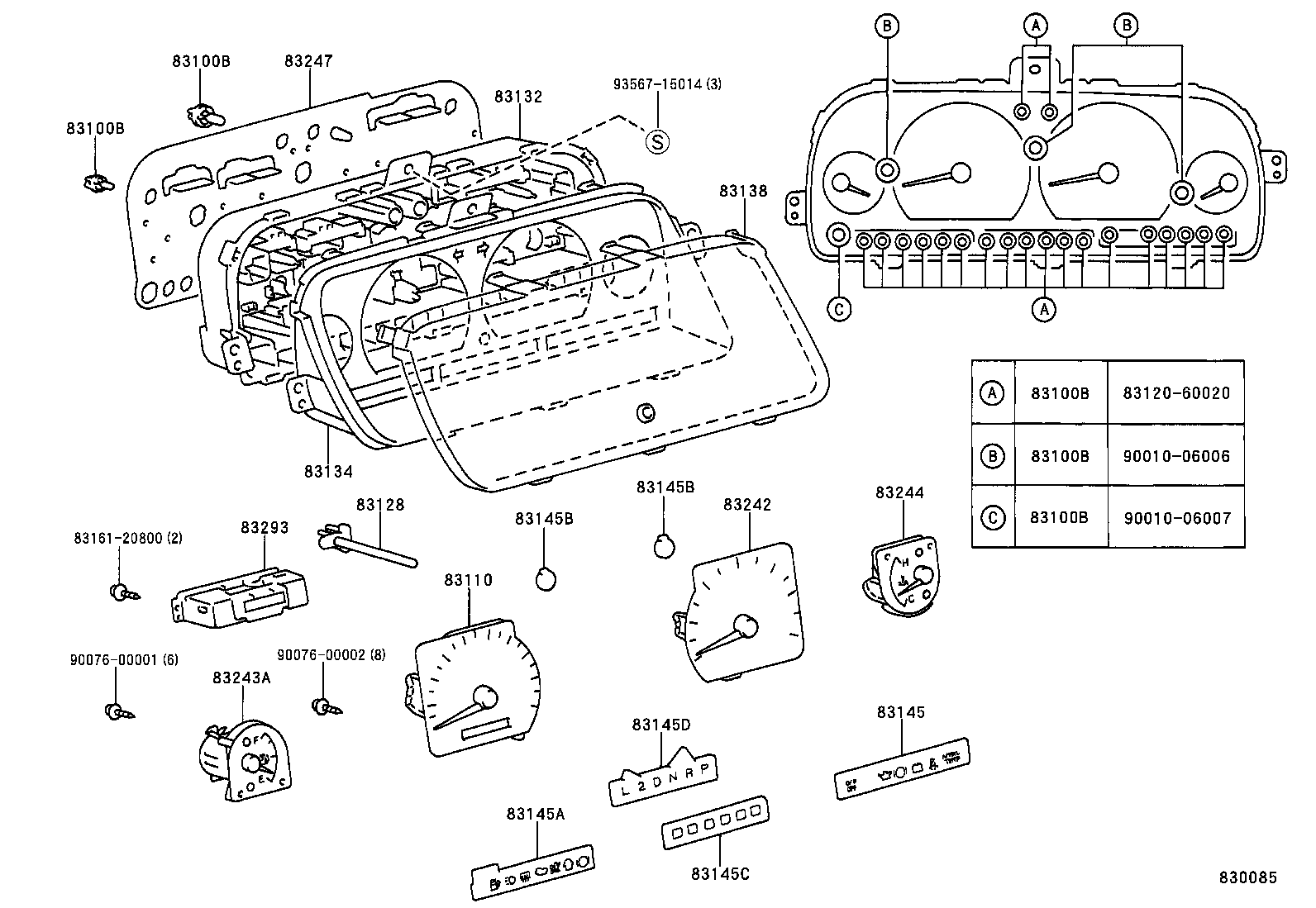

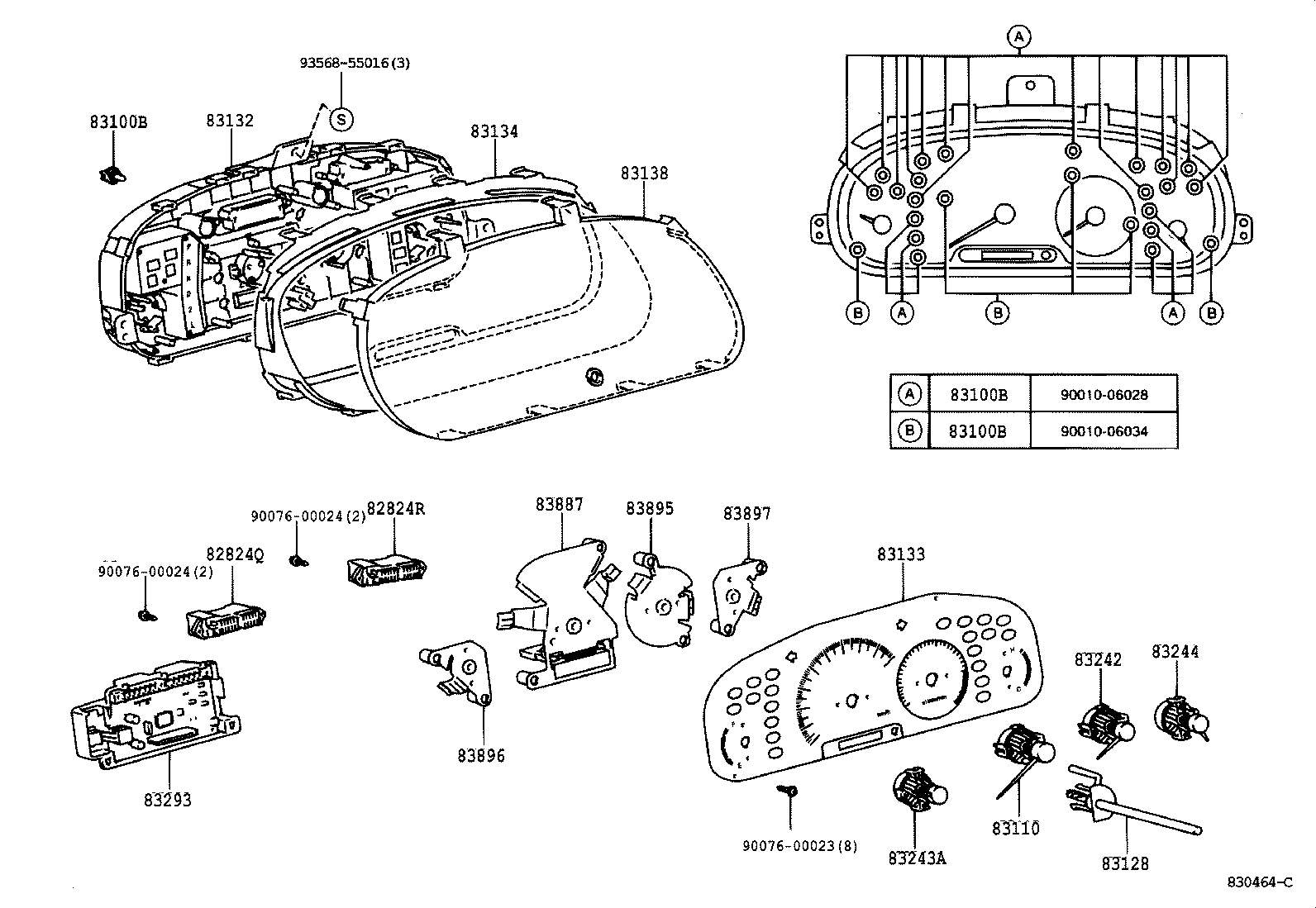

| PNC | Description |
|---|---|
| 82824Q | Connector, Wiring Harness, NO.1(FOR SPEEDOMETER) |
| 82824R | Connector, Wiring Harness, NO.2(FOR SPEEDOMETER) |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83293 | Computer, Total Counter Module |
| 83887 | Plate, Combination Meter Prism, NO.1 |
| 83895 | Plate, Combination Meter Prism, NO.2 |
| 83896 | Plate, Combination Meter Prism, NO.3 |
| 83897 | Plate, Combination Meter Prism, NO.4 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
